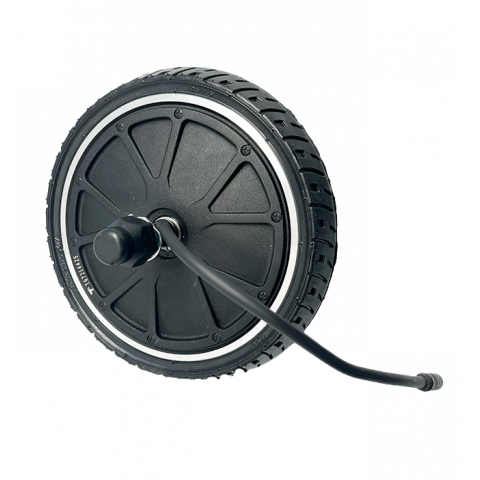

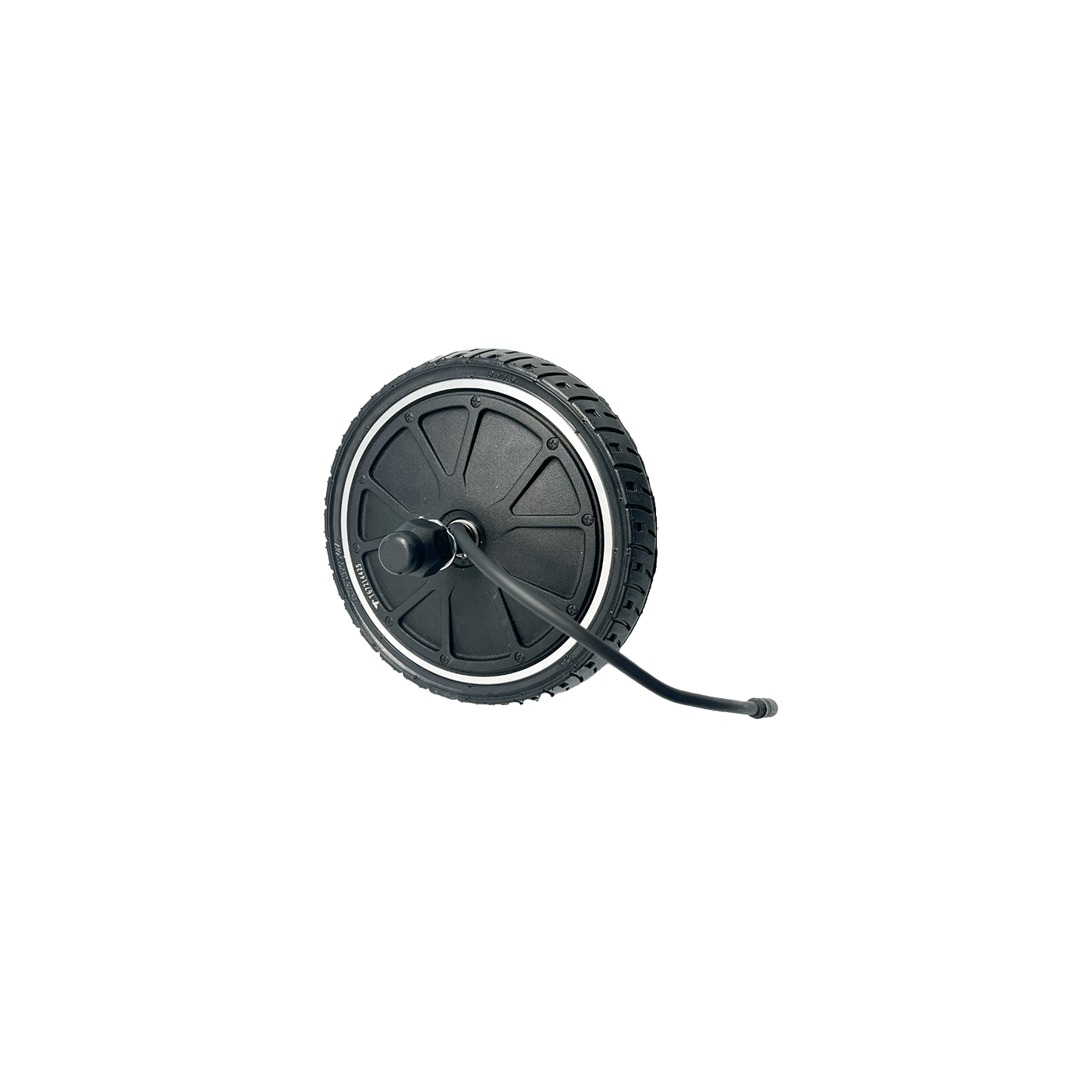

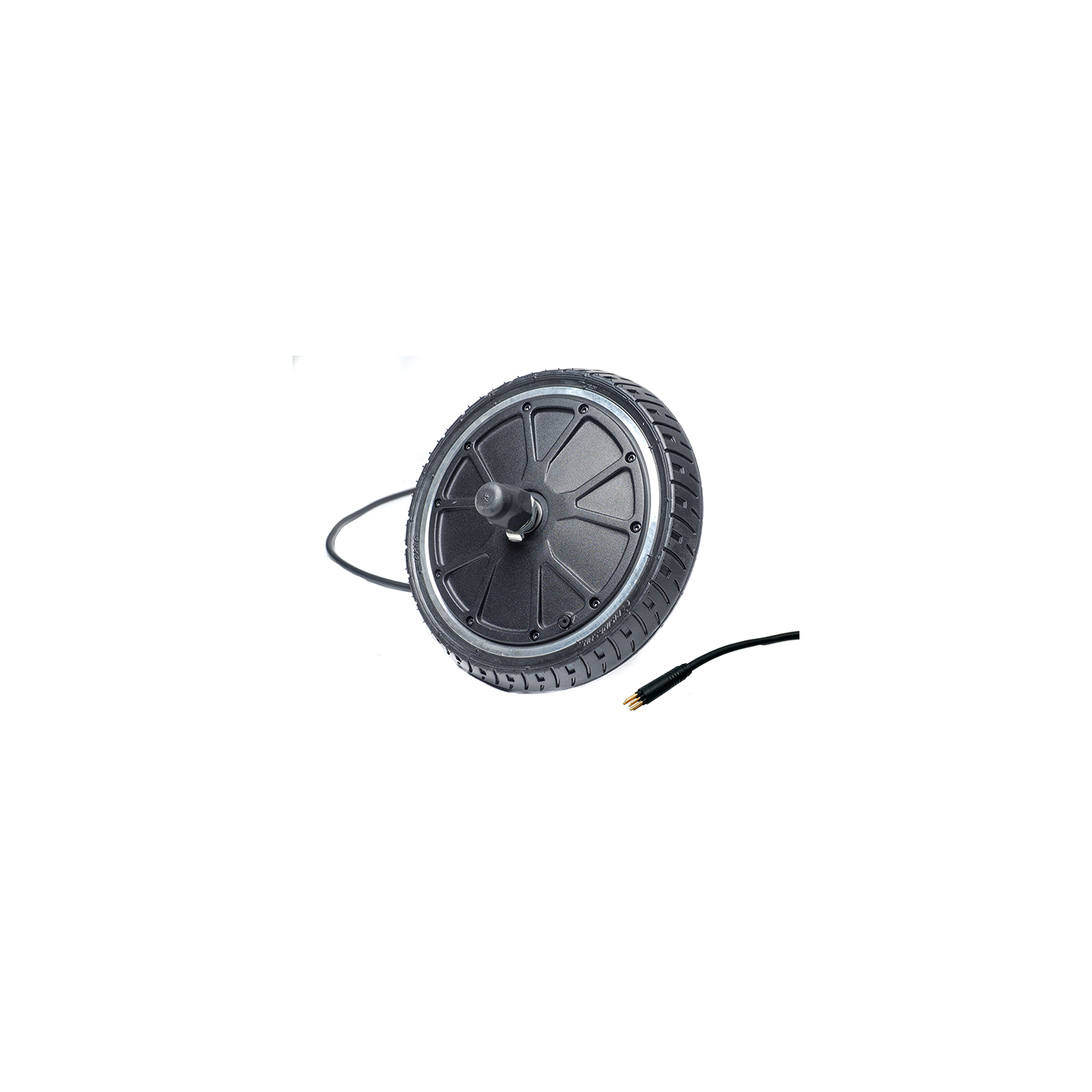

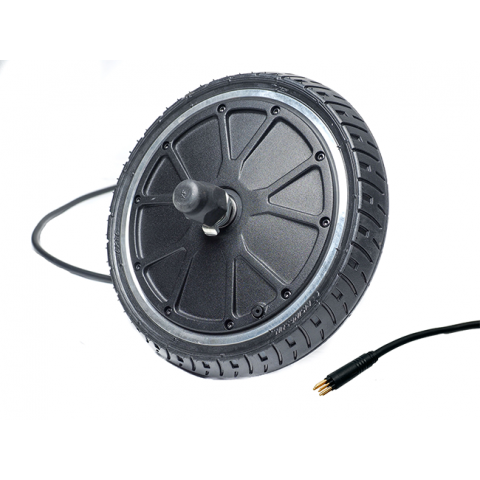

Electric motor 200mm scooter 8'' 250W 350W

This 200mm diameter motor (8'') is ideal for electrifying your classic scooter or any other cart or stroller equipped with 200mm wheels.

Center distance = 45mm

Power supply possible in 24V 36V and 48V.

Comes with a puncture-proof solid tire that requires no inflation.

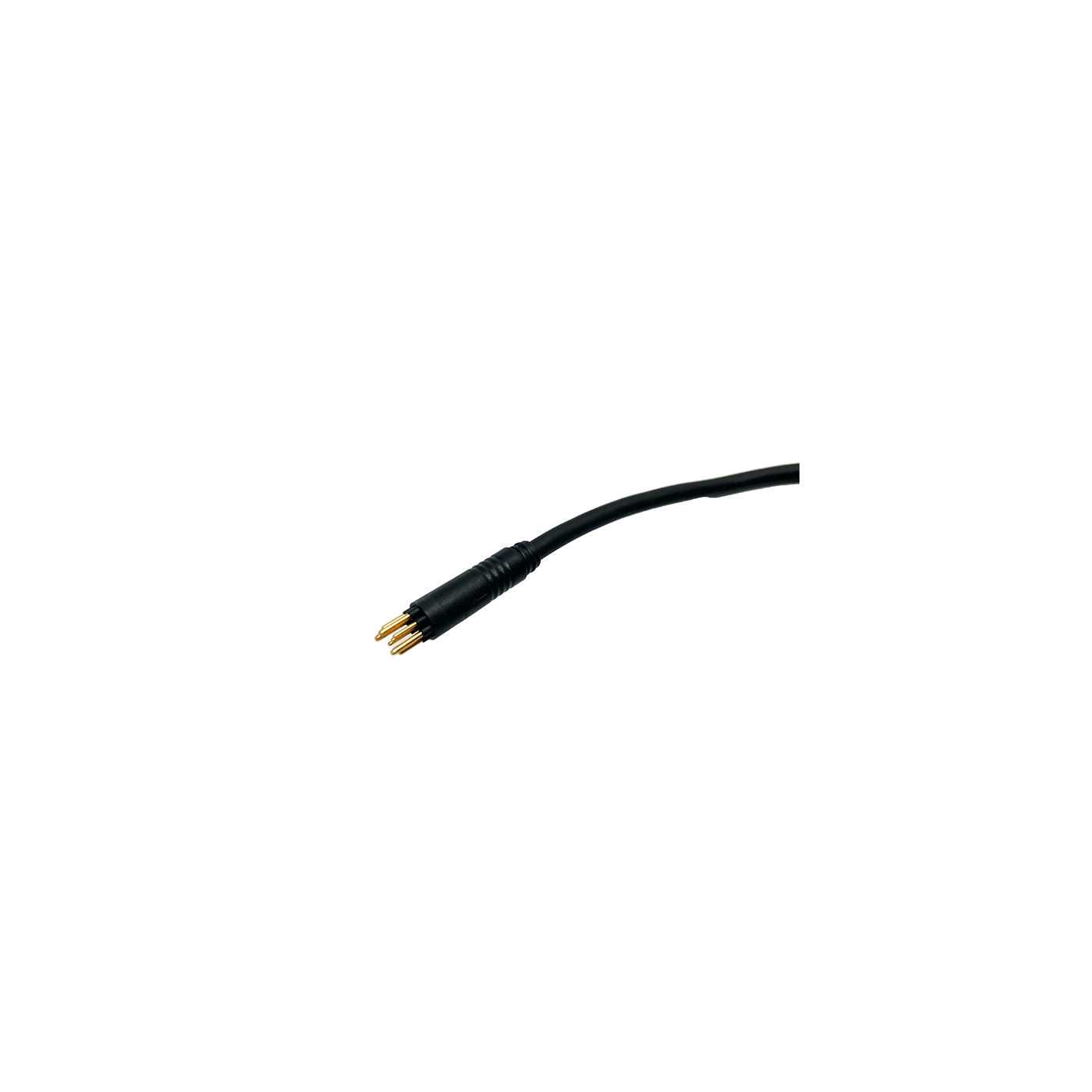

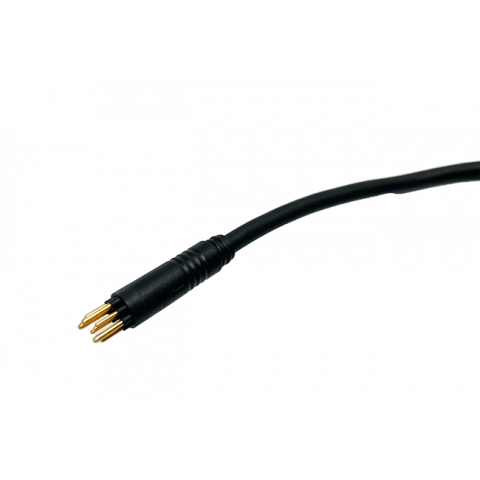

20cm cable length

Mass 2.2 kg

72V 314Ah 22608Wh Lithium Iron Battery Kit to assemble DIY LiFePO4 LFP

€2,499.17 (tax incl.)

Complete set to assemble yourself a 48V 100Ah 4800Wh Lithium Iron battery with 3.2V 100Ah prismatic cells. Ideal for your boat, motorhome, van, caravan, house storage, mobile home, agricultural vehicle. Easy assembly...

Battery Kit 48V 100Ah 4800Wh DIY Lithium iron LiFePO4 LFP

60V 314Ah 18840Wh Lithium Iron Battery Kit to assemble DIY LiFePO4 LFP

€2,082.50 (tax incl.)

36V 314Ah 11304Wh Lithium Iron Battery Kit DIY Assembly LiFePO4 LFP

€1,249.17 (tax incl.)

Complete set to assemble yourself a 36V 100Ah 36000Wh Lithium Iron battery with 3.2V 50Ah prismatic cells. Ideal for your boat, motorhome, van, caravan, house storage, mobile home, agricultural vehicle. Easy assembly...

Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)

3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...

WHEEL MOTOR FOR WHEELBARROW AND AGRICULTURAL MACHINERY 36V-48V 1000W

WHEEL MOTOR FOR WHEELBARROW AND AGRICULTURAL MACHINERY 3000W

€399.00 (tax incl.)

Wheelbarrow electric Brushless BLDC motor 3000W for agricultural wheelbarrow, trailer, spreader... You can drow 200 kg on a rude field (280 kg max) Delivered with a standard wheelbarrow tyre of 10" /...

Lithium Iron LFP cell LiFeP04 3.2V 314Ah

€109.00 (tax incl.)

LiFeP04 LFP 3,2V 314Ah grade A cell Capacity : 314Ah Nominal voltage : 3.2V Life : 8000 cycles M8 terminals Dimensions with terminals : 222x174x72mm Nut torque : 9N.m weight = 5,7kg

Agriculture machine electric motor 3000W BLDC

Agriculture electric motor 3000W brushless with tire

€399.00 (tax incl.)

3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...

BBSHD motor mapping

€97.40 (tax incl.)

Optimized mapping by OZO. The Original Bafang mapping is focused on energy economy and doesn't pull the maximum power of this wonderful motor. Over time, OZO has developed an optimized mapping for Bafang BBSHD motor...

Product Details
Reviews

Product Details

Reference 001001

Data sheet

Guarantee: 2 ans

Intensité max: 20A

Maximum speed: 25Km/h

Masse de la roue motorisée: 2,2

Type de frein: E-abs ou disque

Technologie: Brushless direct drive

Rendement: 85%

Régénération au freinage: OUI

Permissible voltages: 12V, 24V et 36V

Entraxe fourche min/max: 45mm

Motor Kv (RPM / V): 27 Tr/min/Volt

Motor power range: 250W / 350W

Hall sensors: OUI

Waterproof grade: IP54

Nombre d'aimants: 30

Nombre de paires de pôles: 15

Codeur: NON

Capteurs Hall: OUI
