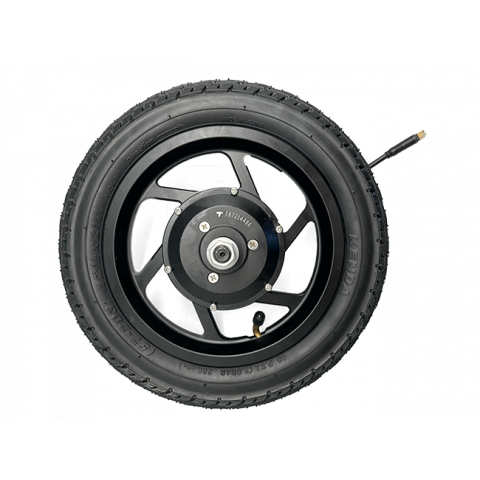

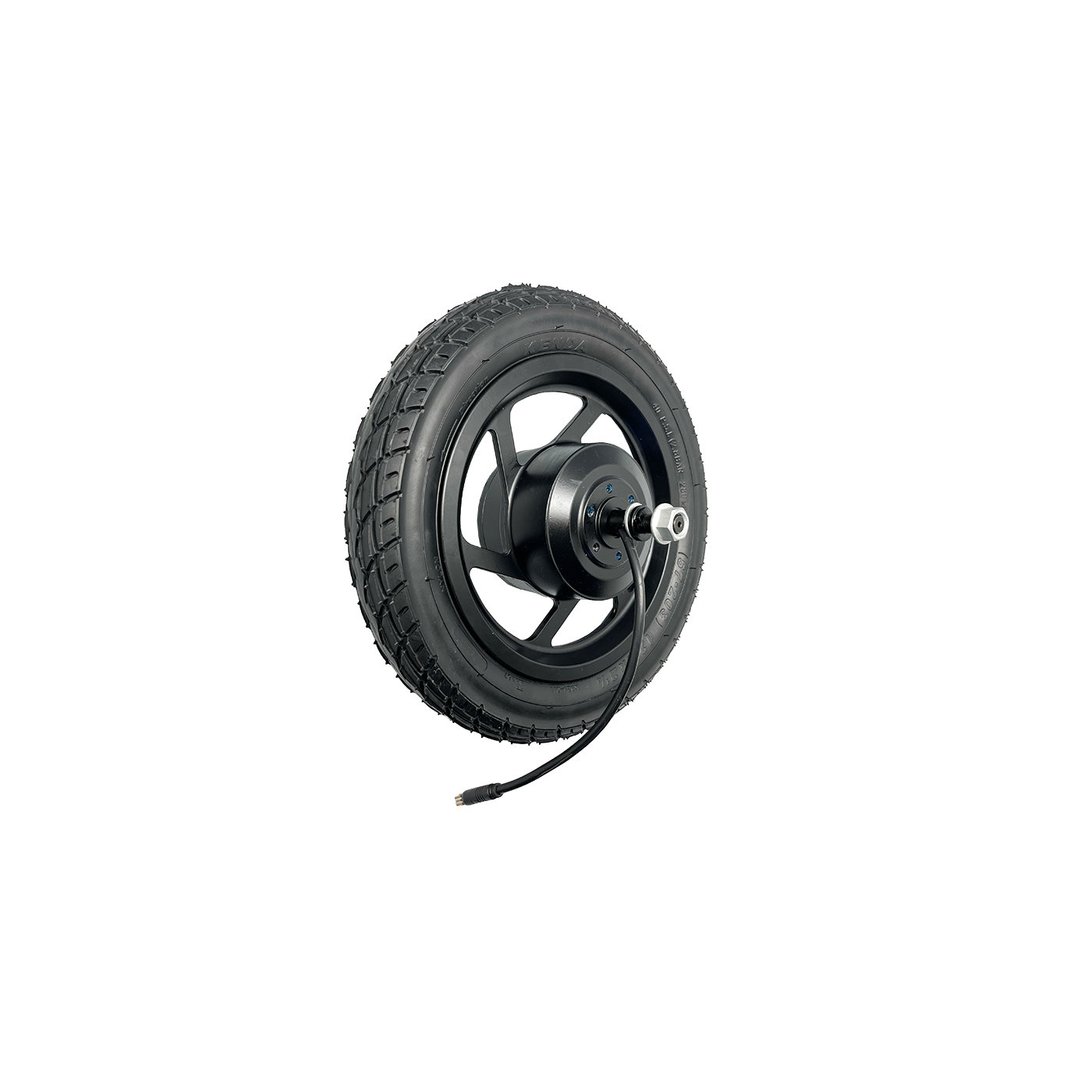

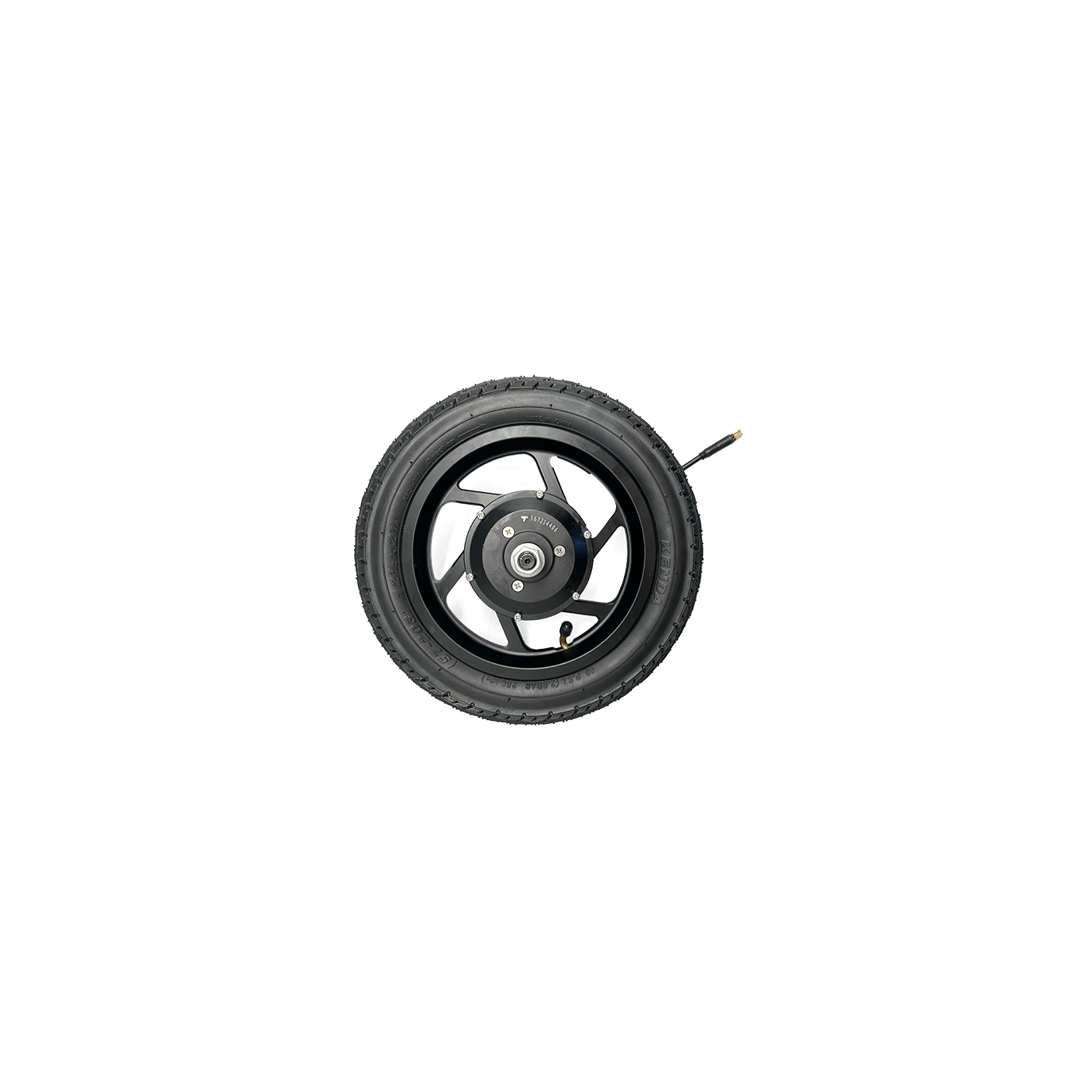

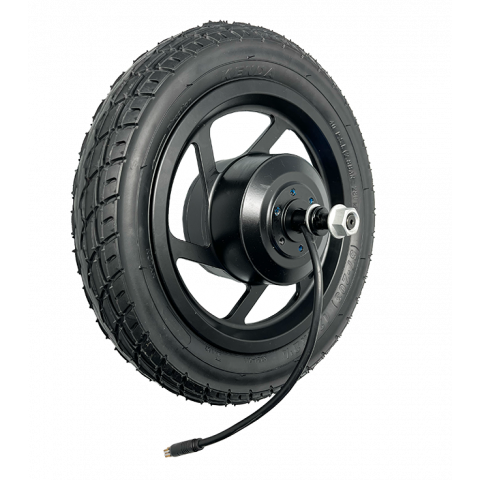

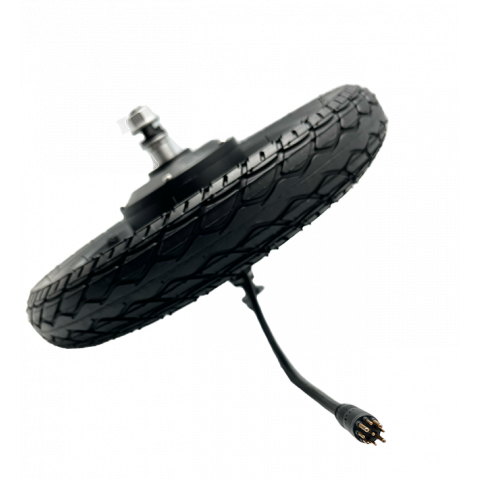

Electric motor wheel 12" 500W 750W

Mini scooter geared motor 12" 36V 48V 500W-750W

Motor for mini scooter 12"

Sold with 12" tire and inner tube (12,5 x 2,25)

Vmax = 25km/h under 36V / 35Km/h under 48V

Total weight with tire =  3,6 kg

Cable length = 20cm

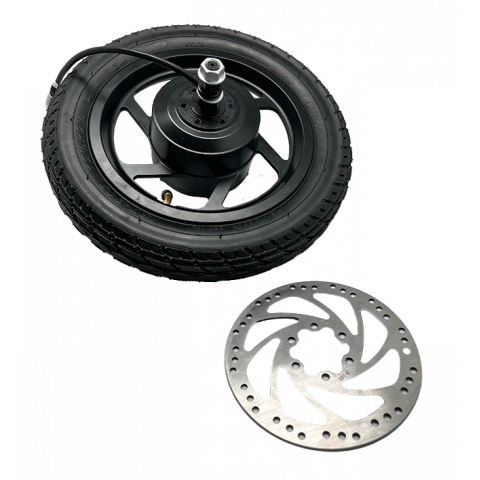

Possibility to install 140mm or 160mm disc brake

Read moreShow less
€299.00 (tax incl.)
IN STOCK 51 Items
Reference:
001002
You may also like
€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
€109.00 (tax incl.)
LiFeP04 LFP 3,2V 314Ah grade A cell Capacity : 314Ah Nominal voltage : 3.2V Life : 8000 cycles M8 terminals Dimensions with terminals : 222x174x72mm Nut torque : 9N.m weight = 5,7kg
€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
€97.40 (tax incl.)
Optimized mapping by OZO. The Original Bafang mapping is focused on energy economy and doesn't pull the maximum power of this wonderful motor. Over time, OZO has developed an optimized mapping for Bafang BBSHD motor...
Product Details
001002

Data sheet

Guarantee
2 ans
Intensité max
25A
Paires de pôles magnétiques
15
Masse de la roue motorisée
3,7
puissance nominale et puissance max sous 36V
500W / 750W
Vitesse max en 48V
40Km/h
Vitesse max en 36V
30Km/h
Technologie
Brushless
Rendement
85%
Permissible voltages
24V, 36V et 48V
Tension Max
48V
Motor Kv (RPM / V)
14,6 Tr/min/Volt
Motor power range
250W - 1000W
Hall sensors
OUI
Waterproof grade
IP54
Nombre d'aimants
30
Motor axle
14x10mm
Diamètre exterieur Pneu
31cm
Rs
0,21 Ohm
Ls
333 uHenries
