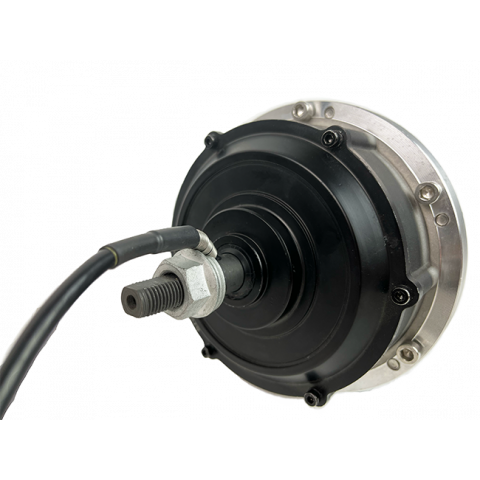

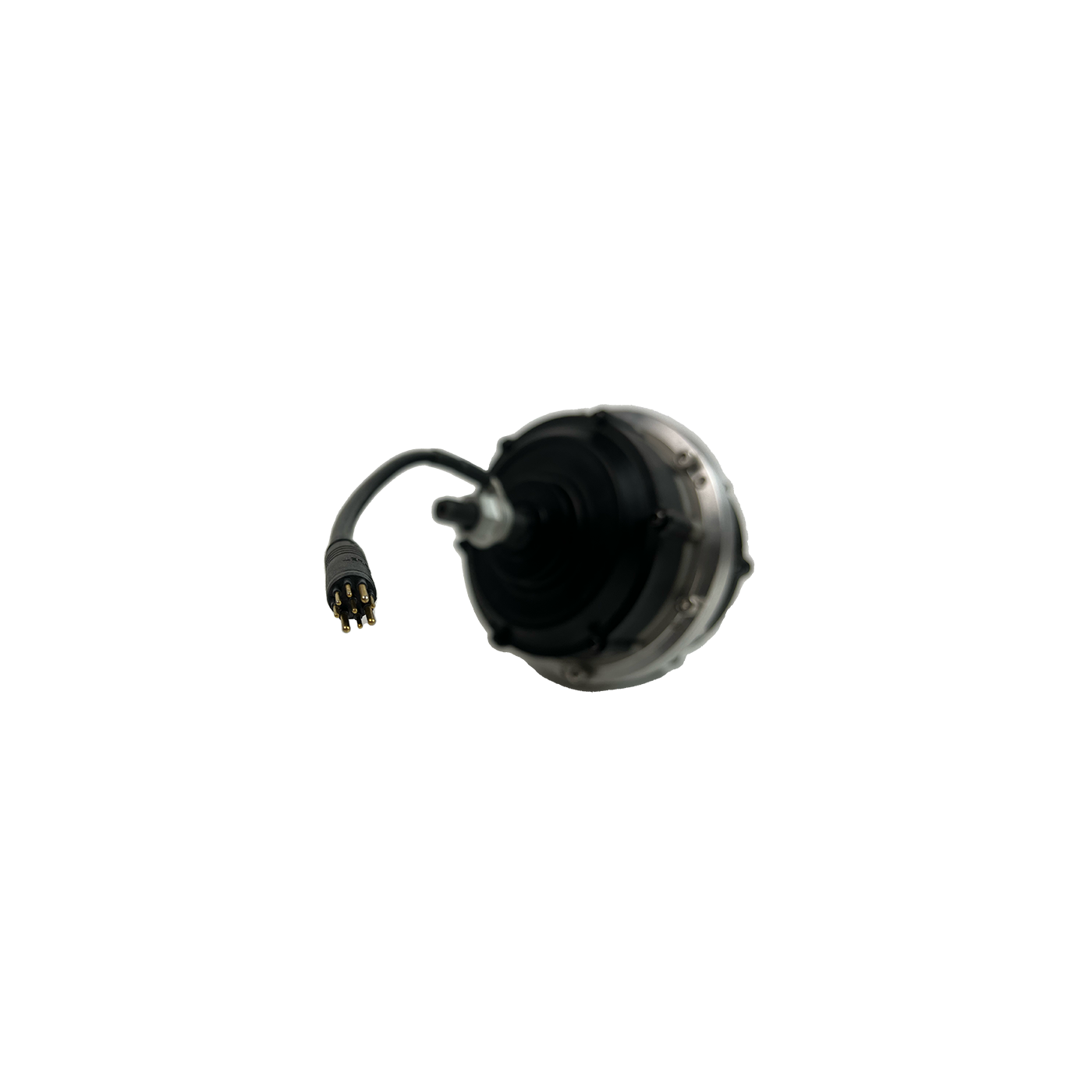

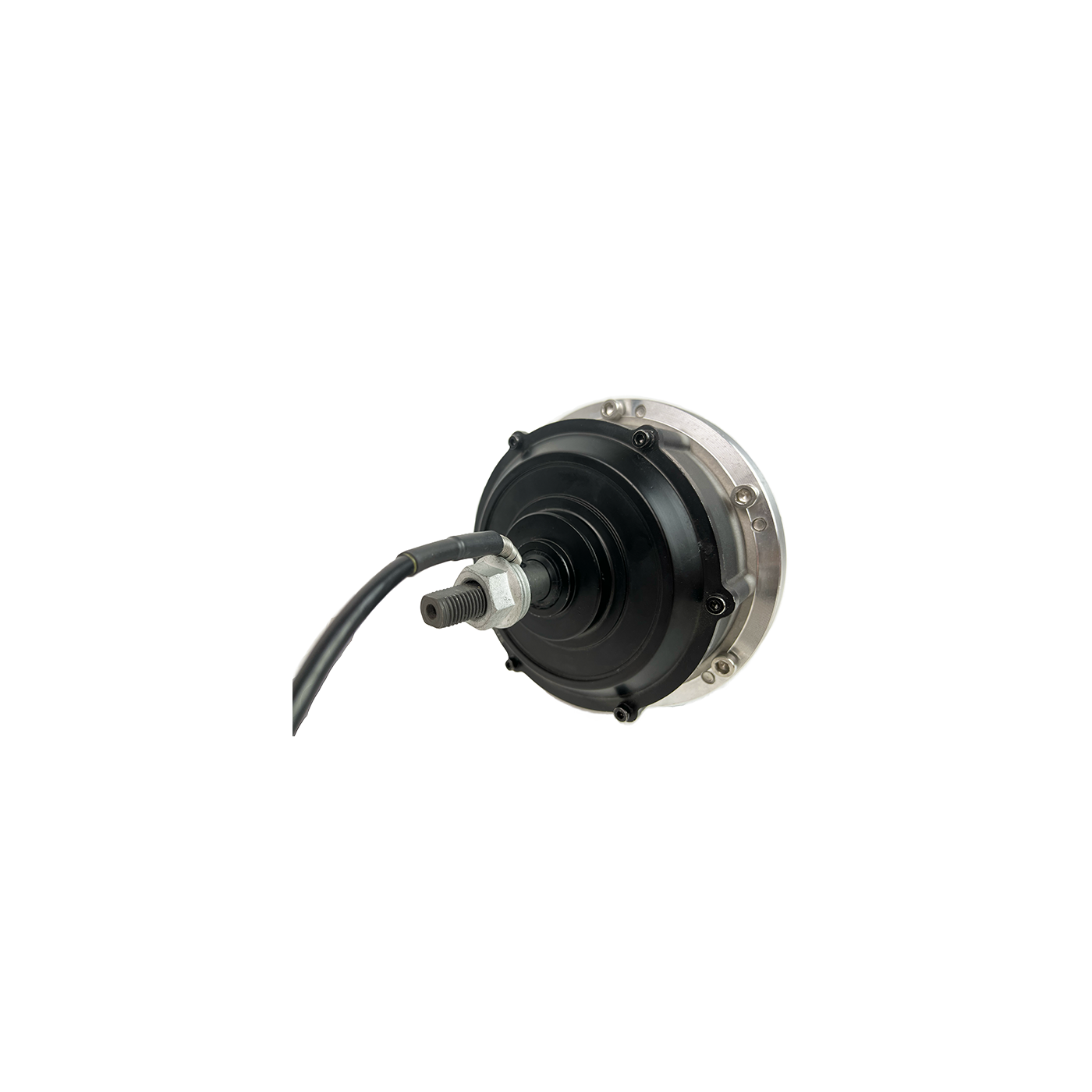

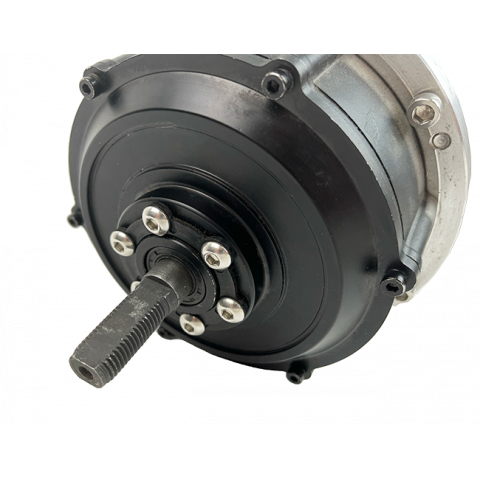

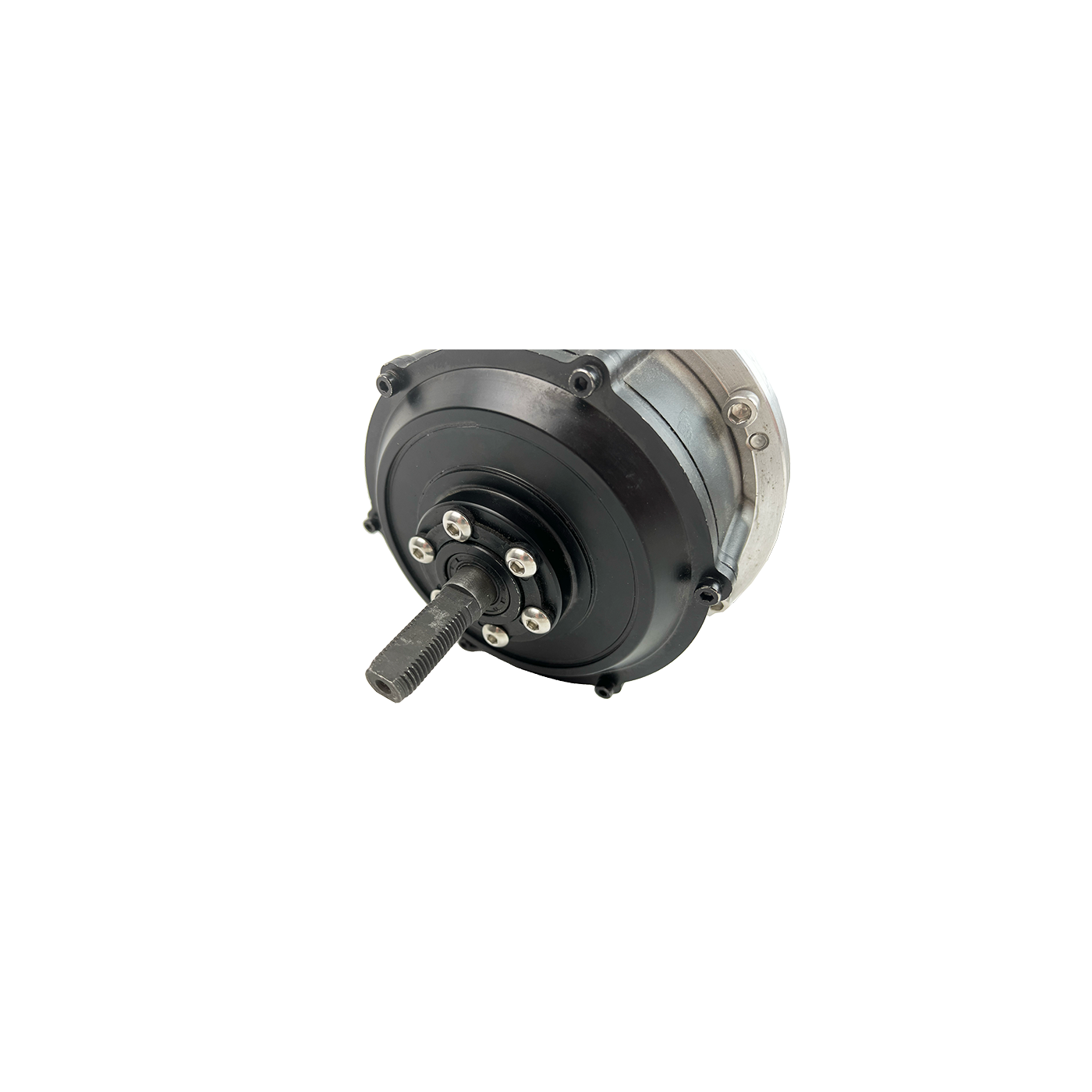

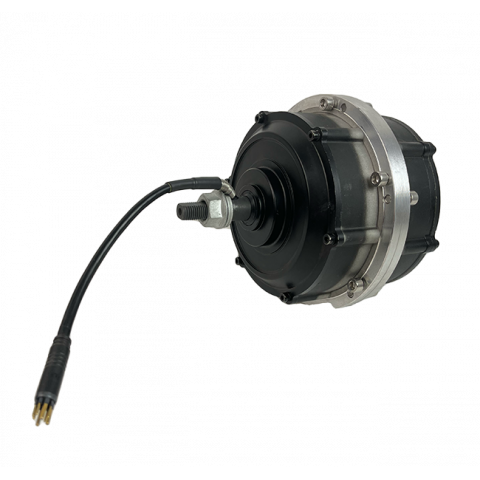

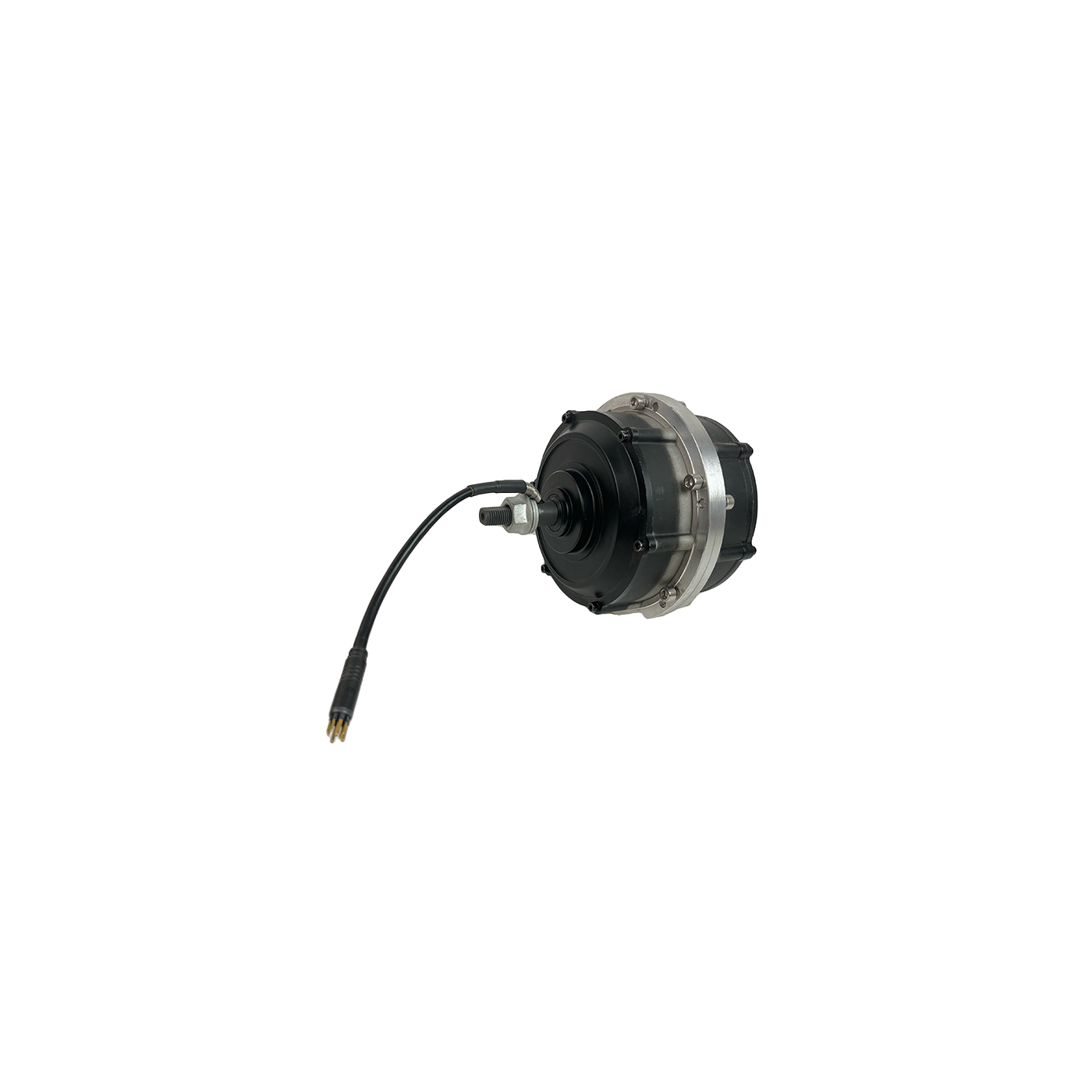

Agriculture electric brushless motor 500W 1000W

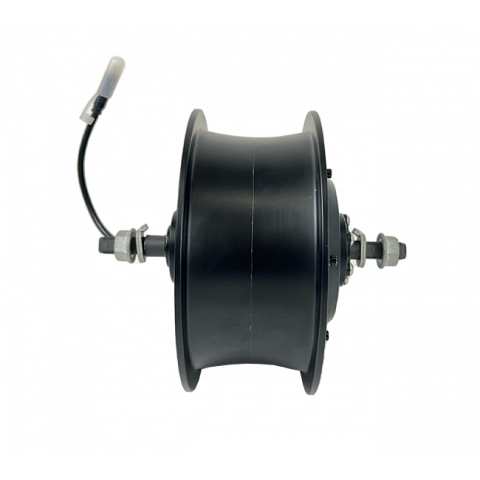

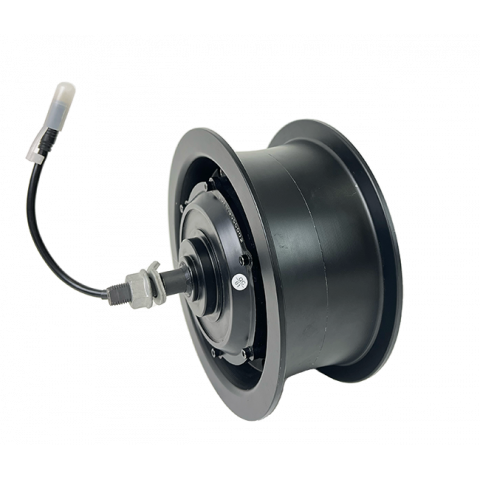

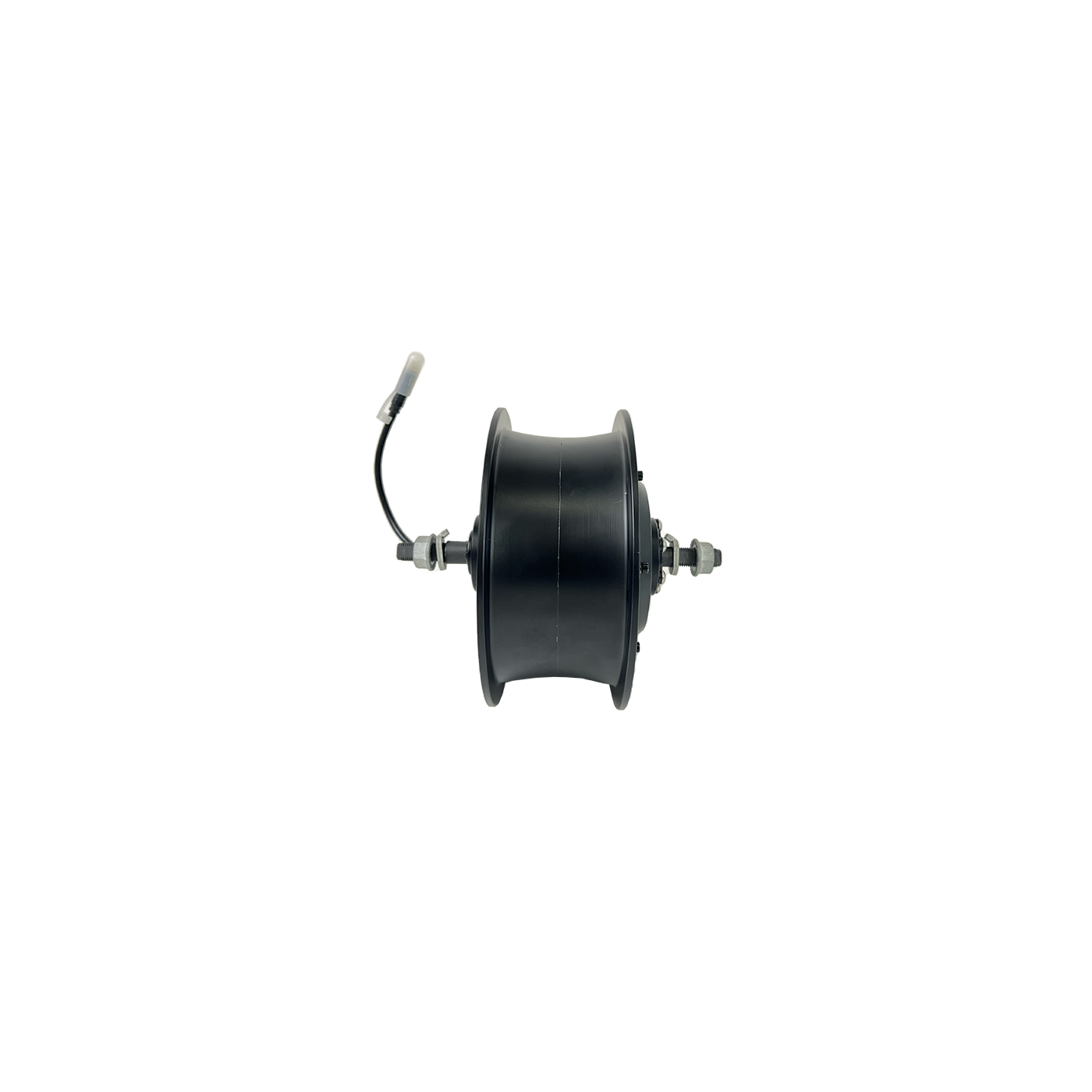

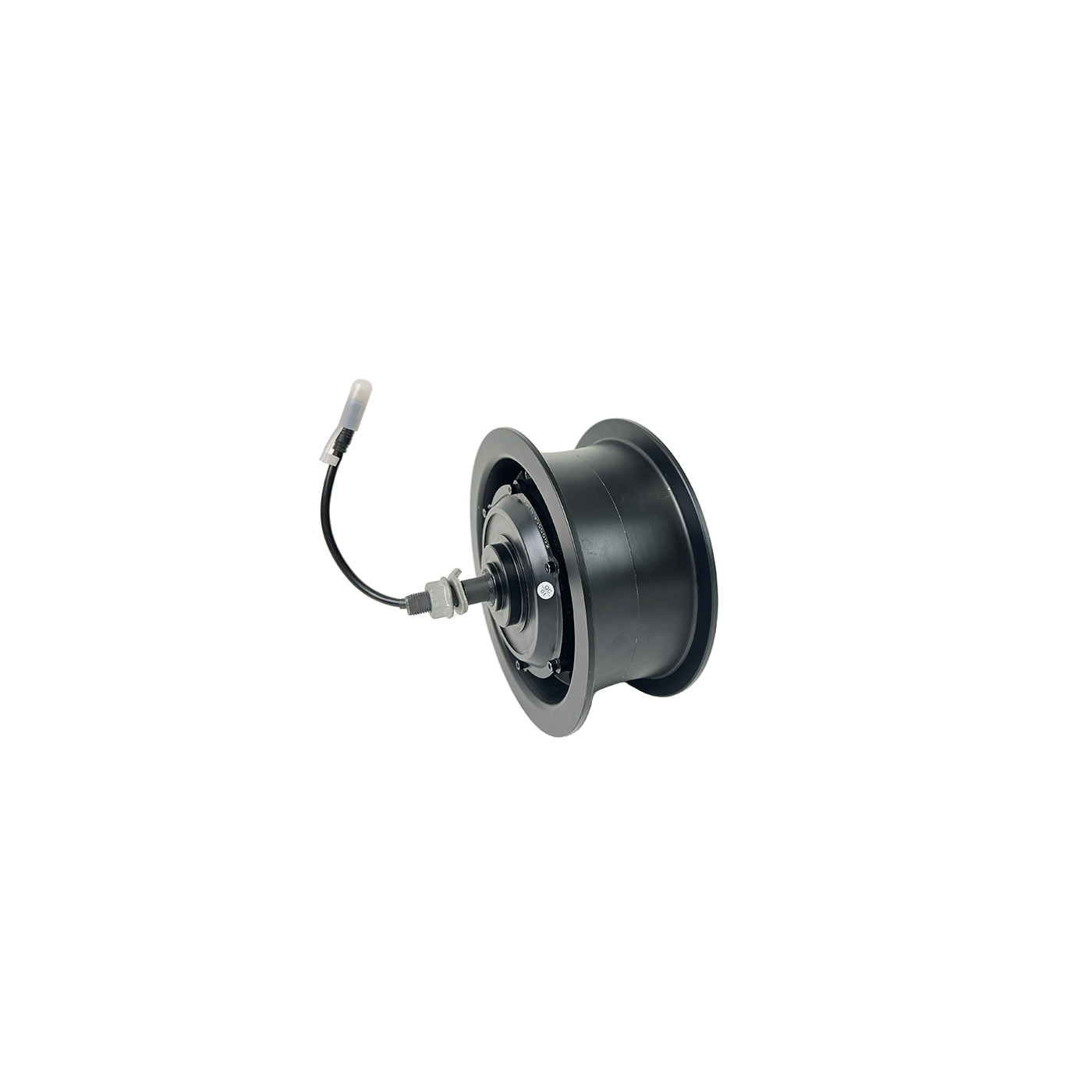

The 500W 1000W Universal electric brushless motor for agriculture and farming offers the ability to choose different wheel diameters and tire widths with its removable aluminum machined rim flanges.

The ability to remove the rims makes tire installation much easier.

As a standard, we offer 7" and 8" diameter rims, but we can also machine rims to your specifications if needed.

Read moreShow less
€299.00 (tax incl.)
In stock 30 Items
Reference:
001101
You may also like
€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
€460.00 (tax incl.)
This 5000W motor gets 55mmm magnets and can accepts up to 5000W power. Weight : 9,8 kg | dropout : 150mm Pmax = 5000W / Pnom = 4000W Max torque = 170N.m Delivered with a 200mm cable length
€390.00 (tax incl.)
This 500W-1000W electric brushless universal motor offers the ability to choose different wheel diameters and tire widths with its removable aluminum machine casted rim flanges. The ability to remove the rims makes...
€329.00 (tax incl.)
1500W electric wheel motor for wheelbarrow and agriculture machine, ideal for providing assistance for difficult and arduous work. Allows to move up to 200kg under 48V DC, max torque 100Nm Standard size of a...
Description

The universal agricultural motor can deliver a maximum torque of 110N.m at 48V and 60N.m continuously. It can be used under 48V 25A or 36V 30A. The magnets are 30x and measure 30mm x 3mm.

2D DRAWING :

Read moreShow less
Product Details
001101

Data sheet

Paires de pôles magnétiques
15
poids en 26 pouces
4,9kg without the rims
Rapport de réduction
1:6.9
Puissance max
1000 W
Hall sensors
yes
Waterproof grade
IP65
connecteur moteur

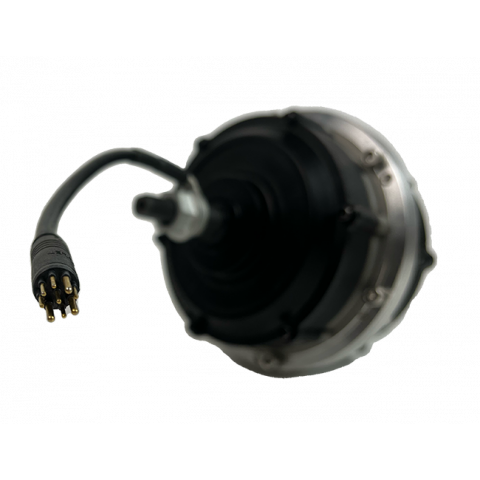

waterproof 9 pins connectors
Nombre d'aimants
30
Motor axle
14mm
Vitesse max sous 24V
6 km/h
Vitesse max sous 36V
8 km / h
48V max speed
10 km/ h
Cable lenght
20 cm
