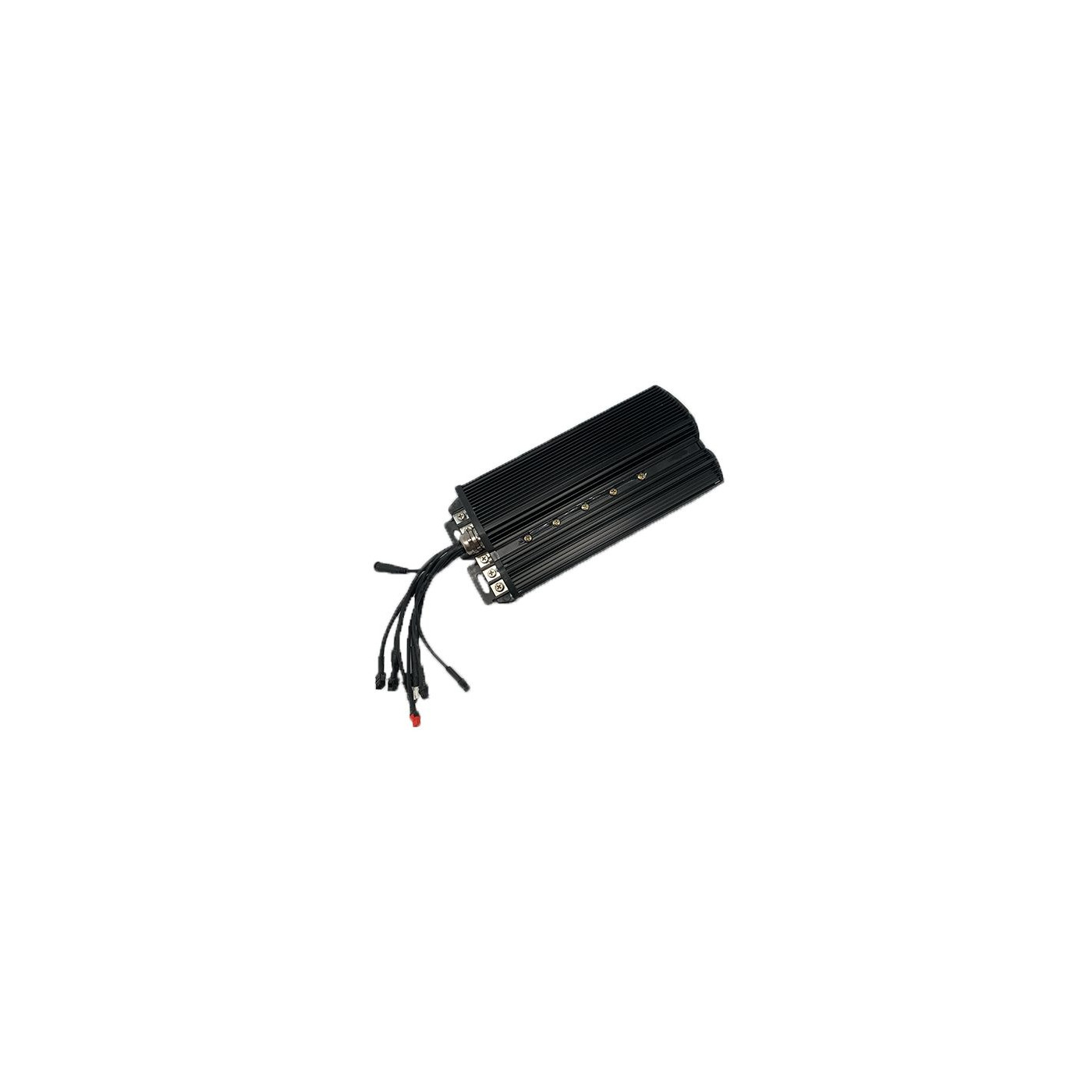

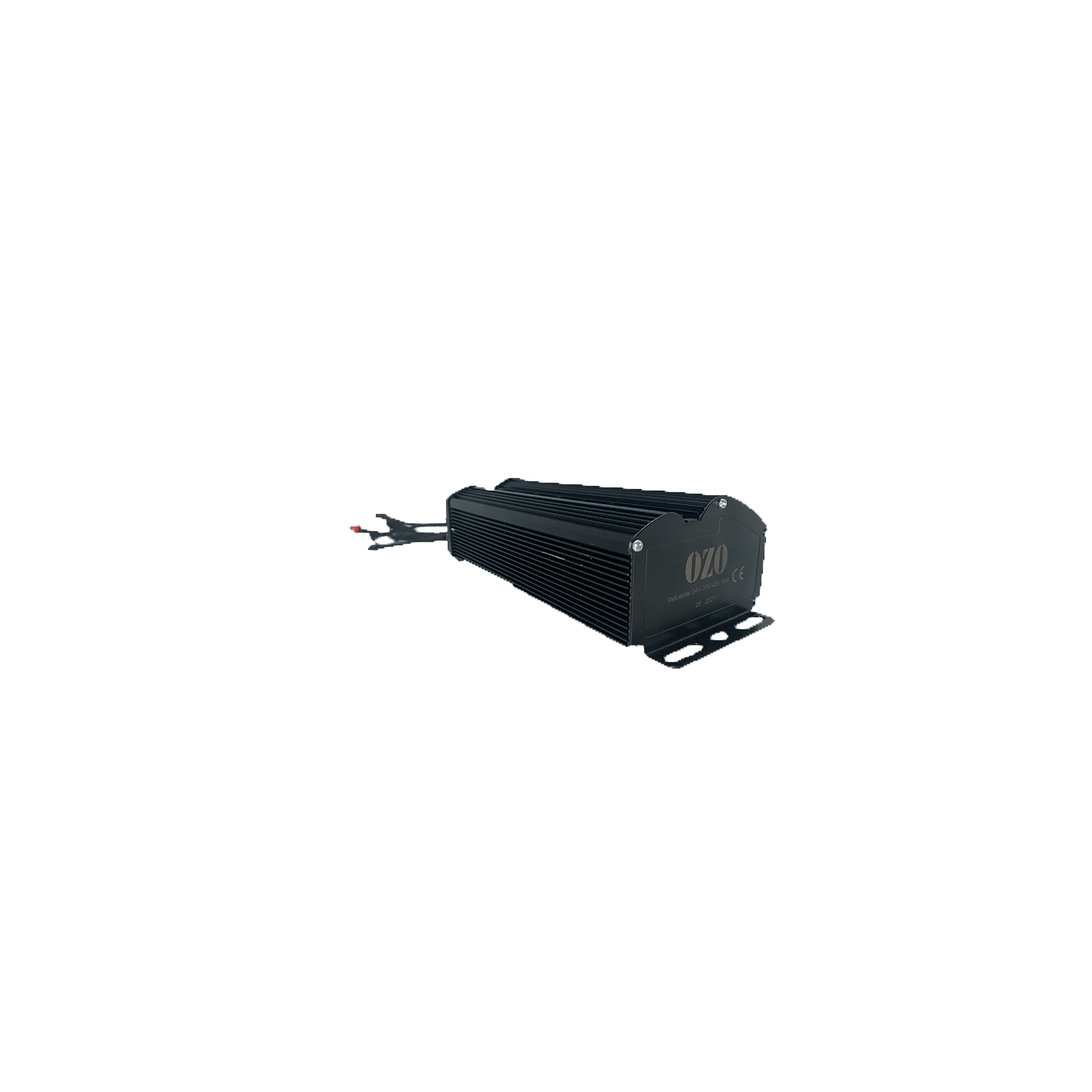

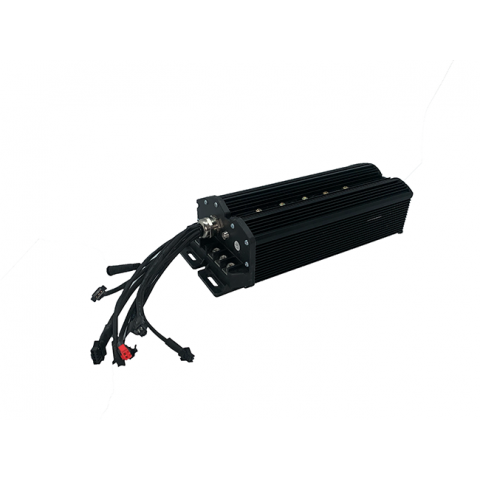

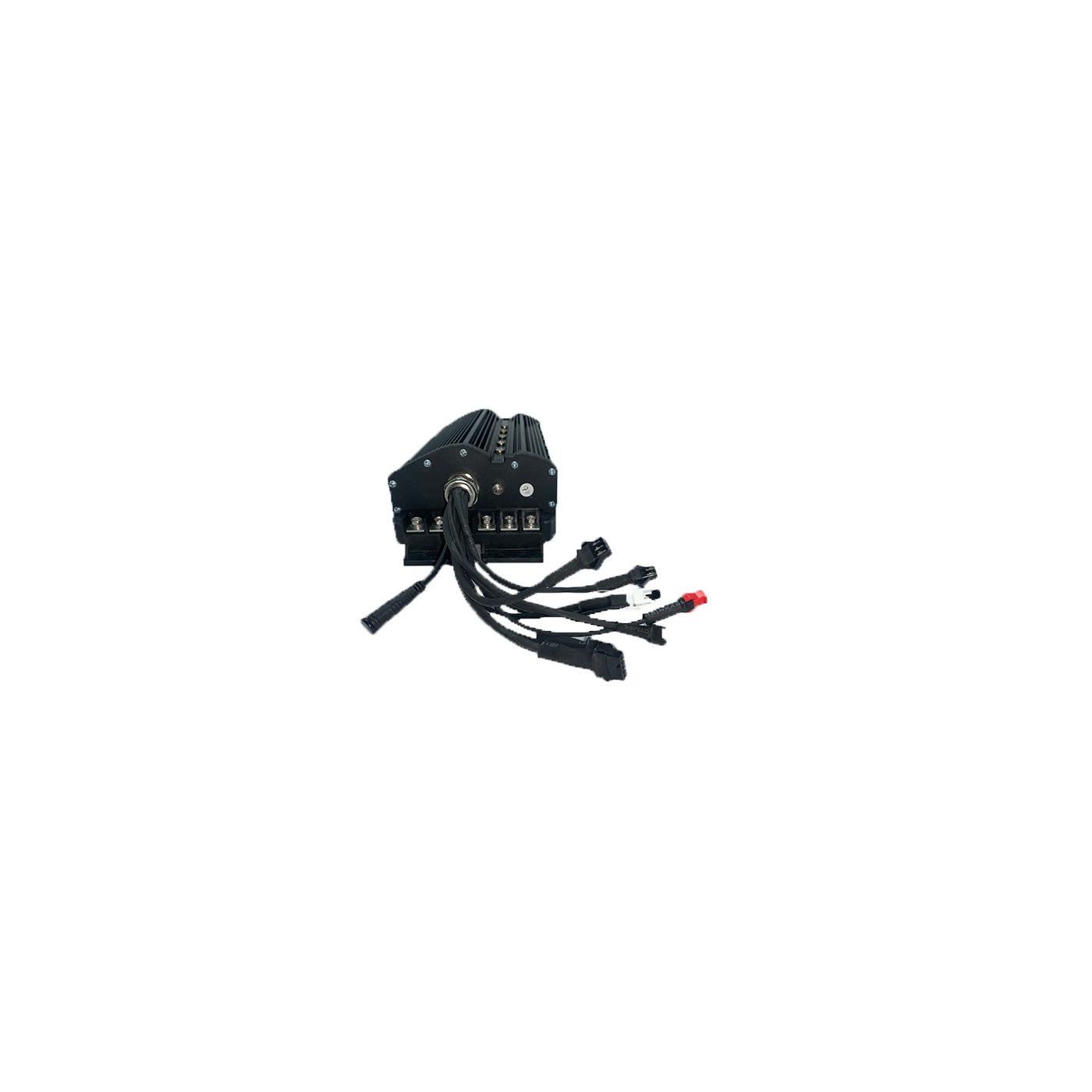

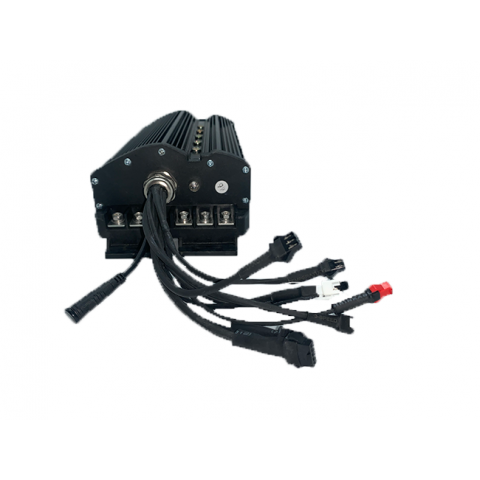

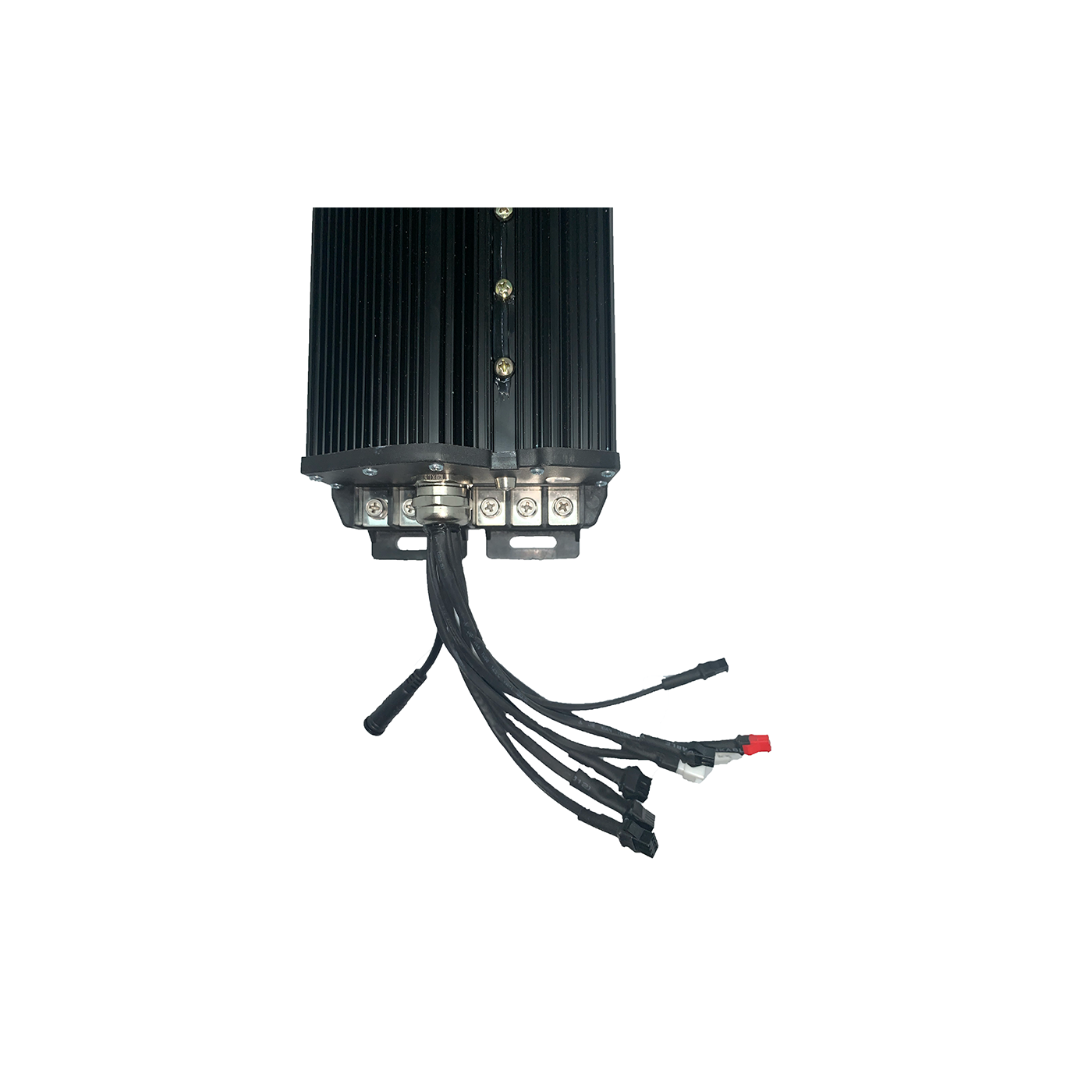

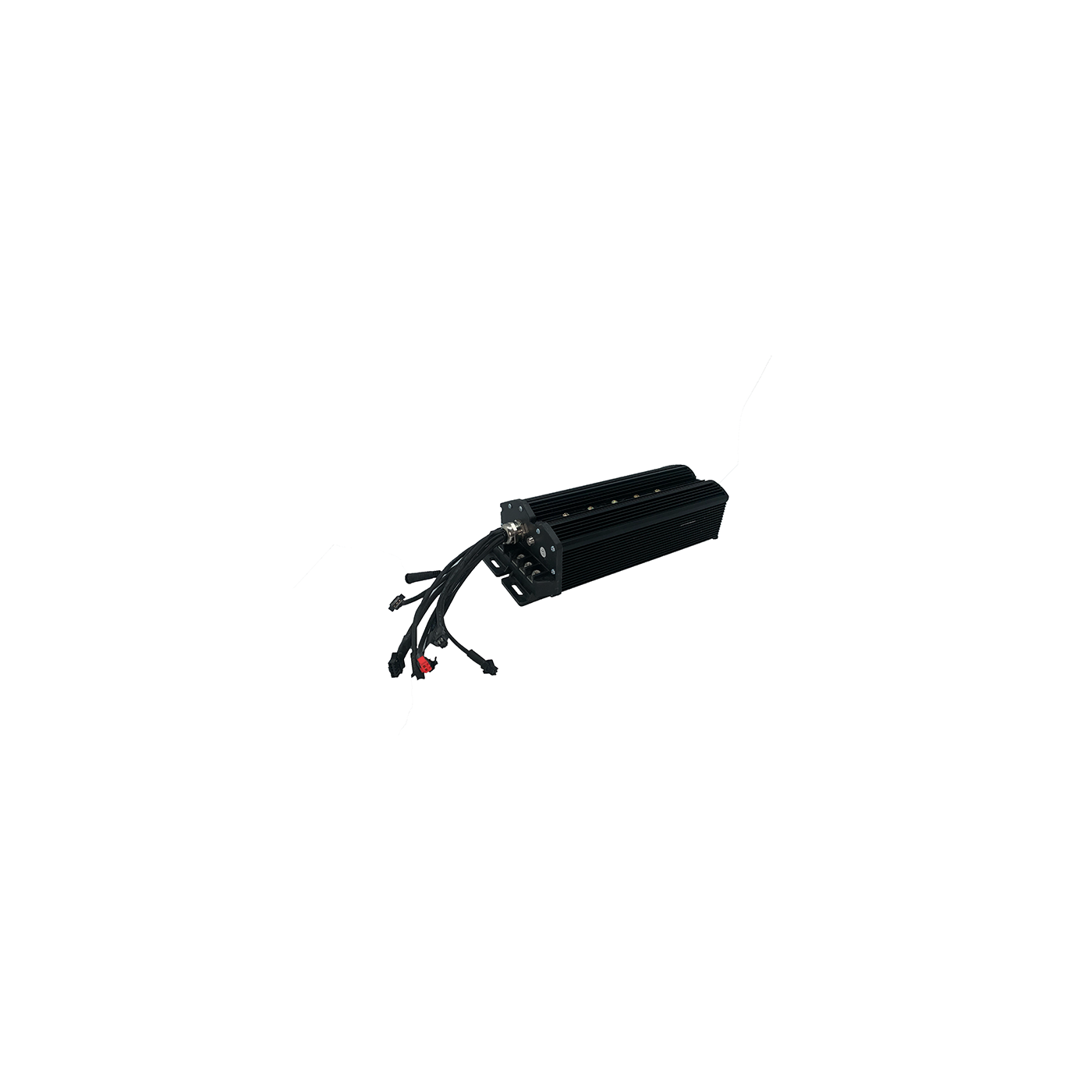

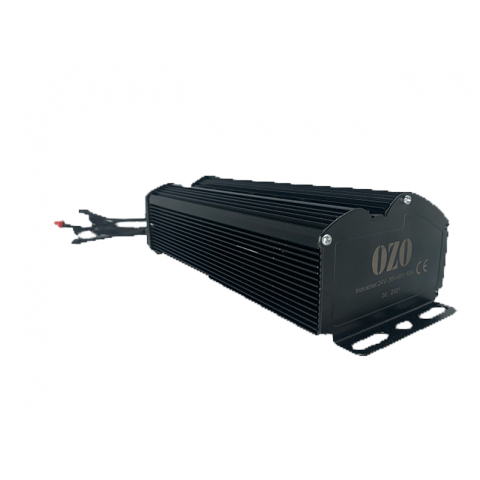

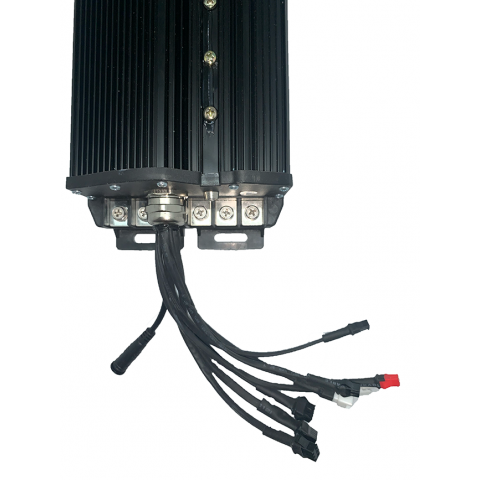

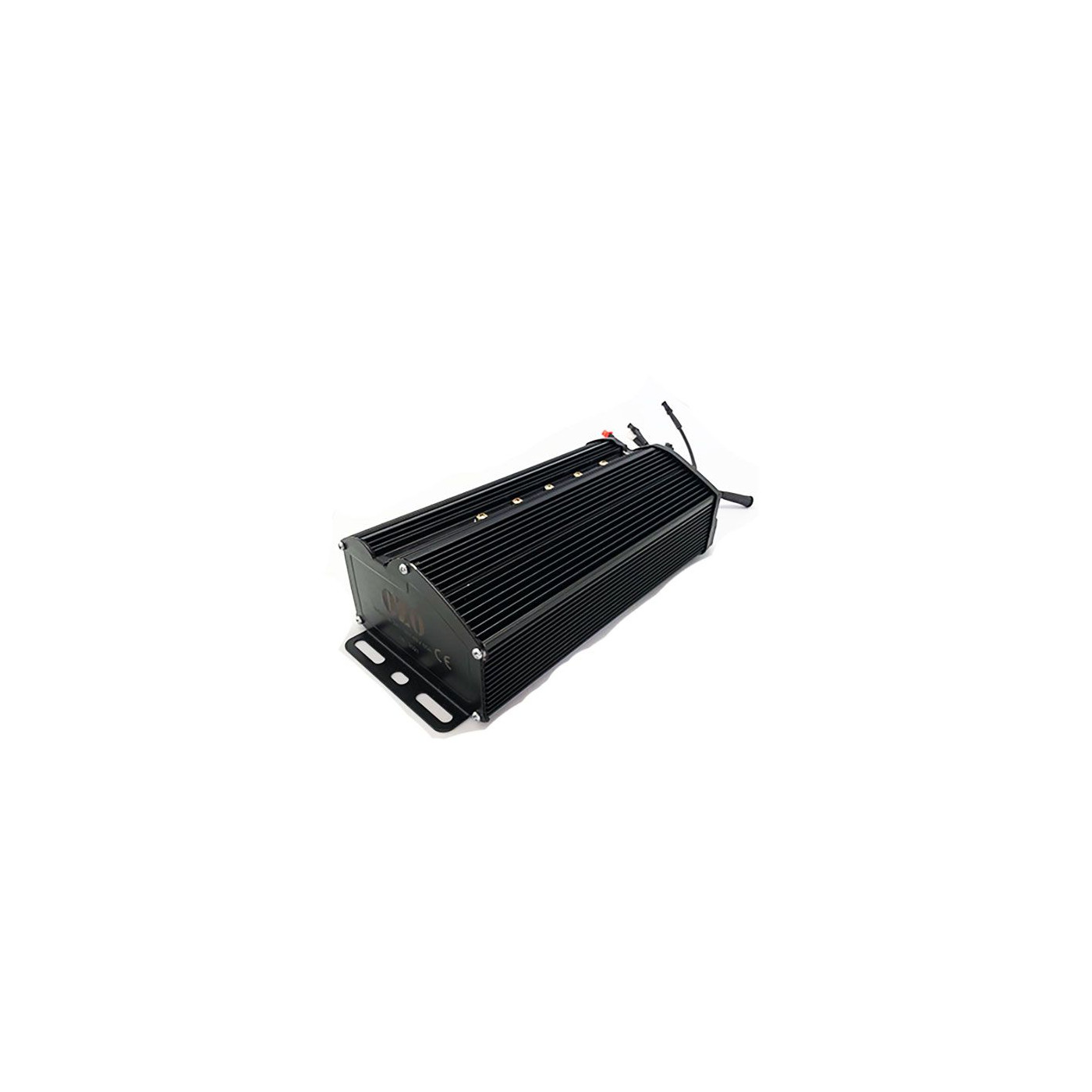

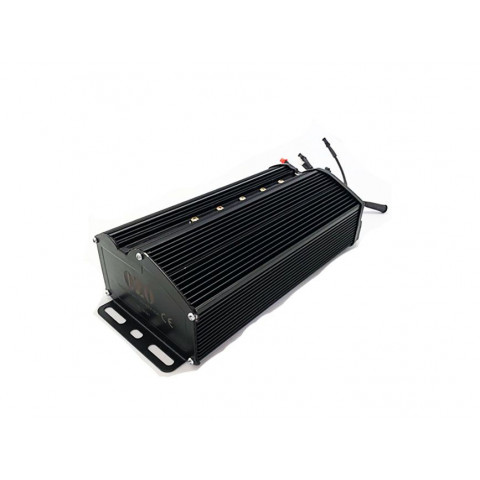

The OZO controller 24V 36V 48V 60A integrates high quality electronic components from the automotive world. For electric motors above 1500W and up to 5000W
Dual sensored / sensorless adaptive field-oriented sinusoidal mapping (FOC) will allow to power main brushless DC motors (BLDC) which ride at low speed and high torque..
This controller can power our motors beyond 1500W. It will be perfect for our electric wheelbarrow wheels of 3000W and our hub motors up to a power of 5000W.
The OZO 60A FOC field oriented sinewave controller integrates offers a whole range of applications.
This control system can be powered from 24V to 48V, the higher the voltage of your battery, the more torque you will have and a higher max speed.
This controller is compatible with all of our electric industrial and agricultural wheels.
It can power main brushless DC BLDC motors of the market. You can use it on industrial trolleys fitted with electric wheels, electric picking cart, wheelbarrows, any agriculture machine or golf cart, baby trolley, handicap vehicles...
This driver can be controlled in 2 different ways:
- By Throttle (potentiometer 0-5V) allowing to set the speed manually from 0 to top speed.
- By pushing button, joystick, switch allowing to reach a constant max target speed (configurable value) with a customizable acceleration ramp.
Your Brushless motor must be equipped with Hall effect sensors to work with this controller, but even if one senor is defective the system can still work.
Fully tropicalized, waterproof and dustproof, IP64
Technologie : FOC sinewave controller
The output curve of the three phases is sinusoidal. This provides smoother control and quieter operation of the motor, or even completely silent on a direct drive motor.
If one hall sensor is out of service or if one of one wire is cut, the engine will still operate. If a second sensor is defective, the controller will not work.
The controller has 6 command inputs:
- Throttle to set speed manually
- Forward pushing button
- Backward pushing button
- Electric brake and regeneration
- On / Off or emergency switch
- 3x speed selection
You can therefore choose to drive your engine with throttle or with pushing button.
Not all features are required to run your engine, the only controls required are throttle or pushing button.
You can find all of these accessories on our website, if you have a specific needs feel free to send us an email on contact@ozo-electric.com
Throttle
If you choose this control mode, the throttle allows you to manually adjust the power from 0 to 100% at any time.
3x positions switch
If you want several pedaling power modes, you can connect the three-position switch which will allow you to have, as desired: 30%, 60%, or 100% of the maximum power (programmable values). It will act on the maximum speeds of the accelerator or the control unit, depending on the chosen driving mode
E-ABS
To activate this mode, simply connect a switch to the controller. You will be able to create an electric brake to slow down and stop your machine. While driving, you can activate this function and recharge your battery using the regeneration function.
Power On/Off
Forward / Backward
- If you use the accelerator mode, your installation will go forward, if you want to activate reverse, you can set up a switch on the Reverse connector
- If you use the push button and fixed speed mode, you can connect a push button on the forward gear connector and one on the reverse gear connector. or more simply install a 3-position joystick.
