No.1 in the world of bicycle motor manufacturing, the reputation of Bafang brand is well established. Reliable, quiet and terribly effective products. OZO is Bafang's official distributor since 2010.

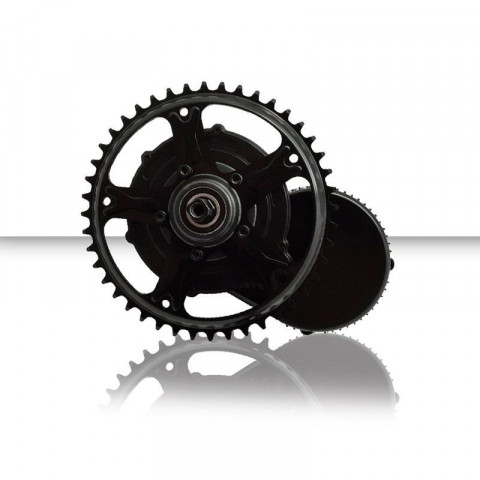

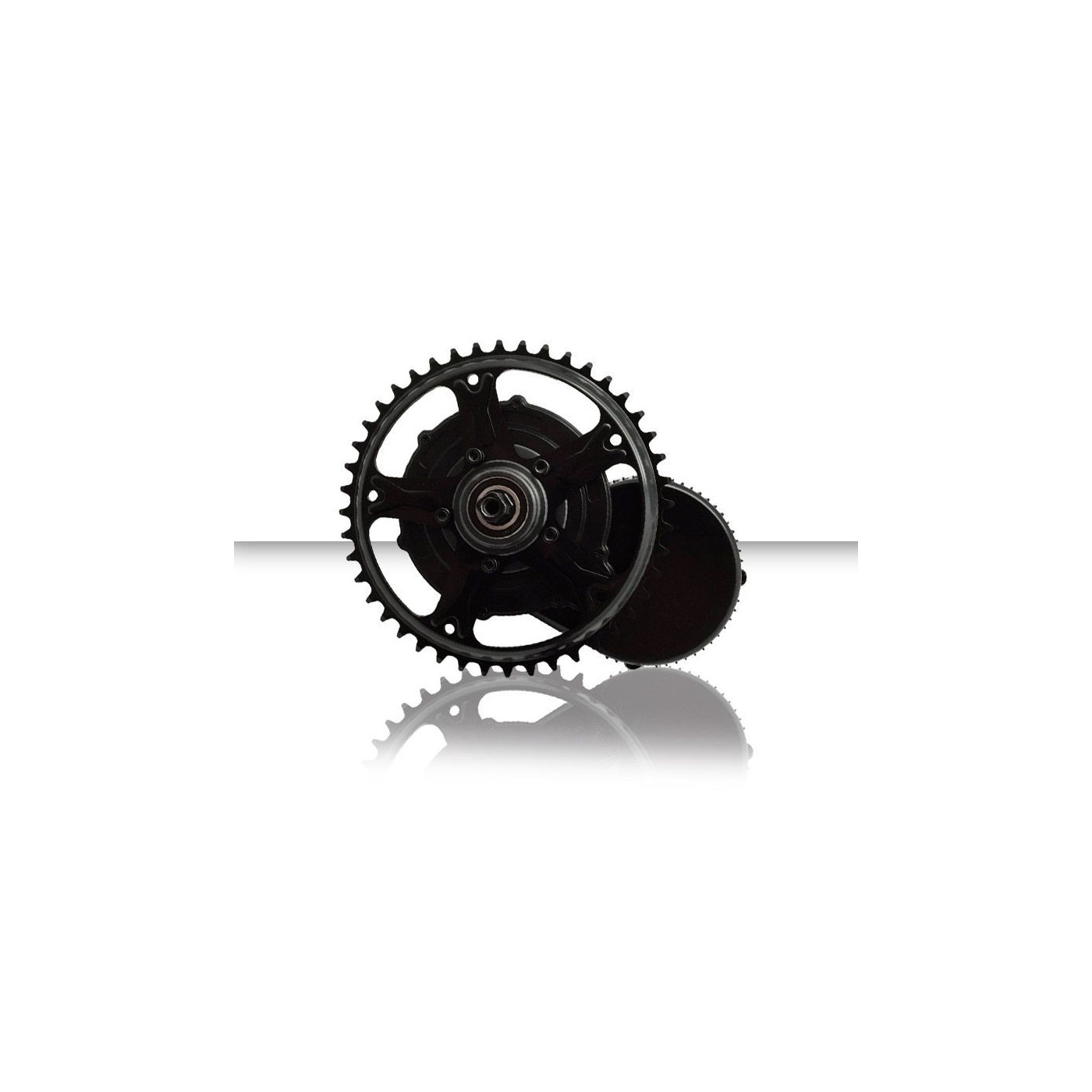

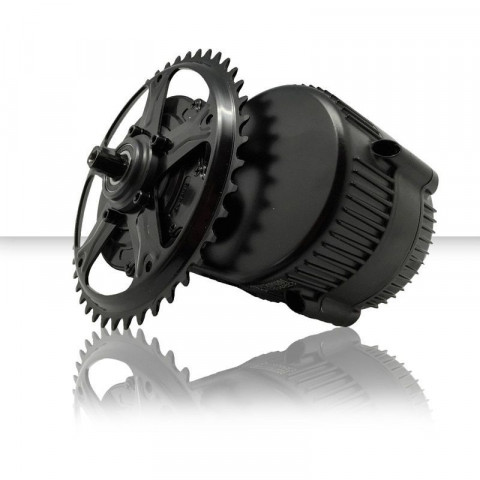

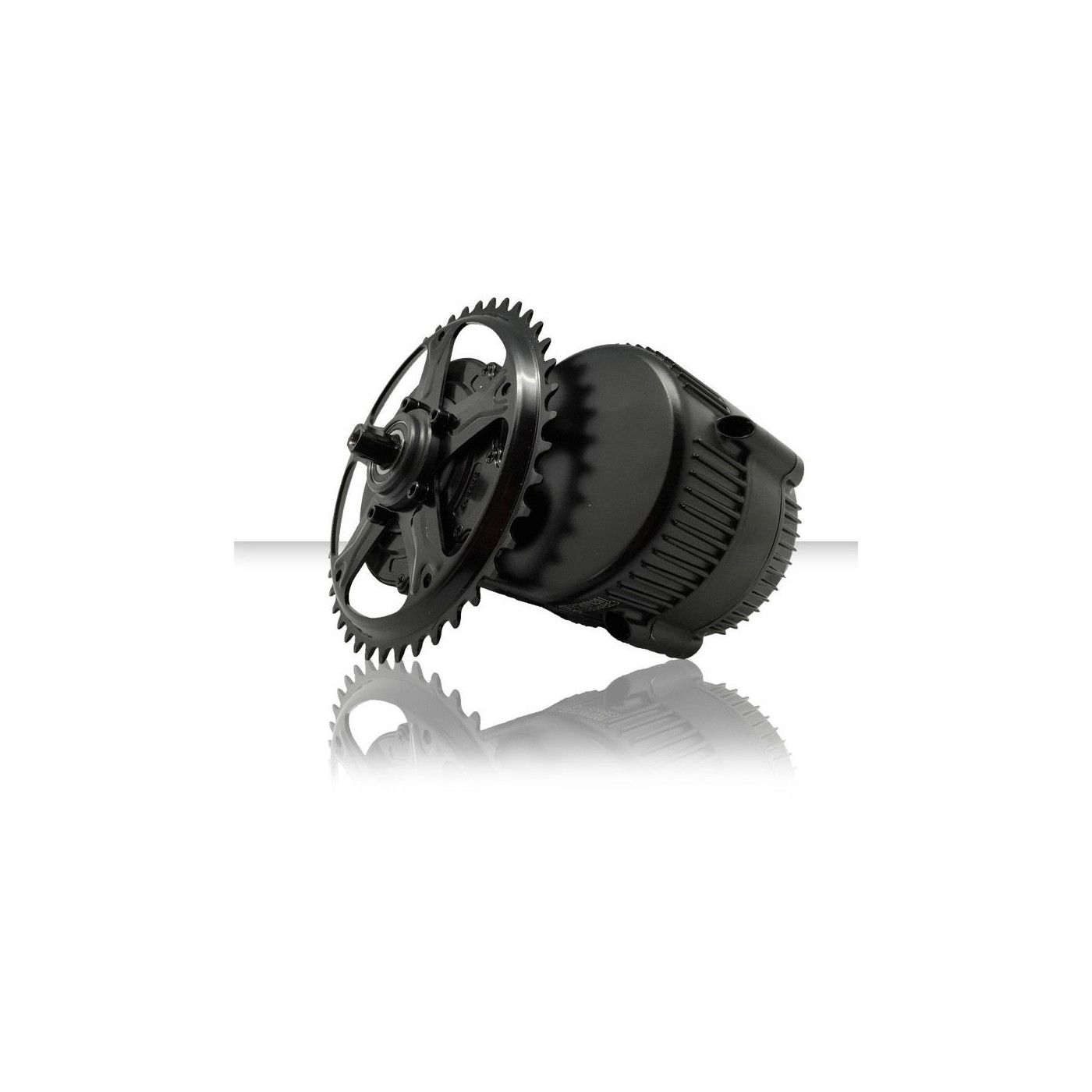

The BBS02 central motor M315, offers a torque of 120N.m which puts it above all others 250W mid-drive motors on the market.
This torque will be able to reach 100N.m with "short transmission" in option and our optimized cartography.
In addition, it is also quieter than competing motors thanks to its field oriented controller.
The Bafang central kit motor can be installed on 90% of traditional bicycles without any modification to the existing frame.
Another advantage and not least, this motor has been developed to maintain a traditional bike transmission, you can ride like on a standard bike with 44 teeth or 46 teeth gear and not a small 22 teeth as some brands, we offer in option double gear assembly, allowing you to ride on any trail.
|
Bafang BBS02 central motor M315 can be installed in place of the original bottom bracket. This integrates motor, controller and pedal sensor. Installation is easy and does not require any modification on the frame. |
 |
|
Bafang central motor BBS02 central motor M315 can be installed be installed on standard BSA frames. Check that the internal diameter of your bottom bracket is 33.5mm minimum (Measurement A) and length is 68mm to 73mm (Measure B). There are two types of bottom bracket, those with internal bearings and those with external bearings. In both cases, measurements are always taken at the frame level as shown here. Measurement A corresponds to the inside diameter of the case, it is inside the tube edge to edge. The standard is 33.5mm. If you have more, you will have to take the appropriate adapters. Measurement B corresponds to the length of the frame box, it is made between the two ends of the frame tube. You must have between 68mm and 73mm. If you have more (83mm, 92mm, 100mm ...) you will have to choose the BBSHD central motor. |
 |
Pedal motor manual :
| Tutoriel vidéo sur tous les accessoires du moteur pédalier Bafang : | Principe de fonctionnement du moteur pédalier 8FUN BBS01 et BBS02 : |
| Les différents displays OZO pour moteur pédalier Bafang BBS01 BBS02 et BBSHD : | Révision générale moteur pédalier Bafang - Démontage Remontage Entretien : |
| Notice de Montage du moteur pédalier 8FUN BBS01 et BBS02 - Part 1/2 : | Notice de Montage du moteur pédalier 8FUN BBS01 et BBS02 - Part 2/2 : |
Data sheet
