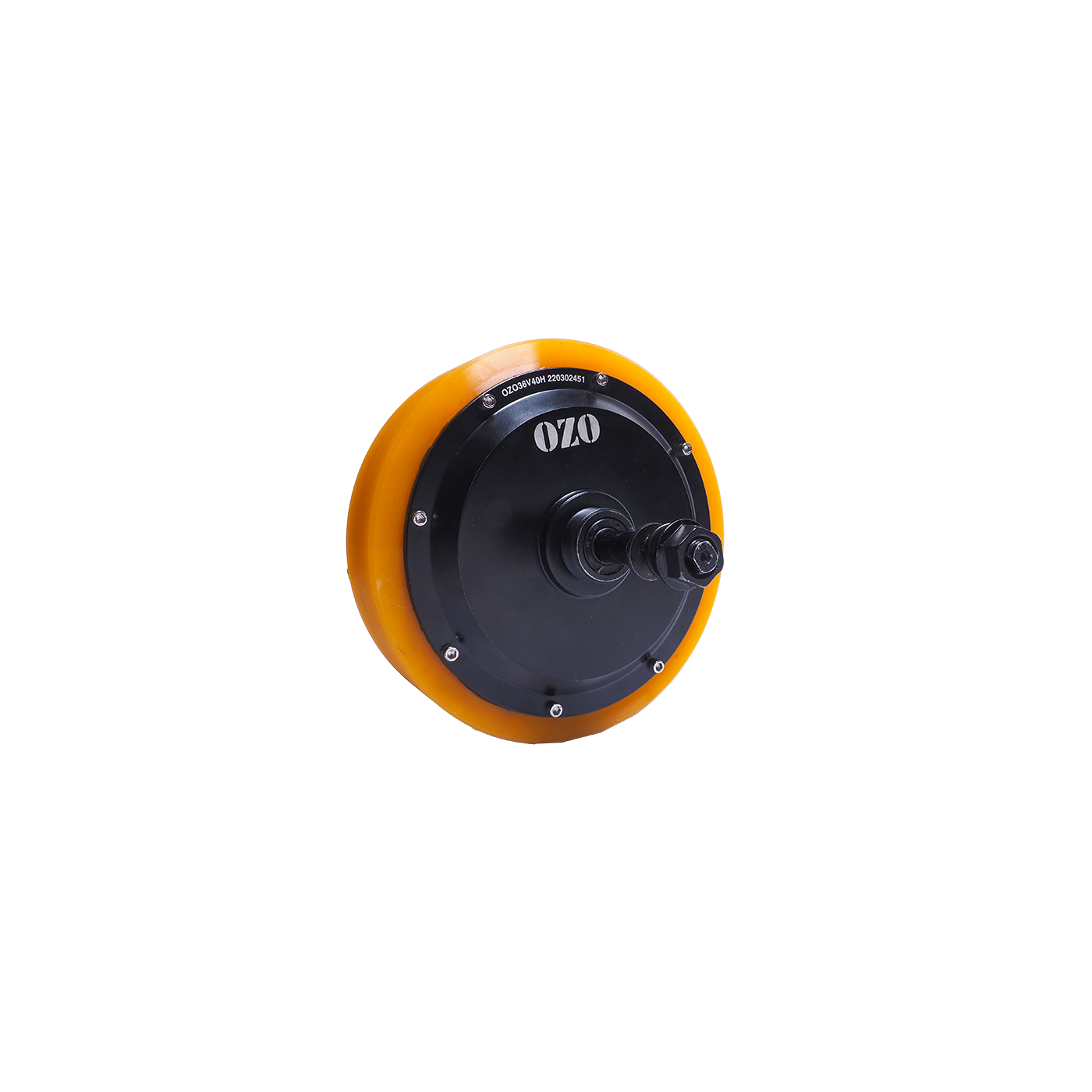

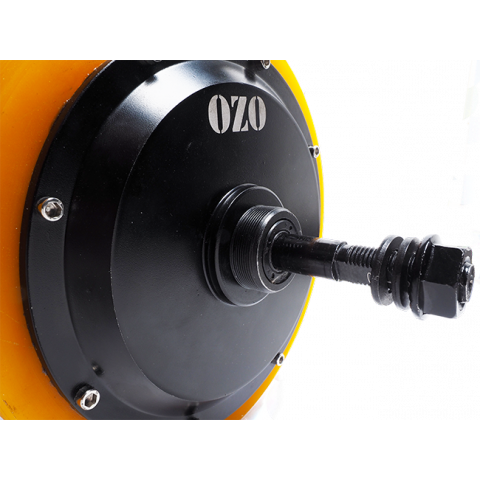

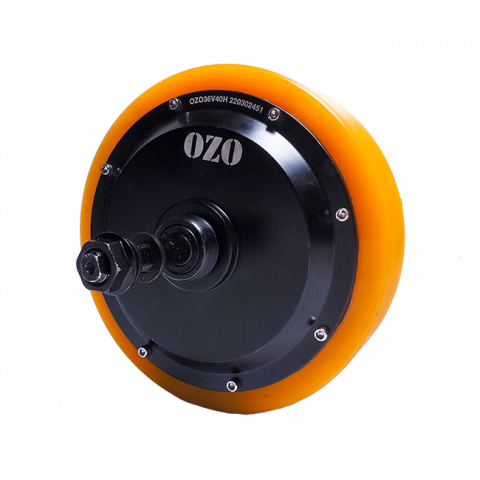

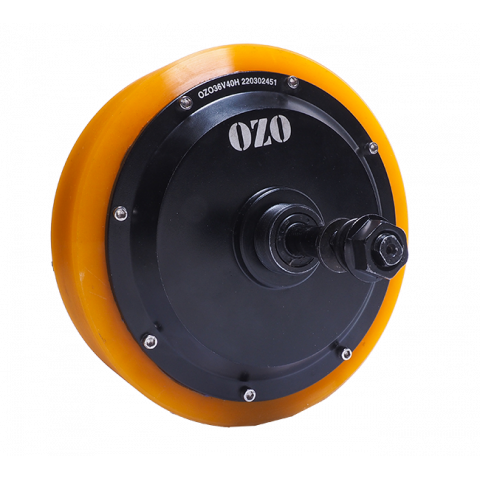

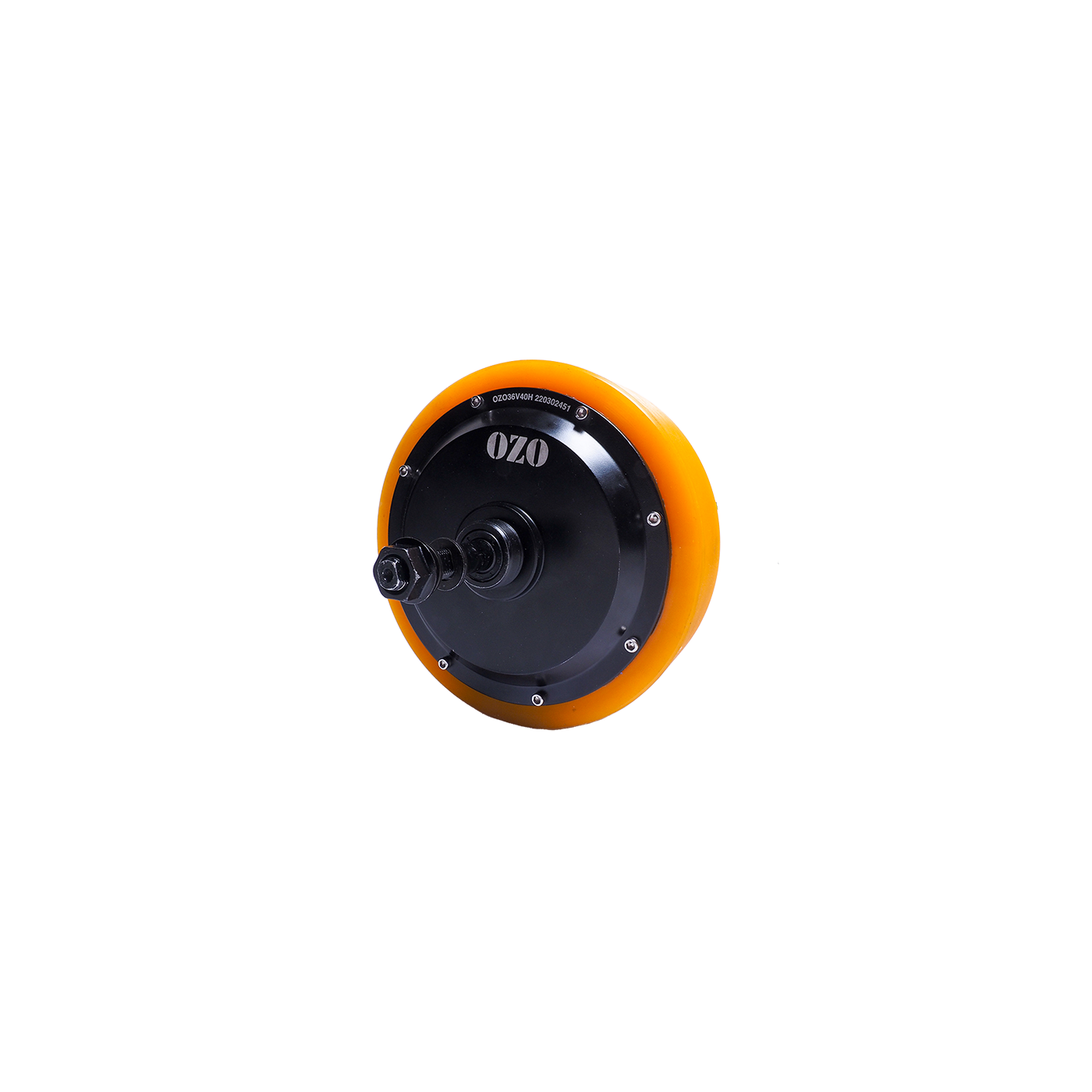

220mm electric wheel motor for industrial and logistics trucks for disc brake

We designed this electric drive wheel specifically to electrify all industrial rolling bases used in handling or logistics.

Its main objective is to facilitate the electrification of your logistics or production carts, reducing worker fatigue while complying with CSR standards.

With a continuous power of 500W, this drive wheel can power various equipment such as push-pull trolleys, trolleys, picking carts, industrial racks, and even hospital beds.

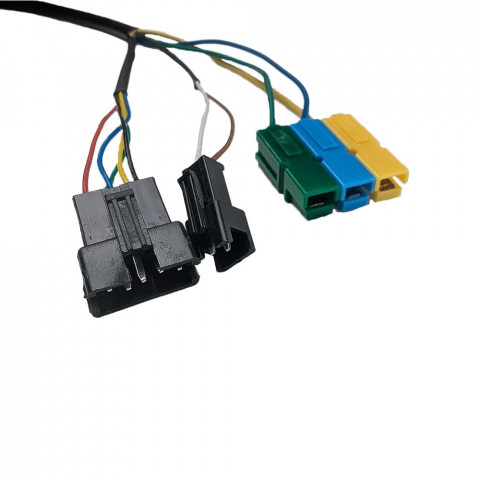

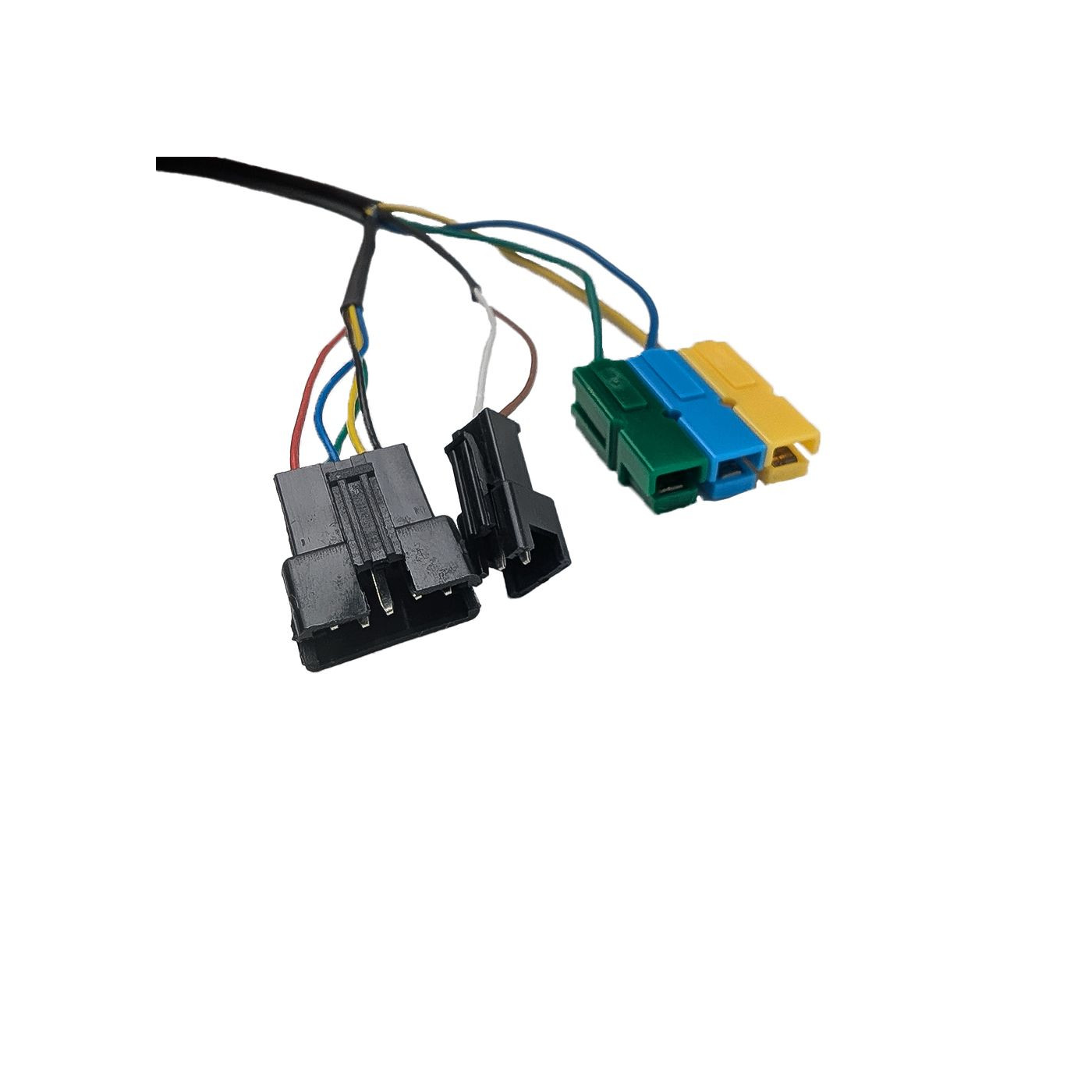

The motor has a 1500mm cable that is directly compatible with our OZO 25A industrial controller. Its 50mm-wide polyurethane tread provides excellent grip on all types of industrial floors and eliminates any risk of punctures. The outer diameter of the tread is 220mm.

The brushless motor operates as a direct drive, ensuring completely silent operation when used with our programmable OZO 25A controller. In addition, an integrated temperature sensor protects the motor from overheating when used under heavy load.

Our programmable controller allows advanced customization of motorization parameters according to your needs, such as feed rate, torque, response time, acceleration, maximum voltage, etc.

You'll enjoy total control with the ability to move the truck forward or backward, activate the regenerative brake, and activate the "dead man" function for increased safety.

Thanks to our controller's vector technology, equipped machines can operate without producing noise pollution.

This motorization perfectly meets the criteria for reducing work-related stress and occupational risks, in compliance with new CSR standards.

By electrifying your work tools such as hospital beds, trolleys, push-pull trucks, or other handling and picking carts, you can quickly and easily reduce these risks.

This solution is ideal for quickly complying with CSR standards, for factories 4.0 and for intralogistics needs.
