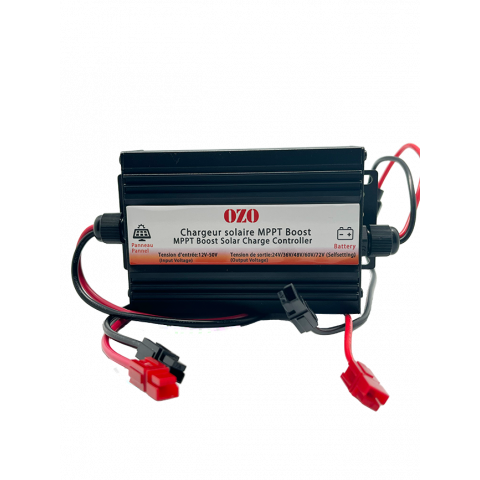

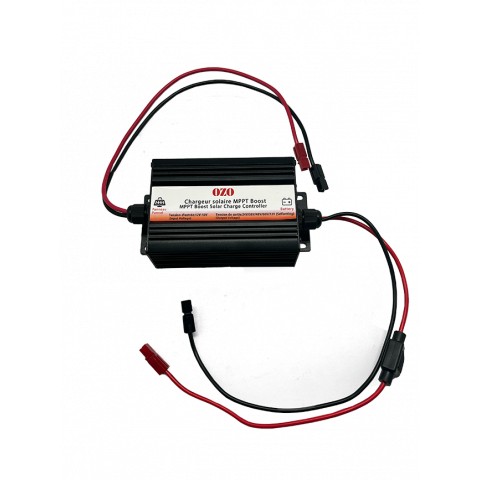

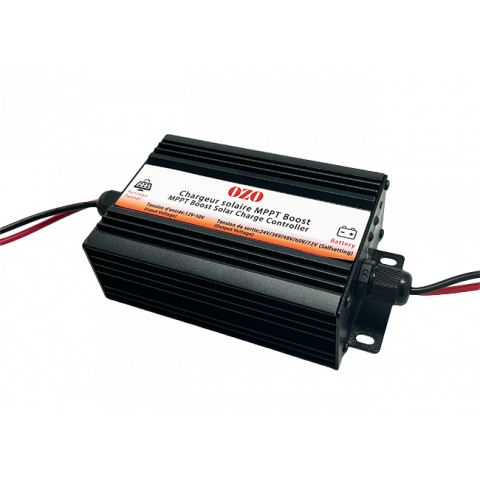

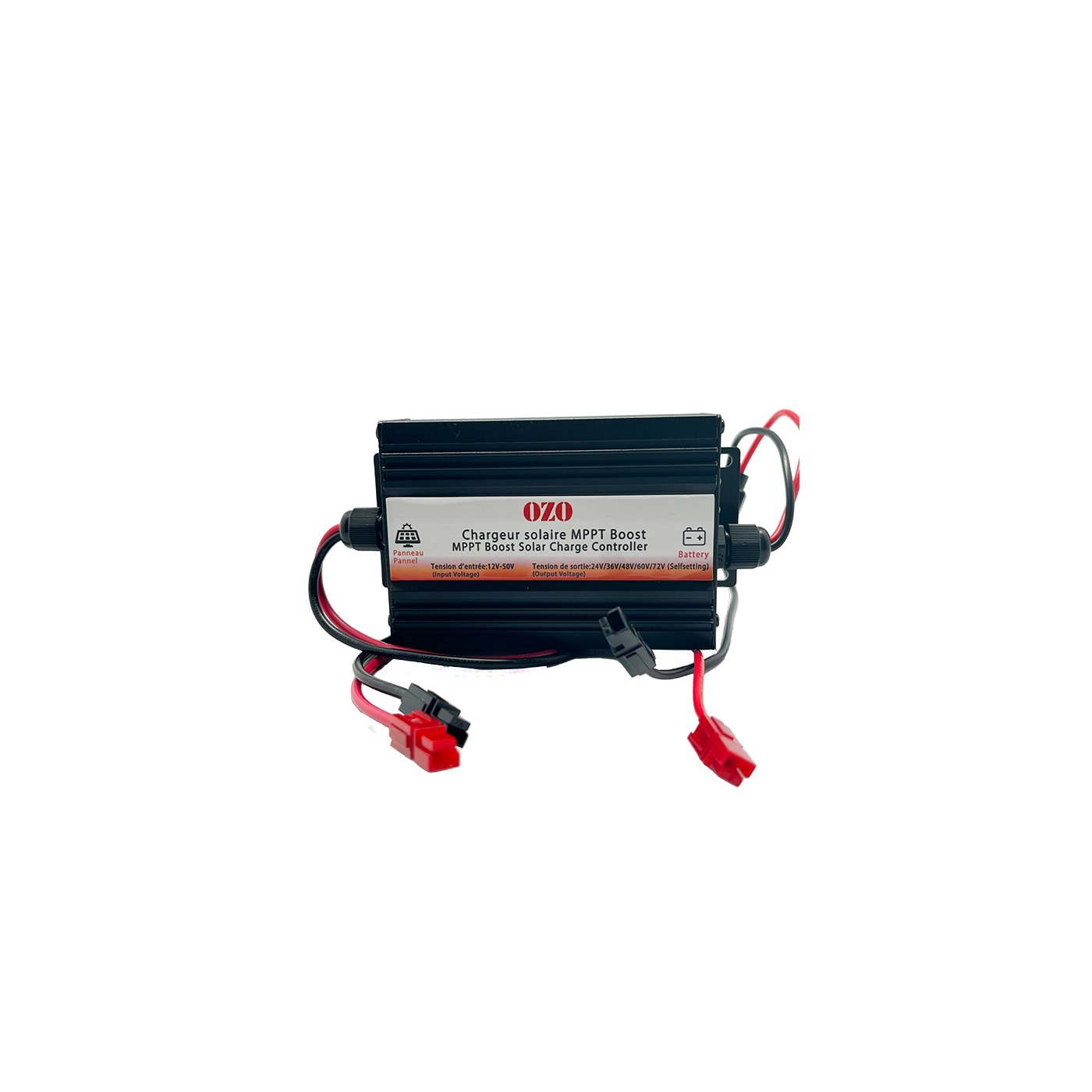

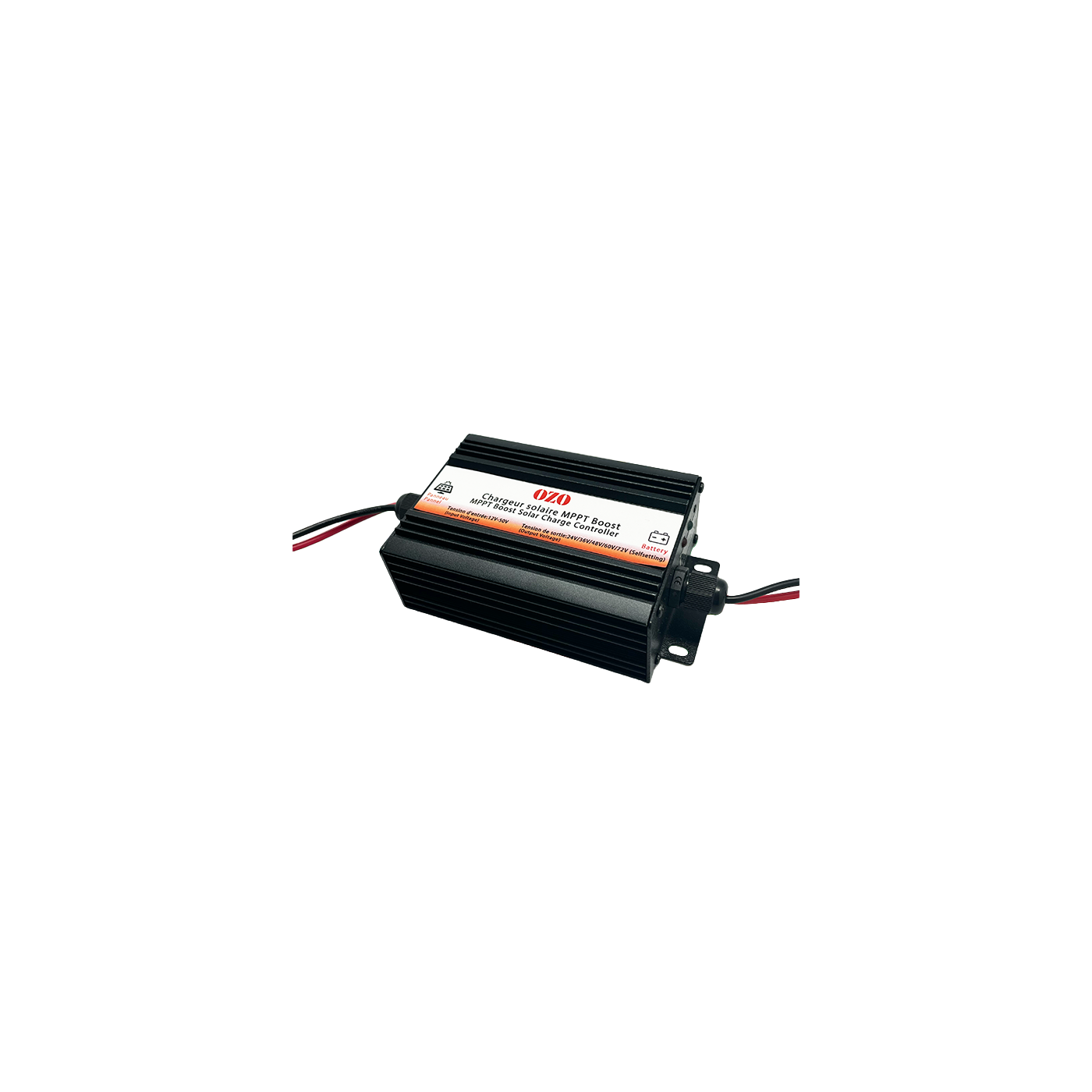

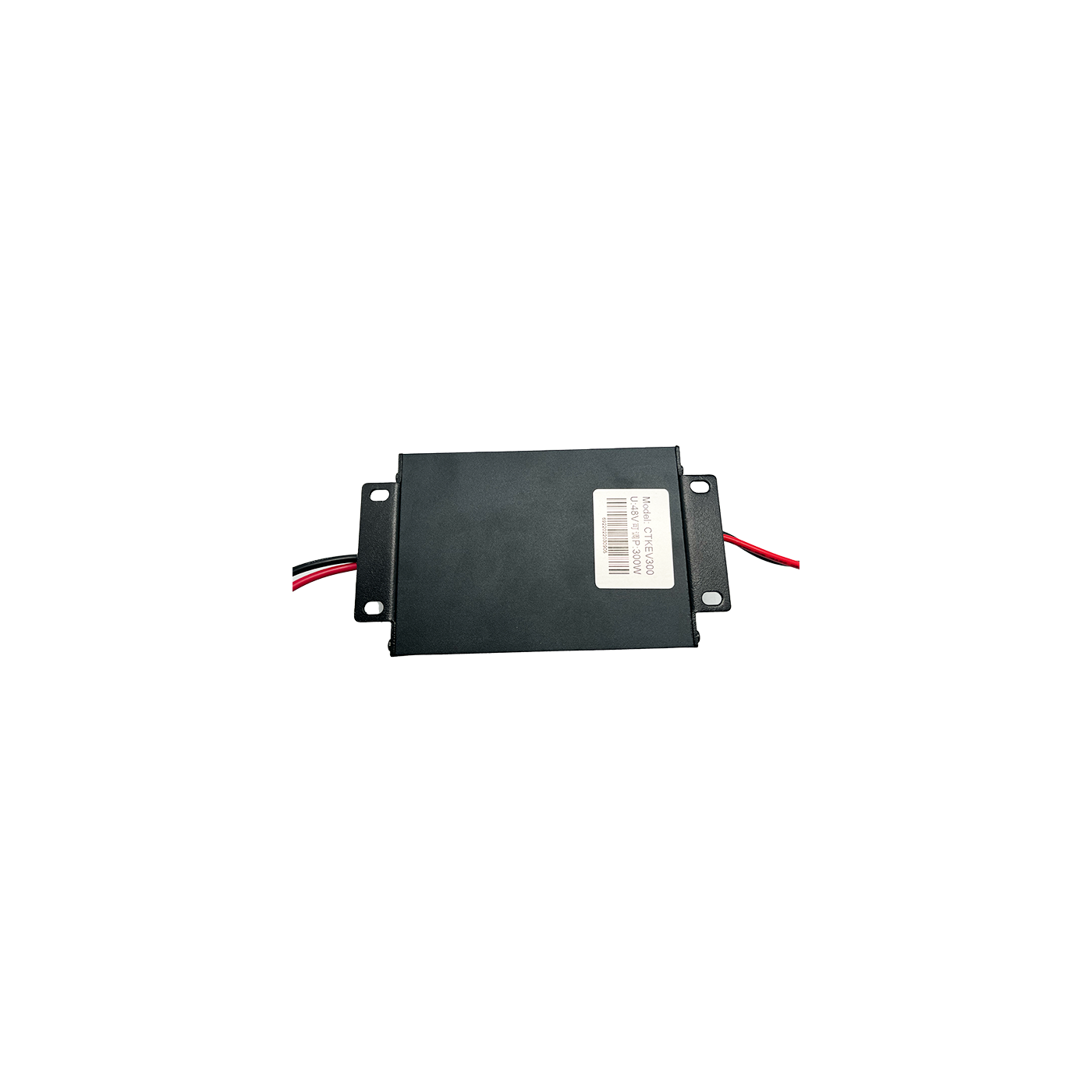

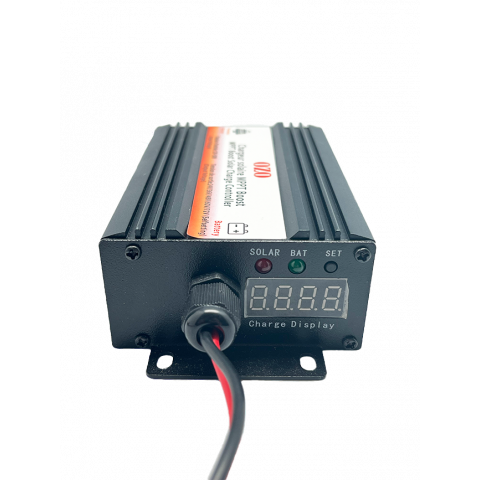

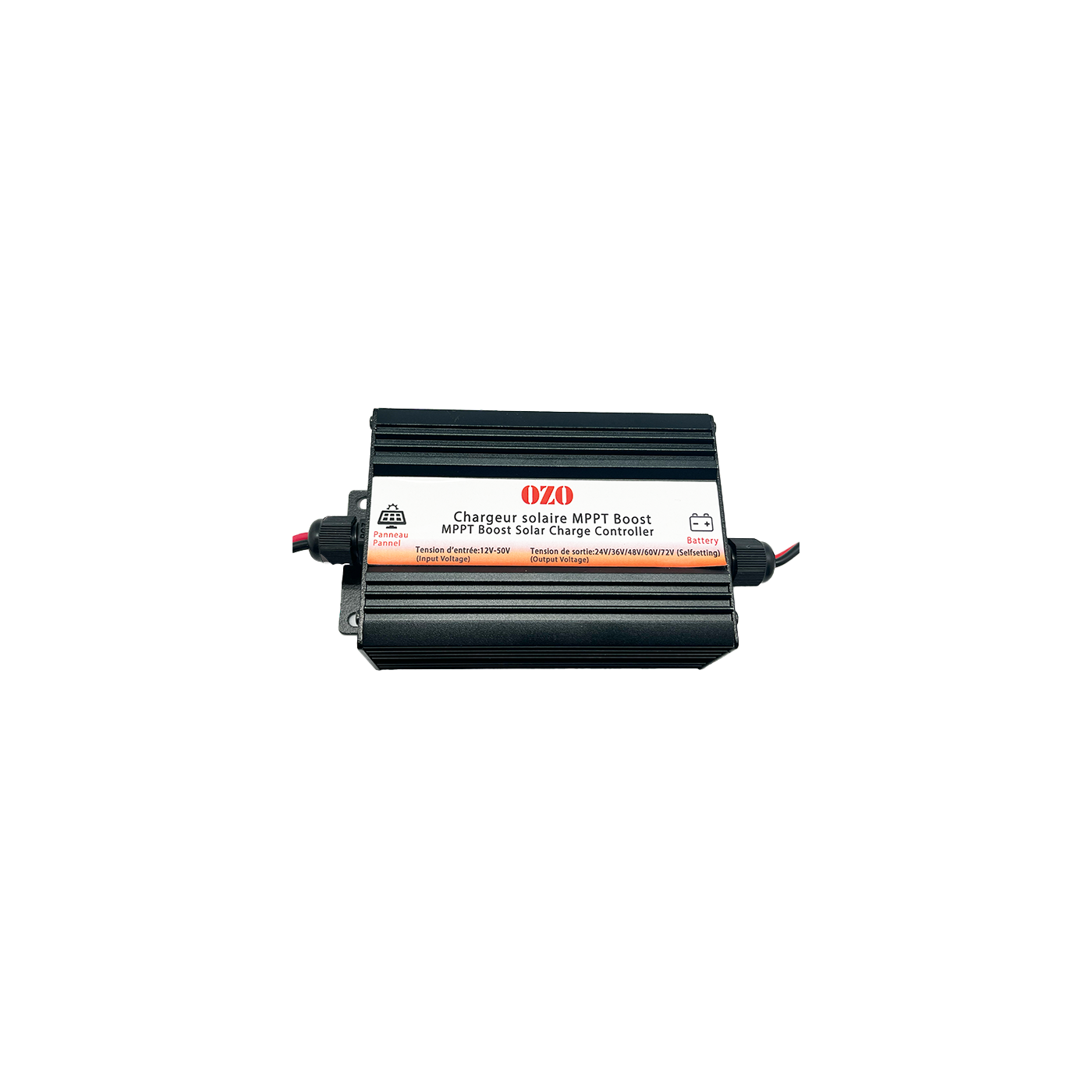

Solar Charger 300W
Solar charger 300W that can work with any kind of Lithium or Lead Batteries 24V, 36V, 48V, 60V and 72V
This MPPT solar charger get an integrated boost controller, so you can charge your Lihtium battery with only one 12V panel.
Max power is 300W
Weight = 450g

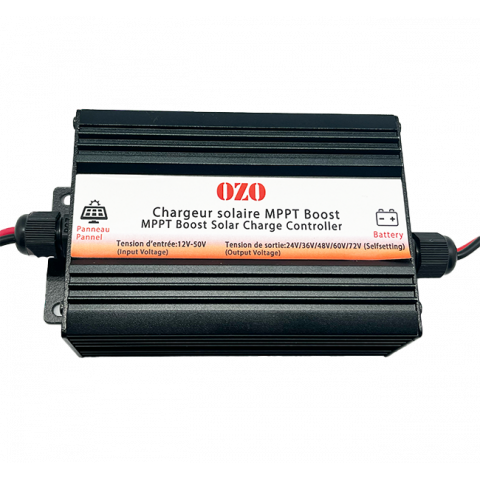

LE CHARGEUR SOLAIRE 300W MPPT BOOST


This MPPT solar bosst charger will reduce the surface area of your installation and save your money.
This charger can charge any kind of batteries : Lead acid, Gel, Nicd, Ni-Mh, Lithium-Ion , LiFePO4... at any Volatge from 24V to 72V.

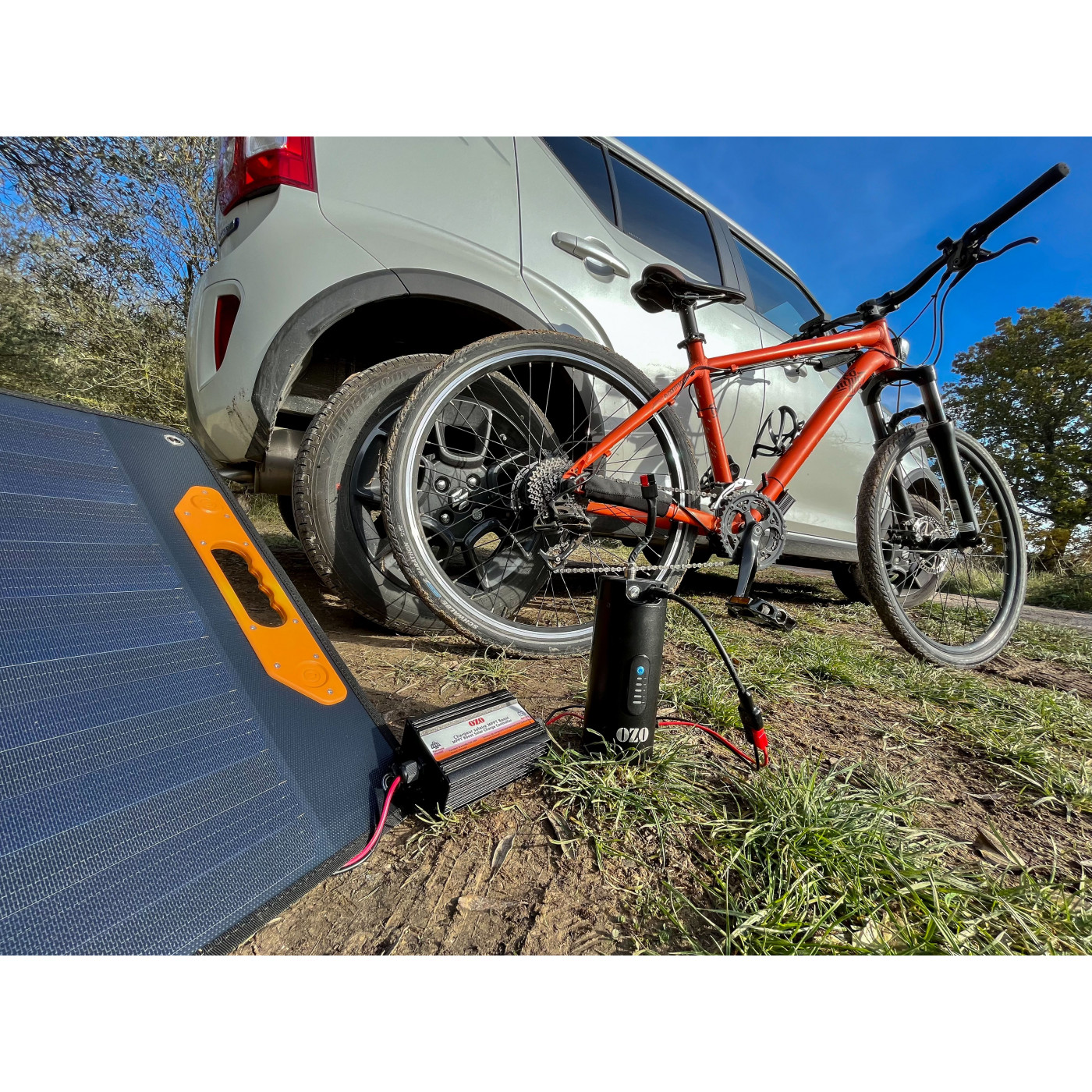

MPPT (Maximum power point tracking) technology is the best in terms of solar charge, however not all MPPT chargers are equivalent; most are designed for fixed installations and have a low sampling frequency that only allows them to take a measurement every 30 to 60 seceondes, while Genasun chargers take 15 measurements per second which will give you significantly higher performance for mobile installations as on a vehicle for exemple.
Wiring diagram


série or parallel possible.
- 2x série 100W
- 2x série 150W
- 2x parallel 100W
SÉRIE

PARALLEL

User manual ici
Data sheet
- Guarantee
- 2 ans
- Puissance
- 300W
- Dimensions
- Longueur : 140 mm | Largueur : 74 mm | Hauteur : 43 mm
- Affichage tension batterie
- OUI
- Tension
- 48V, 60V, 72V
- poids en 26 pouces
- 450 gr
- Technologie
- MPPT à Boost controller
- Tension d'alimentation
- 12V à 36V
- Tension de sortie
- réglable de 24V à 86,4V
