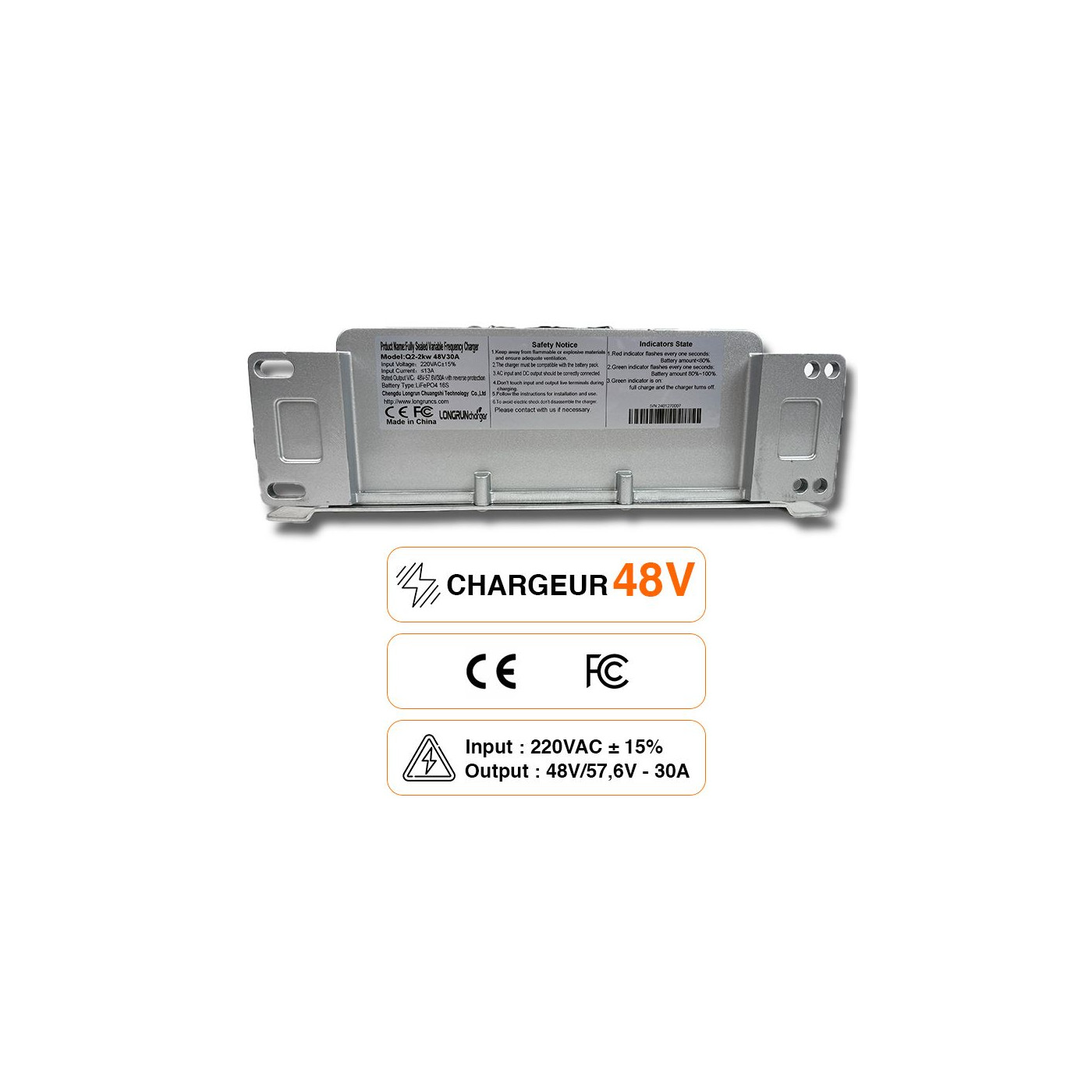

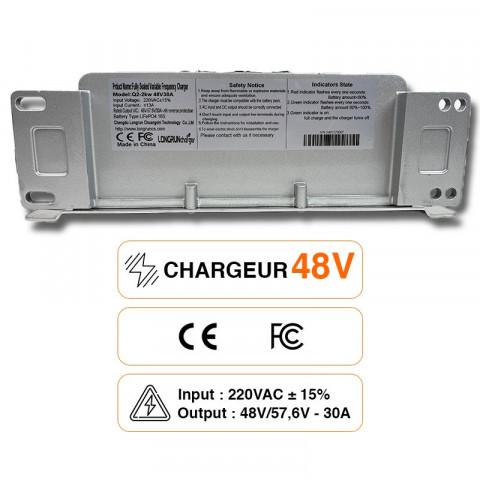

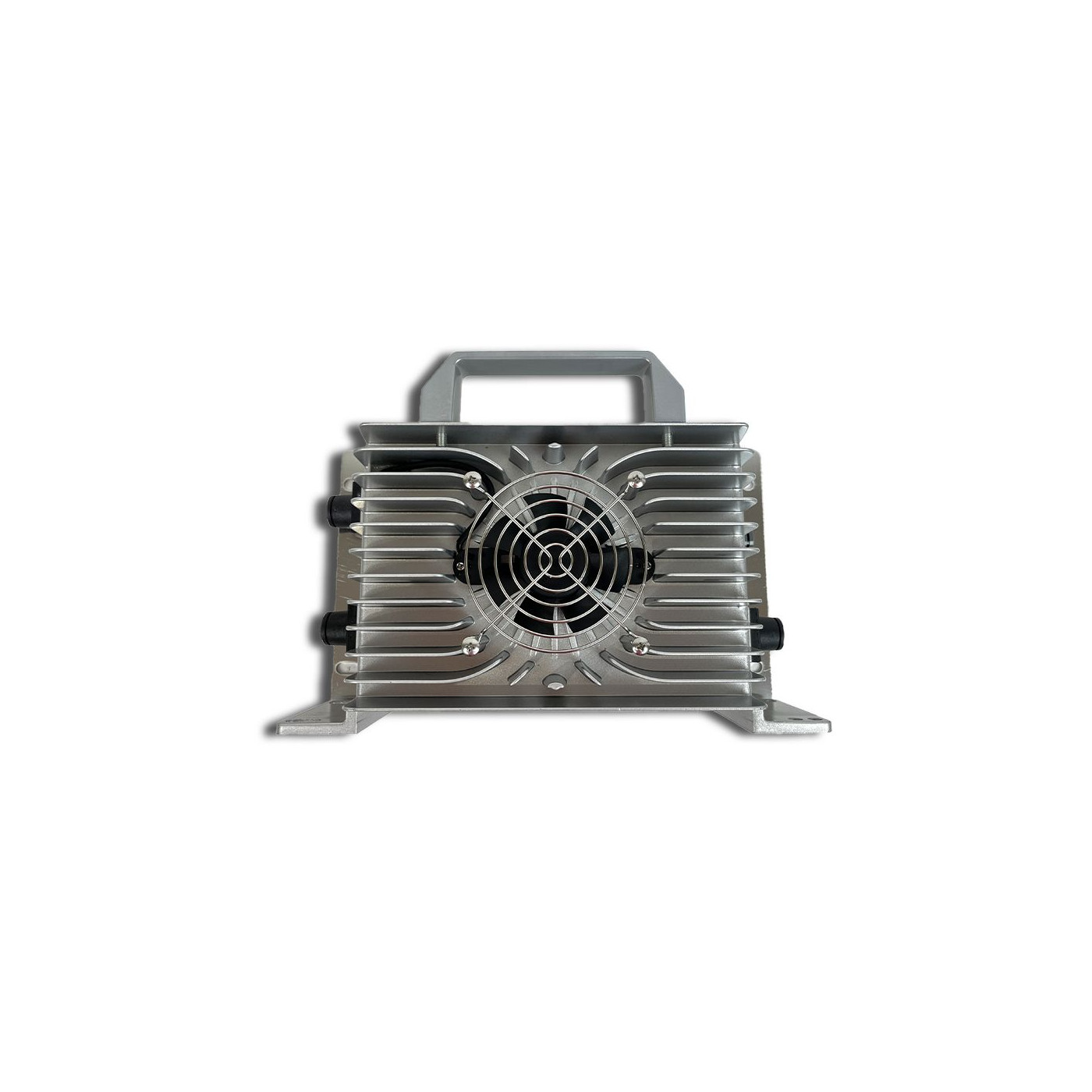

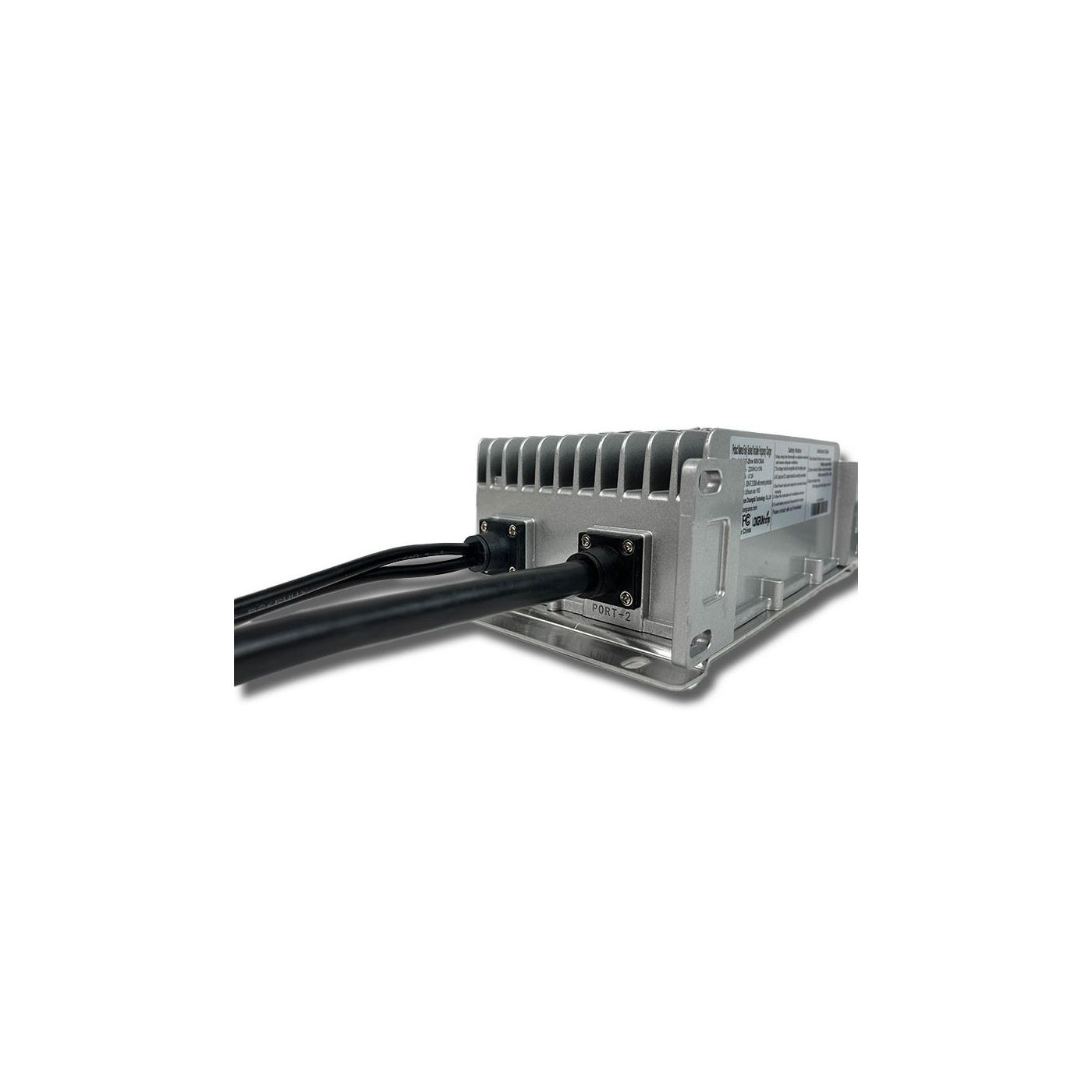

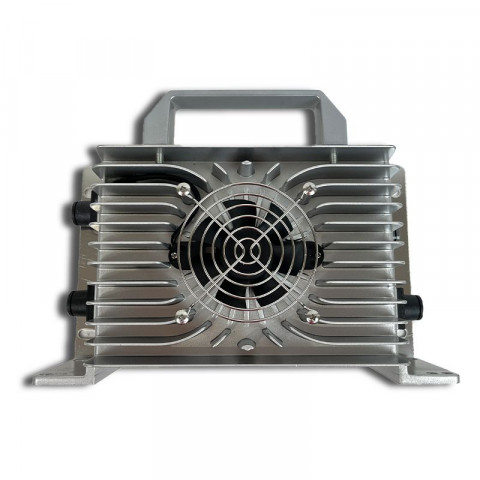

48V 30A waterproof charger for Lithium battery IP66

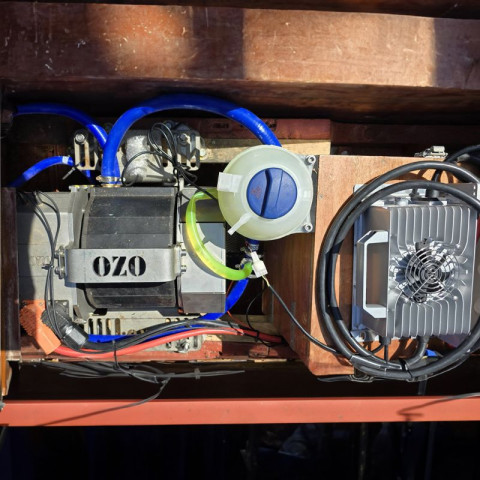

Waterproof 48V 30A IP66 charger for Lithium LiMn or LiFePO4 batteries for electric motorcycles or boats.

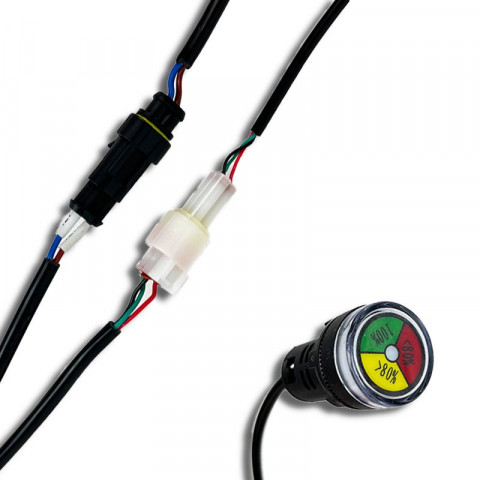

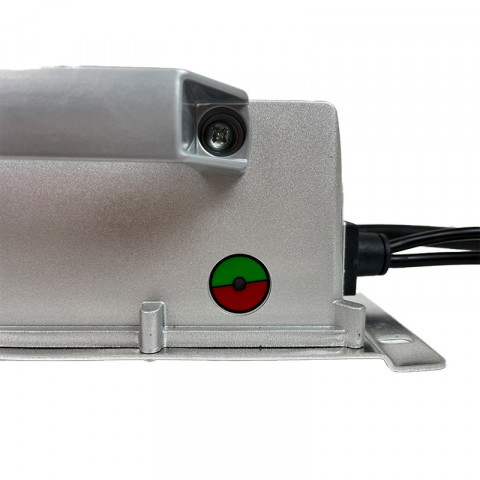

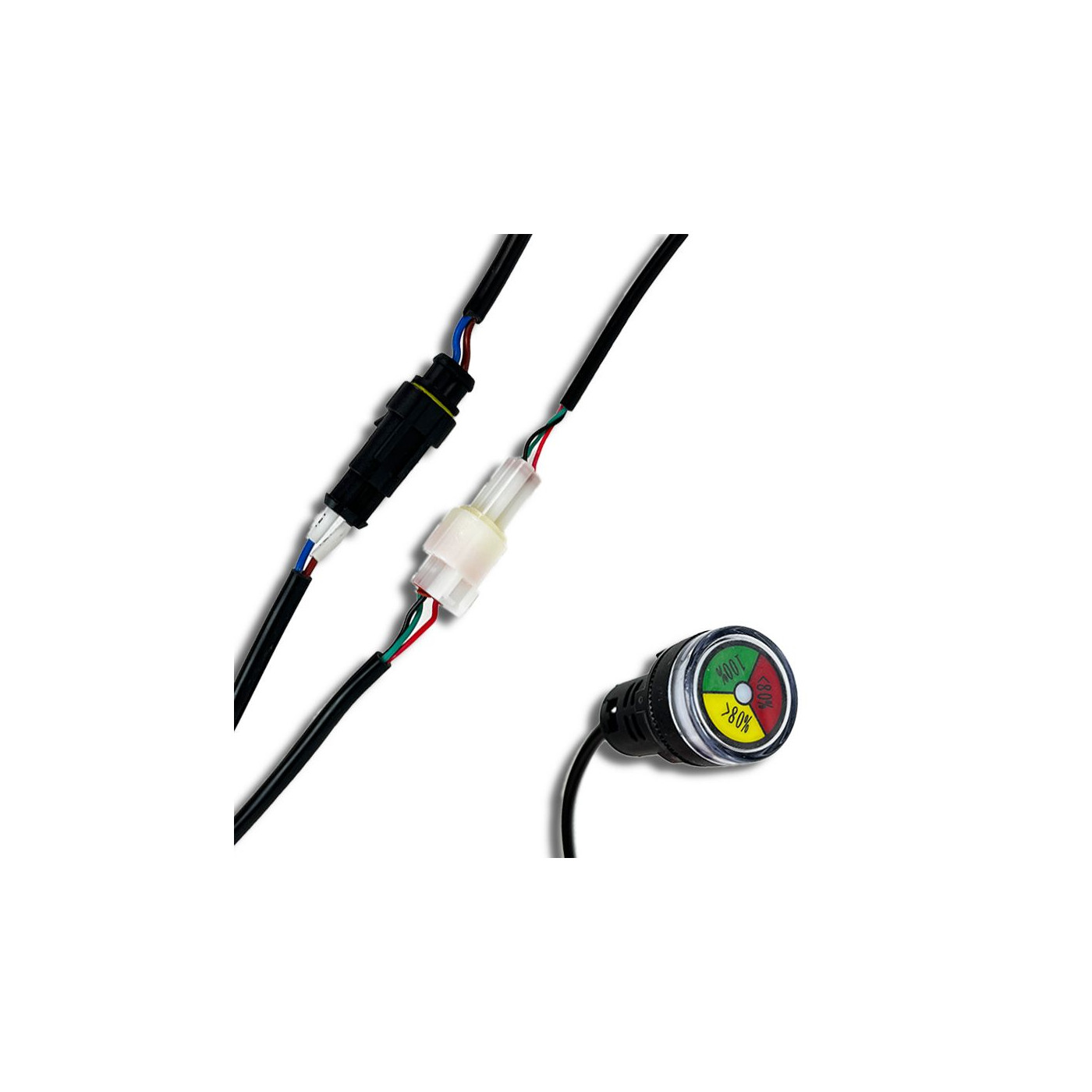

Remote charge gauge allowing you to monitor the charging progress.

The charging voltage is 54.8V DC for the LiMn version, which corresponds to a 16S assembly.

The charging voltage is 57.6V DC for the LiFePO4 version, which corresponds to a 20S configuration.

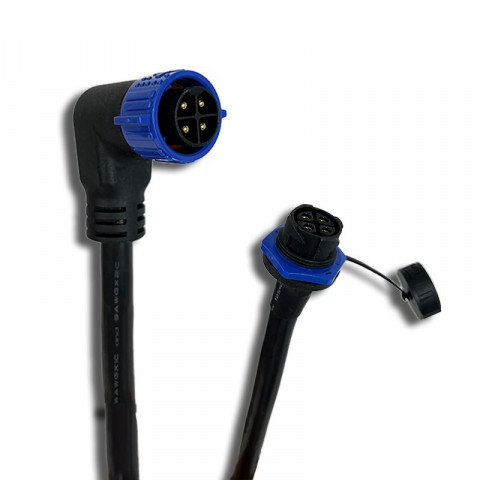

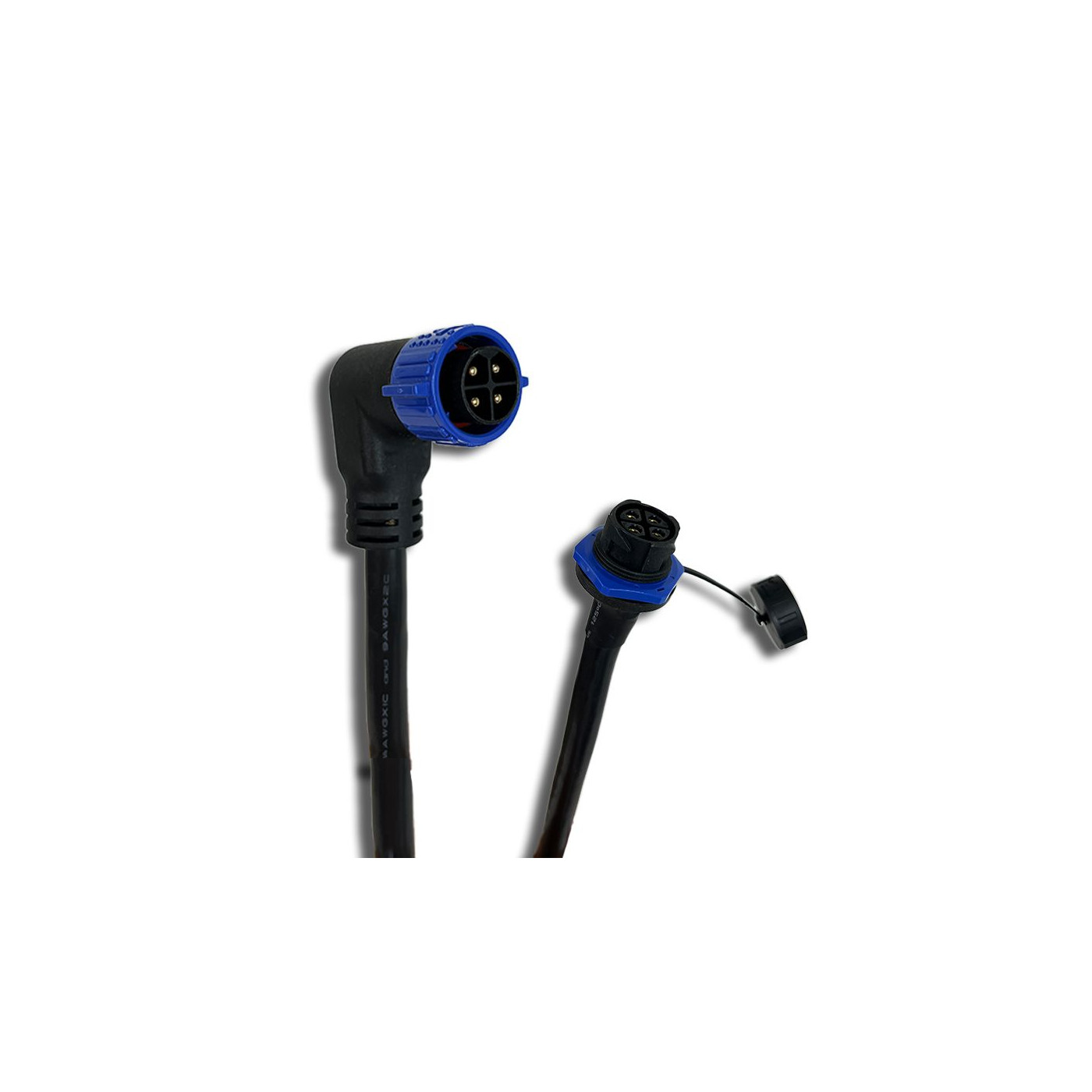

Waterproof IP67 charging connector. Waterproof IP66 charger.

Note that the female side of the connector is delivered with the charger in the "socket" format.

Read moreShow less
€399.00 (tax incl.)
Technologie
  • LiMn/LiPo
  • LiFePO4
IN STOCK 9 Items
Reference:
009378
You may also like
Description

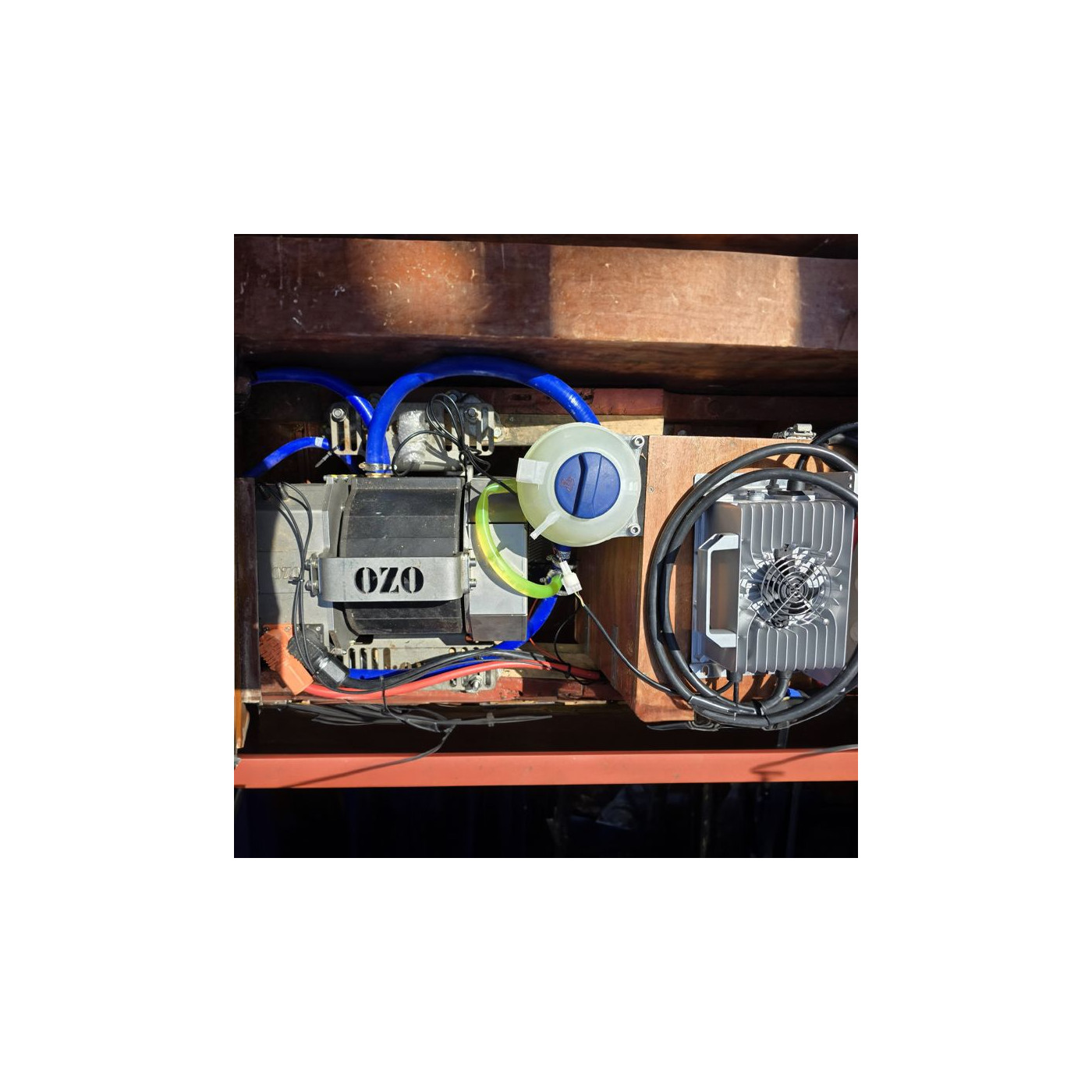

Waterproof IP66 48V 30A charger, specially designed for Lithium Ion LiMn or LiFePO4 (LFP) batteries for electric motorcycles or electric boats.

This charger delivers 30A charging current. This means it can charge a 30Ah battery in one hour and a 300Ah battery in 10 hours.

LiMn CHARGER CHARACTERISTICS

  • Battery type: Lithium Ion (LiMn, Lipo, NMC)
  • Nominal voltage: 48V DC (16x cells in series)
  • Charging current: 30A

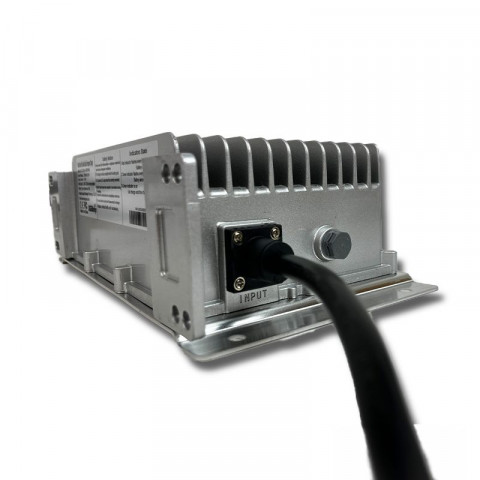

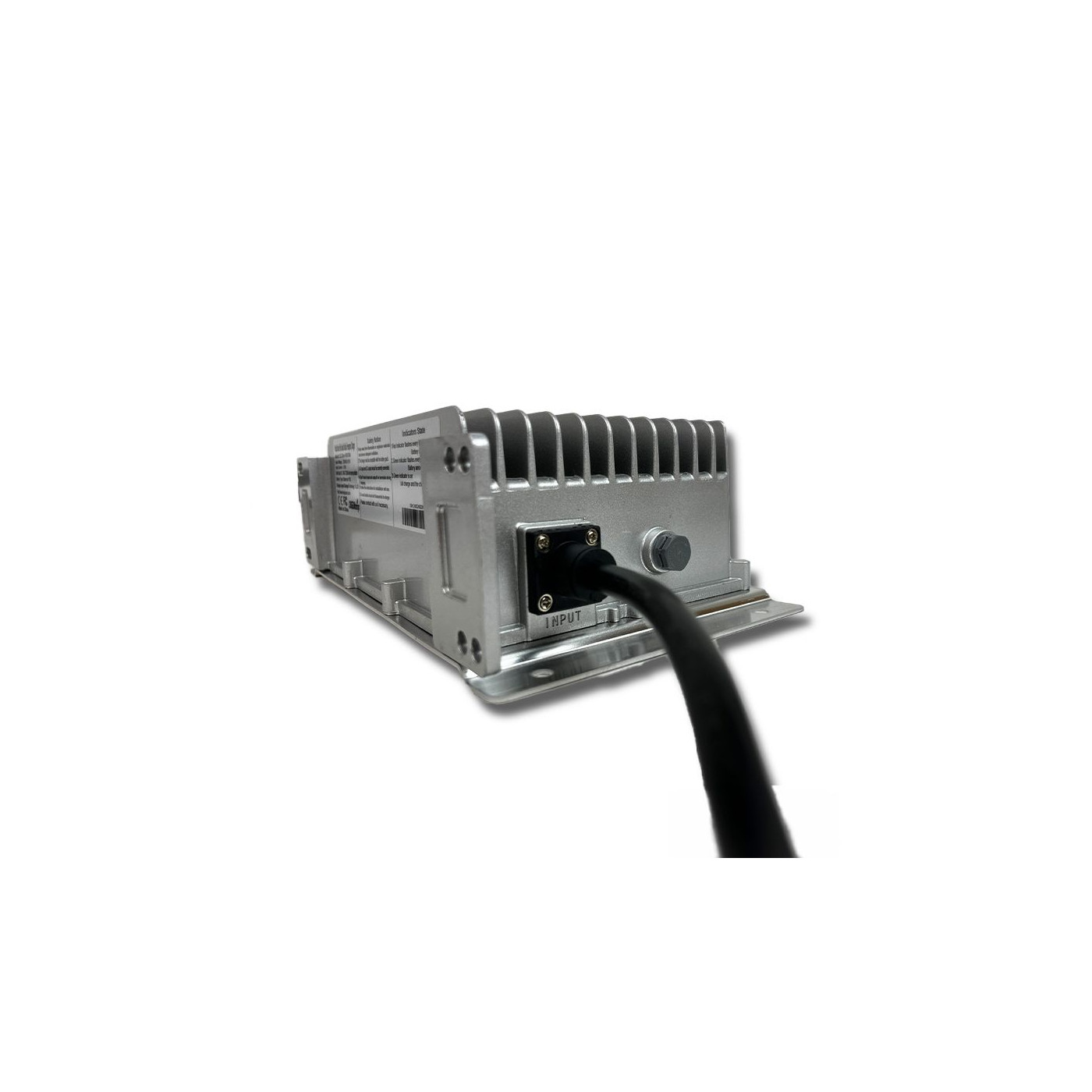

  • Input connector: EU plug
  • Input cable length: 1 meter
  • Input voltage: 220V AC

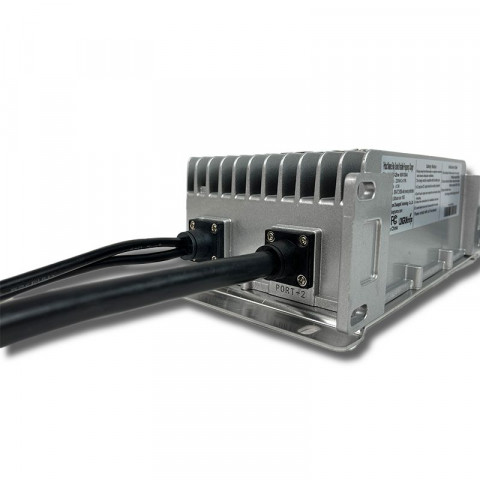

  • Output connector: JNICON 4 pins (PIN 1 and PIN 2)
  • Output voltage: 54.6V DC
  • Output cable length: 1 meter
  • Secondary output: 12V 3A

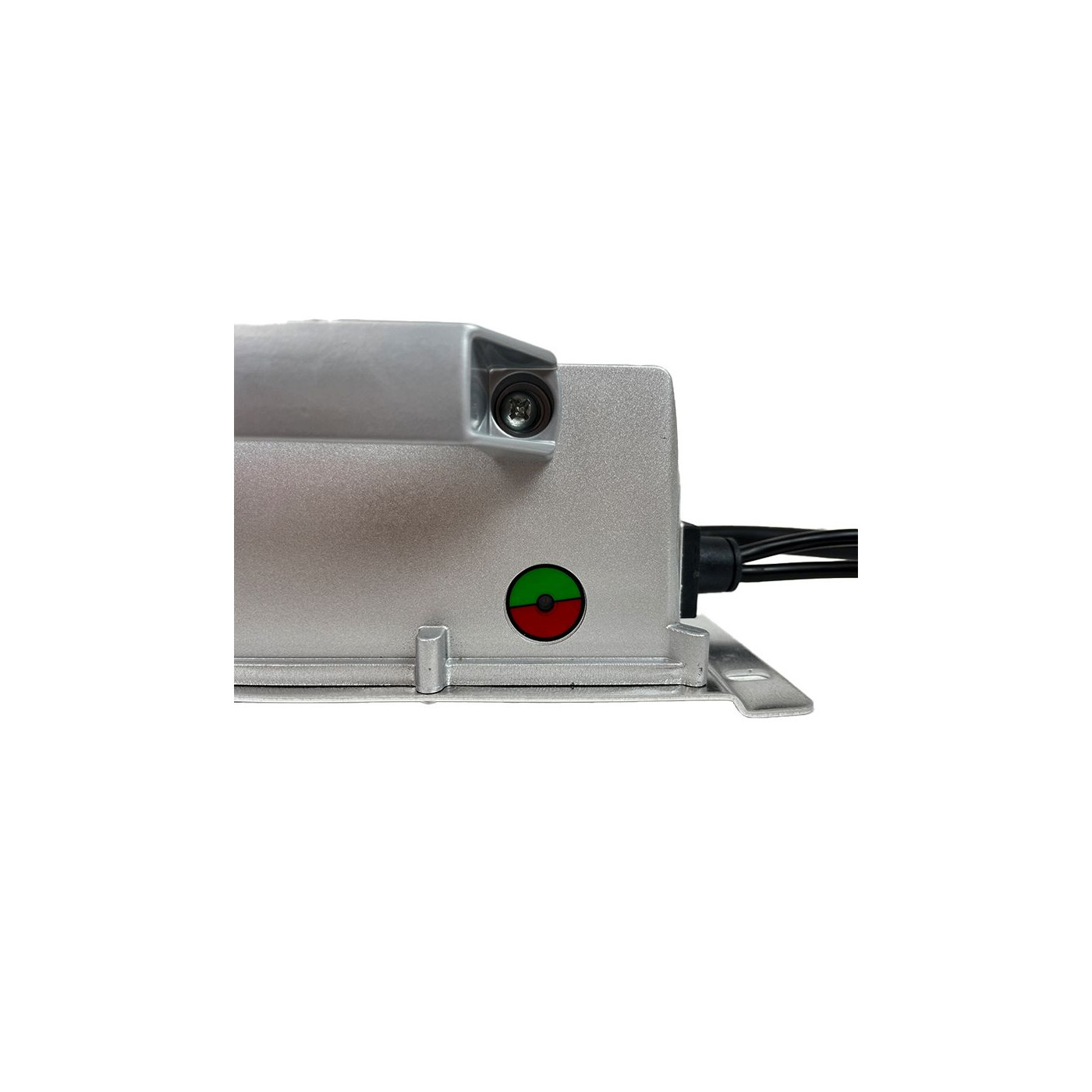

  • External indicator: Yes
  • Closed relay (NC): Yes
  • Waterproof: IP66

LiFePO4 CHARGER CHARACTERISTICS

  • Battery type: Lithium Iron Phosphate (LFP, LiFePO4)
  • Nominal voltage: 48V DC (20x cells in series)
  • Charging current: 30A
  • Input connector: EU plug
  • Input cable length: 1 meter
  • Input voltage: 220V AC
  • Output connector: JNICON 4 pins (PIN 1 and PIN 2)
  • Output voltage: 57.6V DC
  • Output cable length: 1 meter
  • Secondary output: 12V 3A
  • External indicator: Yes
  • Closed relay (NC): Yes
  • Waterproof: IP66

CHARGING PLUG

Read moreShow less
Product Details
009378

Data sheet

Guarantee
2 ans
Dimensions
280 x 200 x 90 mm
Mass
3,612 Kg
Waterproof grade
IP66
Cable lenght
1m (LiMn) 1m (LiFePO4)
tension nominale
220V
Charging Plug
Jnicon 4 PINS Male
NC Relay
YES
12V Output
YES
