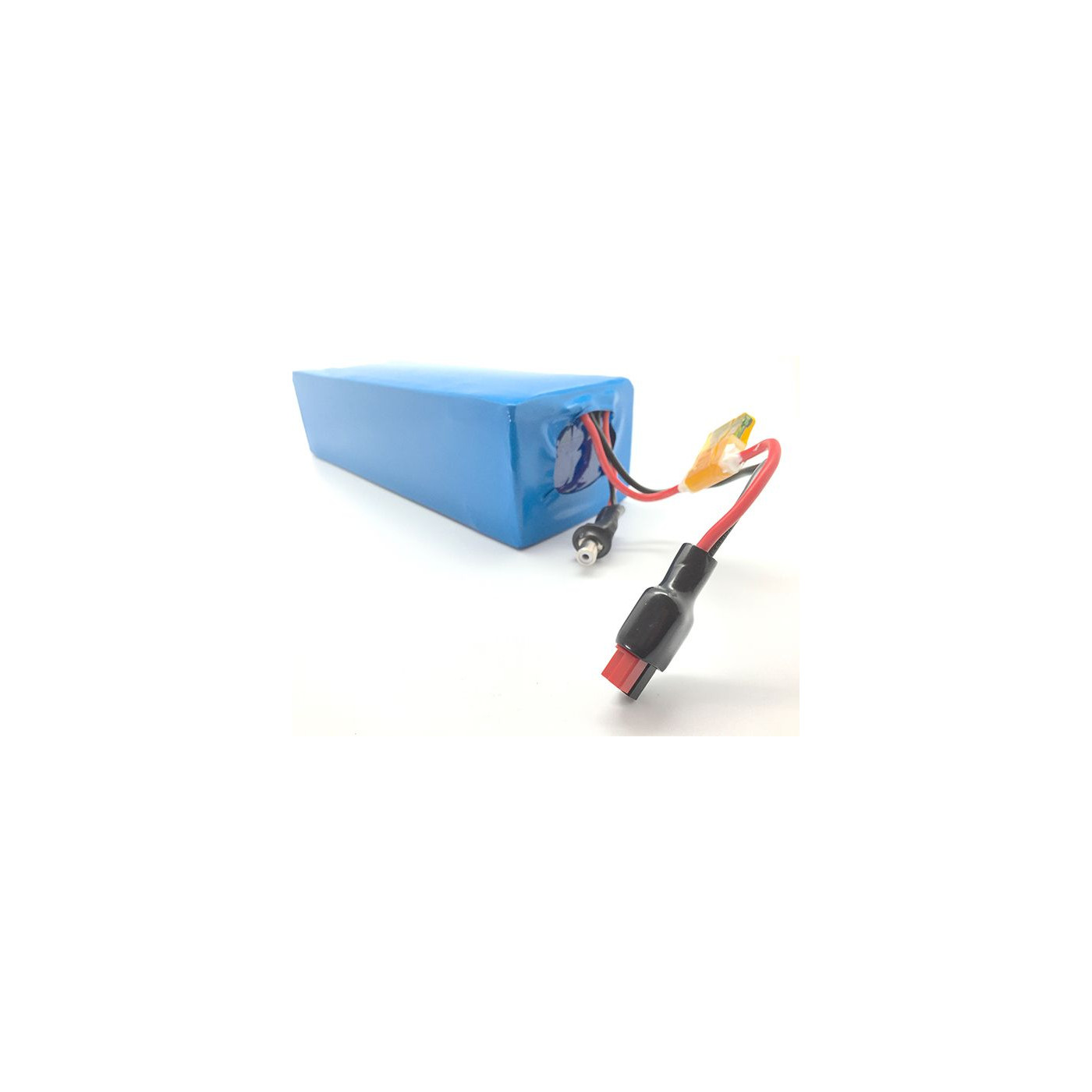

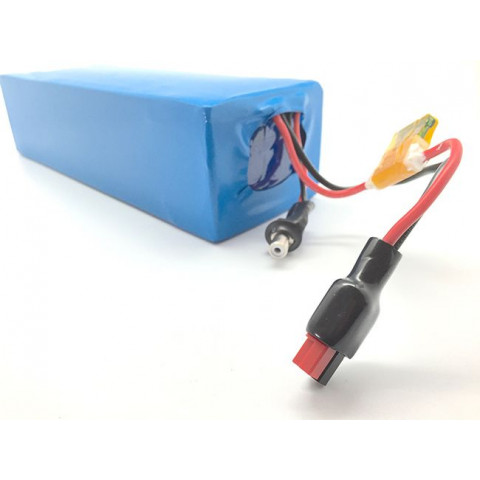

72V PVC Battery Panasonic Lithium
This new range of 72V Lithium batteries offers this version in 35Ah 2520Wh, it is assembled in France in our laboratory.
This allows us to offer you a 60A BMS and suitable connectivity.
Note that this battery is compatible with super chargers, allowing a full charge in 3h30min.
€1,439.00
(tax incl.)
Reference:
002467
You may also like
Dimensions:
- 21Ah: 450x140x88 mm
- 25Ah: 450x160x88 mm
- 28Ah: 450x180x88 mm
- 31Ah: 450x200x88 mm
- 35Ah: 450x220x80 mm
Weight:
- 21Ah: 6.3Kg
- 25Ah: 7.3Kg
- 28Ah: 8.3Kg
- 31Ah: 9.3Kg
- 35Ah: 10.3Kg
These 72V Lithium batteries, assembled in France, are designed for powerful installations requiring very high speed, long range, and significant torque.
Equipped with a BMS supporting 60A continuously and up to 250A peak, it is compatible with OZO 40A and Kelly 160A controllers.
To preserve battery life, the discharge current should not exceed 100A. Thanks to its compatibility with superchargers, it can be recharged in less than 4 hours with a 10A charger.
These batteries are built in 20S10P with Panasonic 18650GA or LG 18650 MJ1 cells of 3500mAh, ensuring excellent resistance to vibrations and optimal thermal management for long-lasting performance.

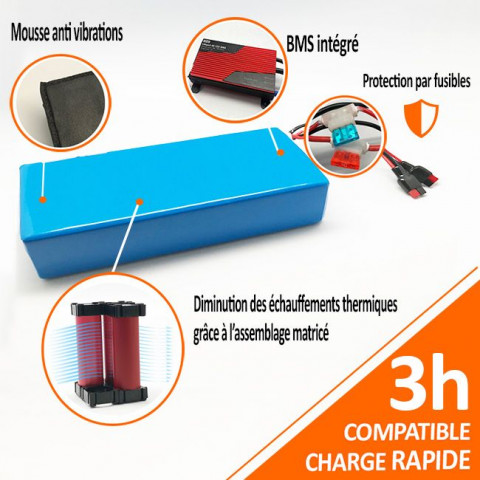

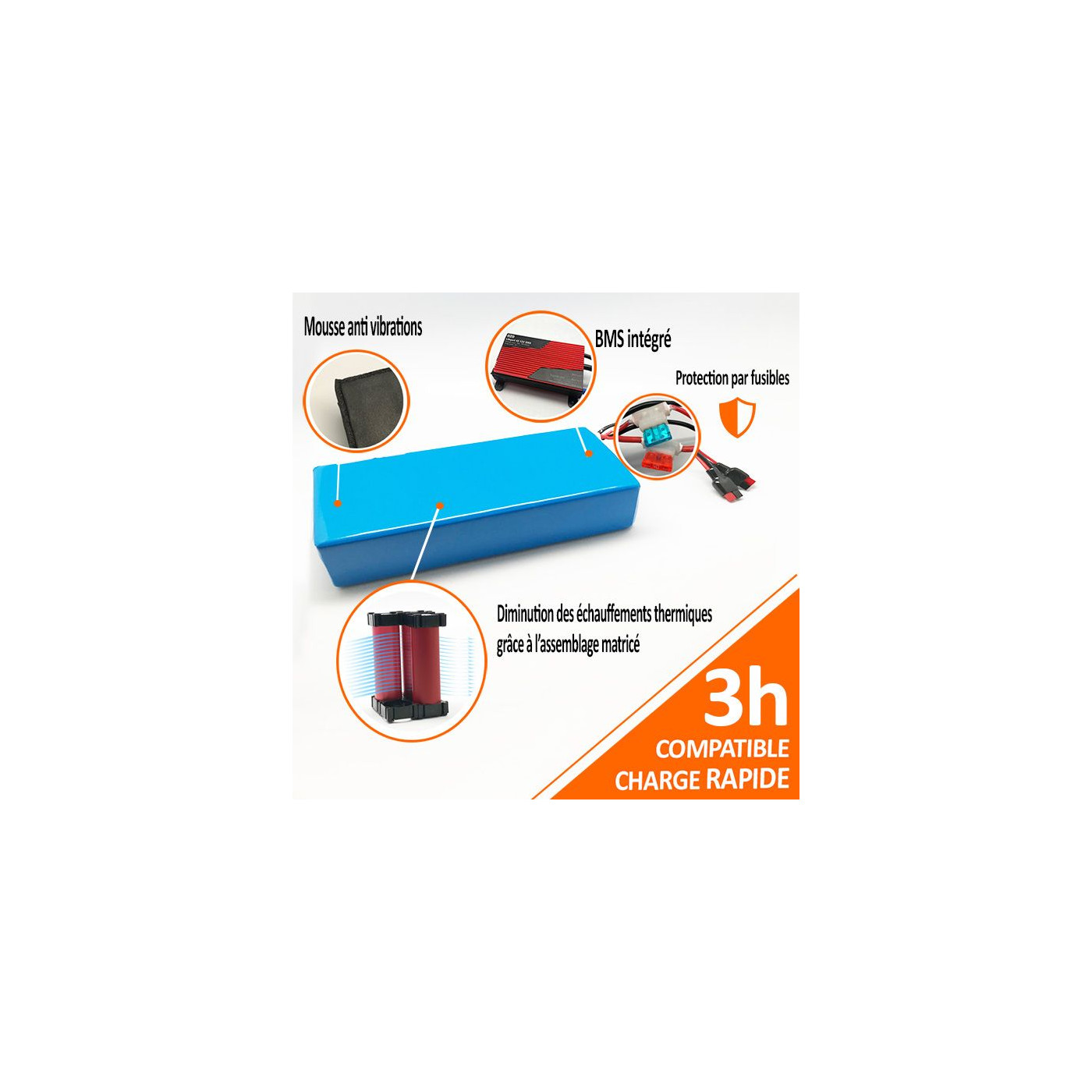

The BMS manages charging, discharging, and cell balancing while monitoring the temperature. The pack includes the cells, BMS, power connectors, charging connectors, and fuses.
If you need specific connectors or a more powerful BMS, we invite you to contact us for a customized solution.

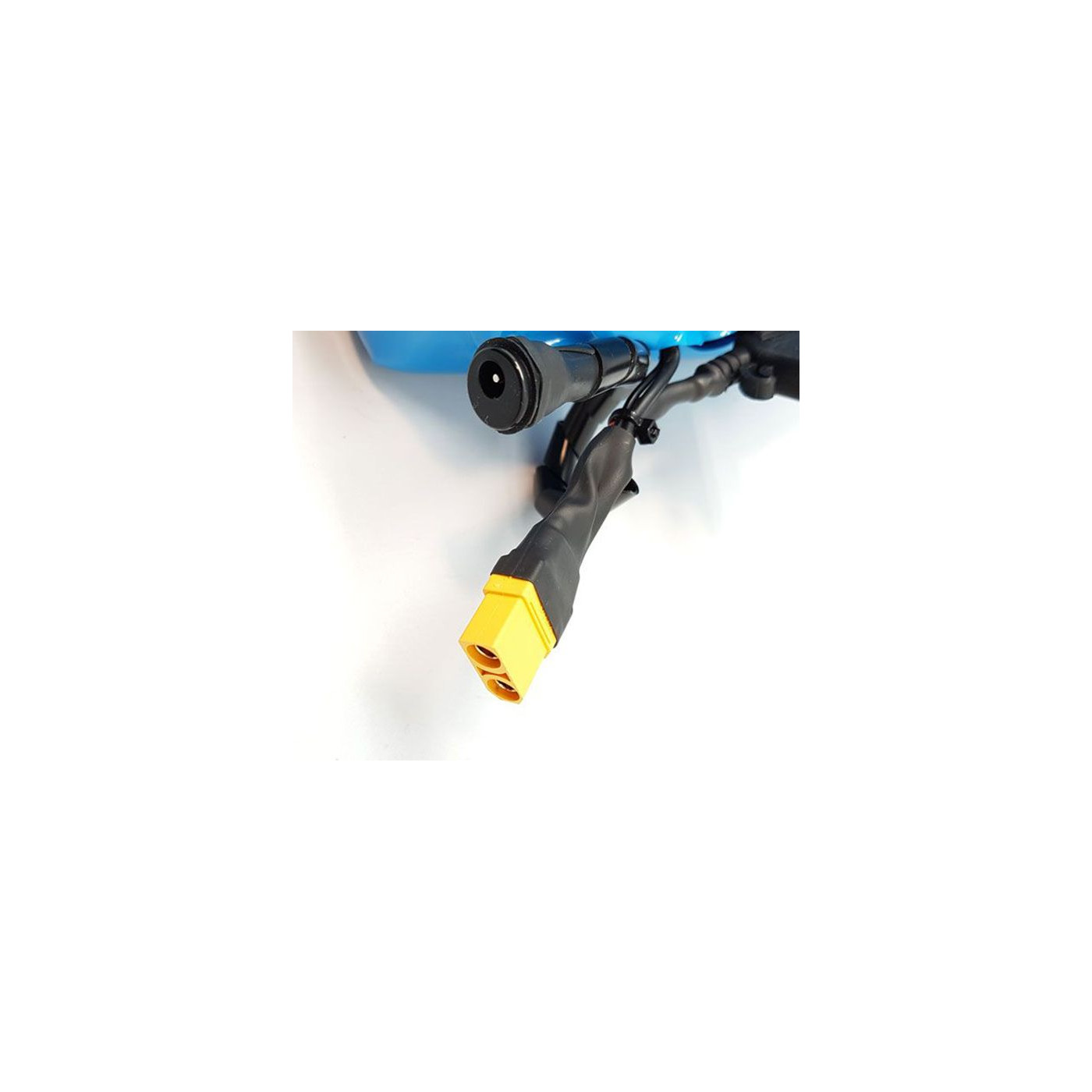

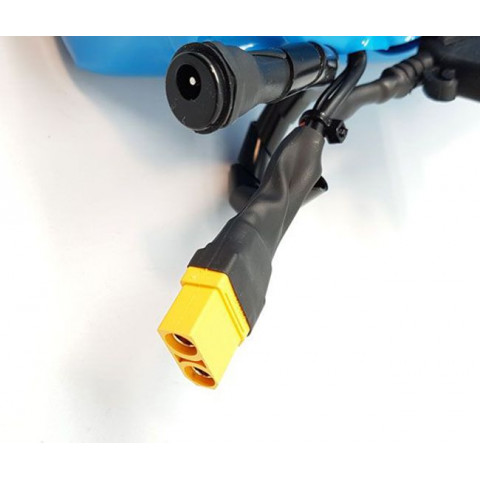

Anderson Connector
XT 90 Connector
It is possible to add an LED battery gauge to these battery models, which you can find here.
<a href="https://ozo-electric.com/fr/jauge-a-led/
002467
Data sheet
- Guarantee
- 2 ans
- Tension nominale
- 72V
- Intensité
- 21Ah
25Ah
28Ah
32Ah
35Ah
- Dimensions
- 450x140x80 mm
450x150x80 mm
450x180x80 mm
450x200x80 mm
450x220x80 mm
450x220x80mm
- Technologie
- LiMNCO2
- Plage de température pour la décharge
- 0°C to 40°C
- Mass
- 6,3 Kg
7,3 Kg
8,3 Kg
9,3 Kg
10,3Kg
- Fabricant
- OZO - Panasonic - LG
- Intensité max de décharge
- 100 A
- Intensité nominale de décharge
- 60 A
- Plage de température pour le stockage
- -10°C to 40°C
- Jauge batterie intégrée
- Option
- Intensité max de charge
- 15A
- Connecteur de charge
- Anderson
- intensité de charge
- 5A to 15A
- Plage de température pour la charge
- 10°C to 45°C
- Connecteur de puissance
- Anderson
- Support de fixation
- No
- poigné de portage
- No
