Battery Case 36V 250Wh to 500Wh

Complete Lithium Battery for E-Bike 36V, available in 36V 250Wh, 350Wh and 500Wh.

New battery that can be adapted to the following bike brands: Hilltecks, Gitane cycle, Moma Bike, MoovWay, CyclEurope, Moov In, TommyBike, Proxy cycles, Fitch Bike, UnikCycle, Vélair, Voltaway, Maa Bikes, Vélobécane, Pietro bike, Carrefour, EasyBike and Wattitud

This is the 4-groove model for rail with 2 or 4 pins, but we have other models on order.

Any doubts? Do not hesitate to ask us all your questions and send us photos of your e-bike via our email address: batteries@ozo-electric.com

Battery offered alone without the mounting rail (already present on your bike)

Warranty: 2 years

Read moreShow less
€349.00 (tax incl.)

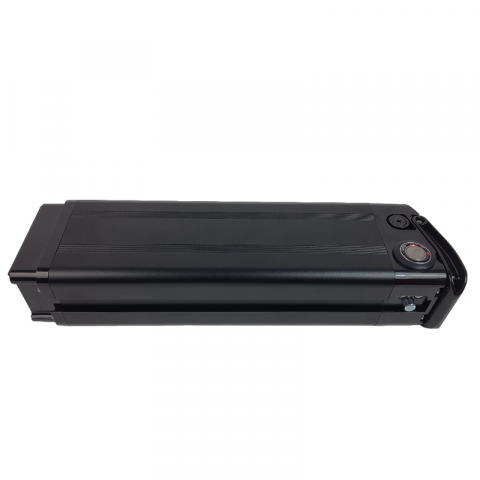

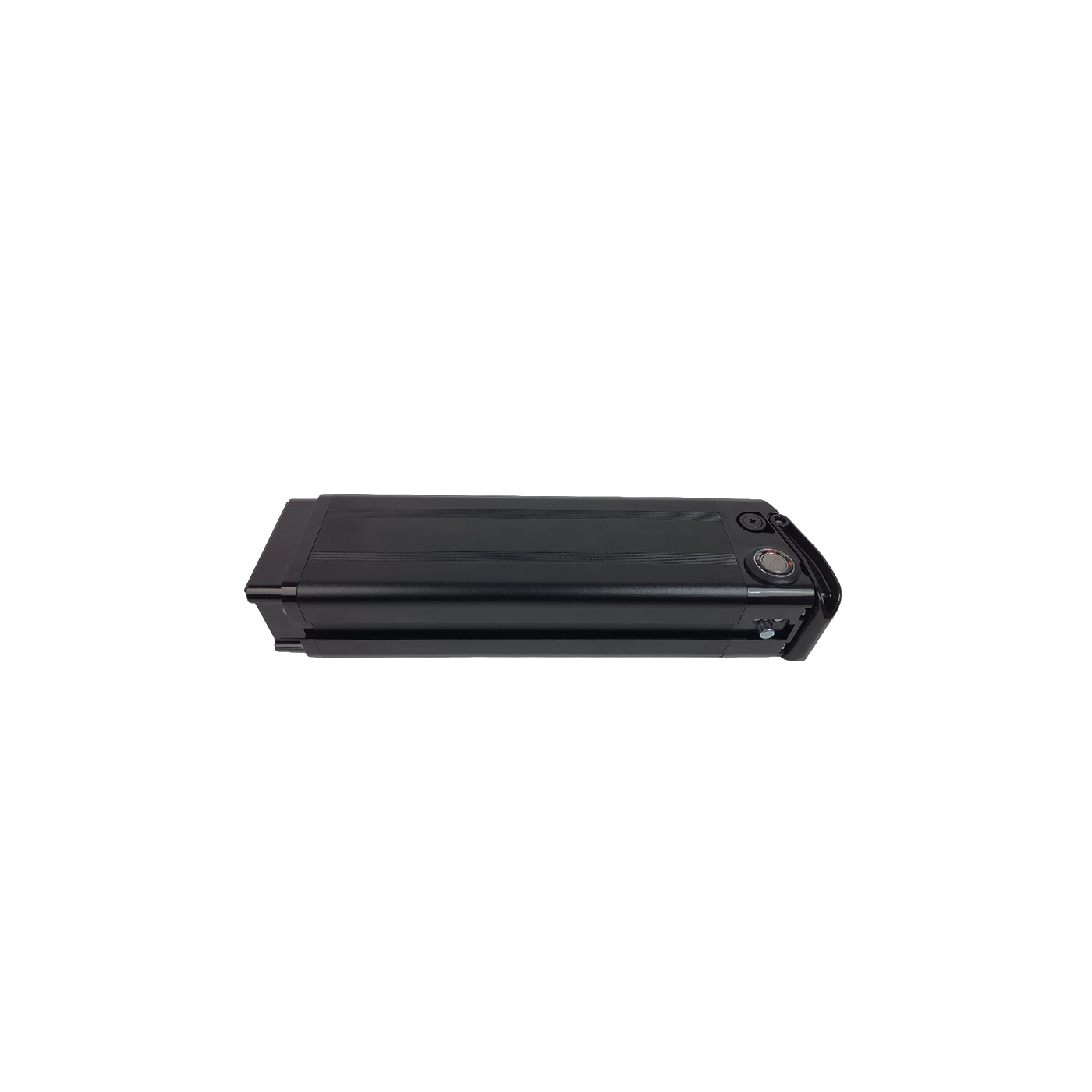

SilverFish shrouded battery
  • 36V 250Wh
  • 36V 350Wh
  • 36V 500Wh
Rupture de stock
Reference:
009141
You may also like
€249.17 (tax incl.)
OZO offers a wide range of 36V Lithium batteries to tailor your electric experience. Choose your battery capacity based on your desired range. A 1000Wh battery provides twice the range of a 500Wh battery. Our 36V...
€399.00 (tax incl.)
This 36V 14Ah battery offers an energy of 504Wh. It is compatible with our most used electric kits such as road kits, or 36V crankset. But also on your industrial installations, ideal by its dimensions to fit under a...
€207.50 (tax incl.)
OZO has been manufacturing 36V PVC Lithium batteries in France since 2013 from high-end Panasonic cells with integrated BMS. Choose the autonomy of your electric bike by choosing a 36V battery from our wide range of...
Description

The advantages of our batteries



At OZO, we assemble all our 36V batteries with high-end Panasonic Lithium cells, guaranteeing you the best performance on the market as well as exceptional lifespan.

Key Features:

  • Lithium NMC 18650 format cells: Our batteries are equipped with superior quality Panasonic Lithium cells, offering you unparalleled performance and remarkable longevity.

  • Robust and Integrated Design: Our 36V frame batteries and OZO gourd battery are delivered in an ABS plastic casing that integrates an ON/OFF switch and an LED gauge for easy monitoring of the battery’s charge status.

  • Protection: The casing protects the battery against shocks and weather, ensuring its longevity.

  • Anti-Theft Security: A key lock allows the 36V frame battery to be locked onto the bike frame, ensuring optimal protection against theft. There is no locking mechanism on the gourd battery.

  • Advanced Electronic Management: Each battery is equipped with an electronic circuit for regulating charging and discharging called BMS. The BMS also monitors the pack temperature and cell balancing for increased safety.

  • Standard Charging Socket: OZO 36V frame batteries are equipped with an XLR standard charging socket.

  • AutonomyThe announced autonomy is calculated in eco mode, on a flat road, with a 75kg cyclist assisting the motor on a city bike, at a speed of 20 km/h, with tires inflated to 4.5 bars. Please note that for use in mountain biking on hilly terrain, you can divide these values by two.

  • 2-Year Warranty: All our batteries come with a 2-year warranty, offering you complete peace of mind.

Opt for OZO 36V Lithium batteries and benefit from exceptional performance and unparalleled durability. Whether you’re in the city or in the great outdoors, ride with confidence with OZO! ⚡



Battery Charging Time


2A 4A
36V 250Wh Battery 02h00 01h20
36V 350Wh Battery 05h00 02h30
36V 500Wh Battery 07h00 03h30



We offer for sale 36V 2A chargers et les 36V 4A chargers , With a 4A charger, you can recharge your Lithium battery twice as fast



Caractéristiques de la batterie

Dimensions Weight Autonomy Charge connector

Power connector

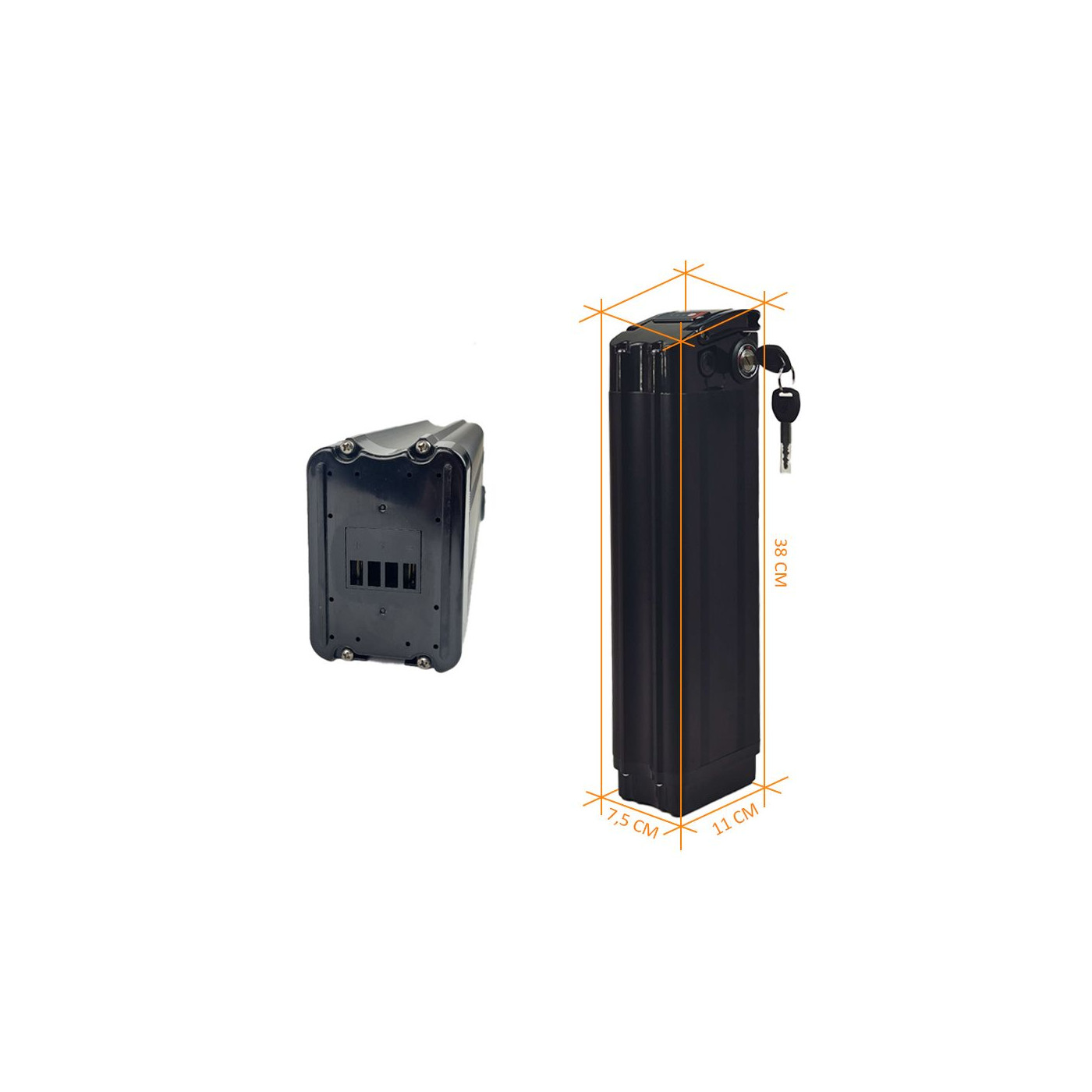

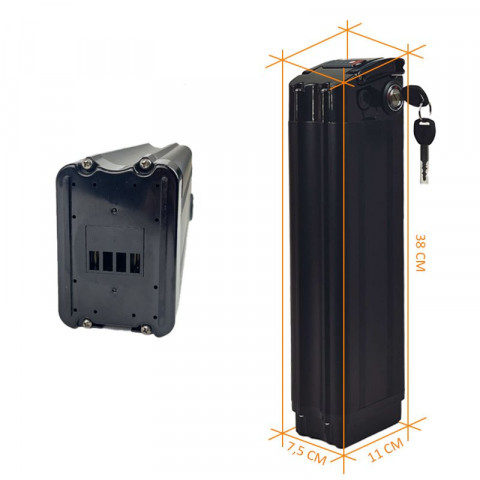

36V 250Wh Battery 380x110x75mm 1.8 kg jusqu'à 40km Connecteur XLR 4 broches
36V 350Wh Battery 380x110x75mm 2.7 kg jusqu'à 60 km Connecteur XLR 4 broches
36V 500Wh Battery 380x110x75mm 3.0 kg jusqu'à 80 km Connecteur XLR 4 broches


If you have other charging or power connectors, OZO offers adaptaters to overcome this problem

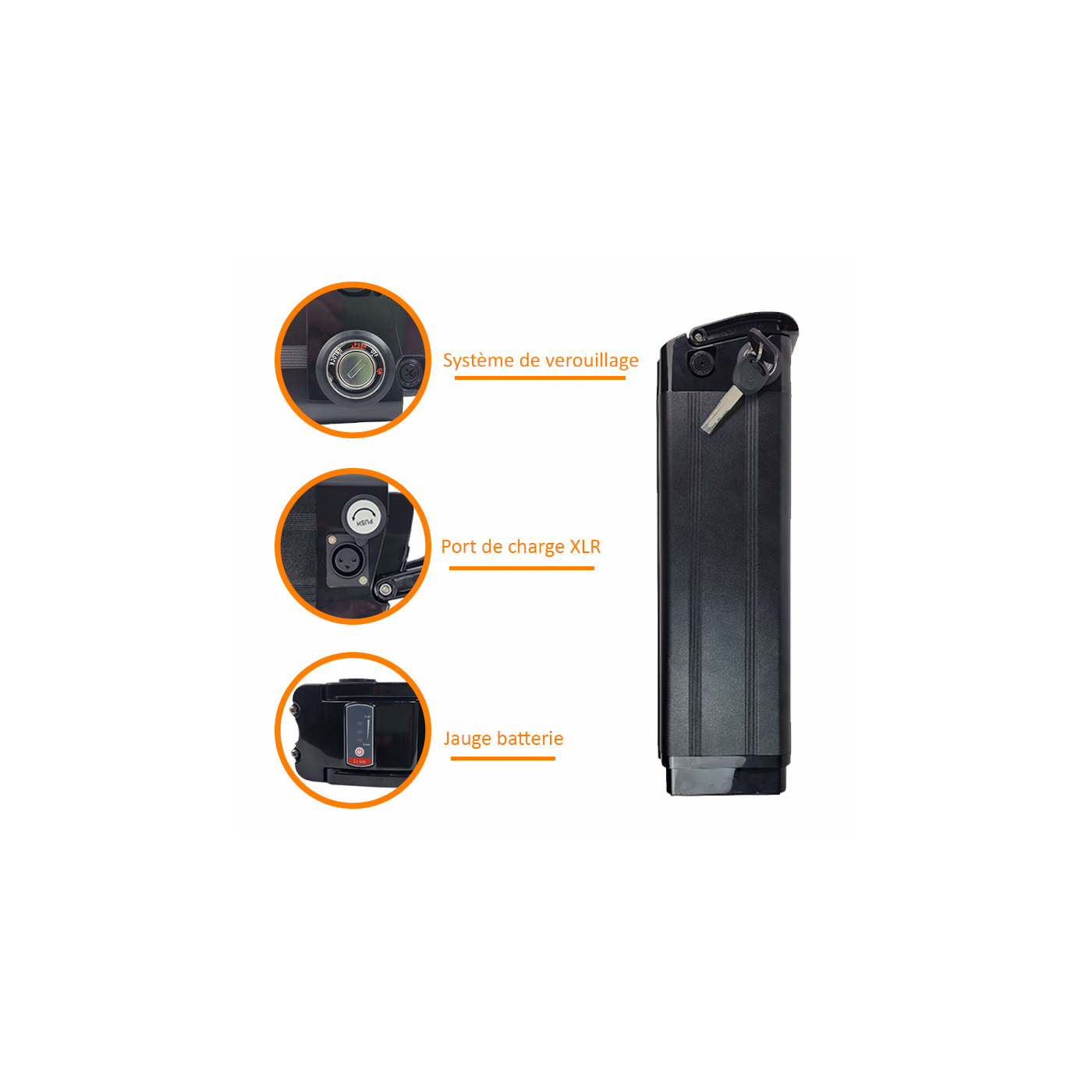

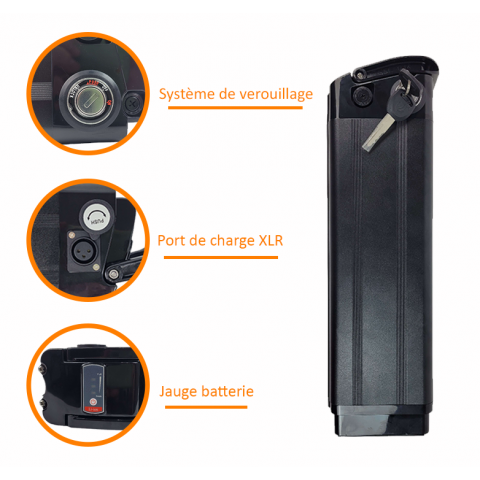

Built-in battery gauge

XLR charge connector

Locking system
Read moreShow less
Product Details
009141

Data sheet

Guarantee
2 ans
Tension nominale
36V
Energie consommée ou produite
to 250Wh at 500Wh
Dimensions
380x110x75mm
Plage de température pour la décharge
-10°C to 45°C
Plage de température pour le stockage
-5°C to 35°C
Plage de température pour la charge
0°C to 45°C
Durée de la charge
between 1h30 and 12h
