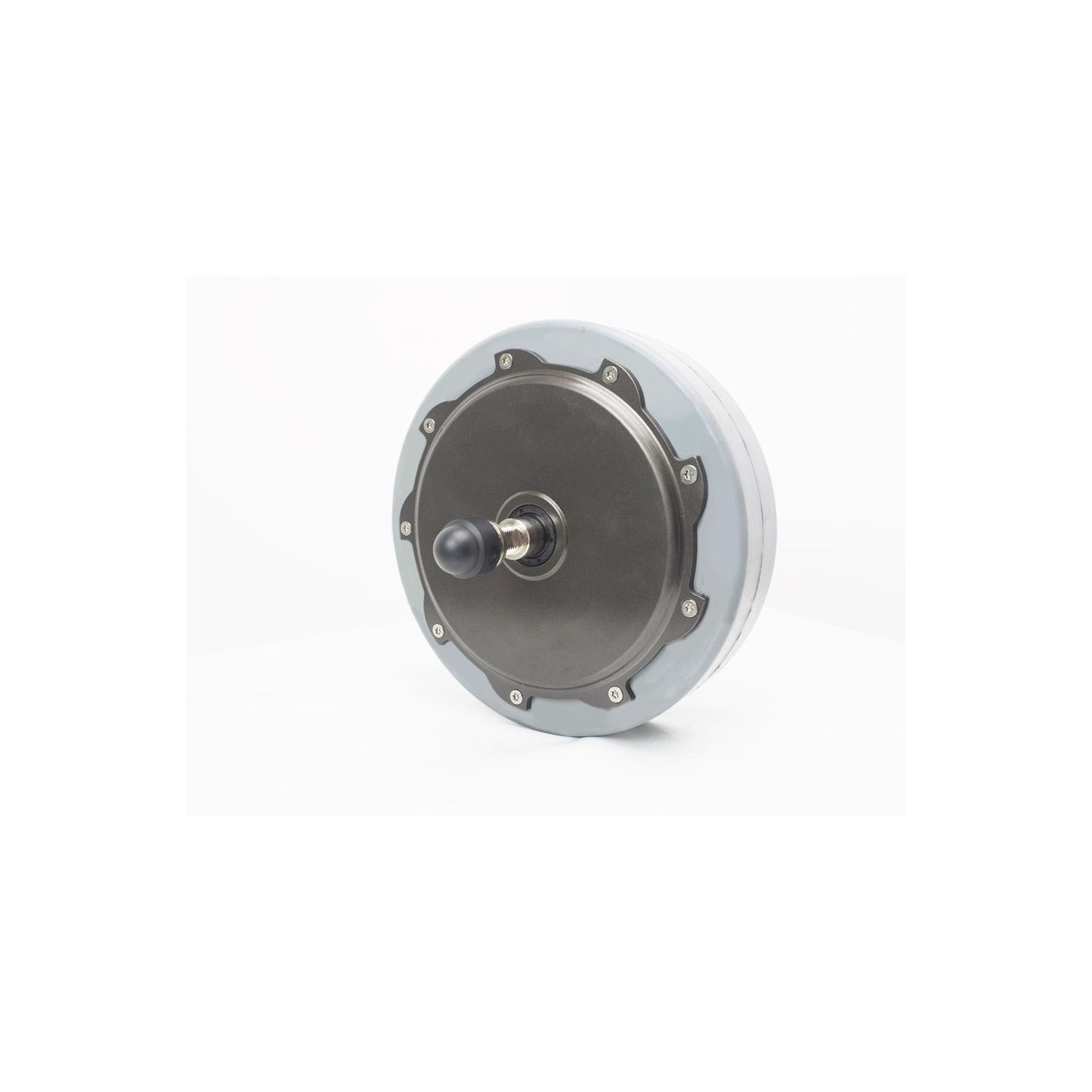

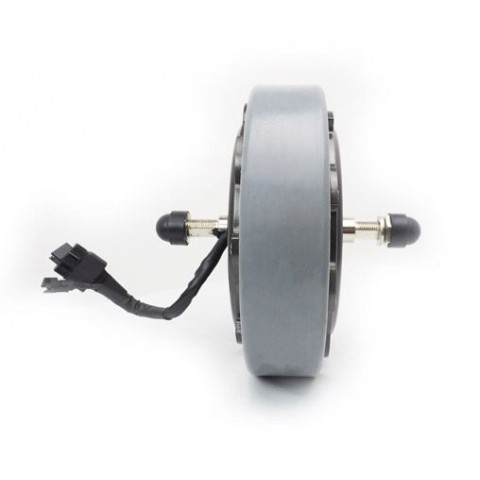

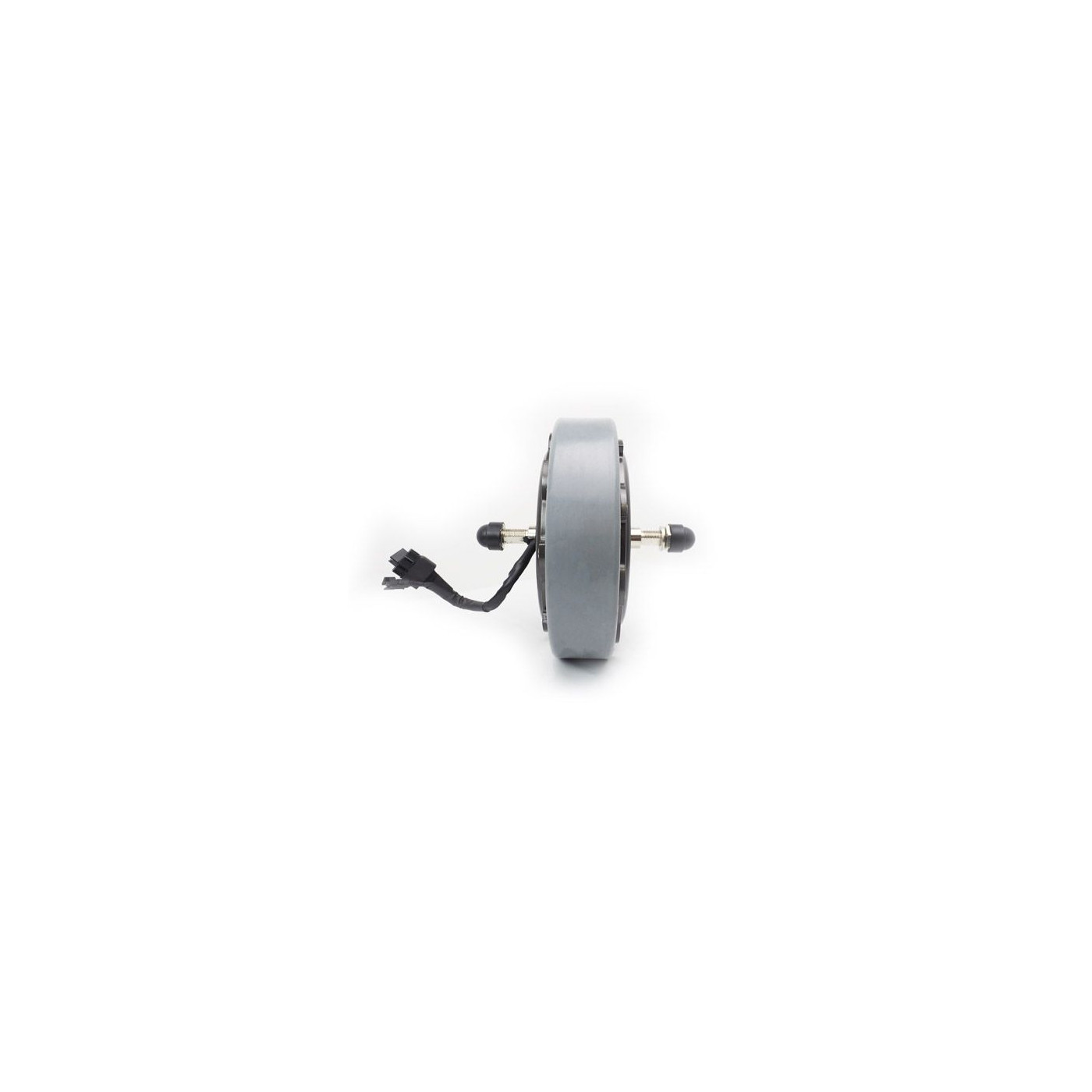

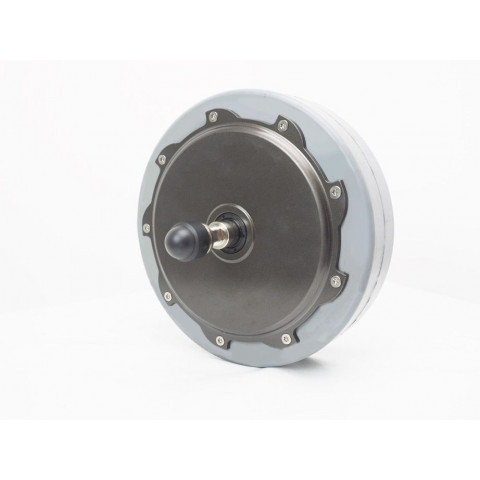

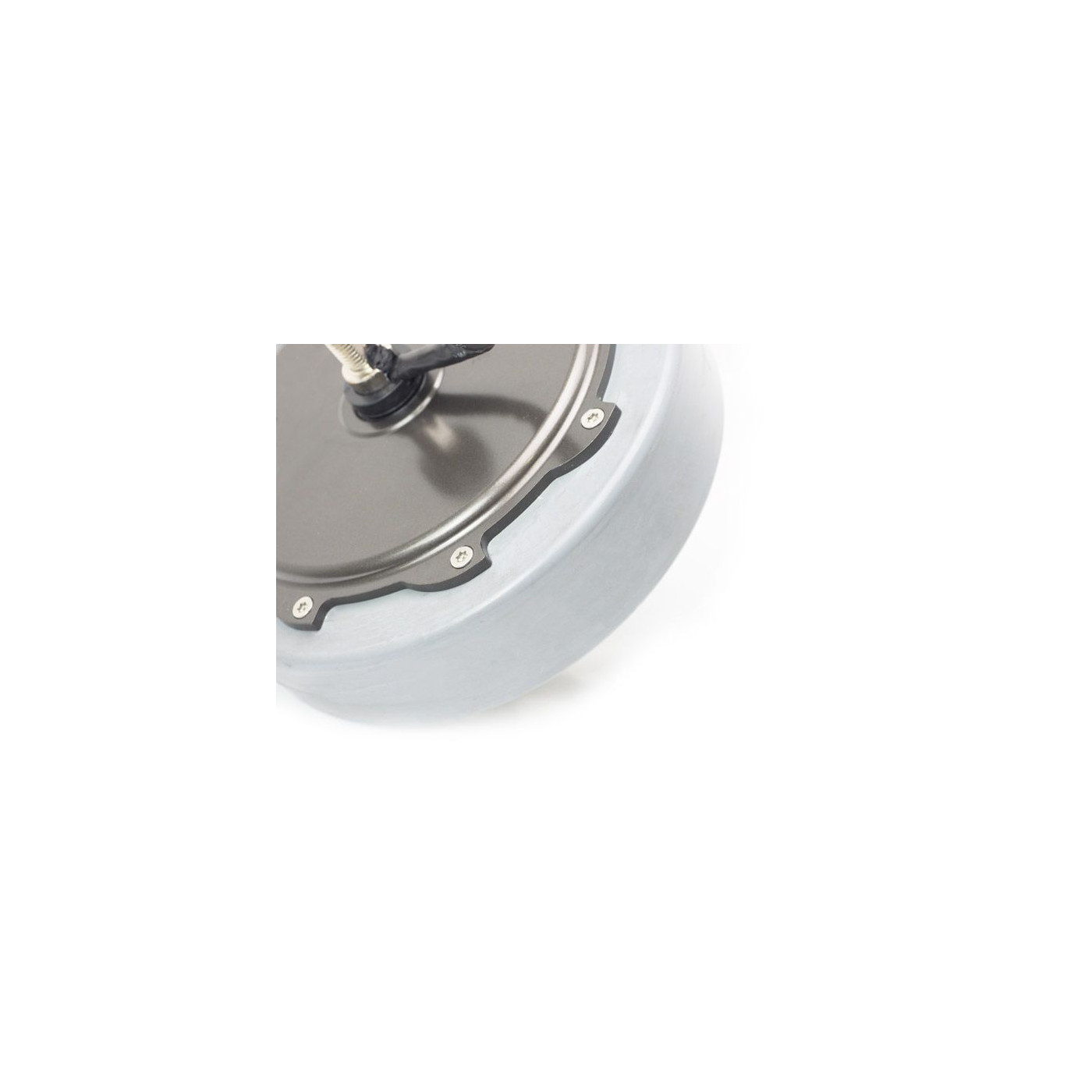

Electric Industrial motor wheel for trolley 8" pusher puller medical bed

Brushless motor wheel to convert into electric any industrial trolley :

  • Industrial (rolling base, industrial serving trolleys pusher puller, refrigerated carts; rack, kitting)
  • Logistics (picking trucks)

Power : 800W | Dropout : 100mm / outside diameter 210mm.

Read moreShow less
€349.00 (tax incl.)
Last items in stock 2 Items
Reference:
000388
You may also like
rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight

€249.17 (tax incl.)
Powerful, robust and ready for adventure, this 750W OZO wheel engine is designed especially for Fat Bikes. Suitable for demanding terrains, it combines high torque, reliability and freewheel compatibility. This engine...
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Moteur BOBBER thru-axle Moteur BOBBER thru-axle Moteur BOBBER thru-axle

€249.17 (tax incl.)
Bobber is rear hub electric motor 36V 250W Light and efficient it's the right choice for city bike, folding bike or road bicycle. Bobber is available in 200RPM to reach 25Km/h. It's a geared motor with 1:4,43 ratio....
Moteur roue avant BOBBER Moteur roue avant BOBBER Moteur roue avant BOBBER

€304.10 (tax incl.)
The ROLLER front-wheel motor is a 250W electric hub motor of the reduced type, delivering 40N.m of torque. This motor is designed for the ROLLER BRAKE brakes generally found on Dutch bikes (Gazelle, Batavus,...
Description

This electric wheel can be installed easily on any industrial trolley to decrease the human effort and noise level and answer to new RSE politics.

You can convert into electric any pusher puller, serving trolley, hospital bed, medical machine, racks, kitting carts...

800W power and natural rubber tire.

3,6 RPM/Volt so you can get a maximum speed of 5Km/h under 36V.

NTC temperature sensor to protect overheating when using under heavy load.

Zero noise with our Field oriented controller (FOC) 25A

You can drive backward / Forward and get regenerative braking.

2D plan :

Read moreShow less
Product Details
000388

Data sheet

Guarantee
2 ans
Couple max en 36V
45 Nm for 3.3 RPM
poids en 26 pouces
5.8 kg
Technologie
Brushless direct drive
Puissance max
900W
Rendement max
81%
Tension Min
24V
Tension Max
48V
Entraxe fourche min/max
100mm / 140mm
Motor Kv (RPM / V)
3.6 RPM / Volt
Hall sensors
OUI
Ipmax
25A

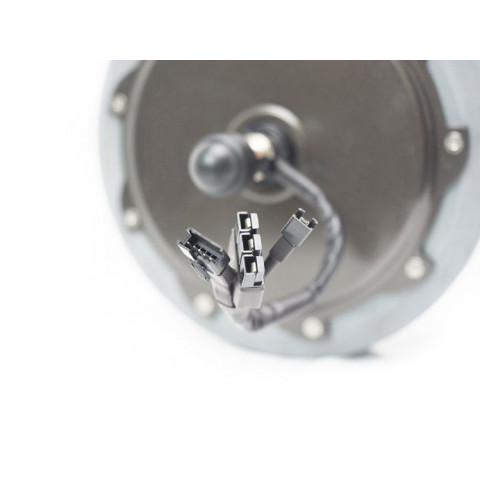

connecteur moteur
Anderson PP30 pour les phases, JST pour les capteurs et la sonde de température
Nombre d'aimants
40
Motor axle
14x10mm
Vitesse max sous 24V
3,3 km/h
Vitesse max sous 36V
5 km/h
electromagnetic resistance torque
0,42 N.m
