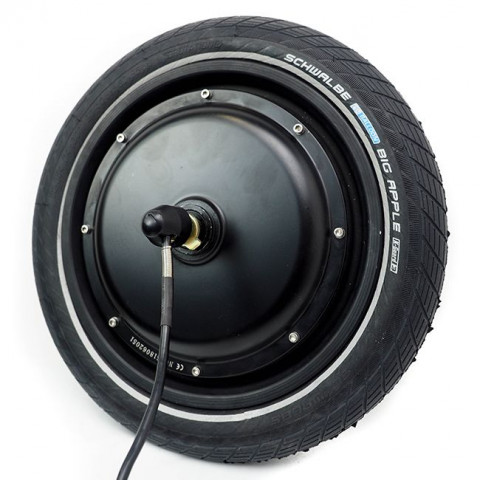

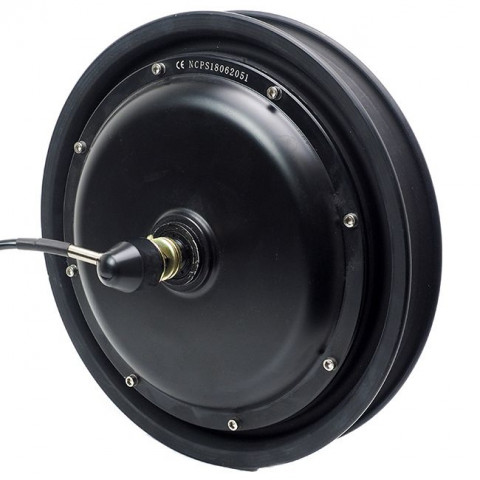

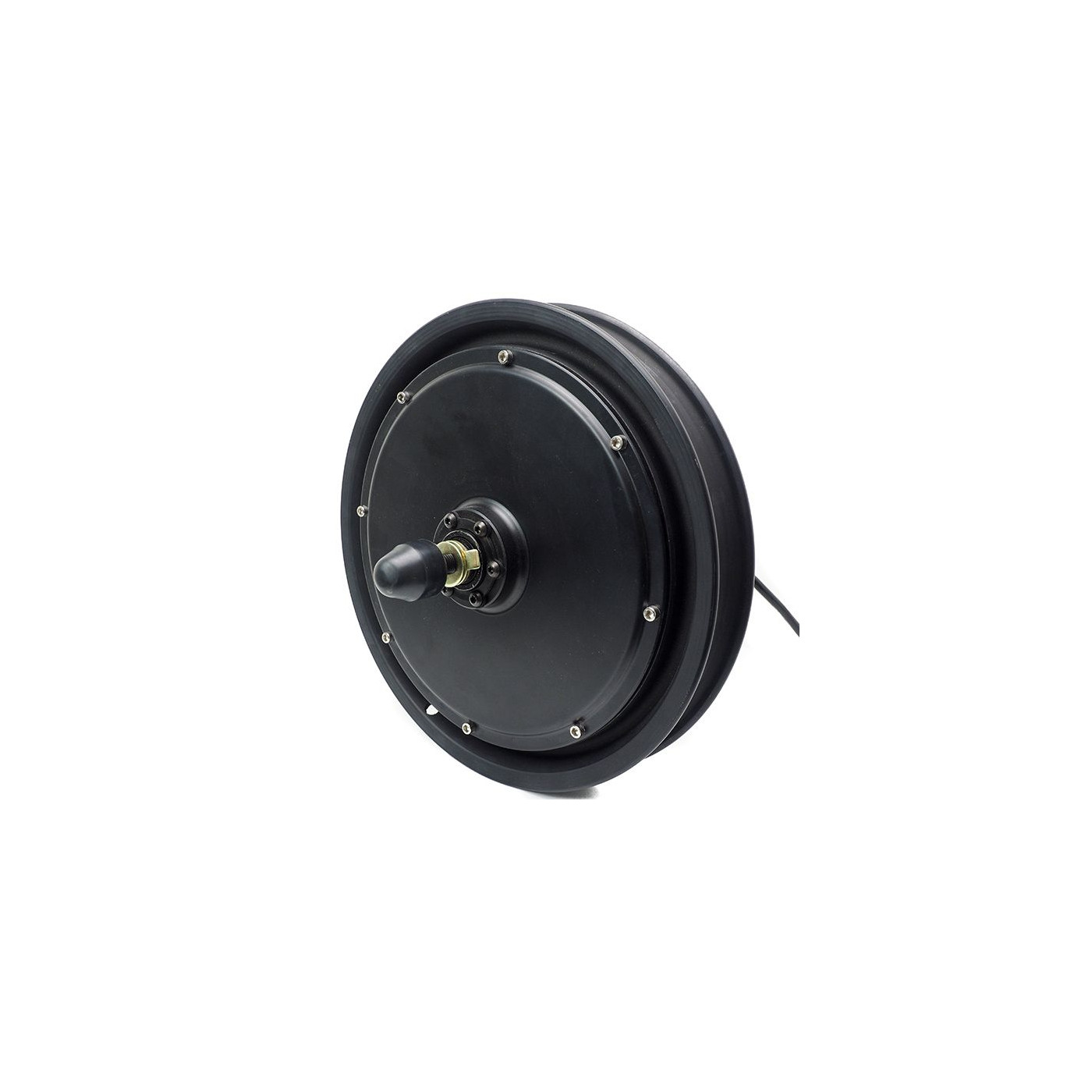

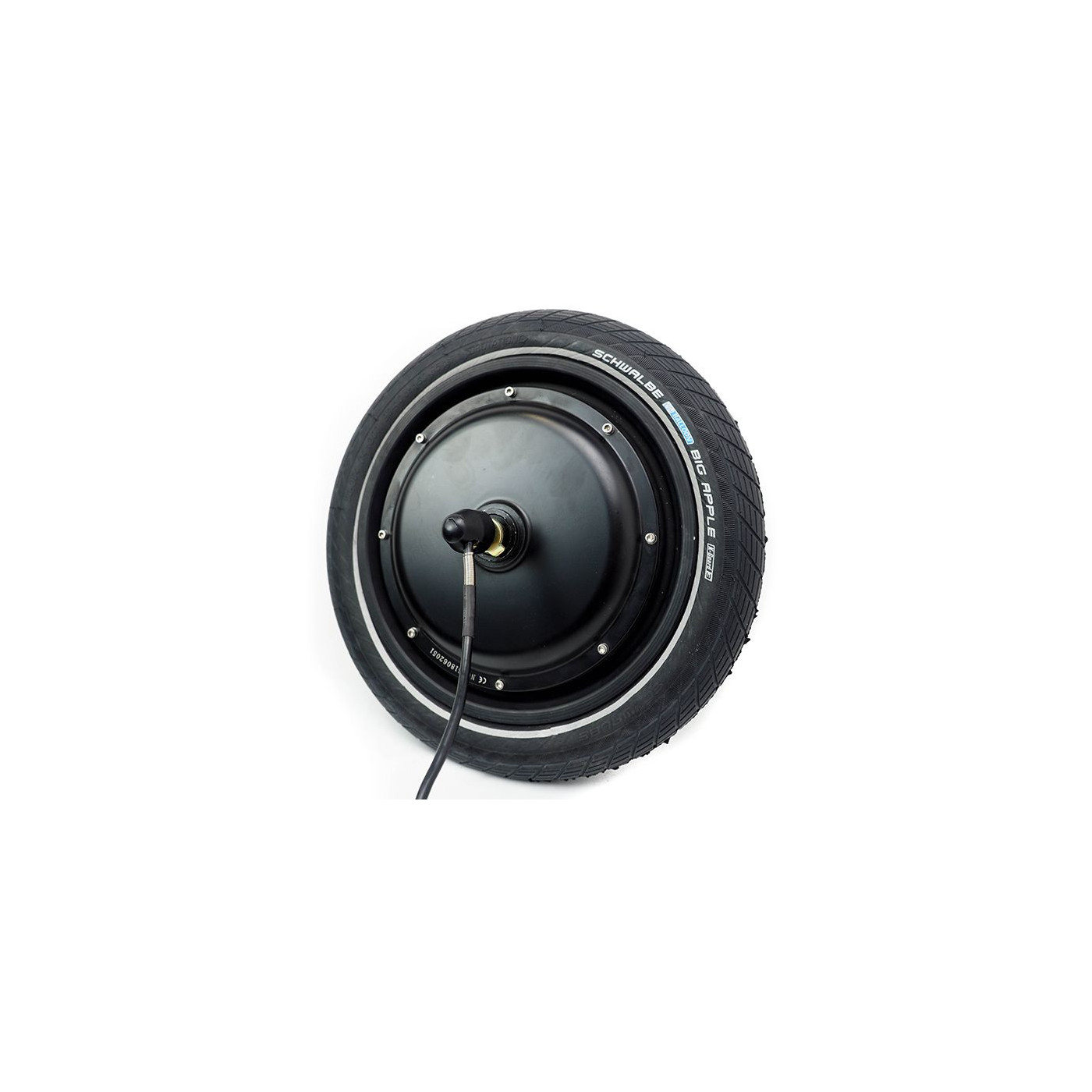

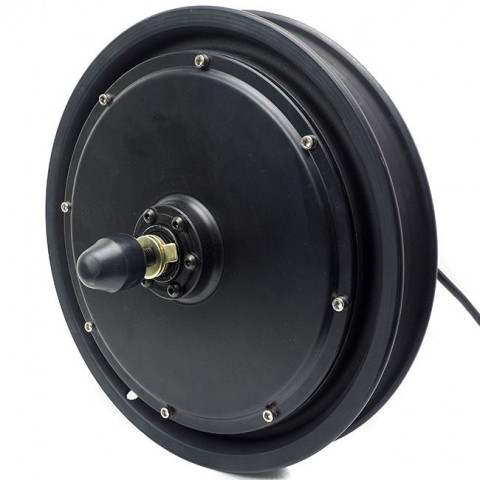

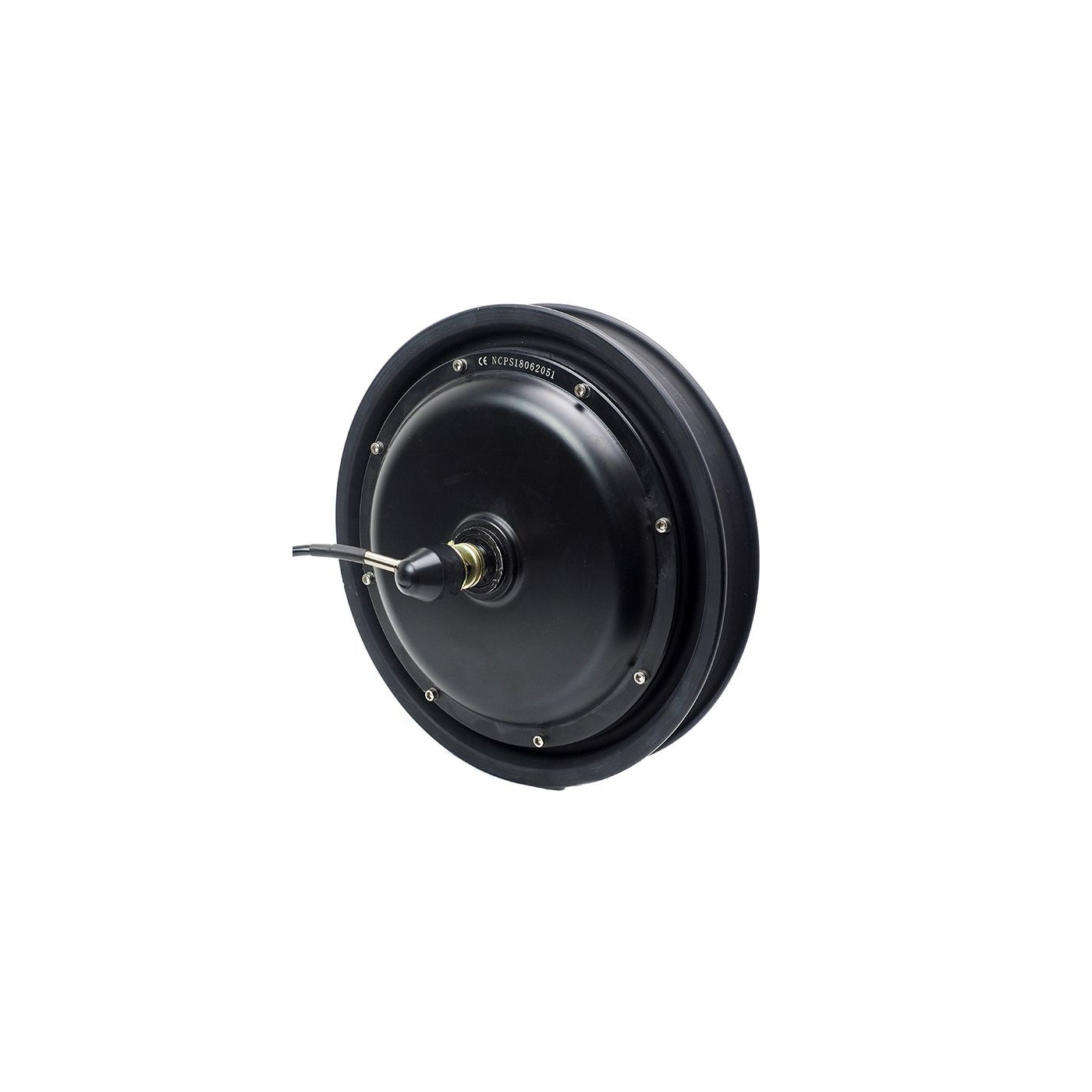

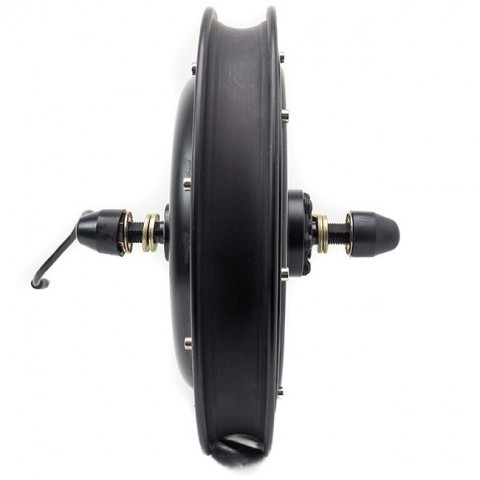

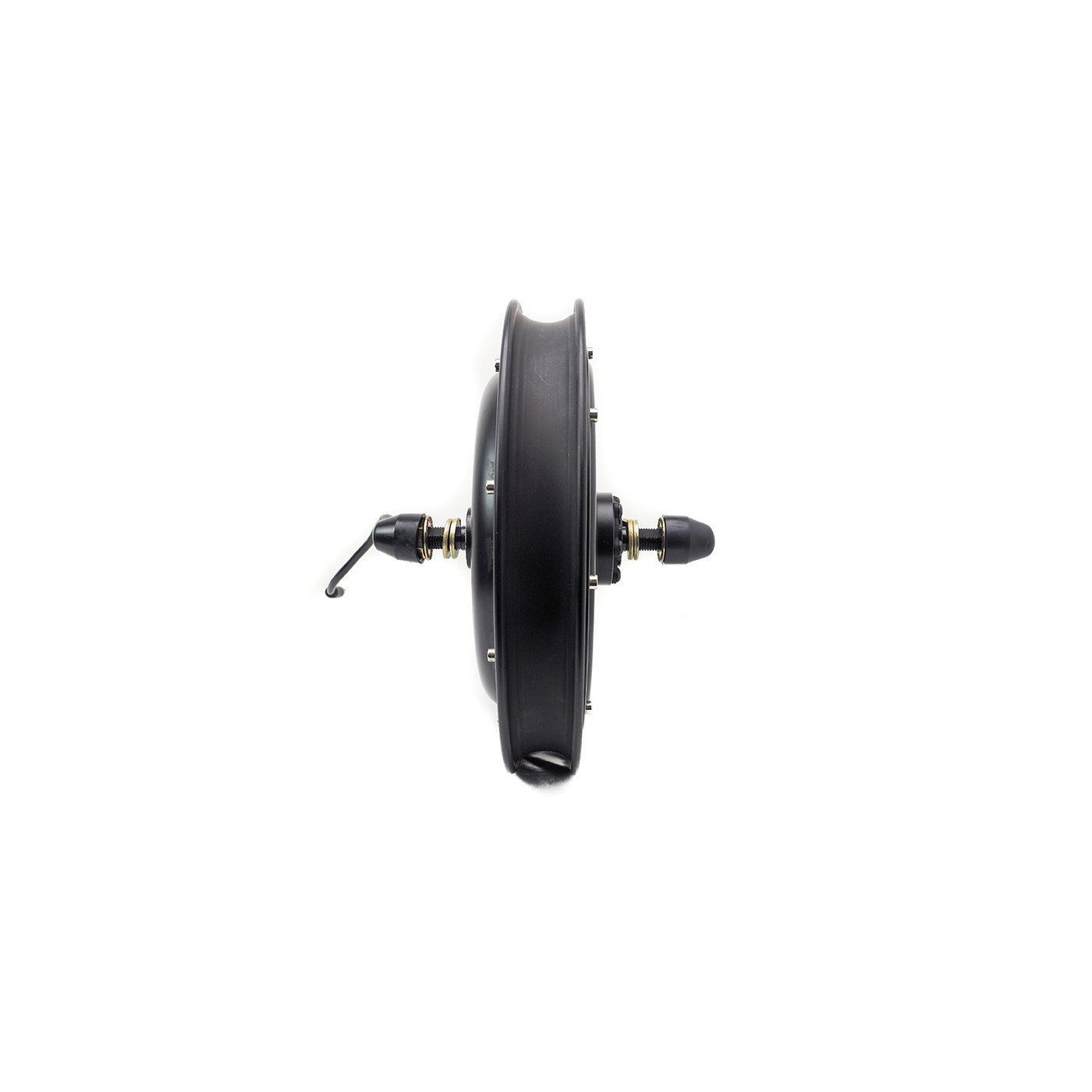

Electric brushless motor wheel 14" 1000W

Electric brushless motor wheel 14" 1000W.

Vmax 32Km/h under 48V - 25km/h under 36V (can be customized for B2B projects)

Weight =  6,5 kg / Kv = 10 RPM/Volt / Poles number = 30

Read moreShow less
€299.00 (tax incl.)
Reference:
000550
You may also like
rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight

€249.17 (tax incl.)
Powerful, robust and ready for adventure, this 750W OZO wheel engine is designed especially for Fat Bikes. Suitable for demanding terrains, it combines high torque, reliability and freewheel compatibility. This engine...
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Moteur BOBBER thru-axle Moteur BOBBER thru-axle Moteur BOBBER thru-axle

€249.17 (tax incl.)
Bobber is rear hub electric motor 36V 250W Light and efficient it's the right choice for city bike, folding bike or road bicycle. Bobber is available in 200RPM to reach 25Km/h. It's a geared motor with 1:4,43 ratio....
Moteur roue avant BOBBER Moteur roue avant BOBBER Moteur roue avant BOBBER

€304.10 (tax incl.)
The ROLLER front-wheel motor is a 250W electric hub motor of the reduced type, delivering 40N.m of torque. This motor is designed for the ROLLER BRAKE brakes generally found on Dutch bikes (Gazelle, Batavus,...
Description

PLAN 2D
Read moreShow less
Product Details
000550

Data sheet

Guarantee
2 ans
Intensité max
25A
Masse de la roue motorisée
4 kg
Vitesse max en 48V
40Km/h
Vitesse max en 36V
30Km/h
Technologie
Brushless
Rendement
85%
entraxe cadre Min / Max
100 / 120mm
Permissible voltages
24V, 36V et 48V
Tension Max
48V
Hall sensors
OUI
Waterproof grade
IP54
Nombre d'aimants
30
Motor axle
14x10mm
Diamètre exterieur Pneu
37cm
Rs
0,21 Ohm
Ls
333 uHenries
