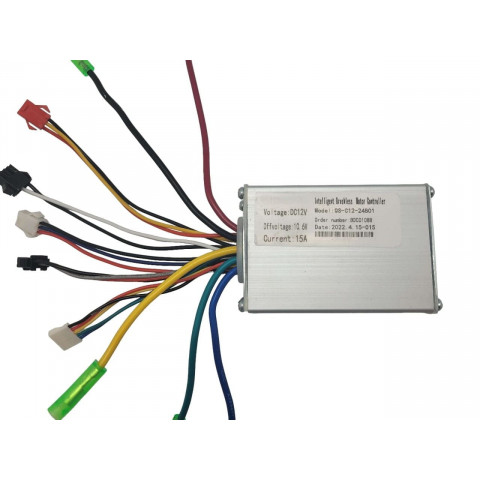

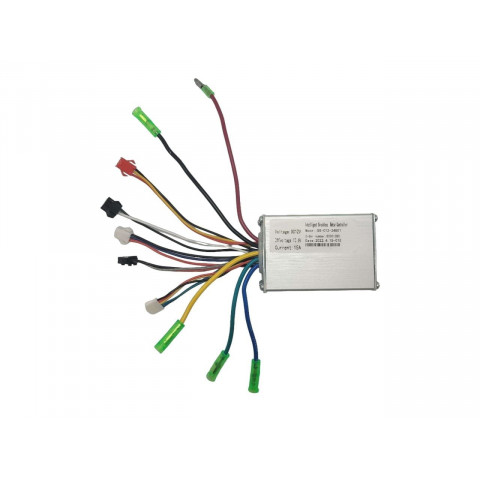

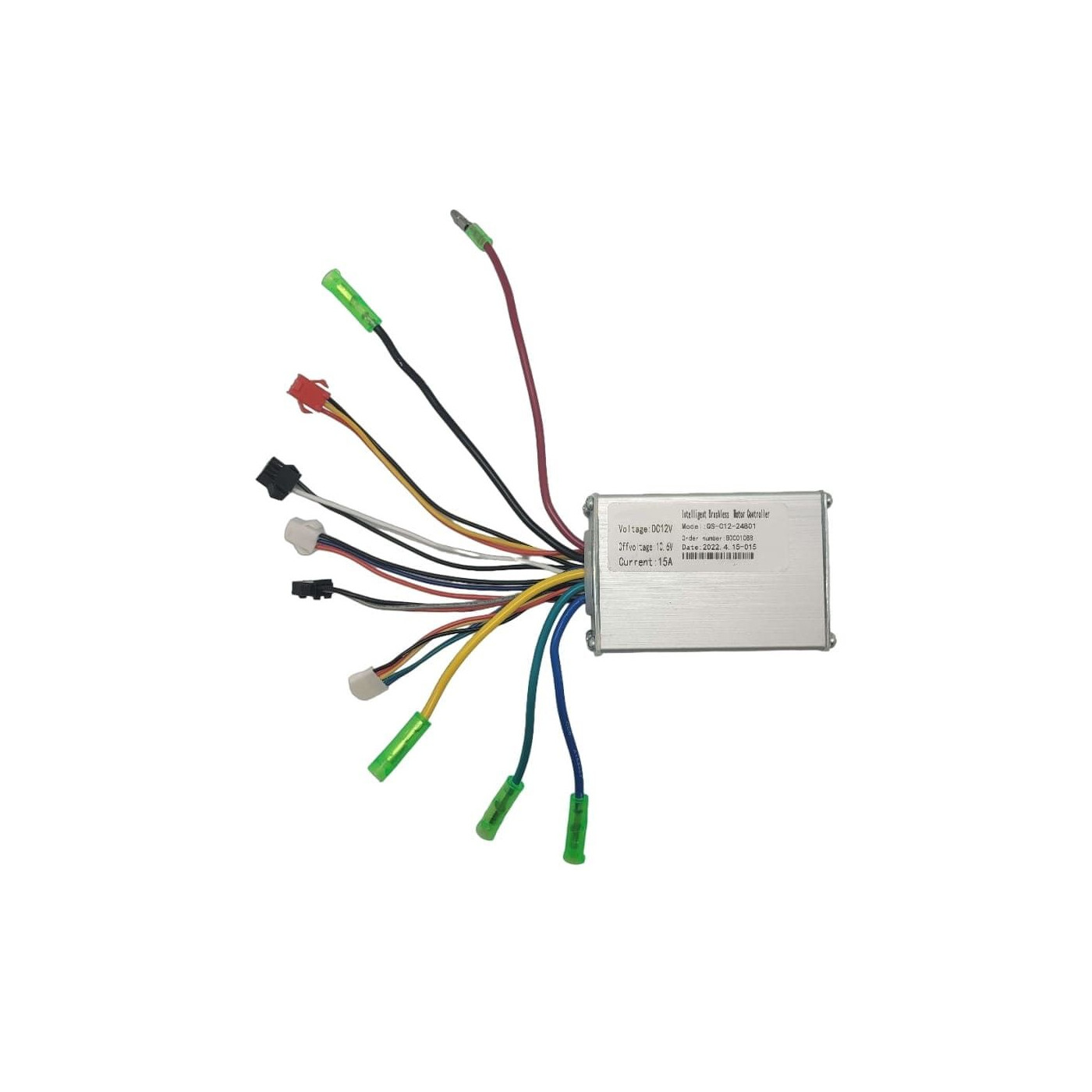

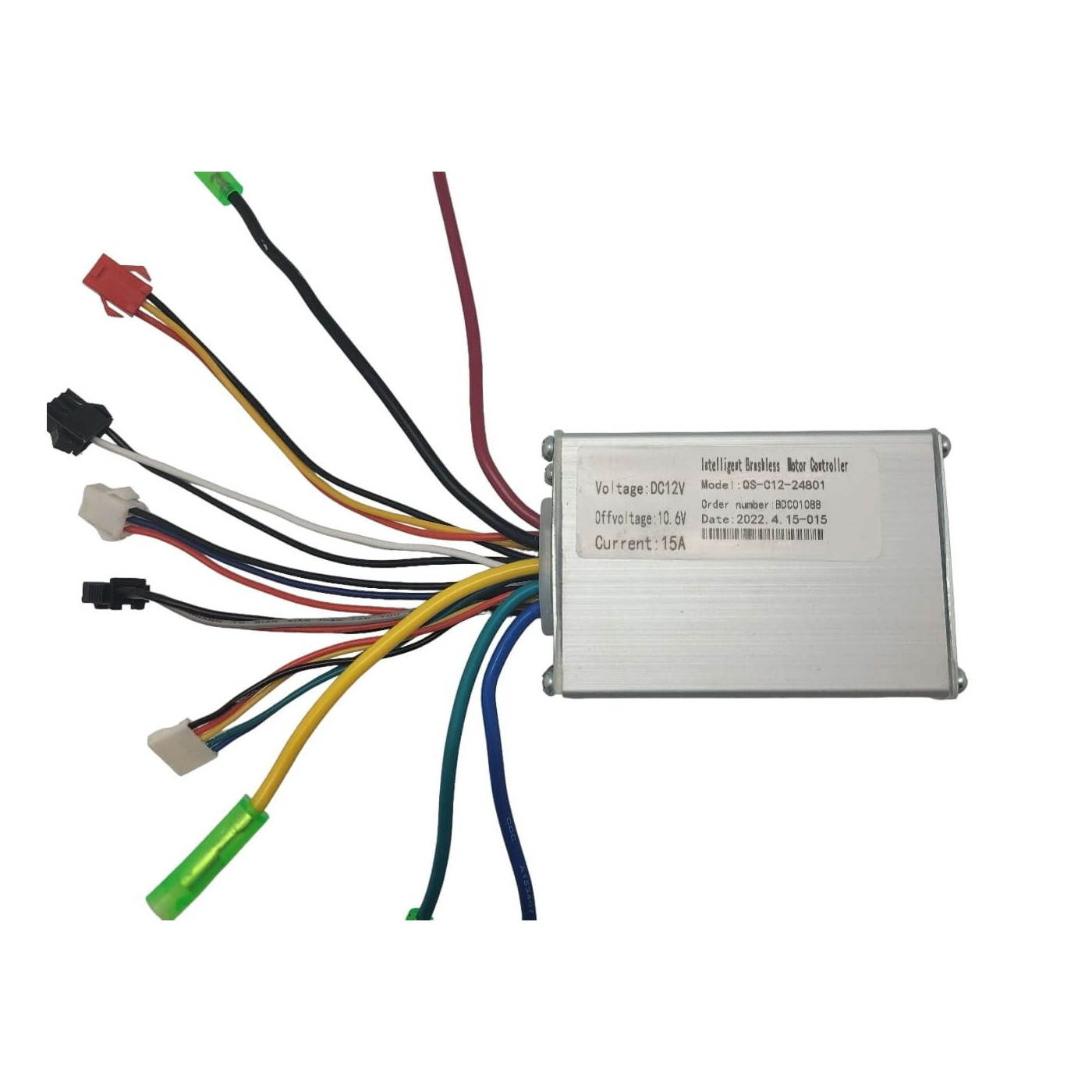

Controller 12V 15A brushless sensorless

12V 15A controller to power a brushless motor operating in 12V.

Sensorless only.

Ideal for powering scooter motors in 5" or 6"

The controller has the safety function "pedal first", that is to say that it is necessary to start the engine for the accelerator is active.

Read moreShow less
€40.00 (tax incl.)
Reference:
000306
You may also like
Description

Controller wiring

1. Ebrake (Eabs) Regenerative Brake: Red +5V / Black Gnd / White signal
2. Break Off (if not using regeneration)
3. Battery
4. Accelerator: Red +5V / Black Gnd / Gray signal
5. Engine Phases

Read moreShow less
Product Details
000306

Data sheet

Guarantee
2 ans
Intensité max
16A
Puissance
250W
Régulateur de vitesse pour vélo électrique
NON
Tension nominale
12V

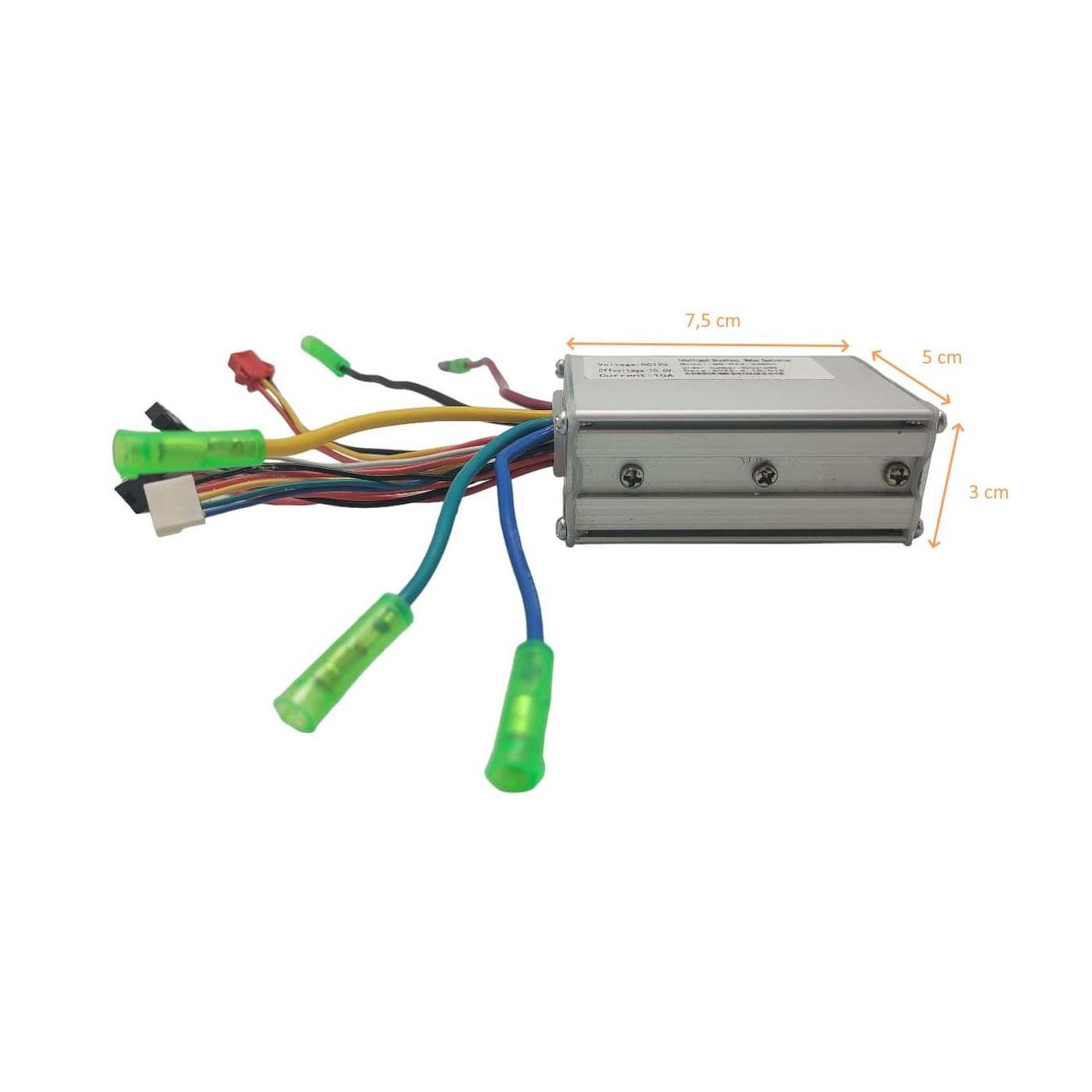

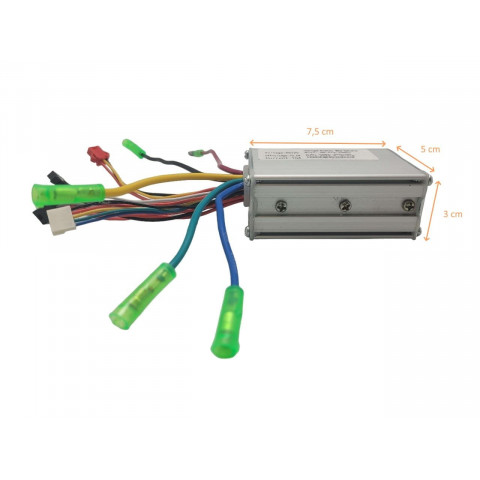

Dimensions
90x50x30mm
Technologie
Sensorless
Mass
180g
Accélérateur
OUI
Régénération au freinage
OUI
Bouton ON/OFF
NON
Sortie alimentation pour lampe
NON
