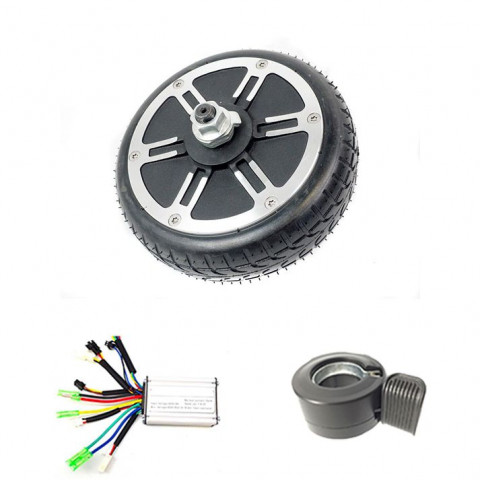

Kit scooter motor electric wheel 6 inches 160 mm 250W without battery
250W brushless electric hub motor kit, 160mm in diameter, supplied without battery. Ideal for electrifying a scooter, logistics trolley, picking cart, rolling table, or any other mobile base supporting a 100kg load, featuring a rubber tread.
€282.60
(tax incl.)
Reference:
000760
You may also like
€416.00
(tax incl.)
250mm diameter electric motor with 750W power output to electrify scooters, trolleys, hand trucks, PRM wheelchairs, trailers...
€211.90
(tax incl.)
250W brushless electric hub motor kit, 125mm in diameter, supplied without battery. Perfect for electrifying a scooter, logistics trolley, picking cart, rolling table, or any other mobile base supporting a 100kg load.
€297.60
(tax incl.)
200mm brushless hub motor kit for electric scooters. 250W 8-inch hub motor. Supplied without battery.
€41.67
(tax incl.)
Gift voucher worth 50 € to 200 €
Valid for 1 year on all products on the site
ADVANTAGES OF THE 6" SCOOTER KIT
This 6-inch (160mm) electric hub motor kit allows you to quickly add electric assistance to a golf cart, logistics trolley, hand truck, stroller, or any other rolling base (total weight < 150kg).
Grip and Reliability: Its rubber tread ensures excellent road holding on various urban or industrial surfaces.
TOTAL VERSATILITY
Ideal for logistics, strollers, or hand trucks
ZERO PUNCTURES
Puncture-proof solid tire made of high-density rubber
2-YEAR WARRANTY
Reliable and durable components
OZO DESIGN
Technical support and expertise from France

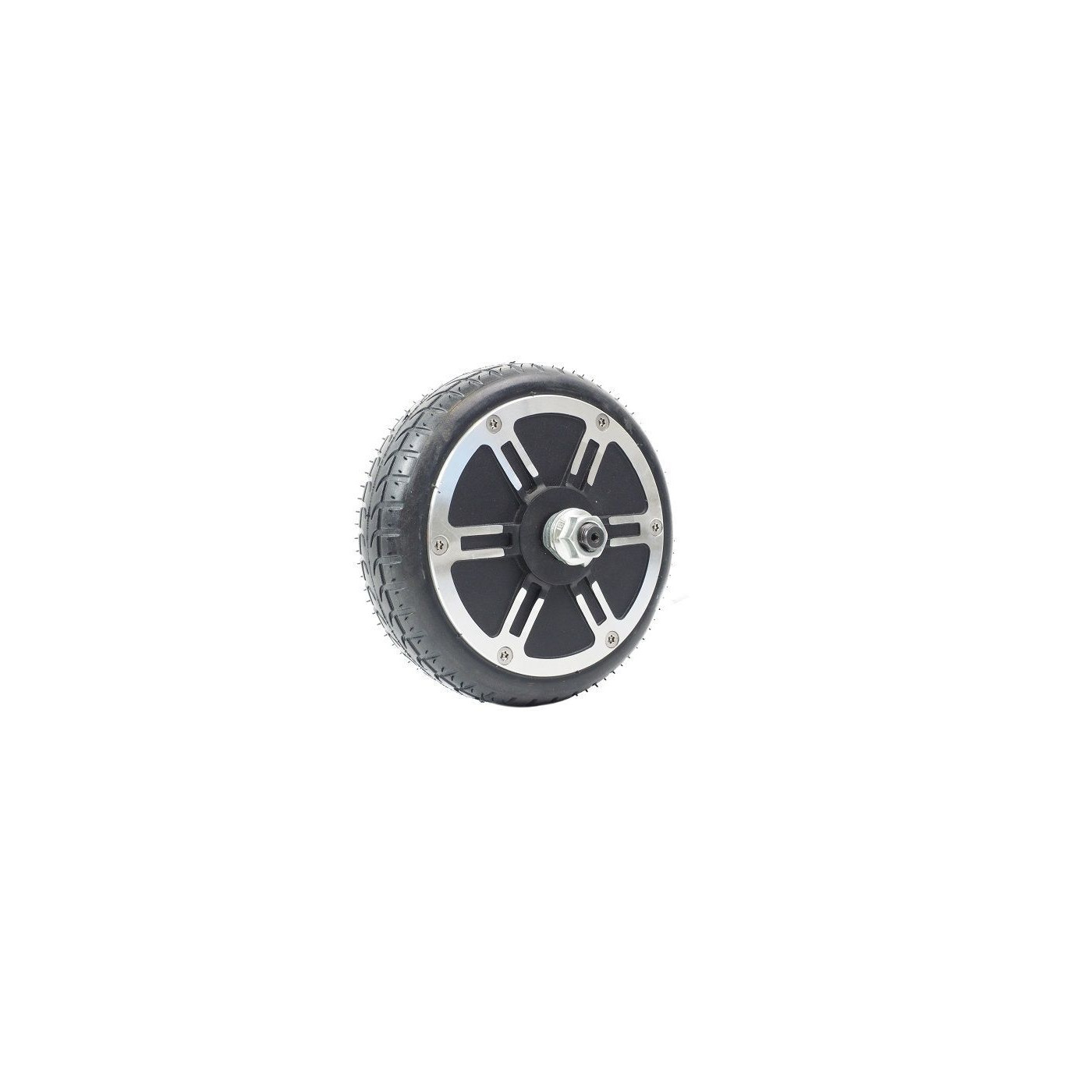

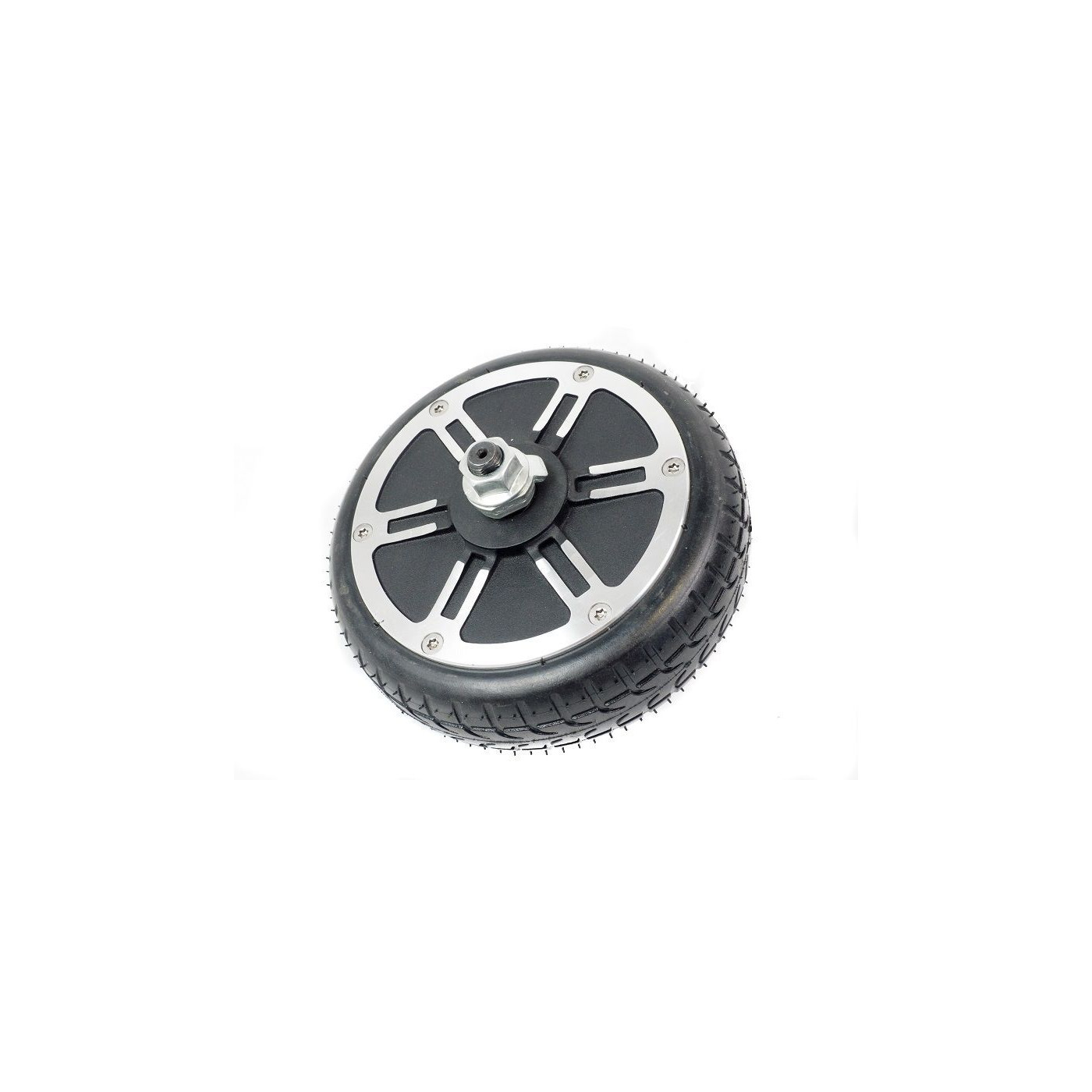

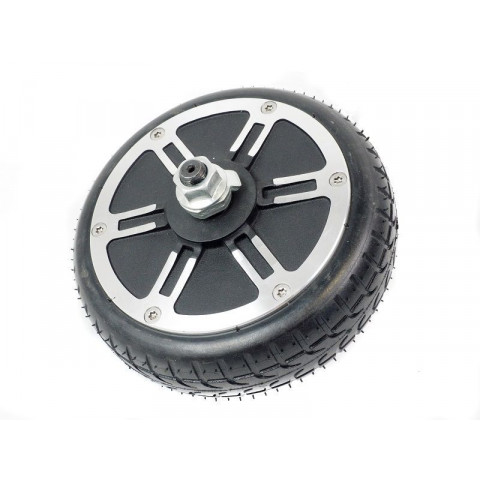

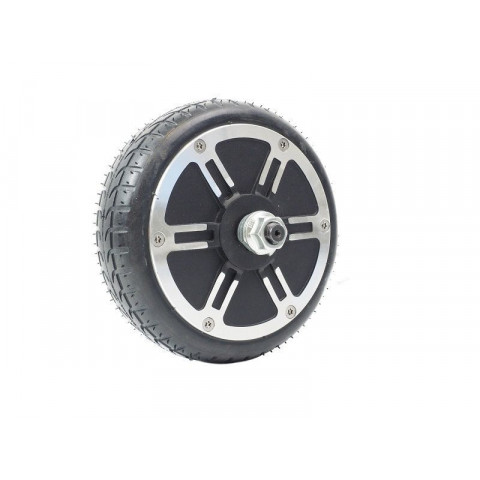

THE 6" SCOOTER MOTOR
This 160mm brushless motor delivers 250W of power. Thanks to its "Direct Drive" technology, it offers a smooth and silent ride up to 20km/h.
Scalable Power: 12V, 24V, and 36V compatible depending on your speed requirements.

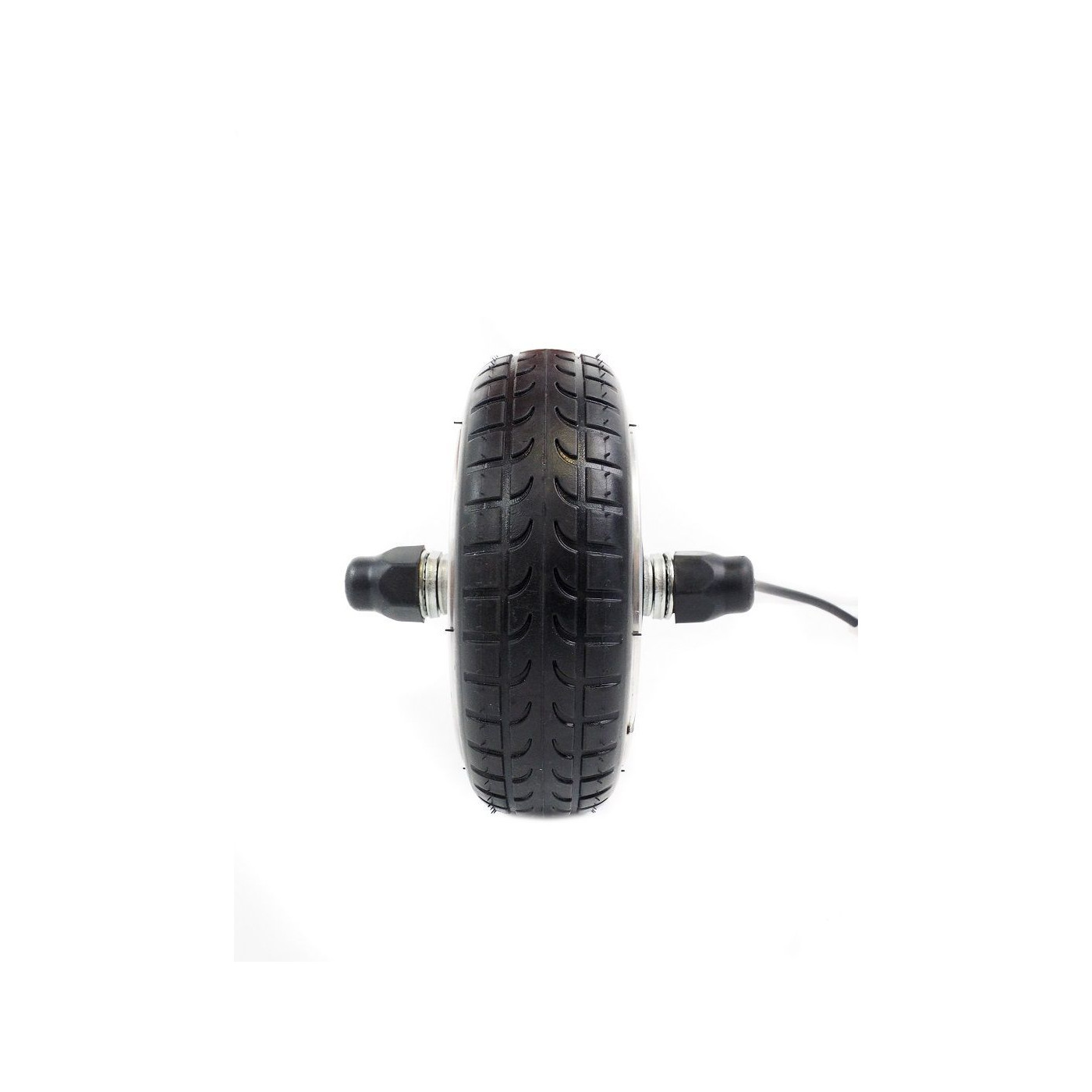

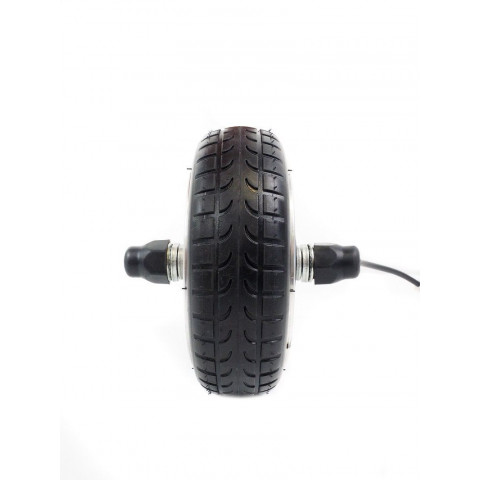

Dimensions: 65mm dropout spacing for easy integration.
Outer Diameter: 158mm with tire mounted.

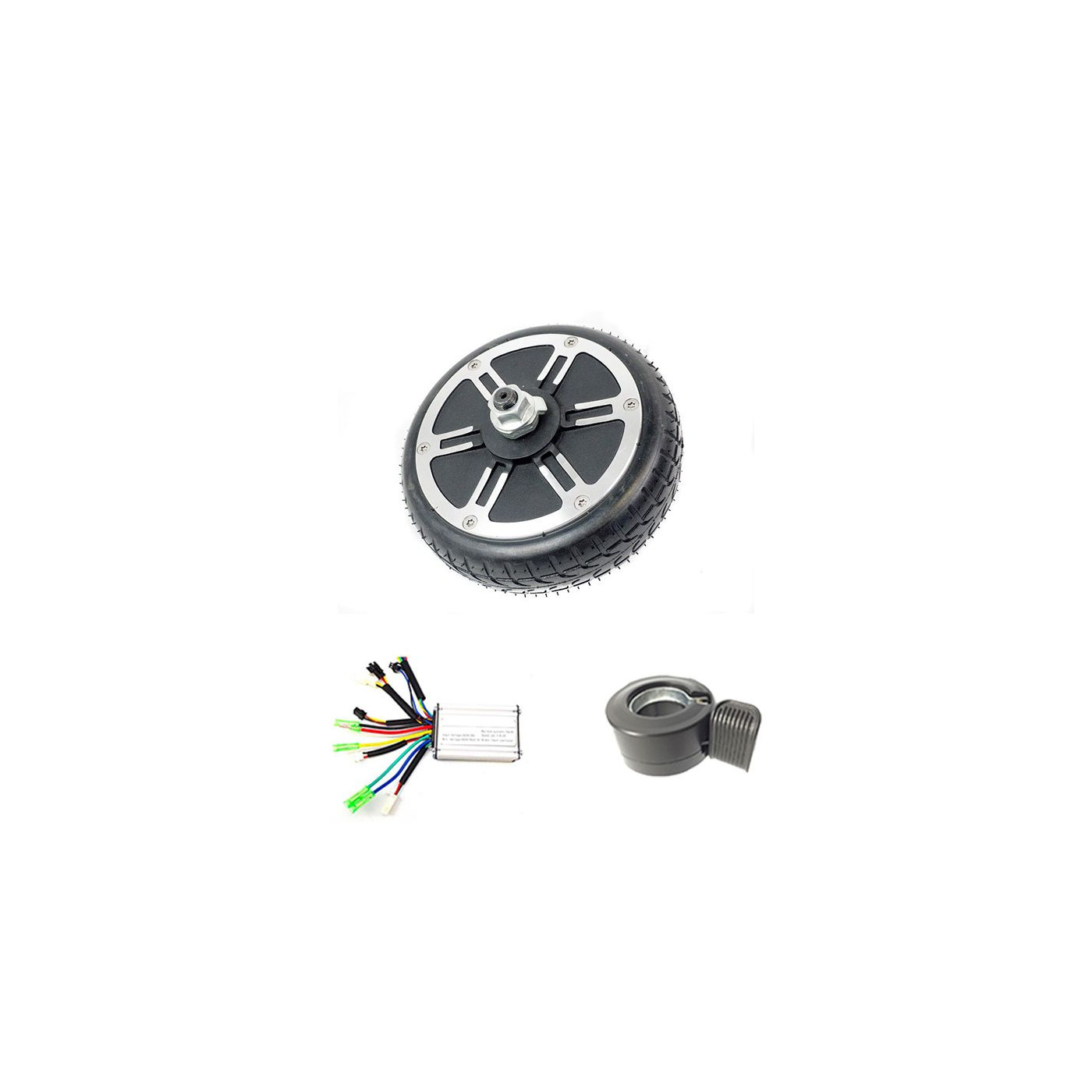

INCLUDED COMPONENTS

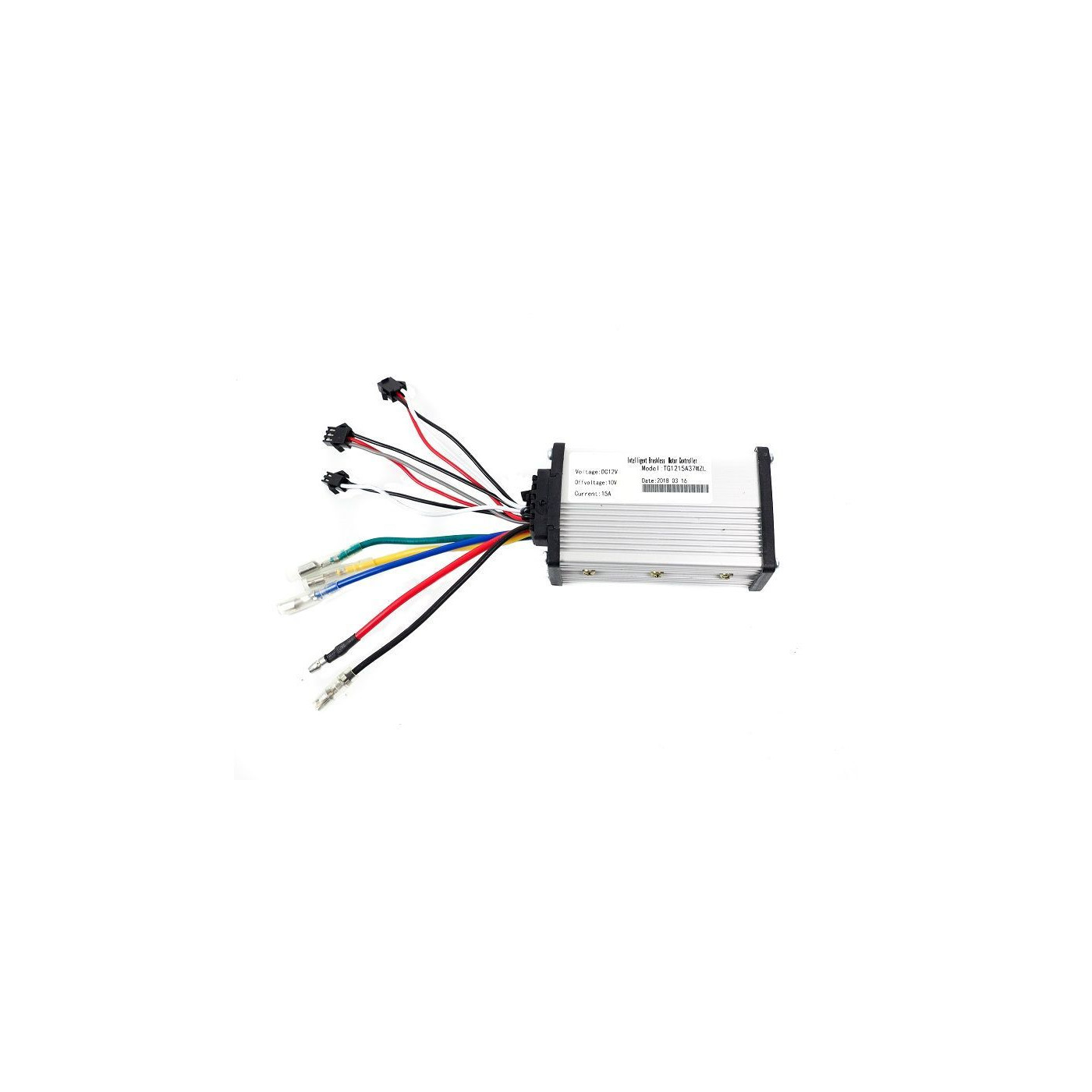

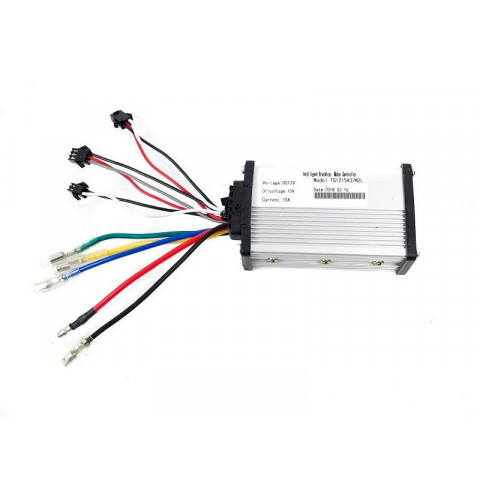

15A CONTROLLER
Intuitive installation. Each connector is keyed to prevent any assembly errors.
THUMB THROTTLE
Control the thrust with your fingertip. Can be installed on either the right or left side.
MOUNTING CASE
Allows for a clean and secure attachment of the controller to your chassis or frame.
BATTERIES AND CONTROL OPTIONS
Maximize your range with our 36V PVC Lithium batteries (Panasonic cells). OZO offers capacities from 500Wh to 1000Wh with a 2-year warranty.
LED Display Option: The 890 LED unit allows you to choose your power mode and activate the pedestrian mode (6km/h).
.png)
IS YOUR ROLLING BASE COMPATIBLE?
Check the mounting width of your support before purchasing:
- Mounting width: Your frame or fork must have a 65mm internal width (Value A).
- Axle type: Compatible with standard open mounts.
- Maximum load: Recommended total rolling weight up to 150kg.
000760
Data sheet
- Guarantee
- 2 ans
- Intensité max
- 15A
- Puissance
- 250W
- Maximum speed
- 20 km/h
- Tension nominale
- 36V
- Masse de la roue motorisée
- 2.2kg
- Technologie
- entrainement direct
- Rendement
- 85%
- Régénération au freinage
- Oui
- Entraxe fourche min/max
- 65mm
- Waterproof grade
- IP54
- Nombre d'aimants
- 20
