Complete set to assemble yourself a 48V 100Ah 4800Wh Lithium Iron battery with 3.2V 100Ah prismatic cells. Ideal for your boat, motorhome, van, caravan, house storage, mobile home, agricultural vehicle.
Easy assembly in just 1 hour, a screwdriver is enough, no knowledge of electronics is required.
The assembly plan is provided upon purchase.
Complete kit for self-assembly of a 48V 100Ah 4800Wh lithium iron battery with 3.2V 100Ah prismatic cells
Weight : 44 kg

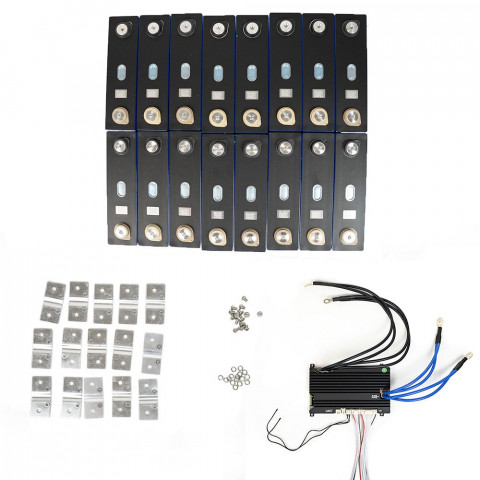

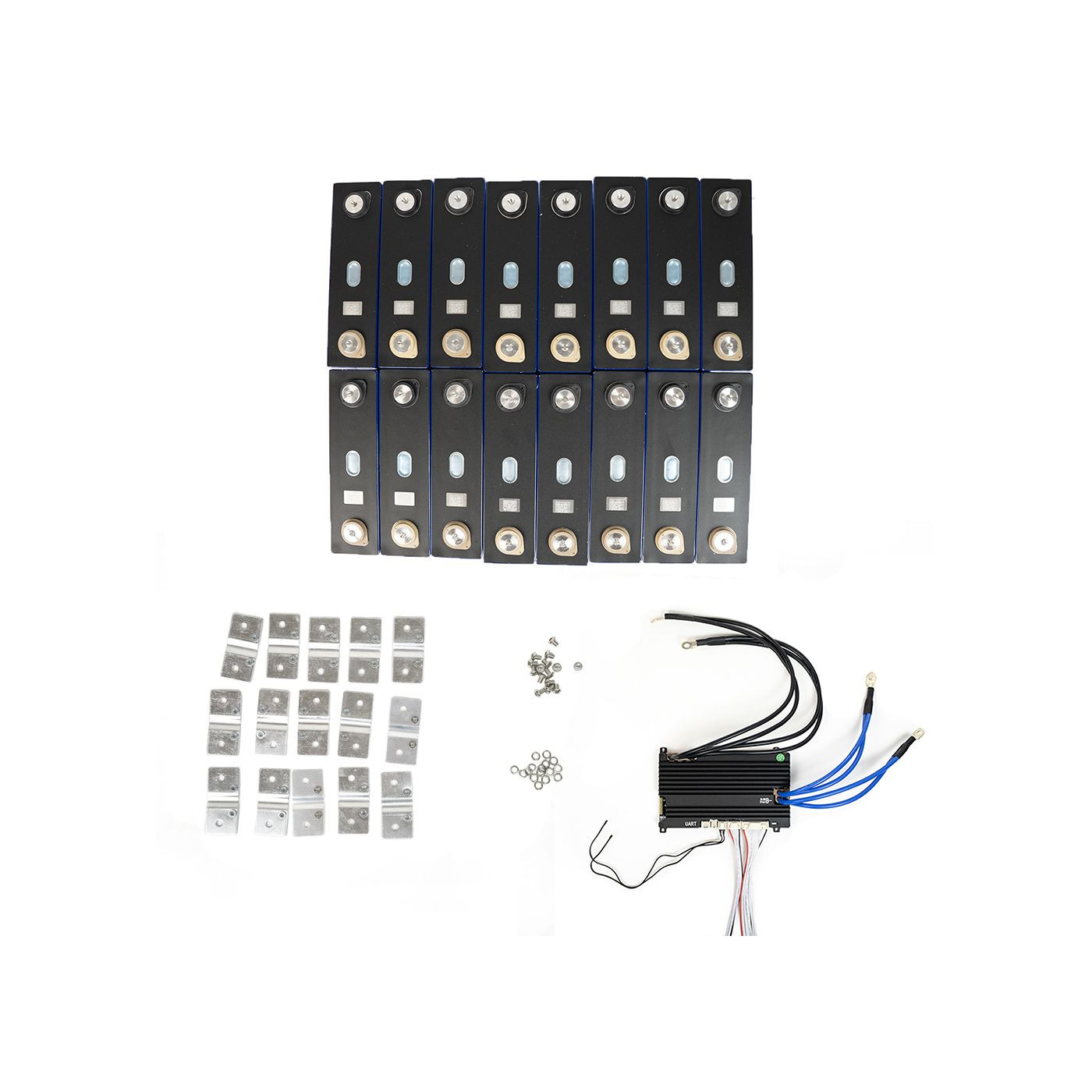

Materials provided:

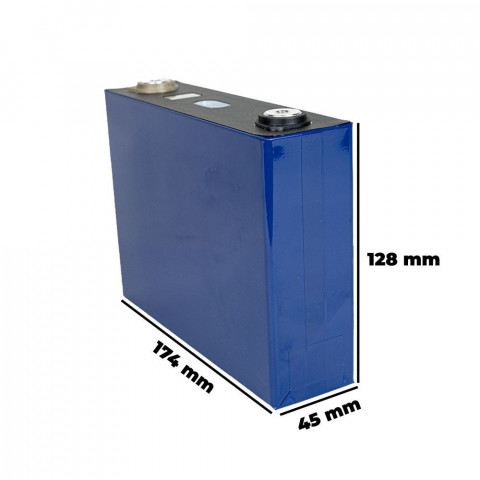

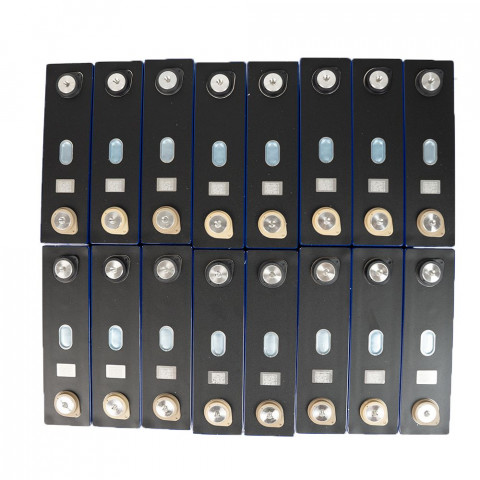

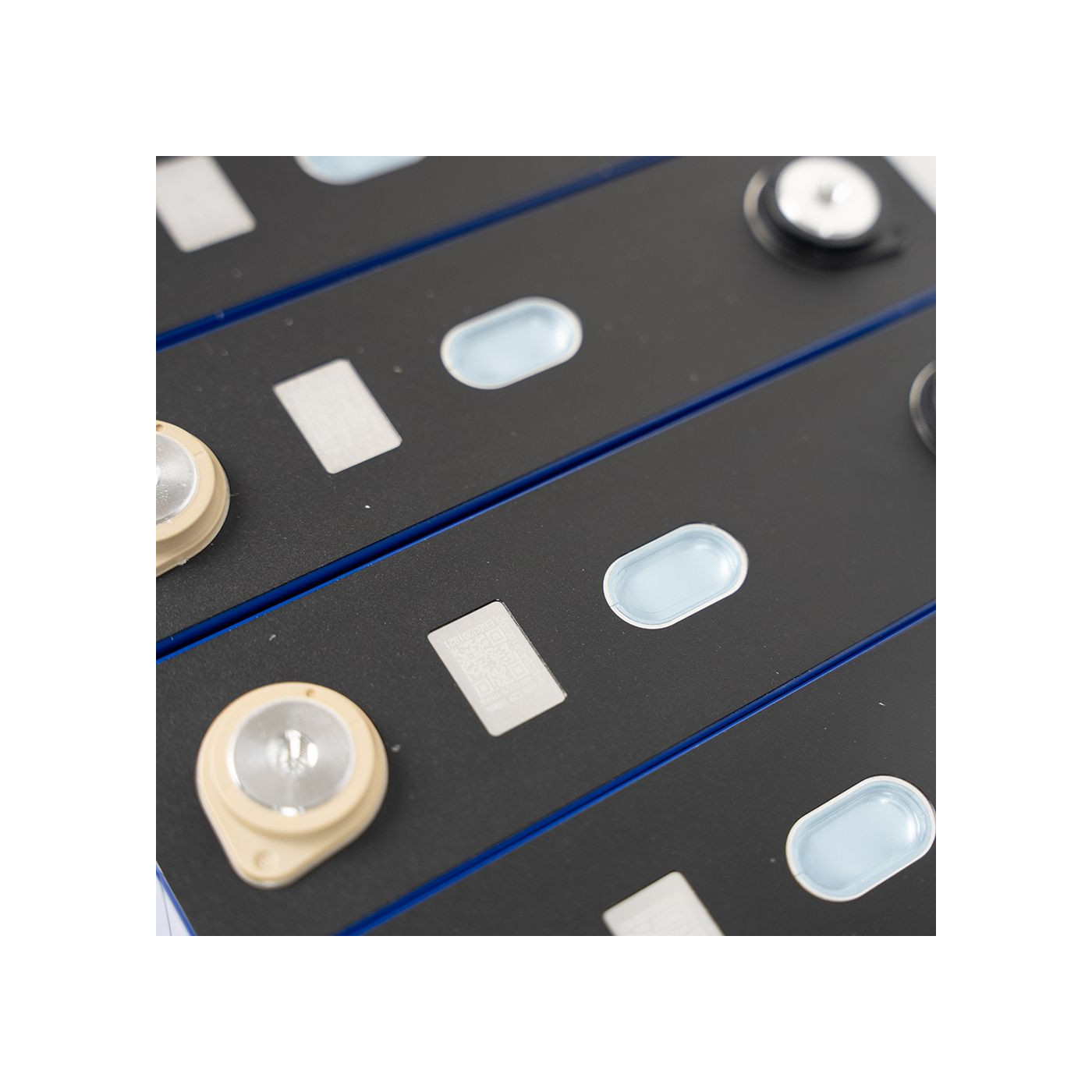

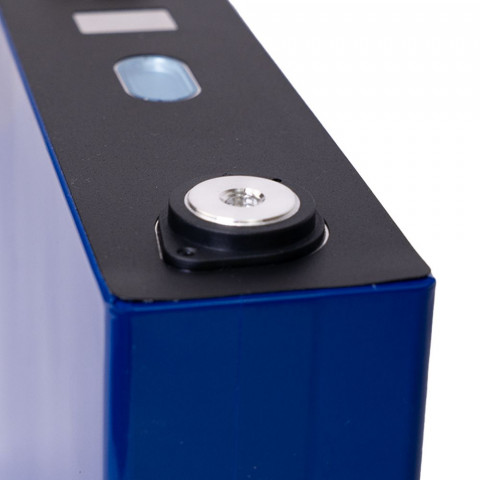

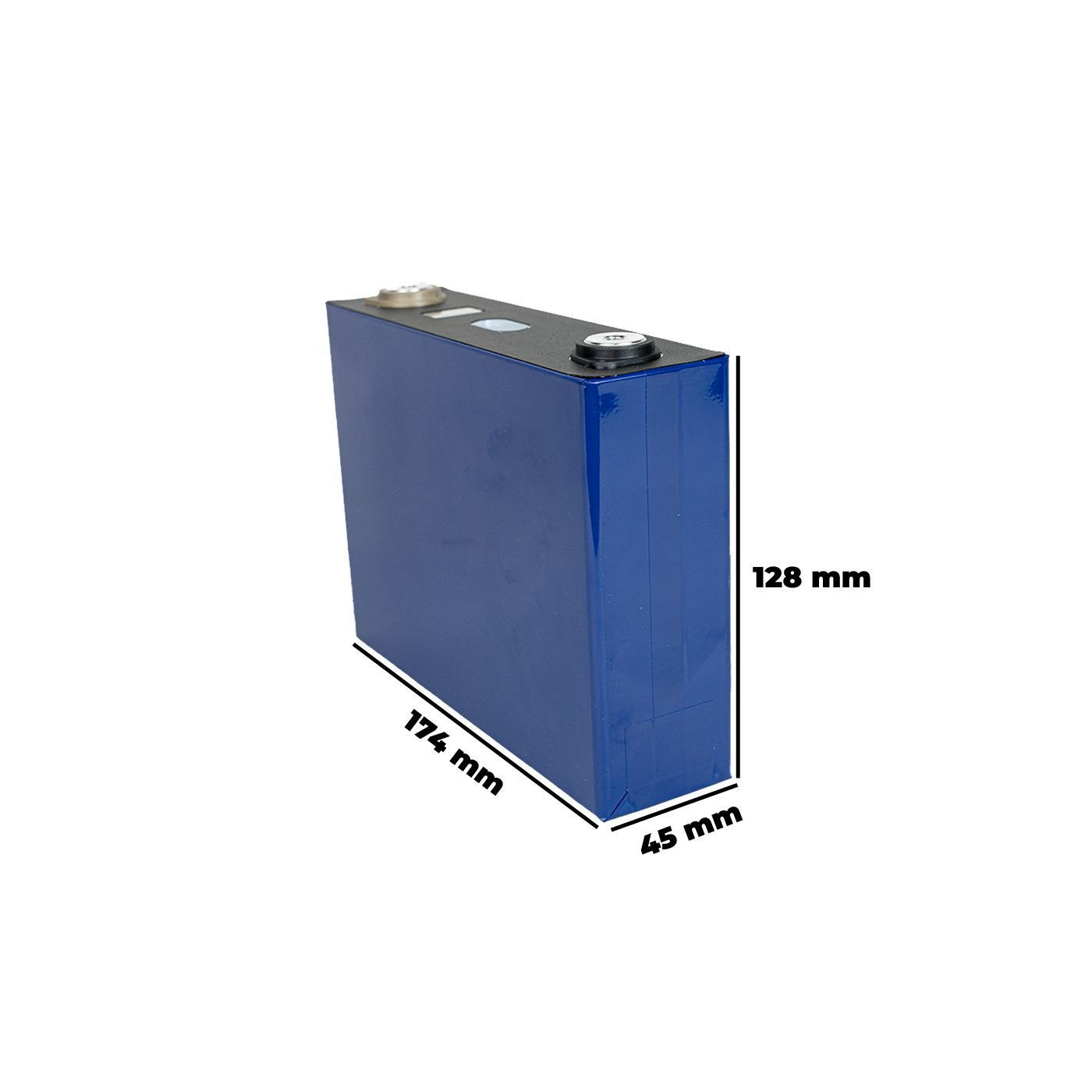

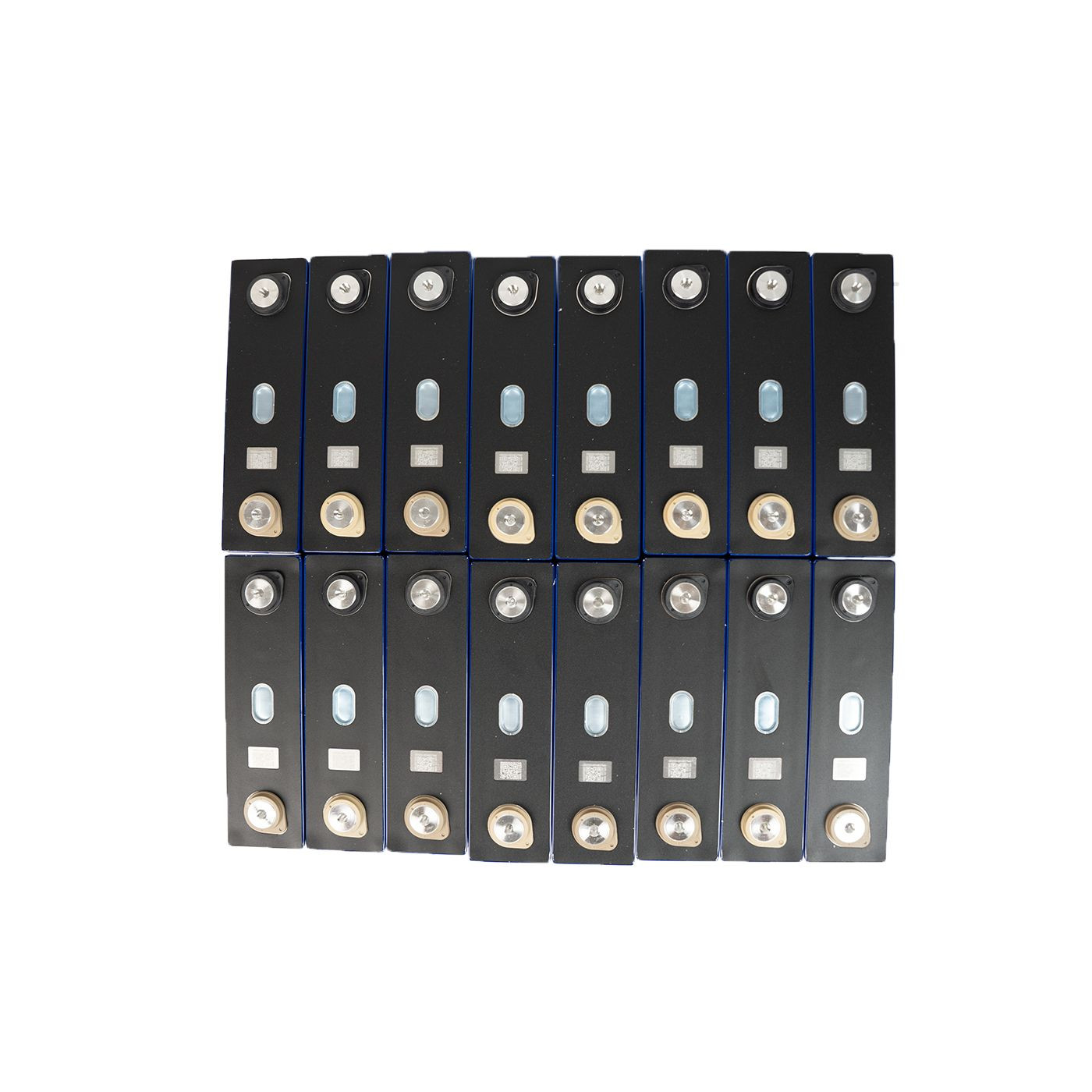

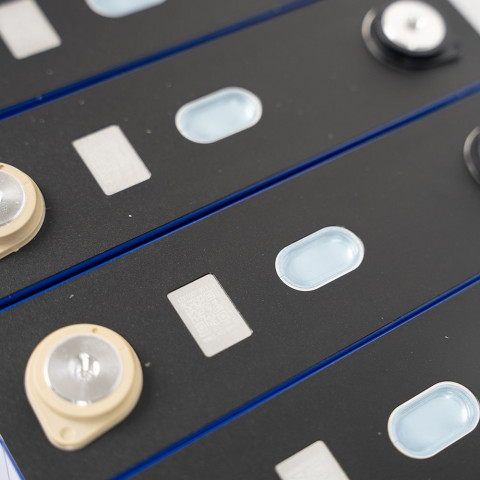

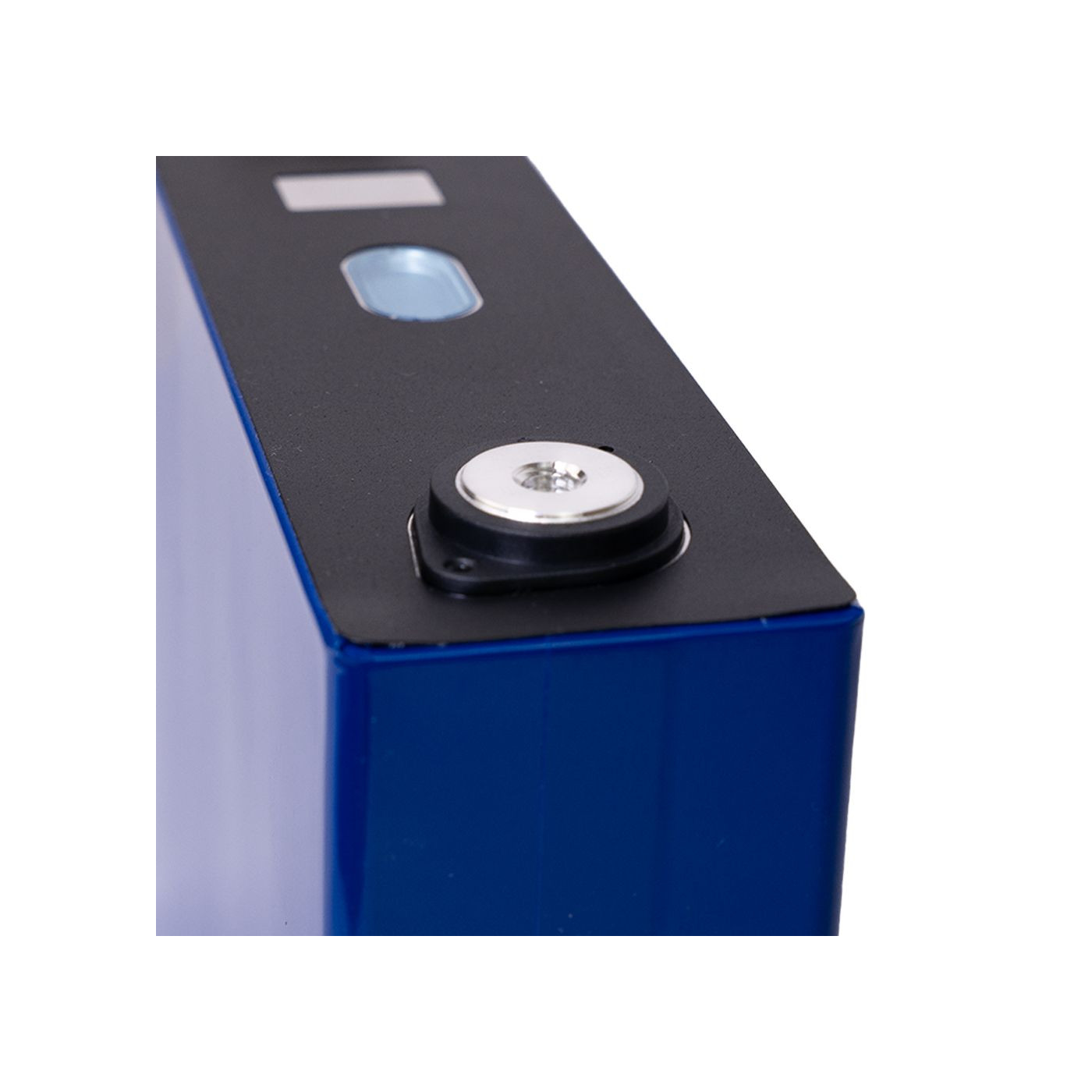

- 16x 3.2V 100Ah prismatic cells. The cells are individually tested before shipping in order to have a perfect balance of the pack.

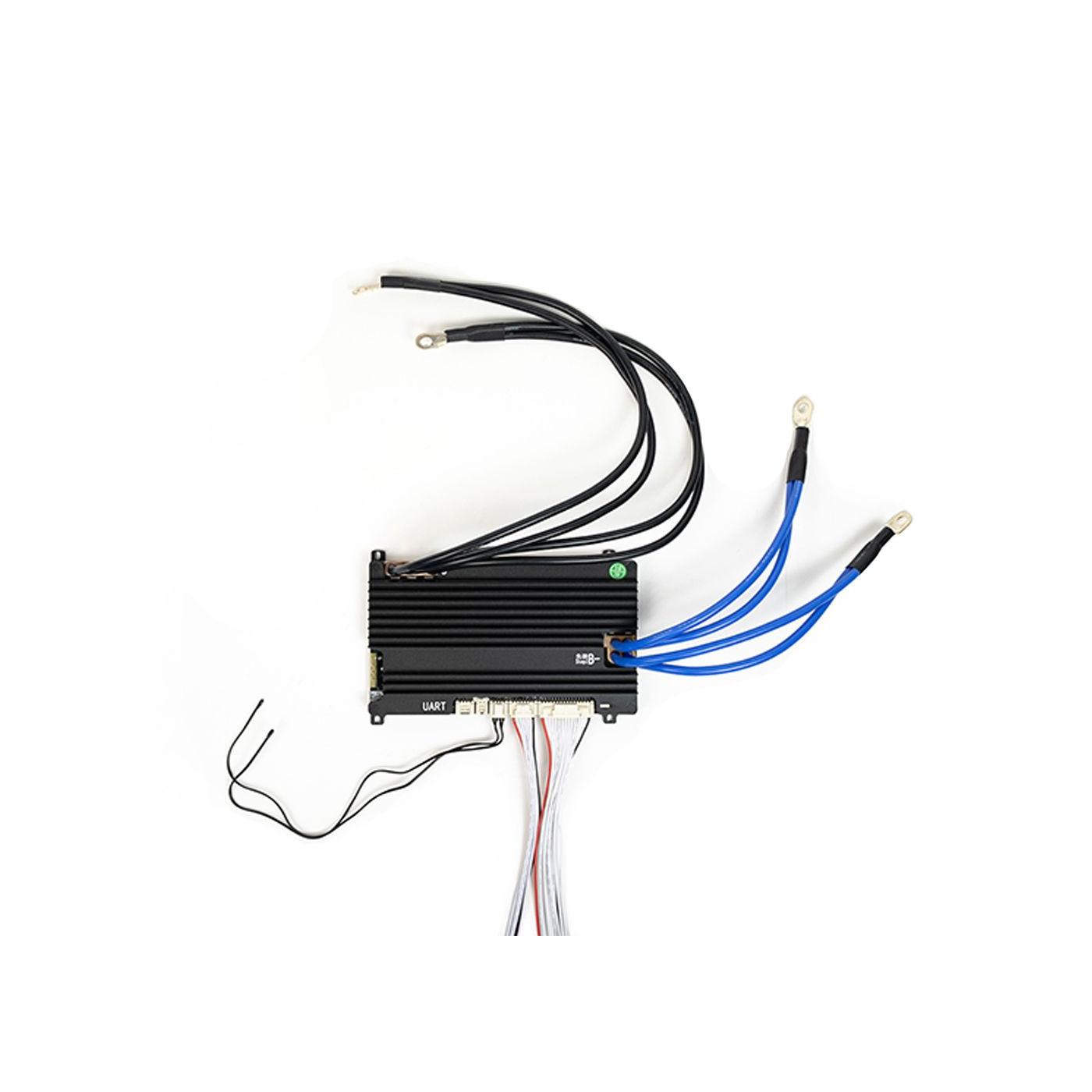

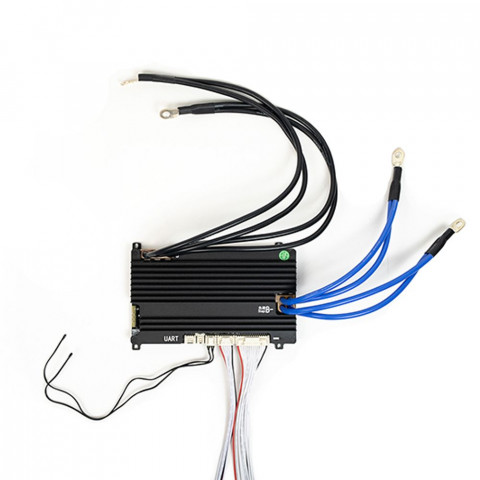

- 1 BMS 100A (Battery Management System) (200A max)
1) Common charge port (50A max), for large charge current charge cycle and independent discharge cycle. The battery can discharge or recharge, but not at the same time.
2) Separate charging port (25A max) for simultaneous charging and discharging of the battery, ideal for solar installations.

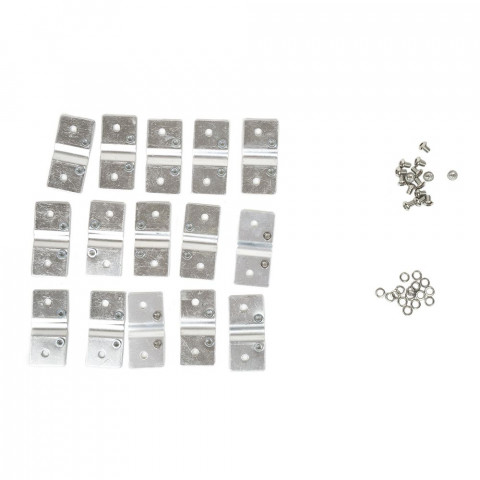

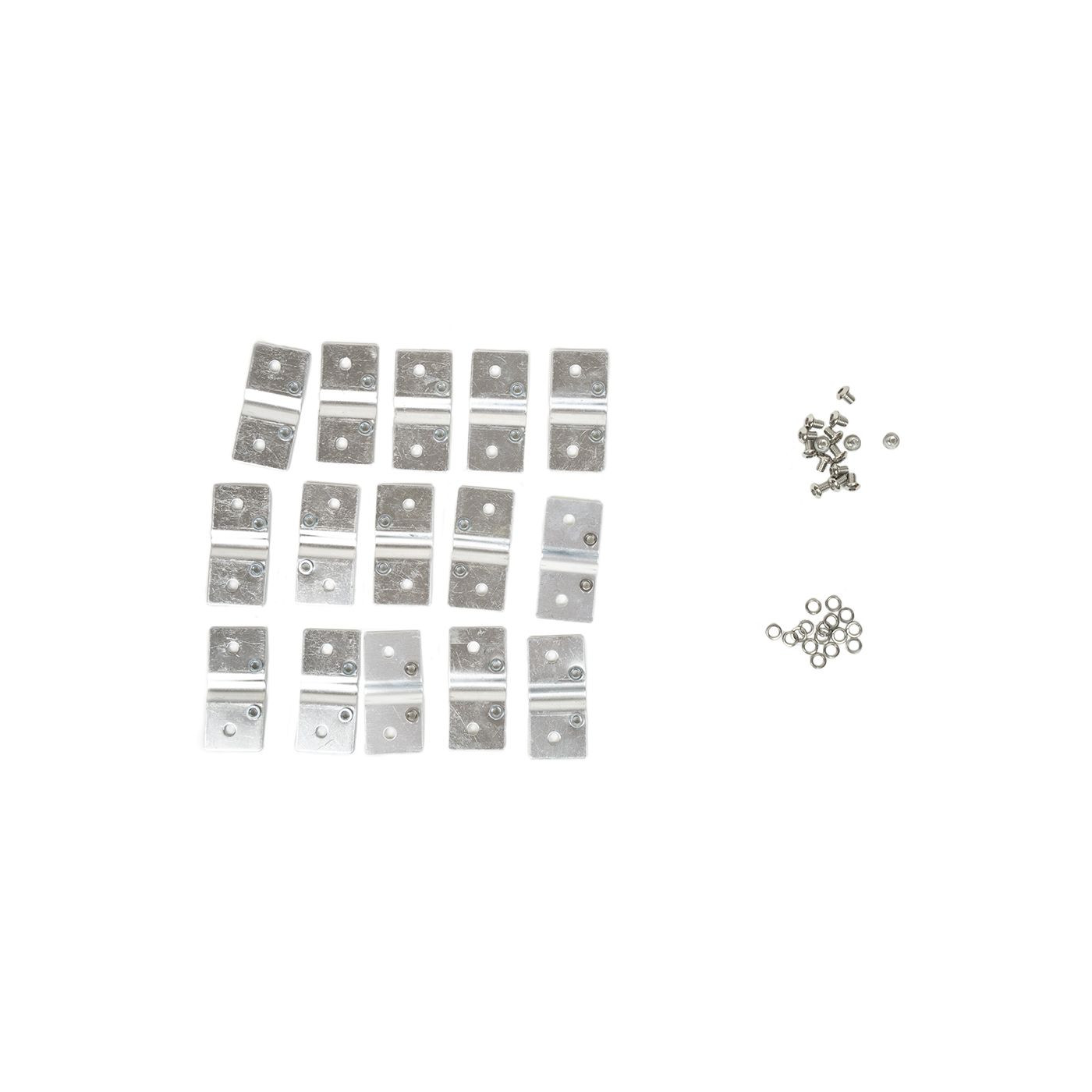

- 2mm thick copper junction plates

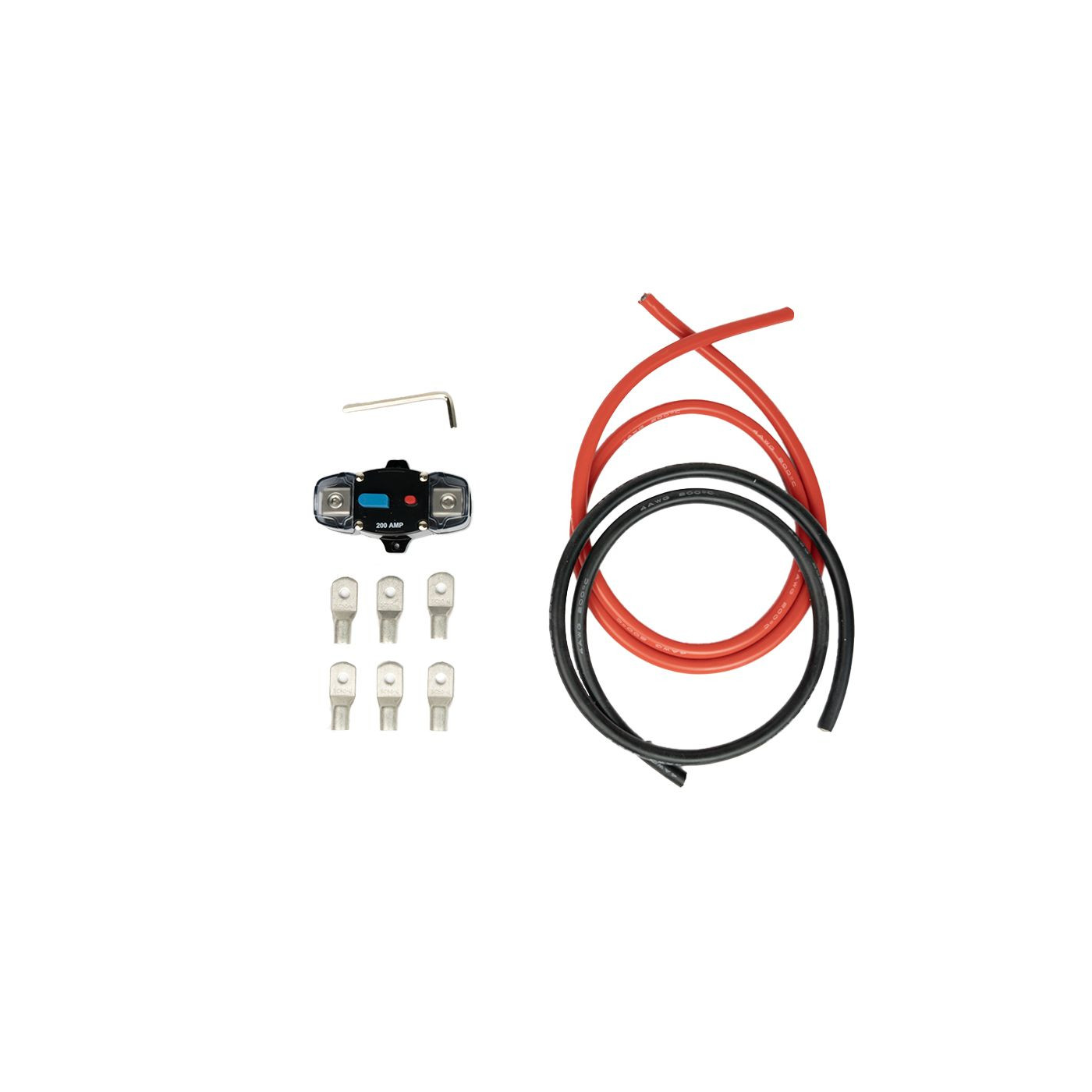

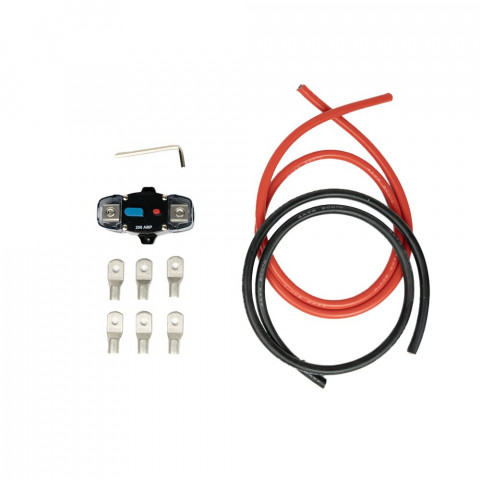

- Power cables: Section 10AWG / Standard length: 40cm, do not hesitate to contact us if you want different lengths.
- Screws
- Suitable fuse
Materials required:
- screwdriver
Benefits :
- Easy installation, accessible to everyone
- Modular, adapts to all locations
- Simplified maintenance, if a cell is out of service, it is possible to replace only this cell without changing the complete battery pack.
- Economic
- Lithium iron has a lifespan of 2000-3000 charge cycles unlike lithium ion (600 cycles) and lead (300 cycles)
- This Lithium battery will perfectly replace your old lead batteries
Specially suitable for home storage, motorhome, boat, solar sailboat, quad, autonomous vehicle, solar installation, mobile home, agricultural vehicle for organic farming.
No knowledge of electronics is required.
The wiring diagram / plan is provided when purchasing the kit.
Precautions:
The battery pack should be stored in a dry and ventilated place. The operating temperature is between -20 ° and 60 ° C. We recommend a storage and use range between 0 and 50 ° C in order to preserve and increase the life of your batteries. The positive and negative metal terminals must be protected in order to avoid a short circuit due to a falling metal object on the pack.
The nominal current of the cells is 1C (100A) in charge and in discharge, a peak current (0.5s) of 3C (300A)
For any further questions, please send us an email to batteries@ozo-electric.com
|
The OZO Batteries application allows you to communicate with the BMS of your OZO battery via bluetooth in order to read the battery parameters such as the instantaneous discharge power, the charging current, the battery charge state, the battery voltage , the voltage of each cell, the temperature, the number of cycles of use... |
