balance pack discharger
These modules allow for the parallel connection of batteries to increase their autonomy.
Compatible only with generic batteries of the same voltage, although the battery capacity may vary.
The small module is limited to a maximum discharge current of 40A, while the large module is limited to 120A.

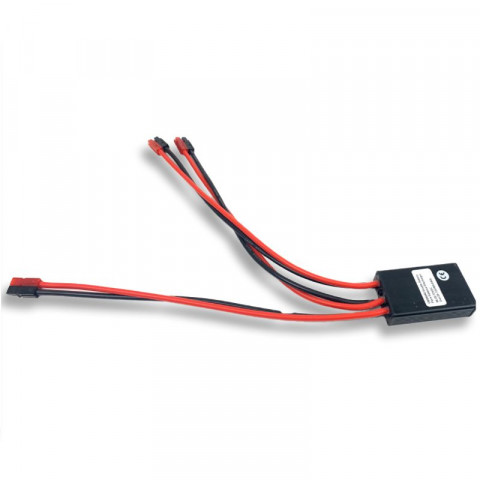

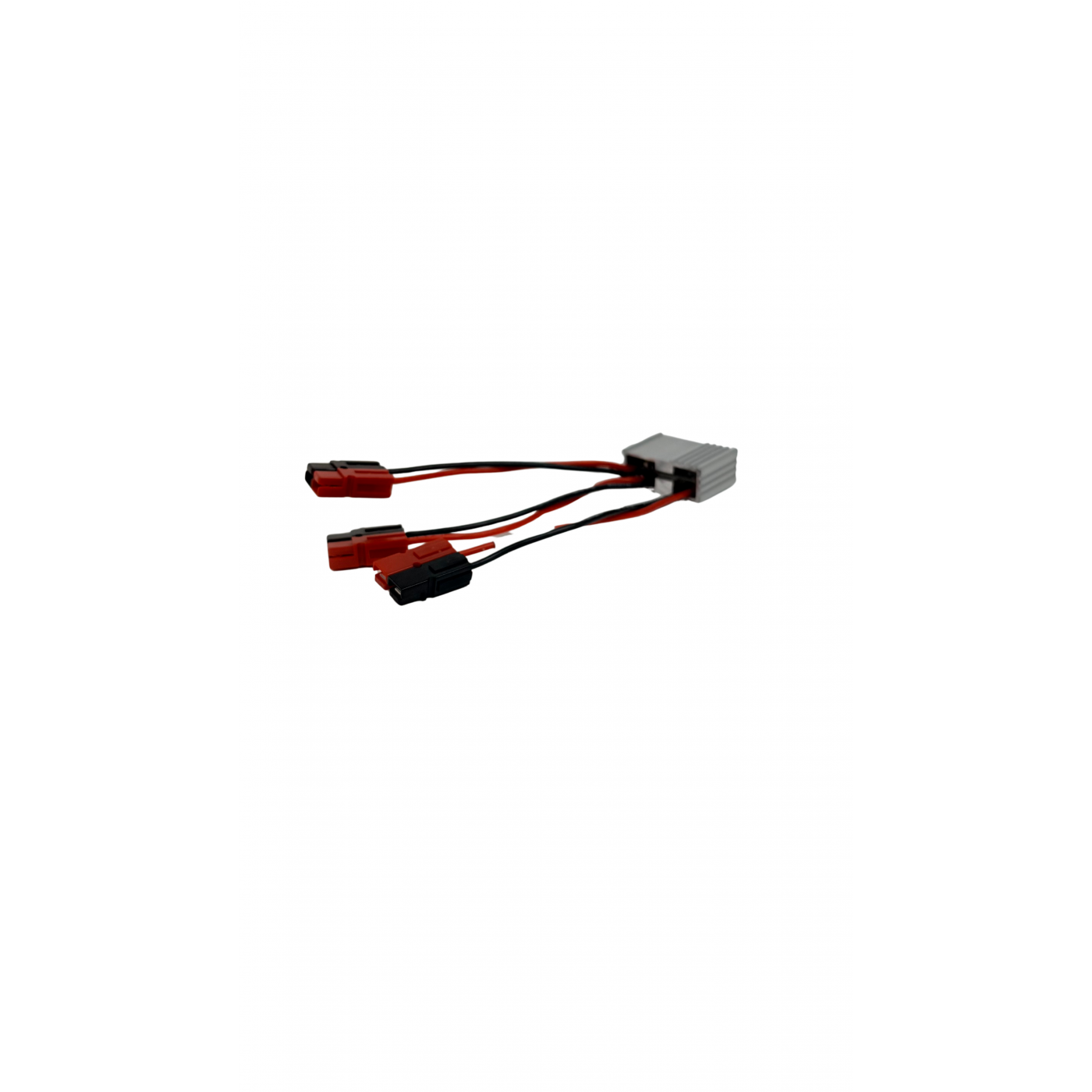

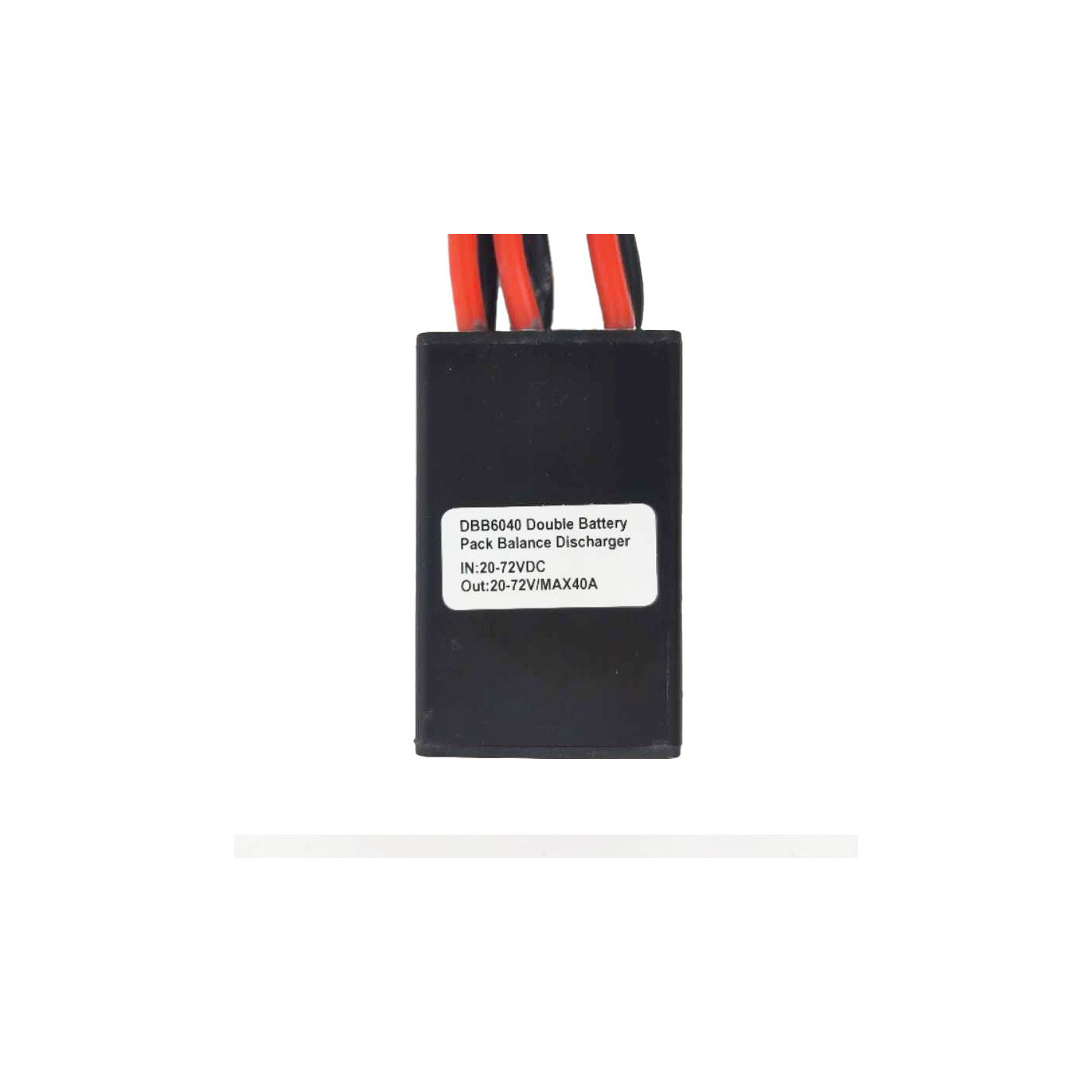

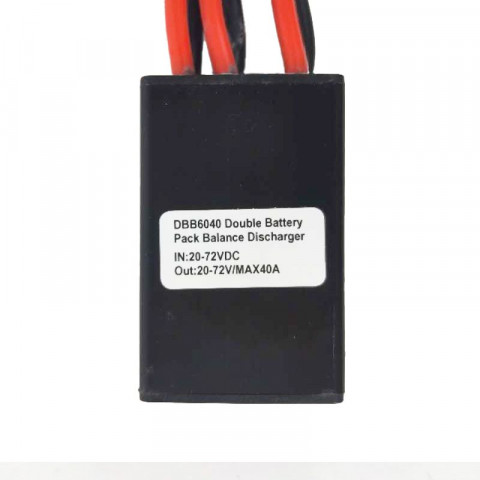

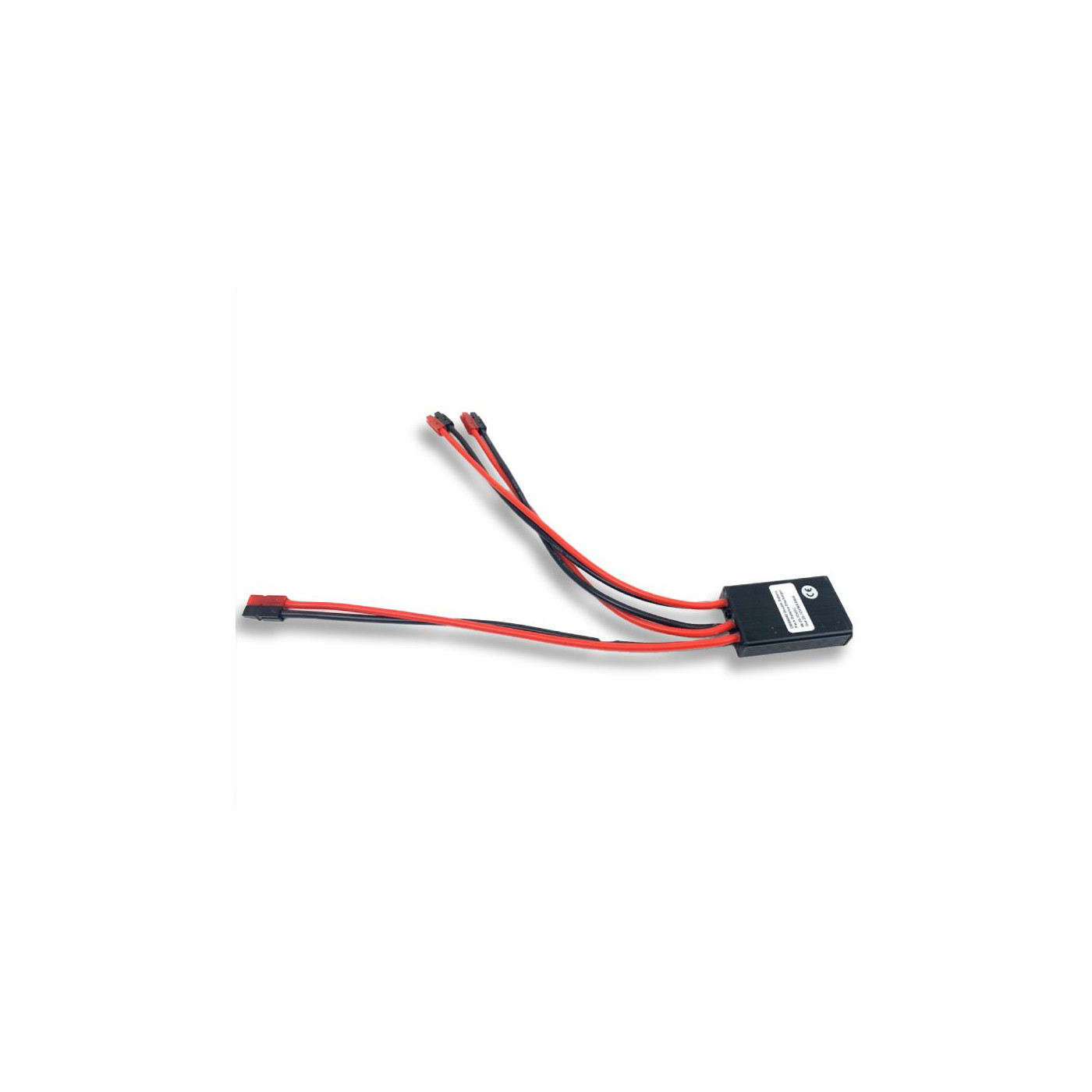

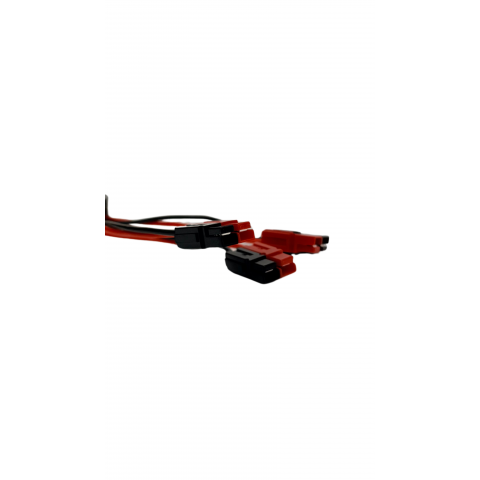

40A module
Input voltage: 20-72V DC
Output voltage: 20 V - 72V DC
Max output current: 40A

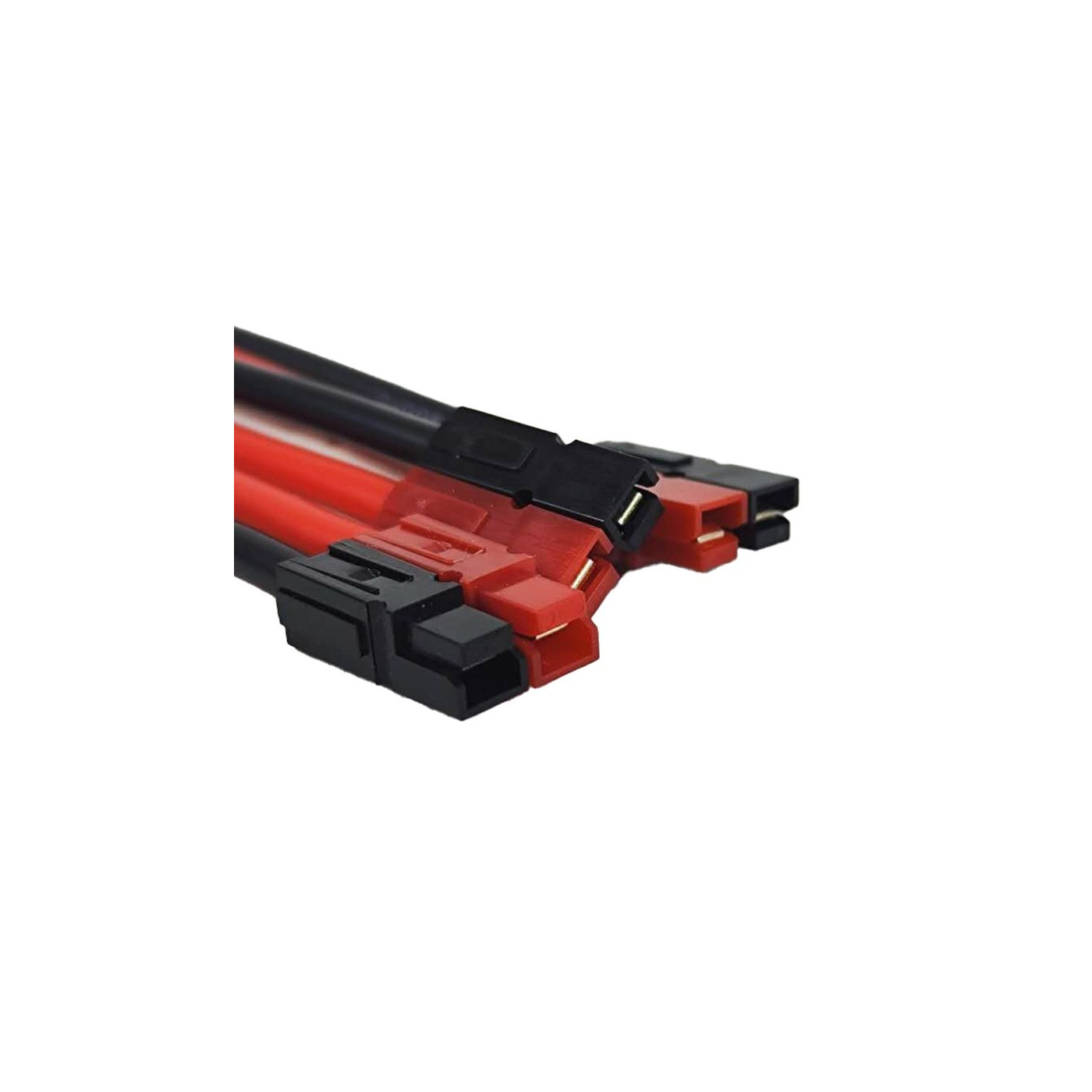

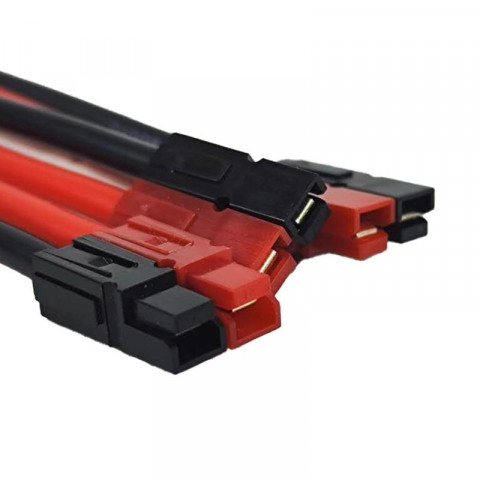

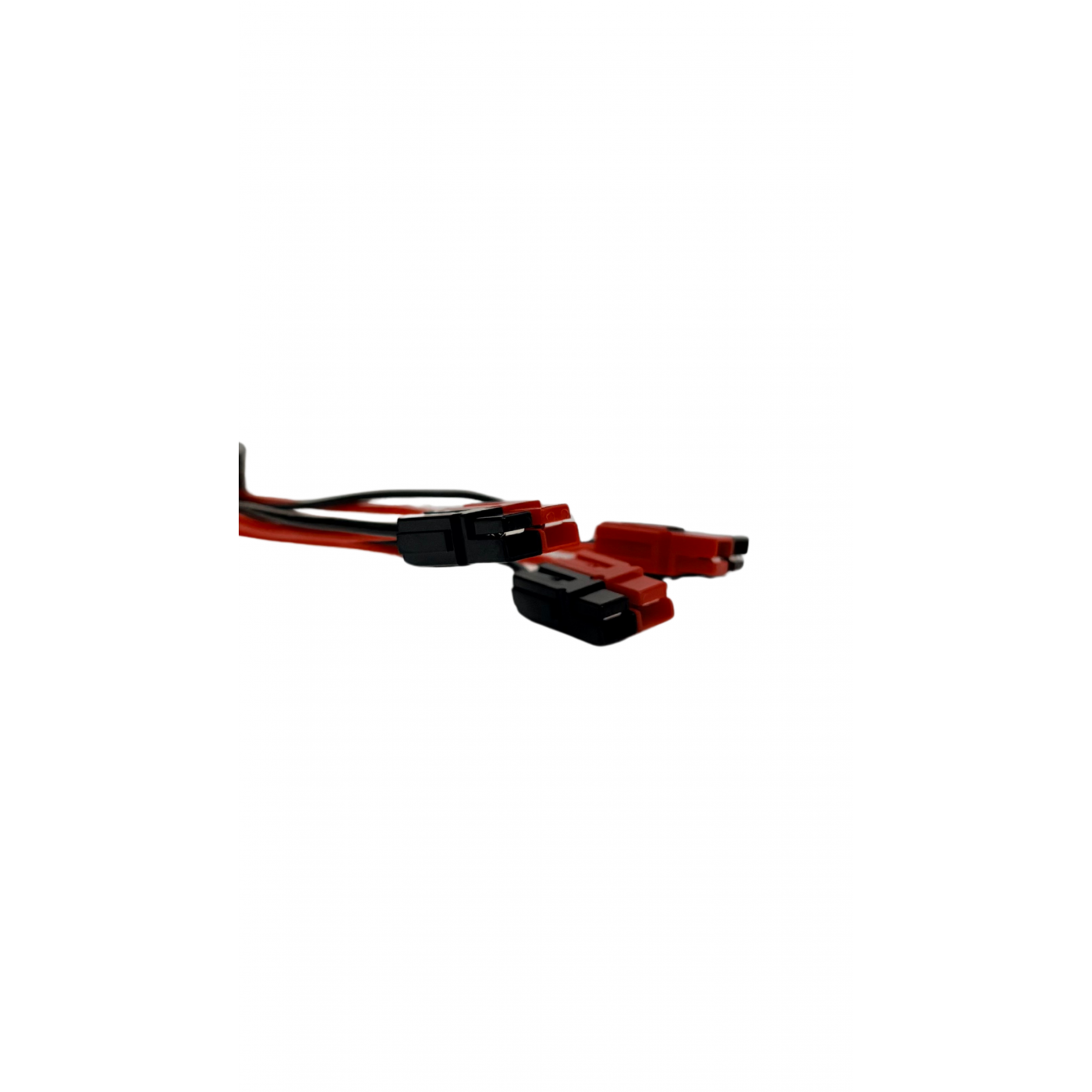

Connector: Anderson PP30
2 inputs - 1 output
Cable length : 30cm
Cable section: 11 AWG

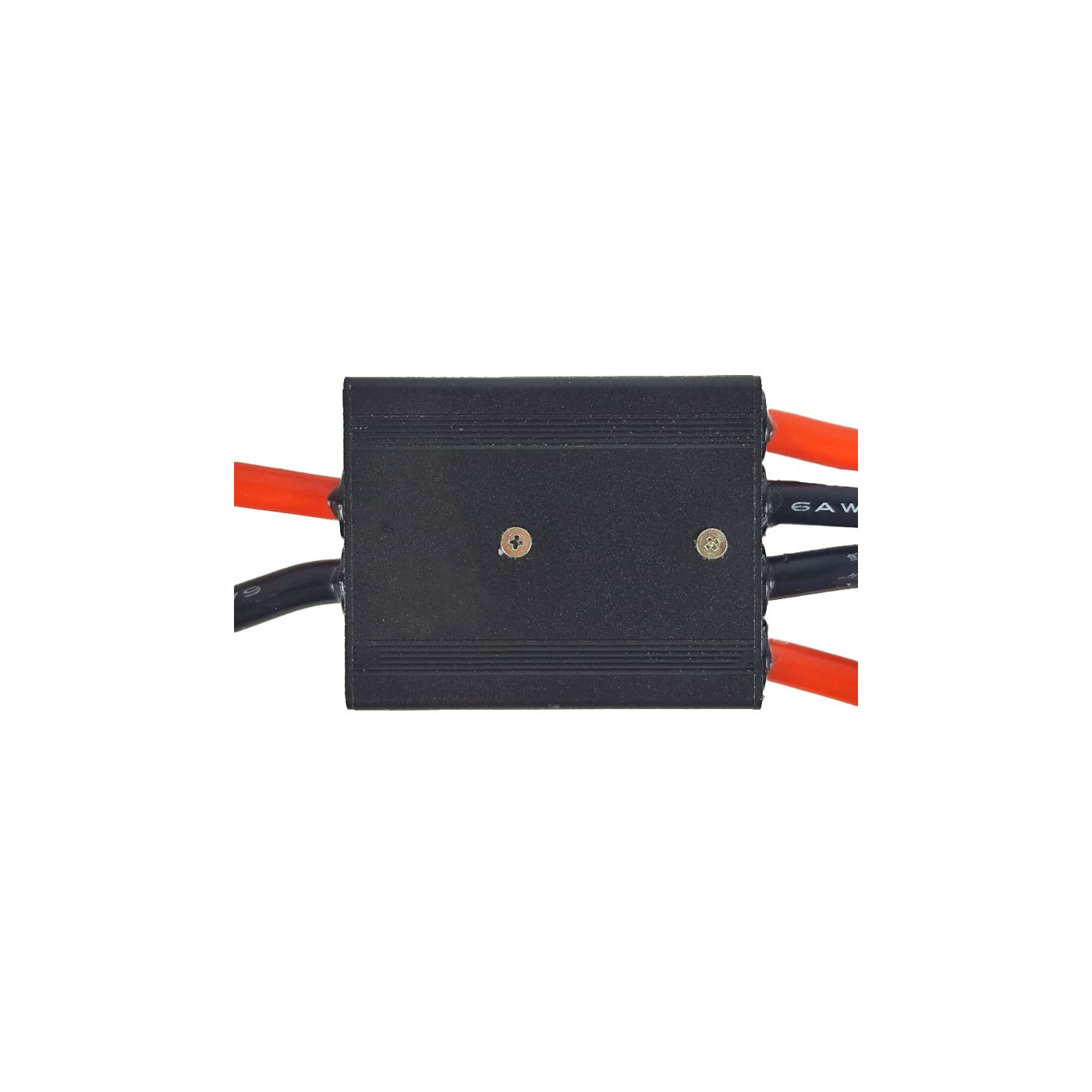

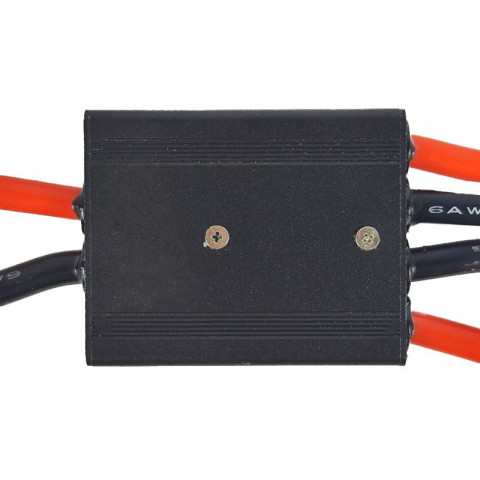

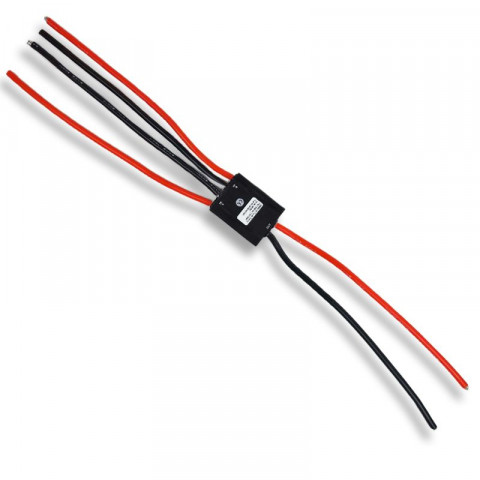

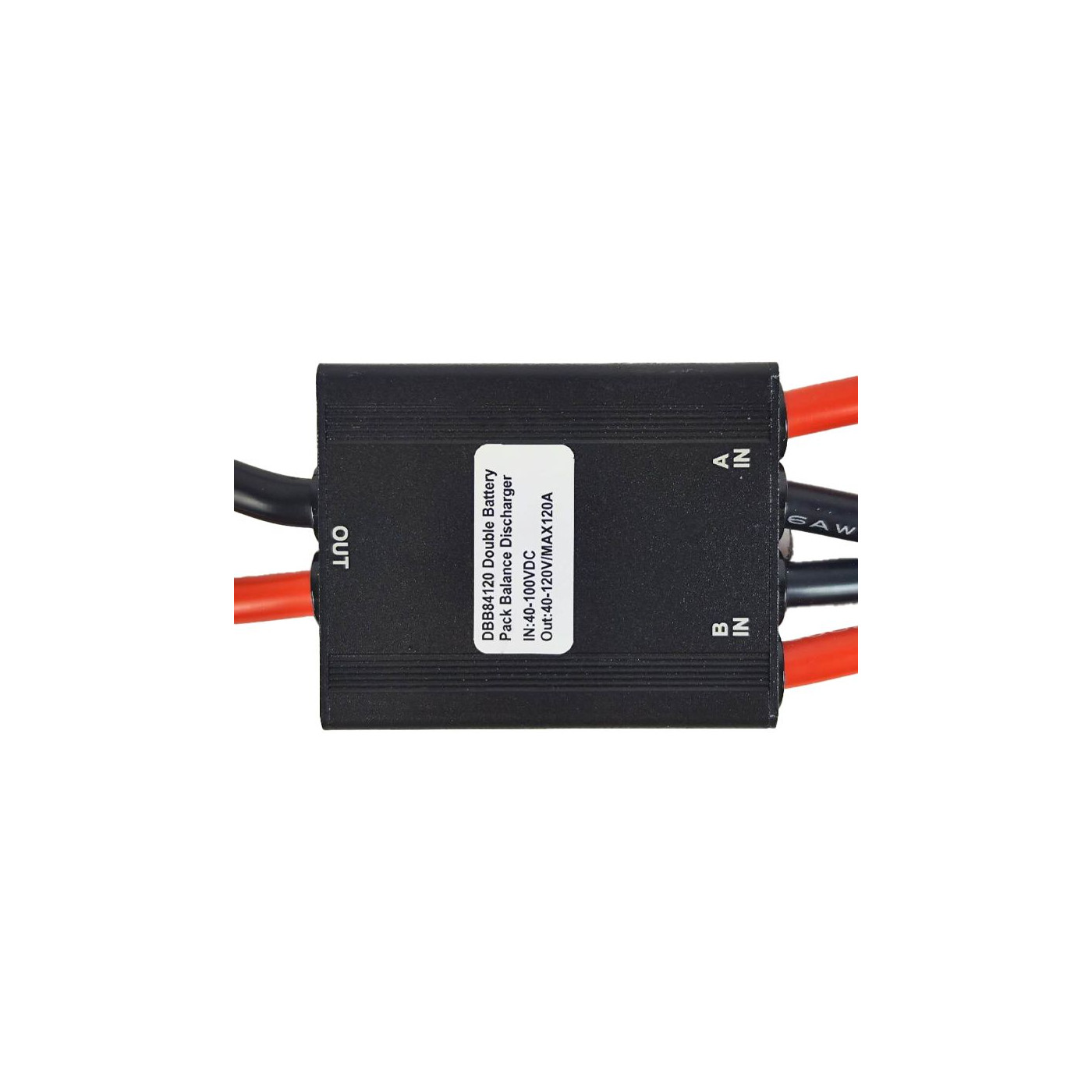

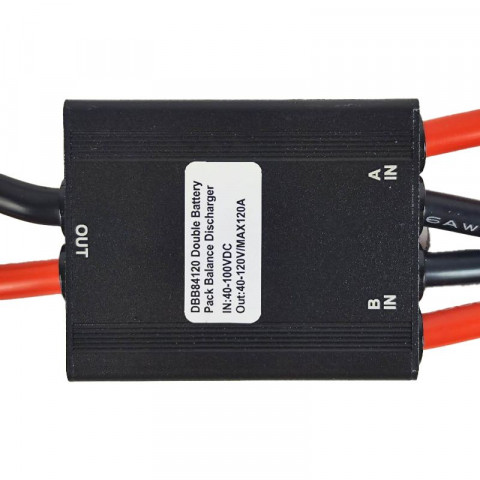

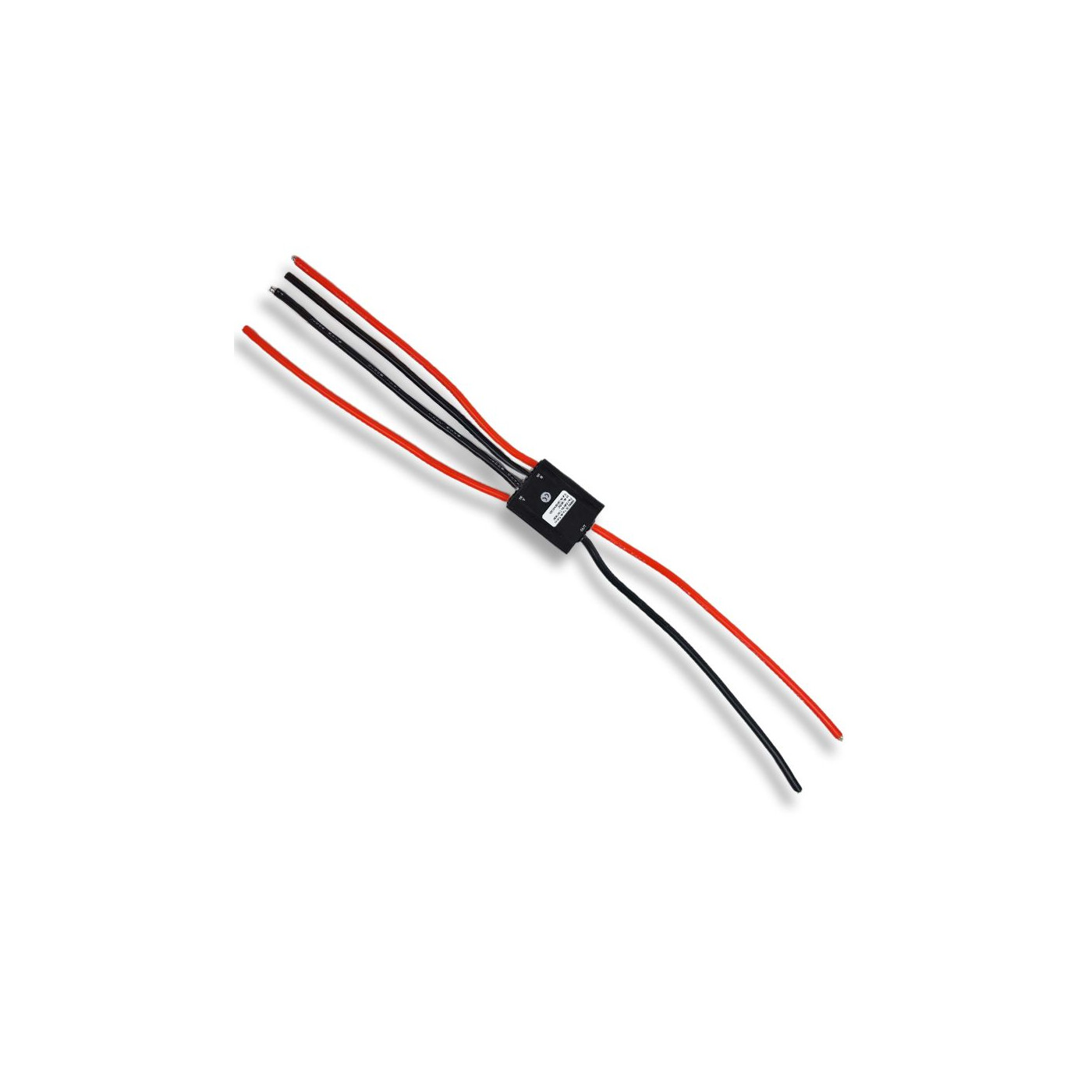

120A module
Input voltage: 40-100V DC
Output voltage: 40V - 100V DC
Max output current : 120A
Connector: no
2 inputs - 1 output
Cable length: 33cm
Cable section: 6 AWG
