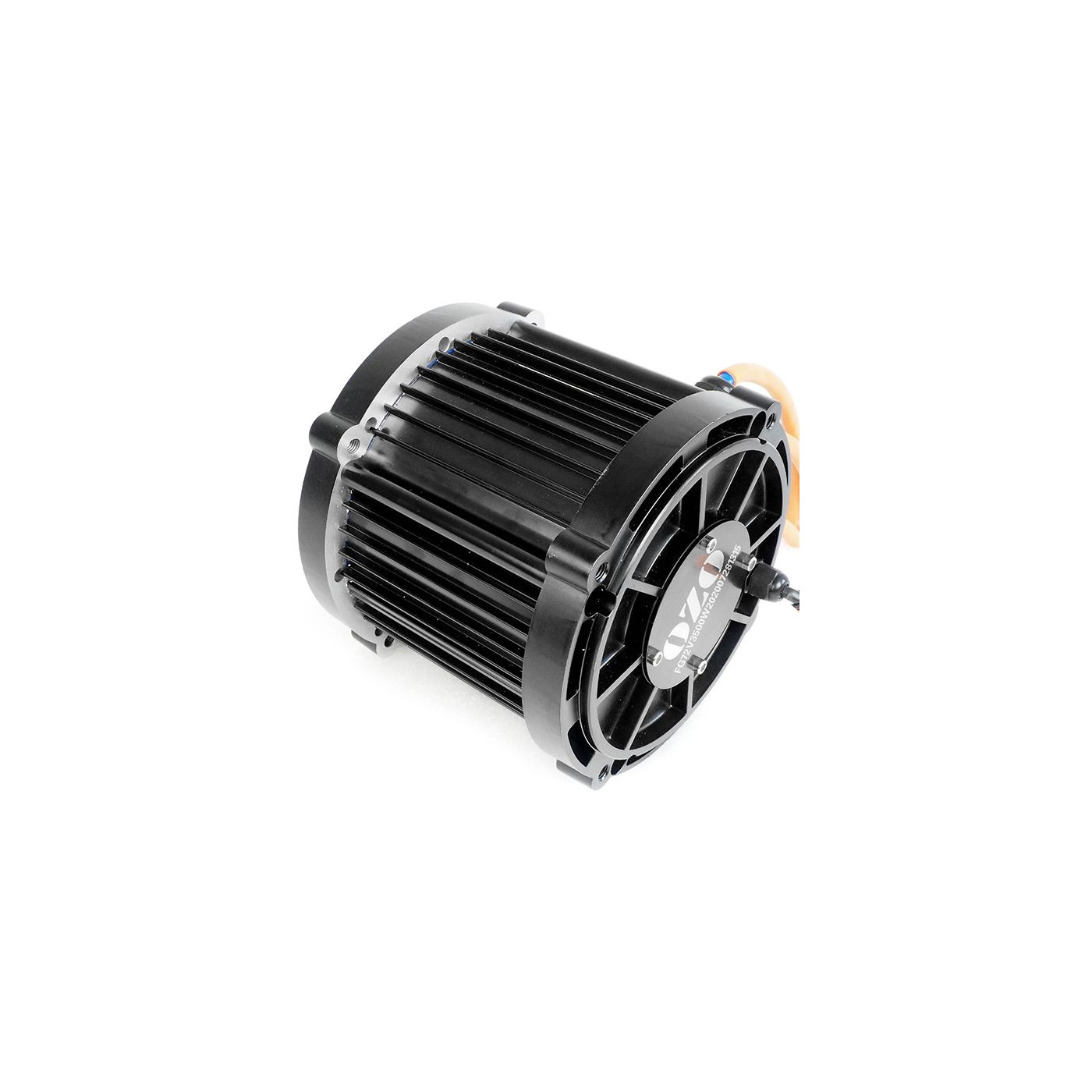

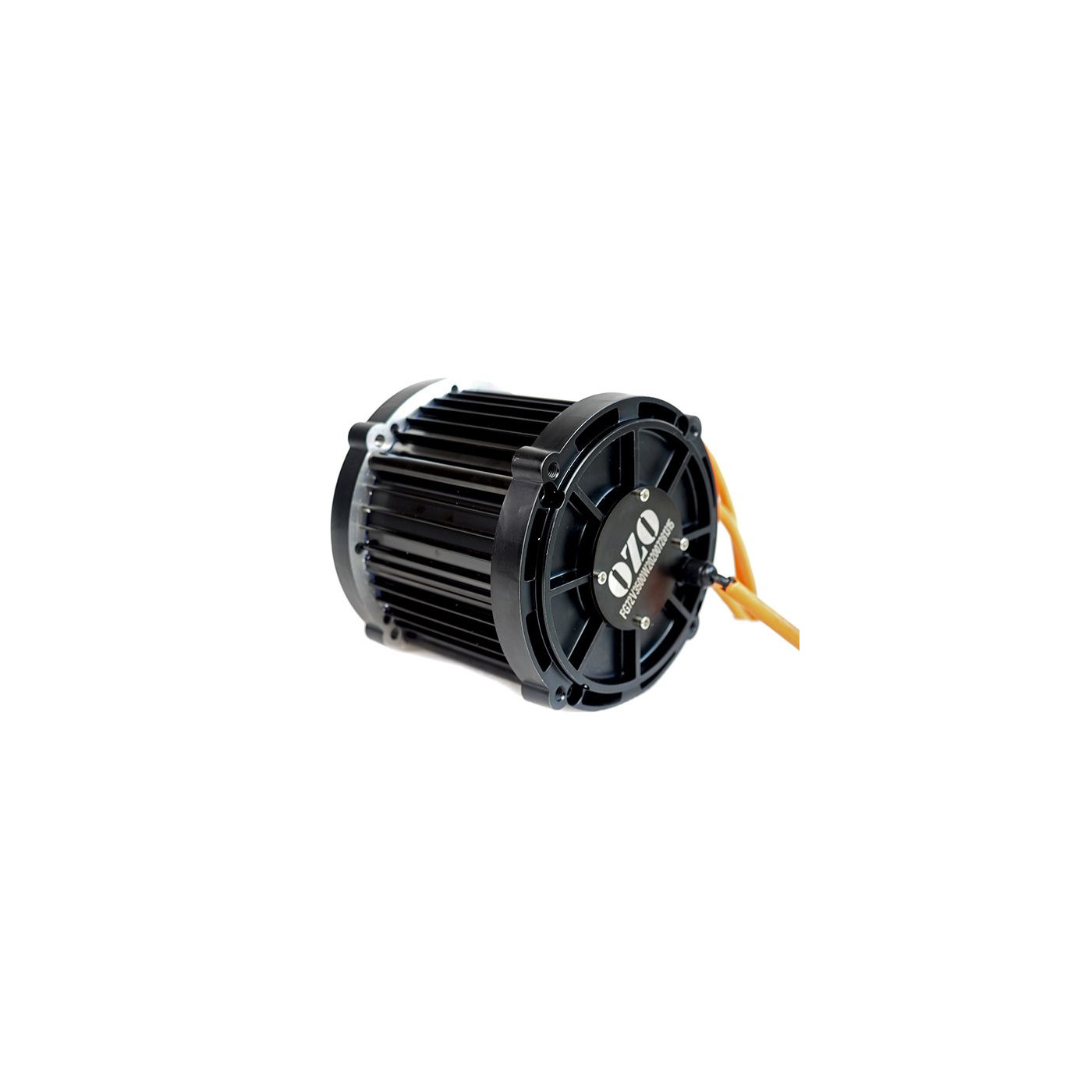

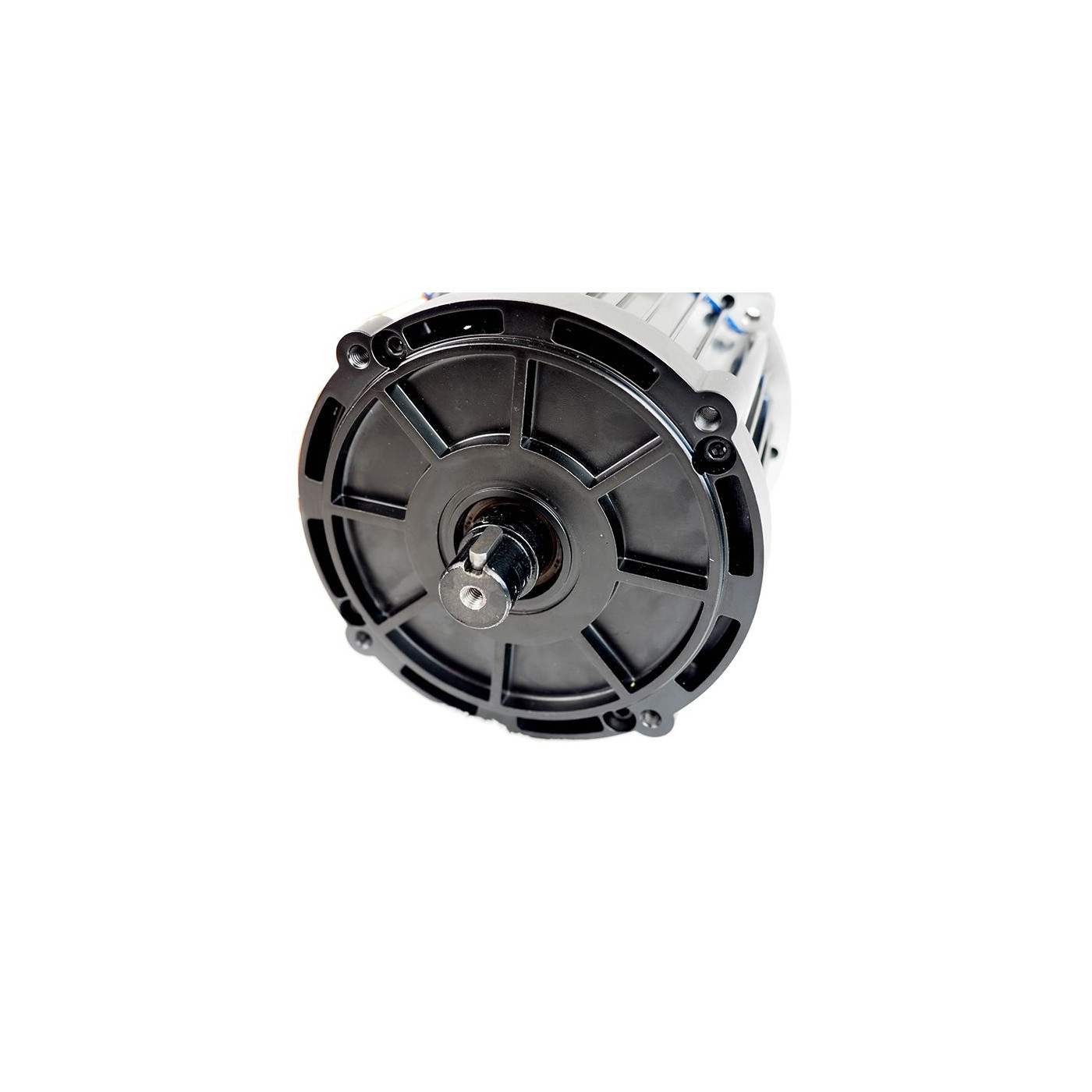

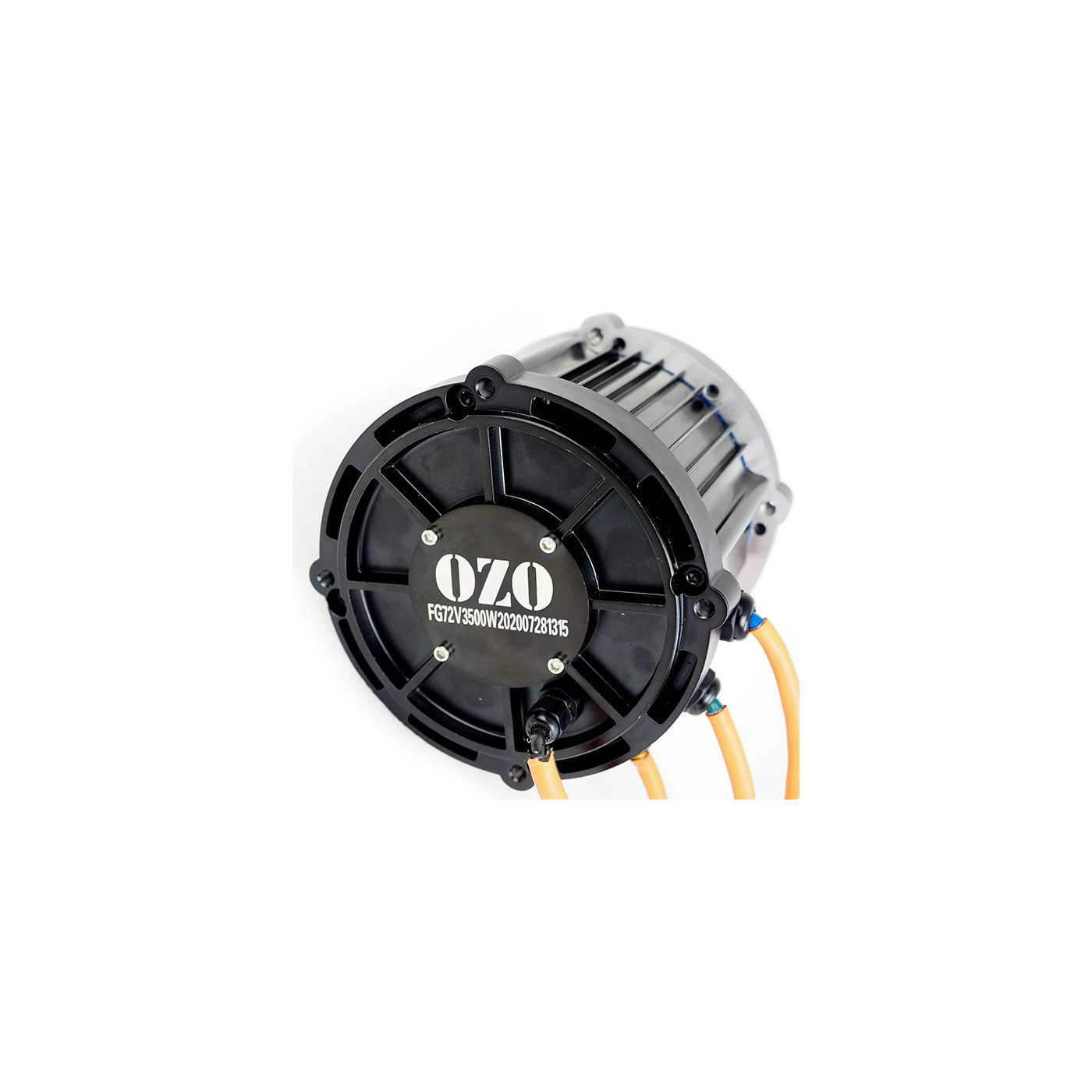

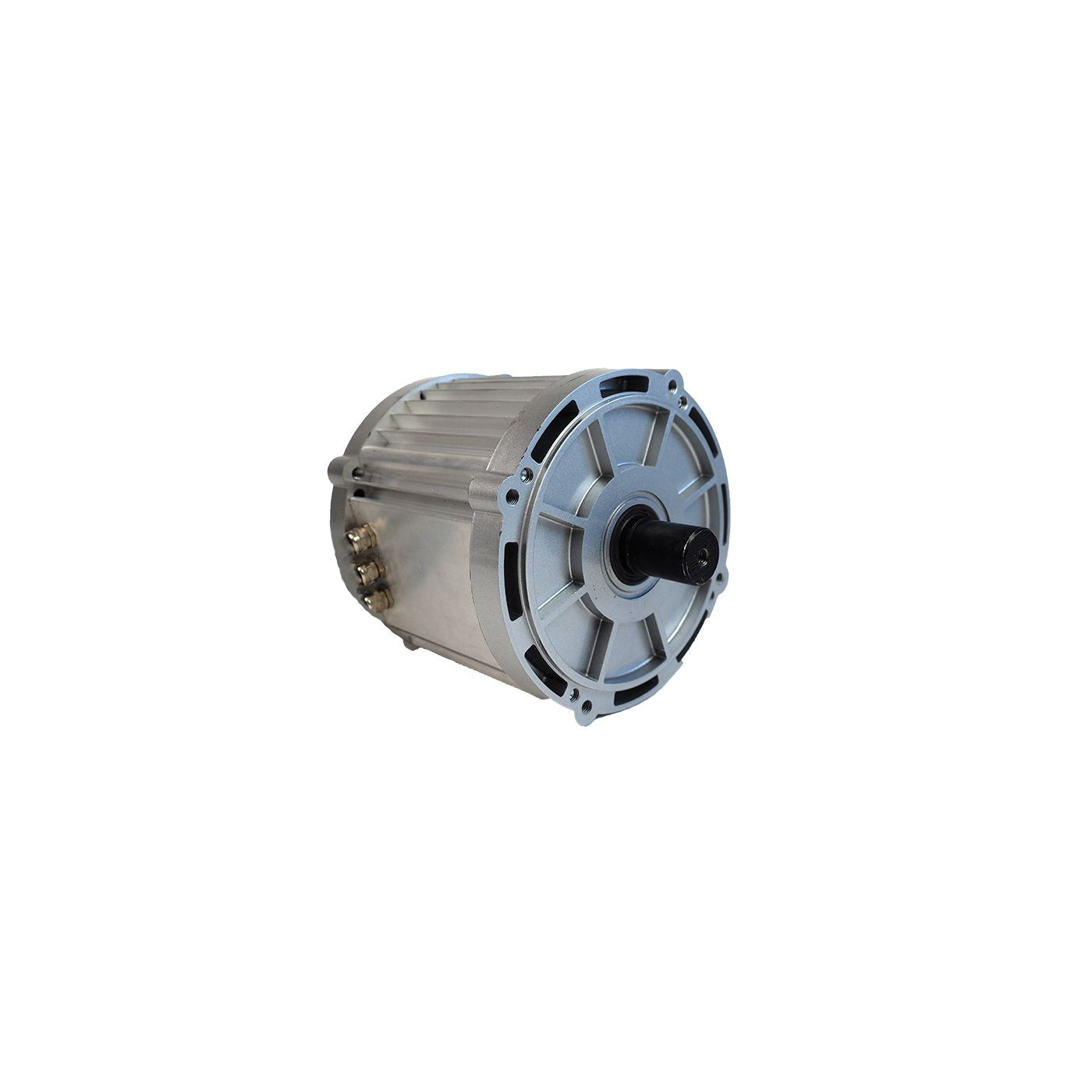

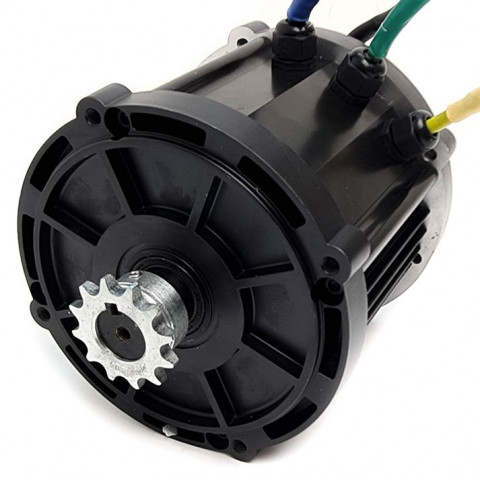

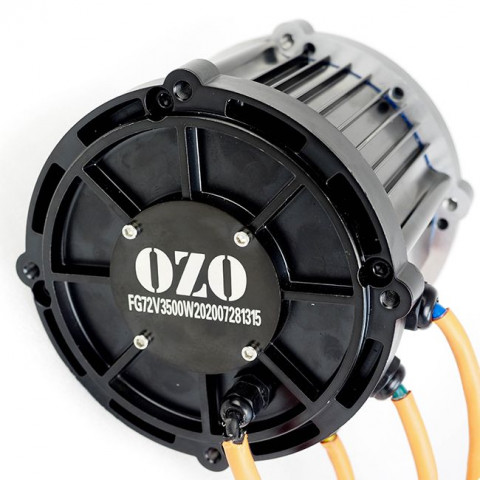

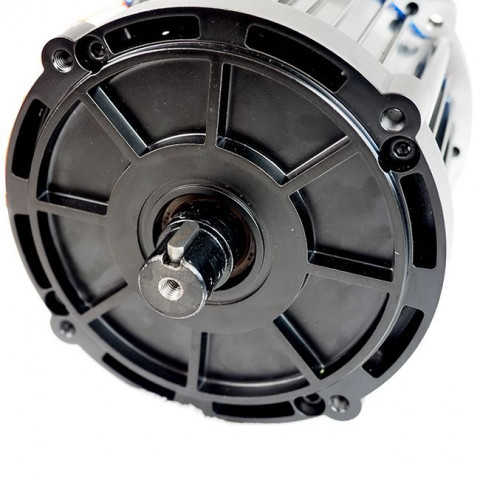

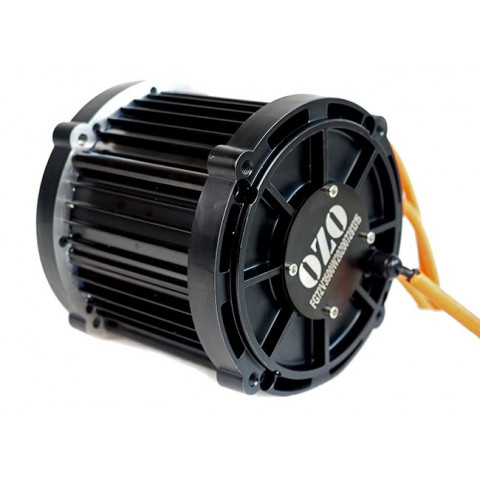

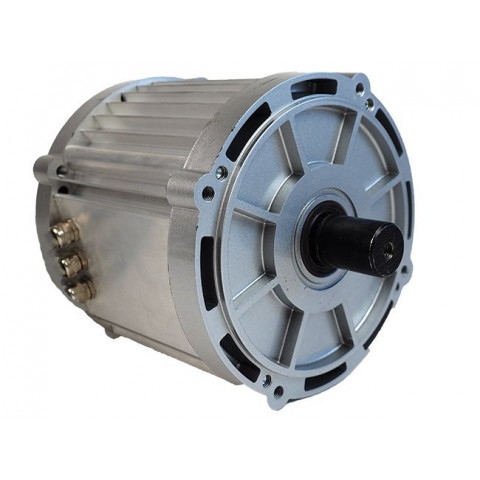

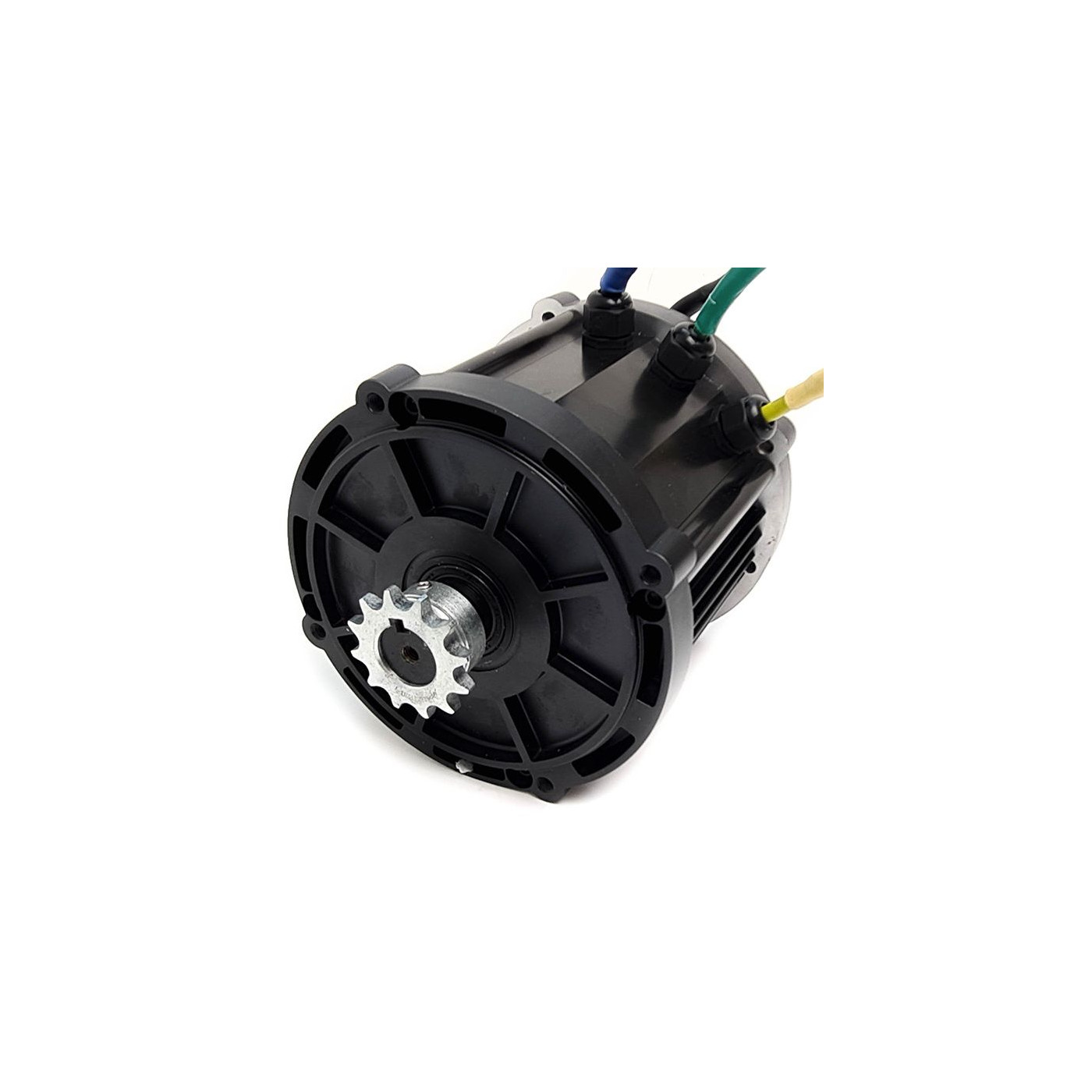

3500W BLDC brushless central motor

3500W BLDC brushless central motor

Max speed is 3000 RPM under 48V, 3750 RPM under 60V and 4500 RPM under 72V.

Maw torque is 50N.m

Ideal to convert 50cc or 80cc into electric.

Read moreShow less
€399.00 (tax incl.)
IN STOCK 11 Items
Reference:
000521
You may also like
Support inox karting Support inox karting Support inox karting

€90.00 (tax incl.)
Karting bracket in steel, available in 6mm and 8mm thickness. Designed for mounting in place of the combustion engine, directly on the flanges. Compatibility : -6mm thickness: 3.5kW and 6kW motors -8mm thickness:...
10 kw Electric retrofit motor watercooling 10 kw Electric retrofit motor watercooling 10 kw Electric retrofit motor watercooling

€999.00 (tax incl.)
Special retrofit for boats, motorcycles, go-karts, ATVs, or sailboats, this IPM brushless electric motor with a central rotor is designed to deliver a power output of 6kW to 10kW depending on the supply voltage of...
Moteur central 15000W Moteur central 15000W Moteur central 15000W

€249.00 (tax incl.)
This central rotor Brushless PMSM electric motor is designed to deliver a power of 1000W at 72V, generating a torque of 12 Nm. This is equivalent to a thermal power of 2CV. It will be perfect for retrofitting a...
Support inox karting Support inox karting Support inox karting

€160.00 (tax incl.)
Karting bracket in 316L stainless steel, available in 6mm and 8mm thickness. Designed for mounting in place of the combustion engine, directly on the flanges. Compatibility : -6mm thickness: 3.5kW and 6kW motors...
Description

PERFORMANCES

Courbe de rendement du moteur en fonction du couple, pour le moteur moto 5000w central brushless BLDC

2D Drawing

Plan et dimension moteur moto 5000w central brushless BLDC : vue latérale Plan et dimensions moteur moto 5000w central brushless BLDC : vue du dessus
Read moreShow less
Product Details
000521

Data sheet

Guarantee
2 ans
Puissance
5000W
Technologie
BLDC
Mass
11,4kg
Etanchéité
IP65

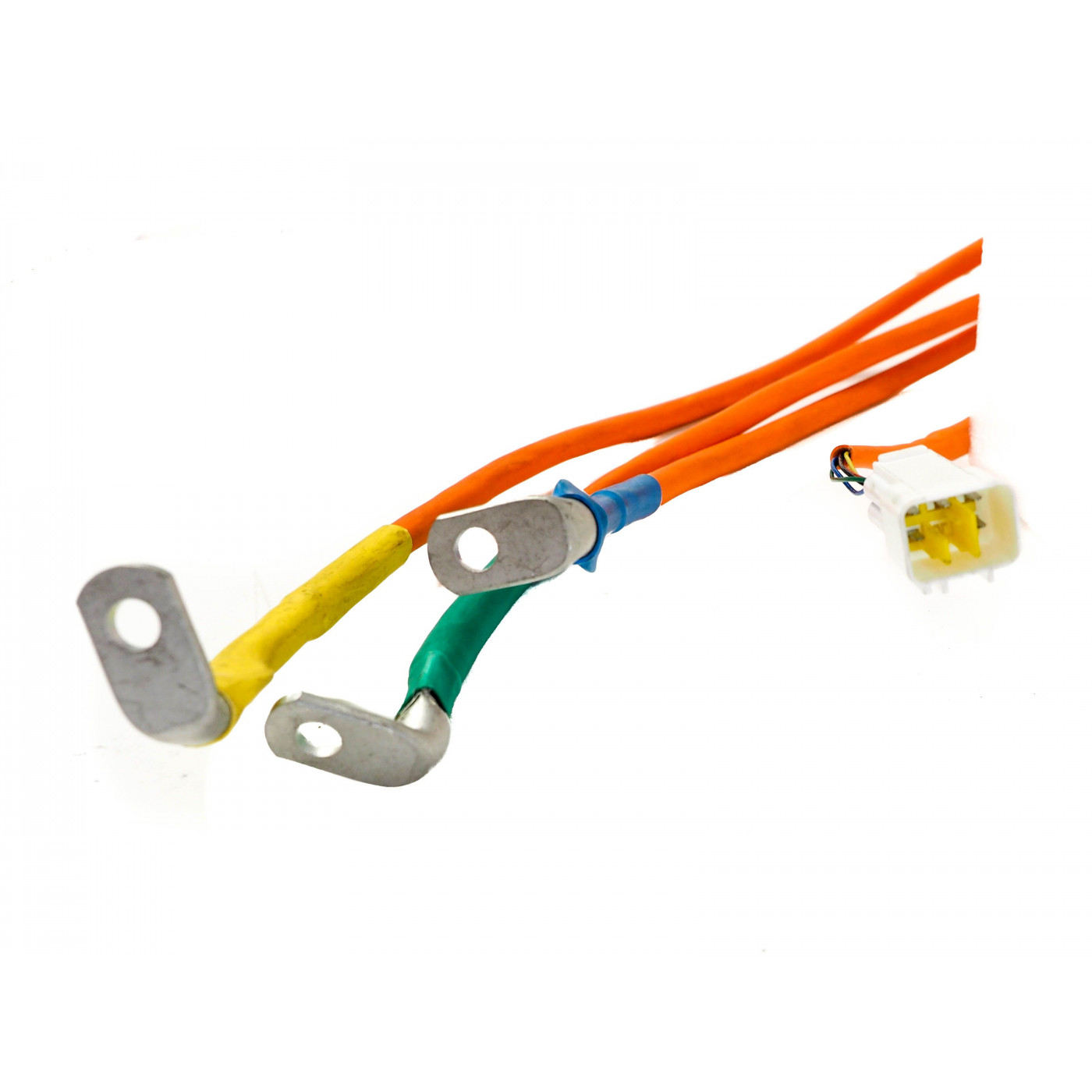

Connecteur de puissance
Cosse à œil
Permissible voltages
48V/60V/72V
Waterproof grade
IP65
Shaft length
23.4mm
couple nominal
12
intensité max
120A
Tensions admissibles
48V à 72V
Nombre de paires de pôles
4
Kv
138 RPM/Volt
Rendement maximal
92%
Refroidissement
air
Codeur
OUI
Capteurs Hall
NON
Température de fonctionnement
-25°C à 90°C
Longueur des câbles
800mm
