Especially designed for motorcycle, karting, boat, or sailboat

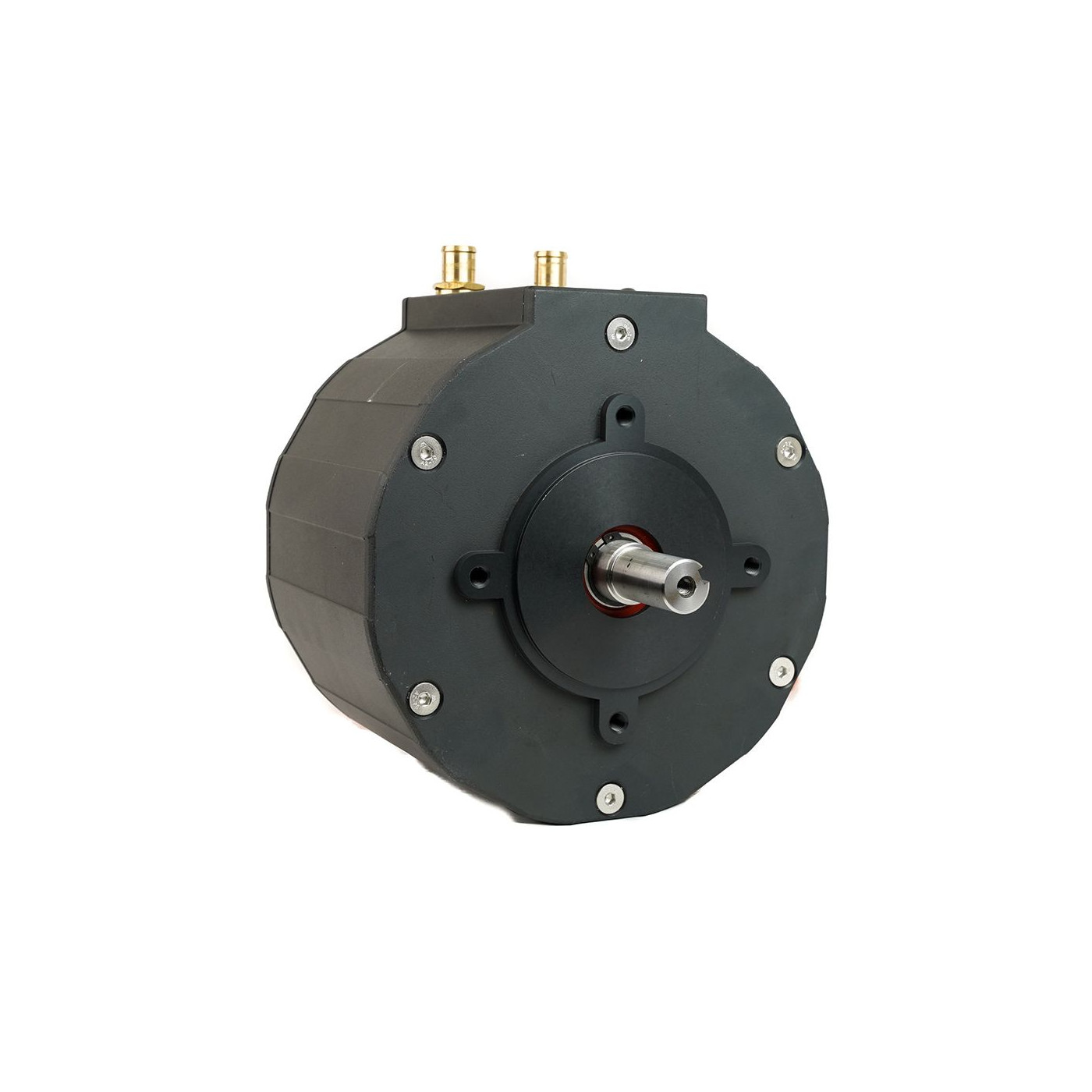

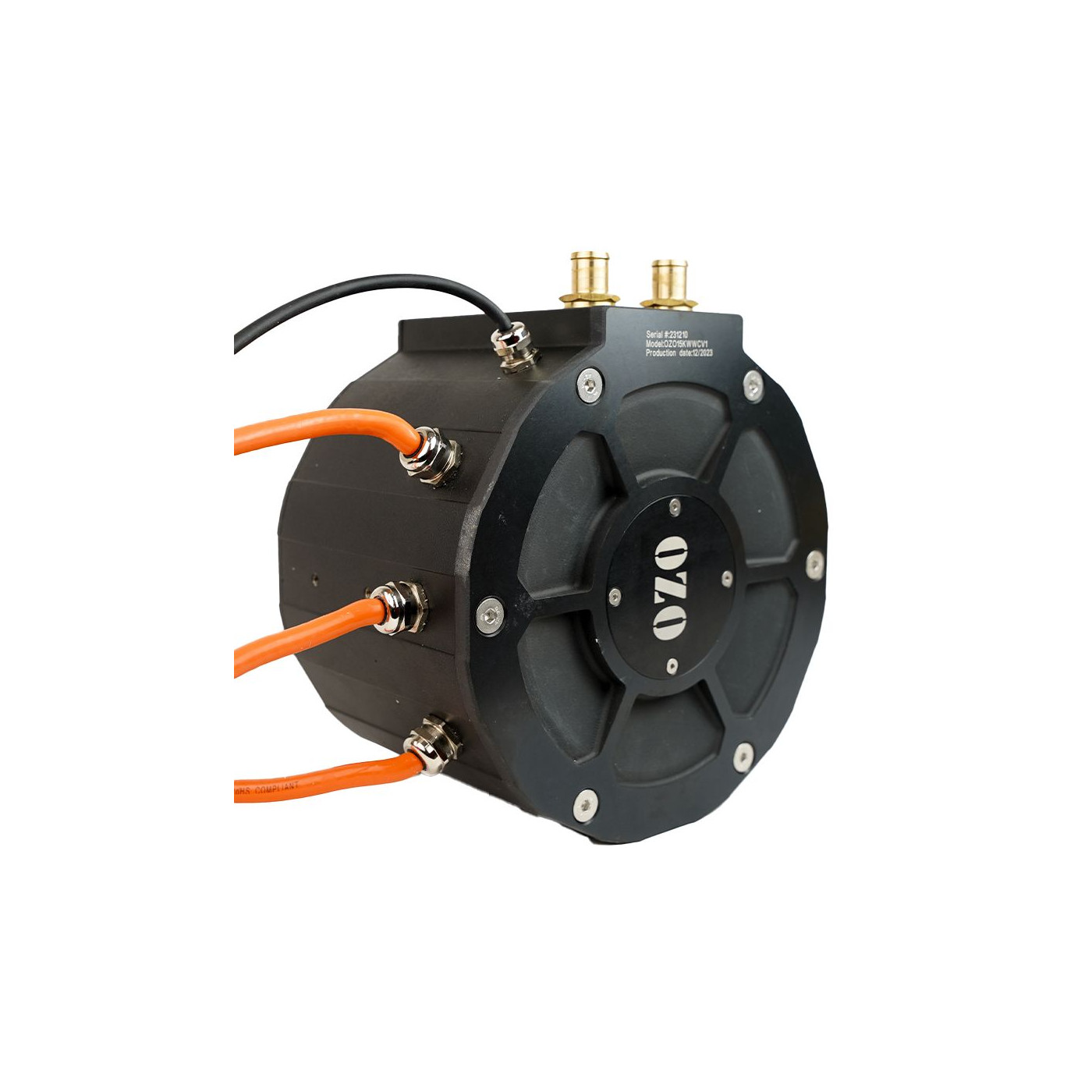

Specially designed for retrofitting boats, motorcycles, karts, quads or sailboats, this IPM brushless electric motor with central rotor is designed to deliver 20kW continuous power and up to 50kW peak power at 48V, 60V, 72V, 84V or 96V DC, making it perfect for converting a boat or sailboat under 15m to electric power, or for retrofitting a competition kart, quad, buggy, ssv or motorcycle.
Some also use it to retrofit cars.
The motor is designed to operate with a liquid cooling system, to improve performance and enable use in closed environments such as the hold of a boat.
Don't hesitate to contact us if you'd like to add a liquid cooling system with air-to-water or water-to-water heat exchanger, chain drive sprocket, belt drive pulley or power controller.
weight: 24.9kg
etrofit, this brushless electric motor with IPM and central rotor is intended to deliver a power of 15kW at 48V, 60V, 72V, or 84V. This makes it ideal for the electric conversion of a Marseillaise boat, a sailboat under 15m, or for retrofitting a 125cc equivalent kart or a motorcycle.
The motor is designed to operate with a liquid cooling system, enhancing performance and extending its lifespan.
Weight: 24.9kg

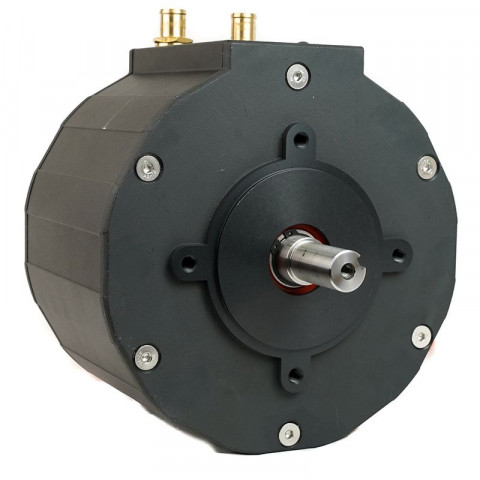

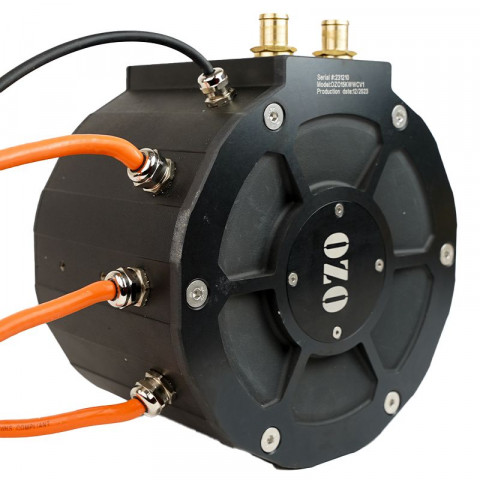

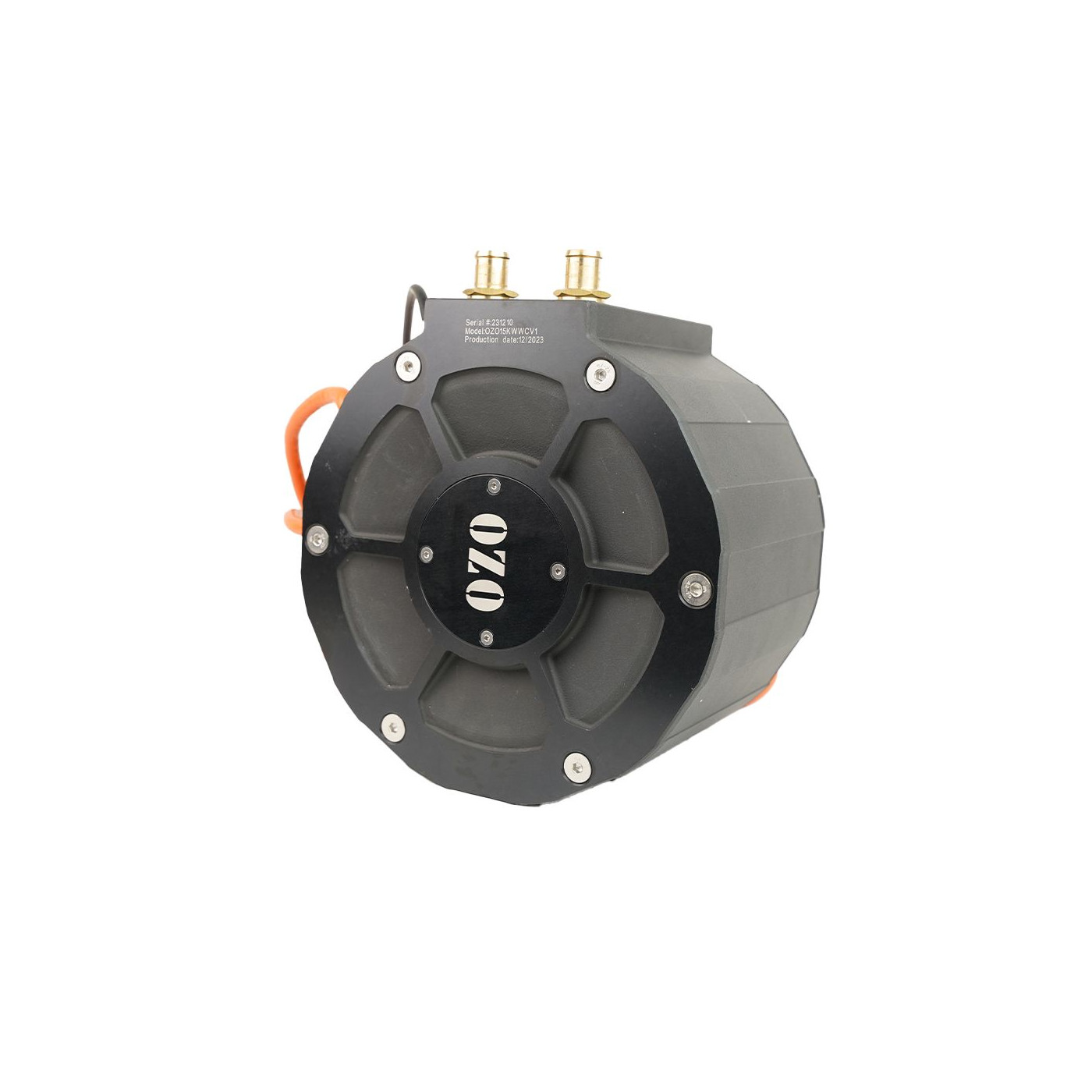

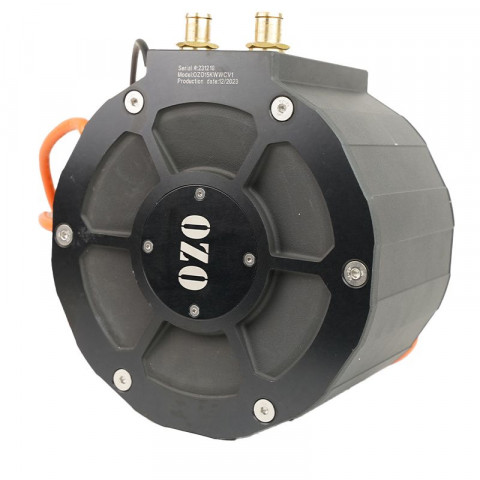

This central rotor Brushless BLDC motor is designed to deliver a power of 15,000W (15kW) at 48V, 60V, 72V, or 84V.
It will enable you to convert your pleasure or fishing boat, sailboat under 15 meters, or your old motorcycle or karting to electric power...
Note that to make the installation easier, OZO can offer you motor mounts or frames in 304 or 316 stainless steel, suitable for electric karting or retrofitting on boats or sailboats, and assist you in creating the liquid cooling system.
The support is to be bolted or welded to your hull or chassis in place of the thermal engine.
This central rotor IPM Brushless motor has a maximum rotational speed of 5500 rpm.
Supplied with 48V DC, its rotational speed will be 4000 rpm.
This motor has 5 pairs of poles.
The advantage with electric motors is that everything is adjustable via power electronics: torque, acceleration ramp, braking ramp, engine braking force, acceleration dead time, engine speed, etc.
You can retain your throttle controls or original accelerator handle since the electronic accelerator is directly connected to the original cable. The cable pull is therefore preserved.
It is preferable to power this motor with a Lithium battery of 48V DC or 60V or 72V or 84V depending on the desired performance.

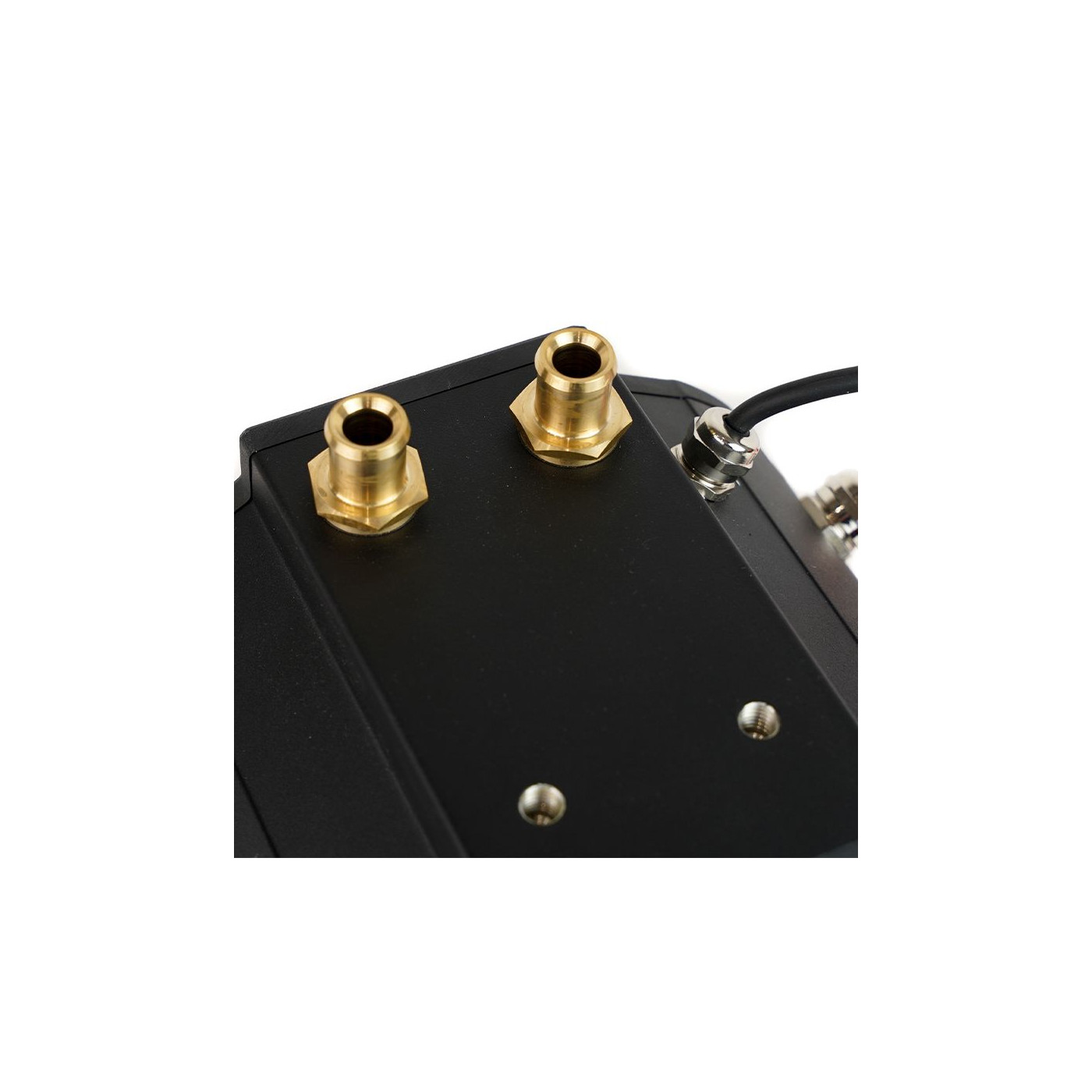

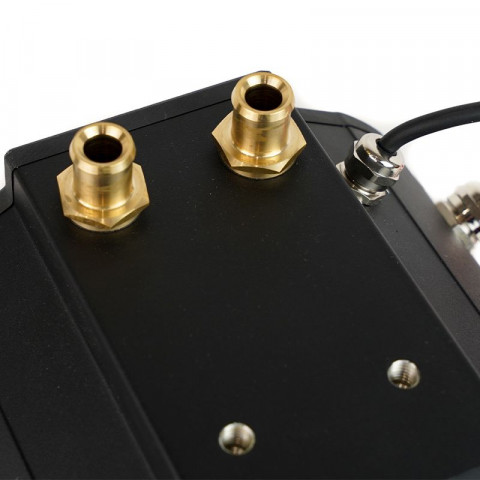

This 15000W motor for boats is cooled by an integrated watercooling system to ensure better performance without overheating, thereby extending its lifespan.
