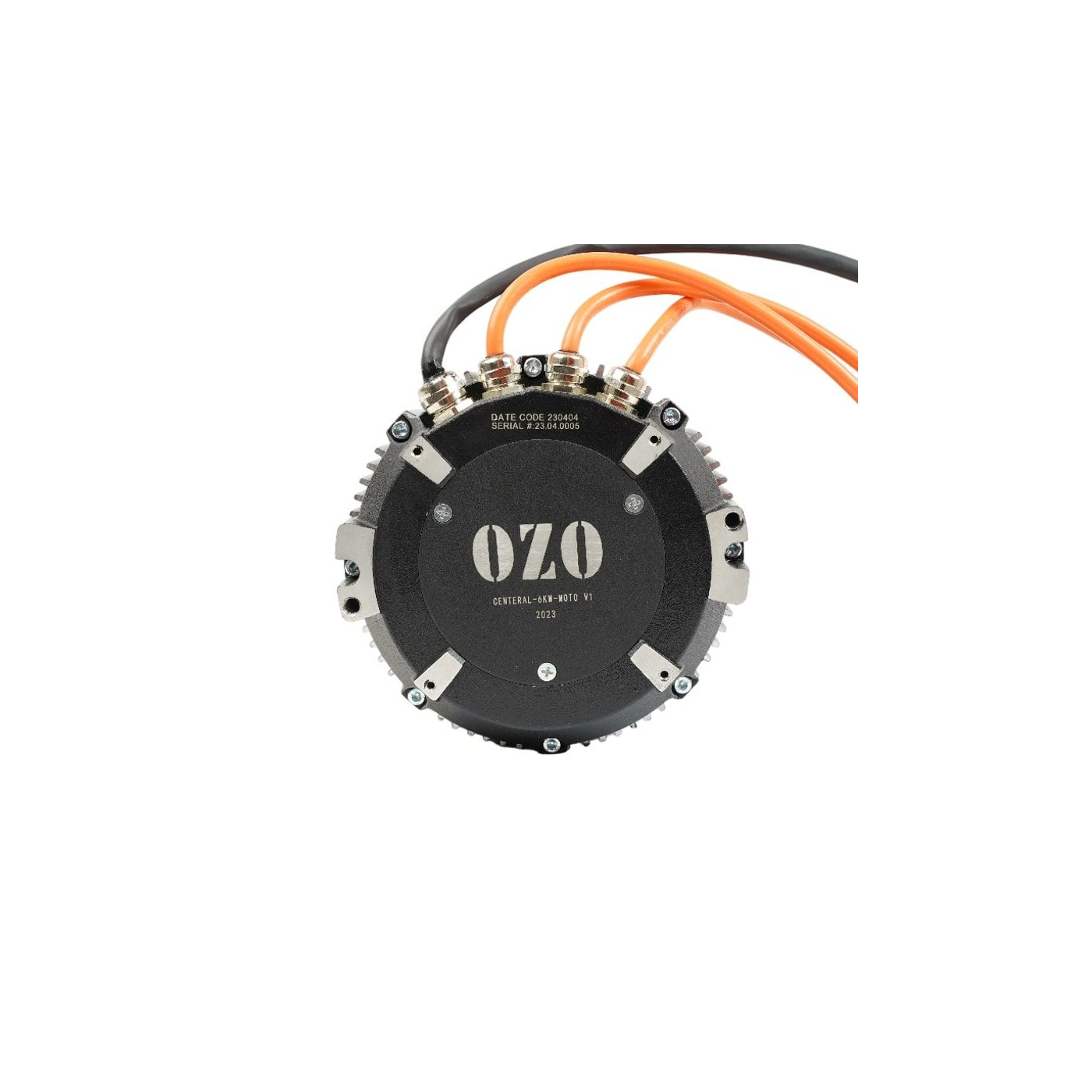

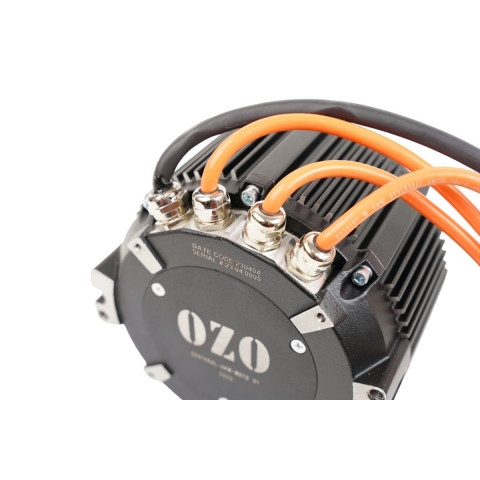

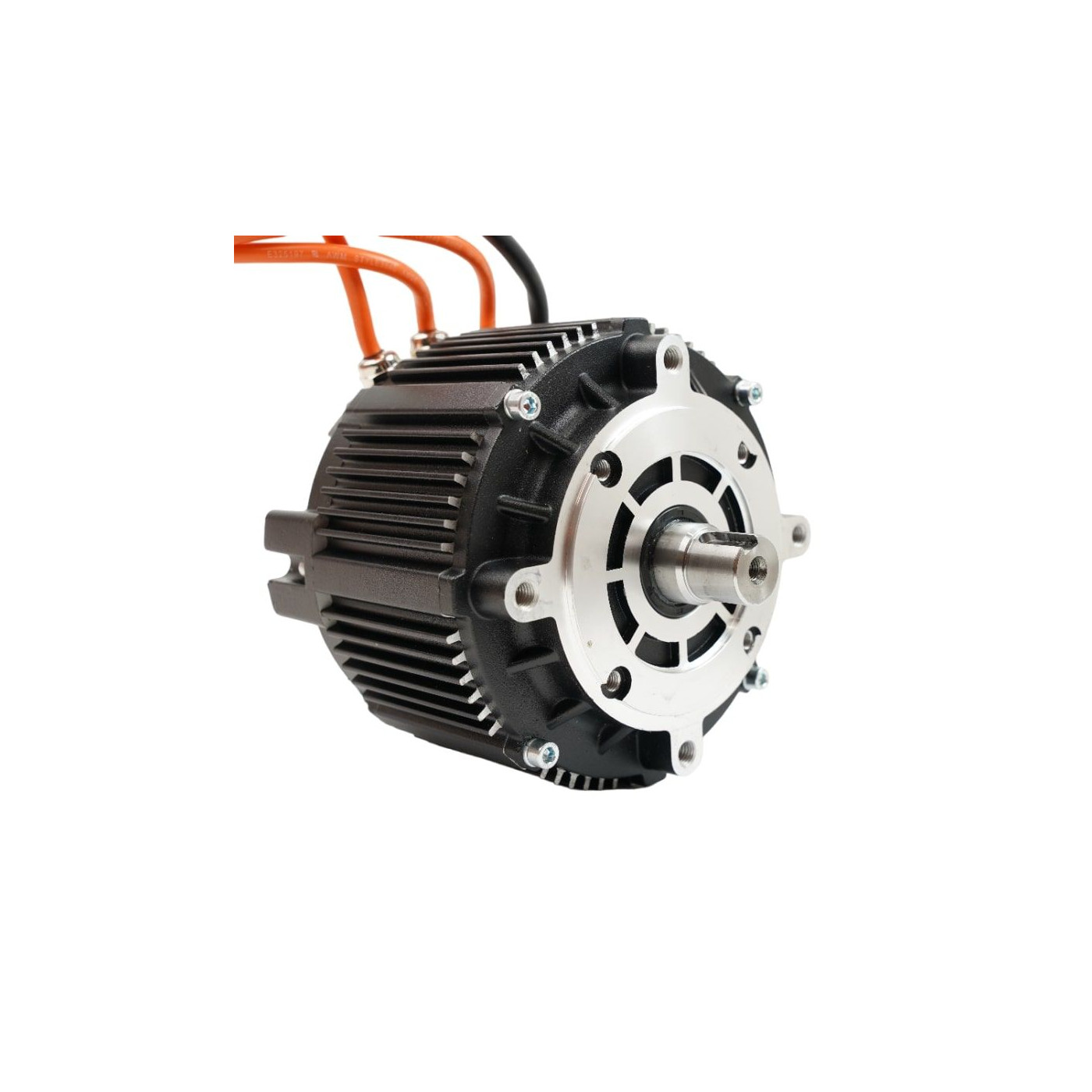

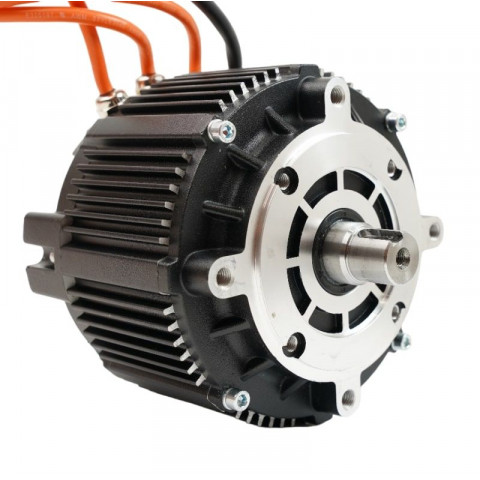

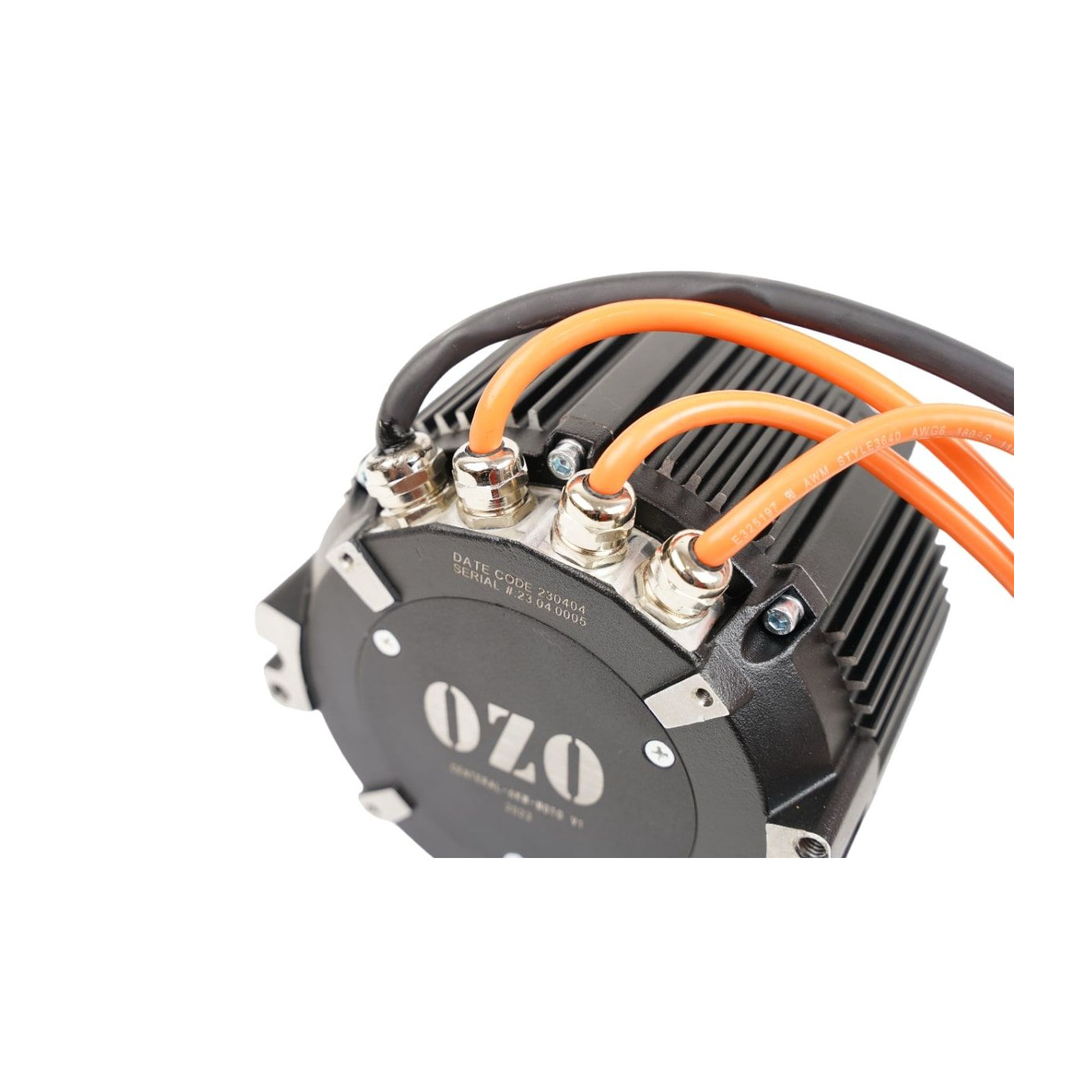

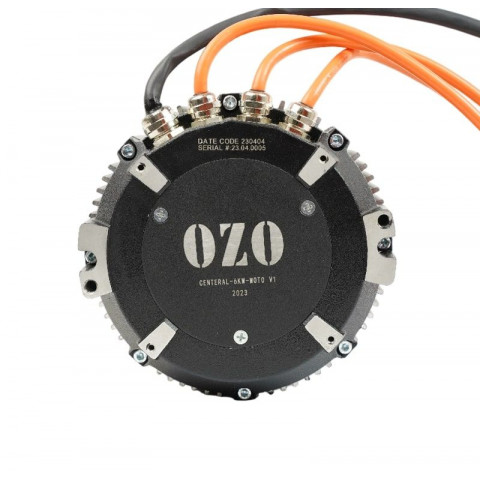

Central Brushless electric Motor 6kW direct drive

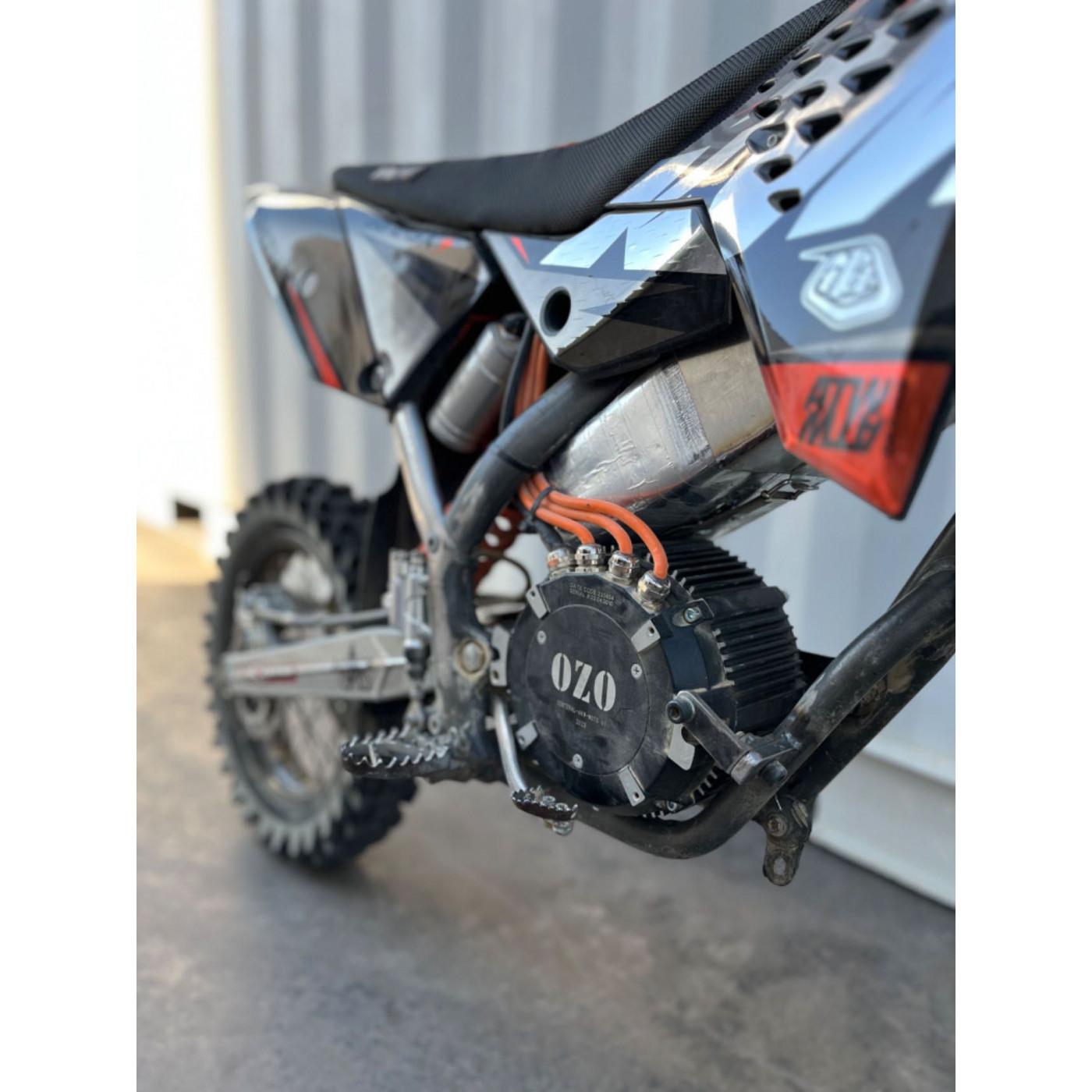

Brushless BLDC 6kW motor to convert any bike 125cc or 250cc into electric. Can also powered electric boat or karting

9,1kg

Read moreShow less
€690.00 (tax incl.)
IN STOCK 5 Items
Reference:
000528
You may also like
€90.00 (tax incl.)
Karting bracket in steel, available in 6mm and 8mm thickness. Designed for mounting in place of the combustion engine, directly on the flanges. Compatibility : -6mm thickness: 3.5kW and 6kW motors -8mm thickness:...
€999.00 (tax incl.)
Special retrofit for boats, motorcycles, go-karts, ATVs, or sailboats, this IPM brushless electric motor with a central rotor is designed to deliver a power output of 6kW to 10kW depending on the supply voltage of...
€249.00 (tax incl.)
This central rotor Brushless PMSM electric motor is designed to deliver a power of 1000W at 72V, generating a torque of 12 Nm. This is equivalent to a thermal power of 2CV. It will be perfect for retrofitting a...
€160.00 (tax incl.)
Karting bracket in 316L stainless steel, available in 6mm and 8mm thickness. Designed for mounting in place of the combustion engine, directly on the flanges. Compatibility : -6mm thickness: 3.5kW and 6kW motors...
€399.00 (tax incl.)
3500W BLDC brushless central motor Max speed is 3000 RPM under 48V, 3750 RPM under 60V and 4500 RPM under 72V. Maw torque is 50N.m Ideal to convert 50cc or 80cc into electric.
Description

COURBES DE PROGRESSION DU MOTEUR

courbe de puissance moteur électrique moto OZO

PLAN 2D

plan moteur électrique moto 6000W OZO
plan moteur électrique moto 6000W OZO
plan moteur électrique moto 6000W OZO
plan moteur électrique moto 6000W OZO
Read moreShow less
Product Details
000528

Data sheet

Guarantee
2 ans
Puissance
6000W
Tension nominale
60V
technologie
IPMSM
Tensions admissibles
48 à 72V
intensité nominale
85A
intensité à vide
11,6A
intensité maximale
125A
diamètre de l'arbre
25mm
Longueur de l'arbre
50mm
Masse
9,1kg
Puissance nominale
4500W
Nombre de paires de pôles
5
Kv
82 RPM/Volt
Rendement maximal
94%
Codeur
Non
Capteurs Hall
Oui

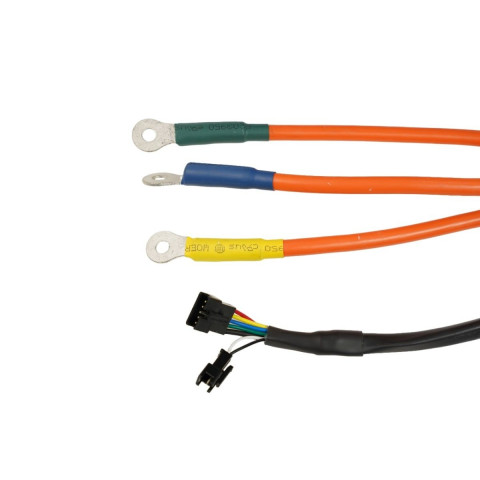

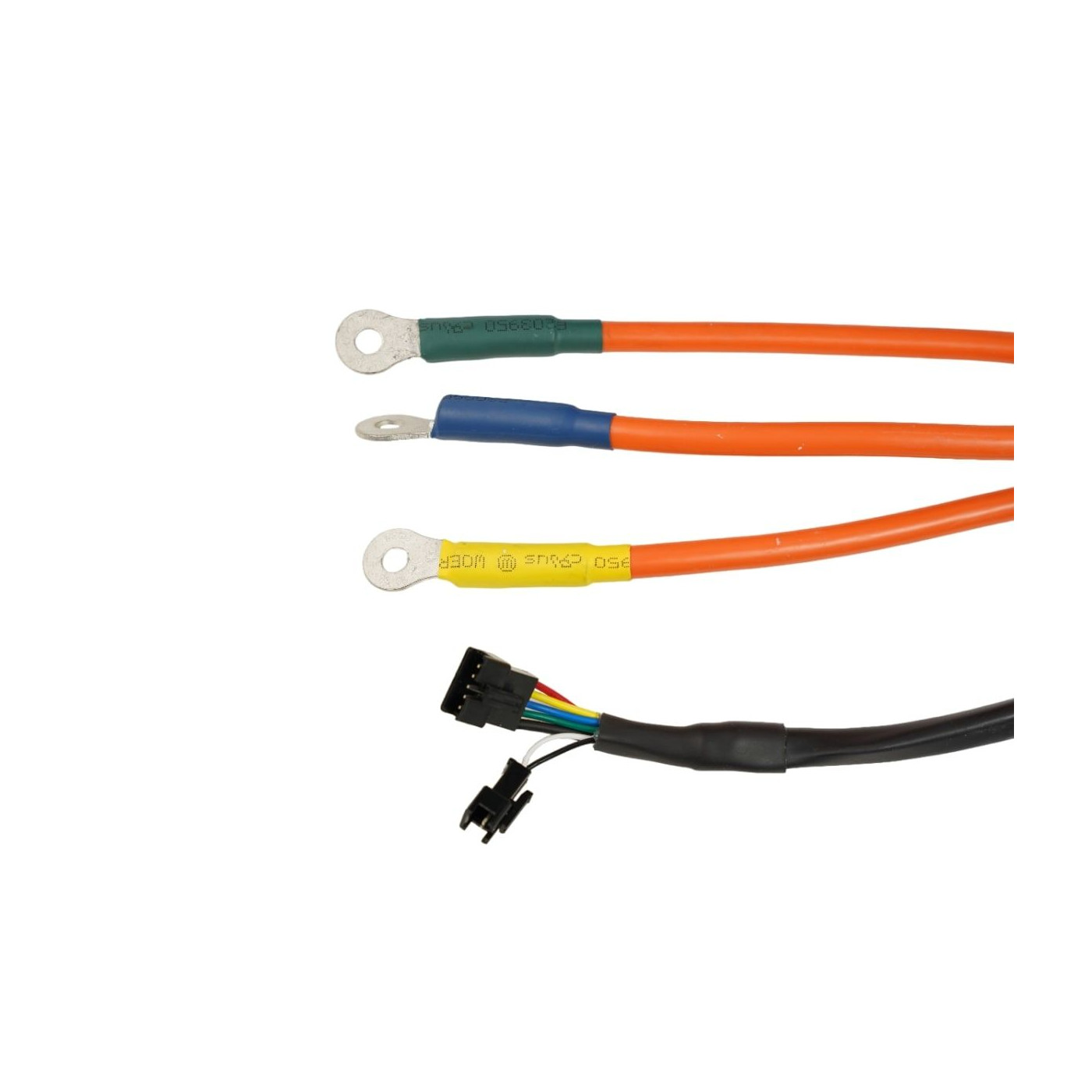

Longueur des câbles
700mm
max torque
16,5 N.m
