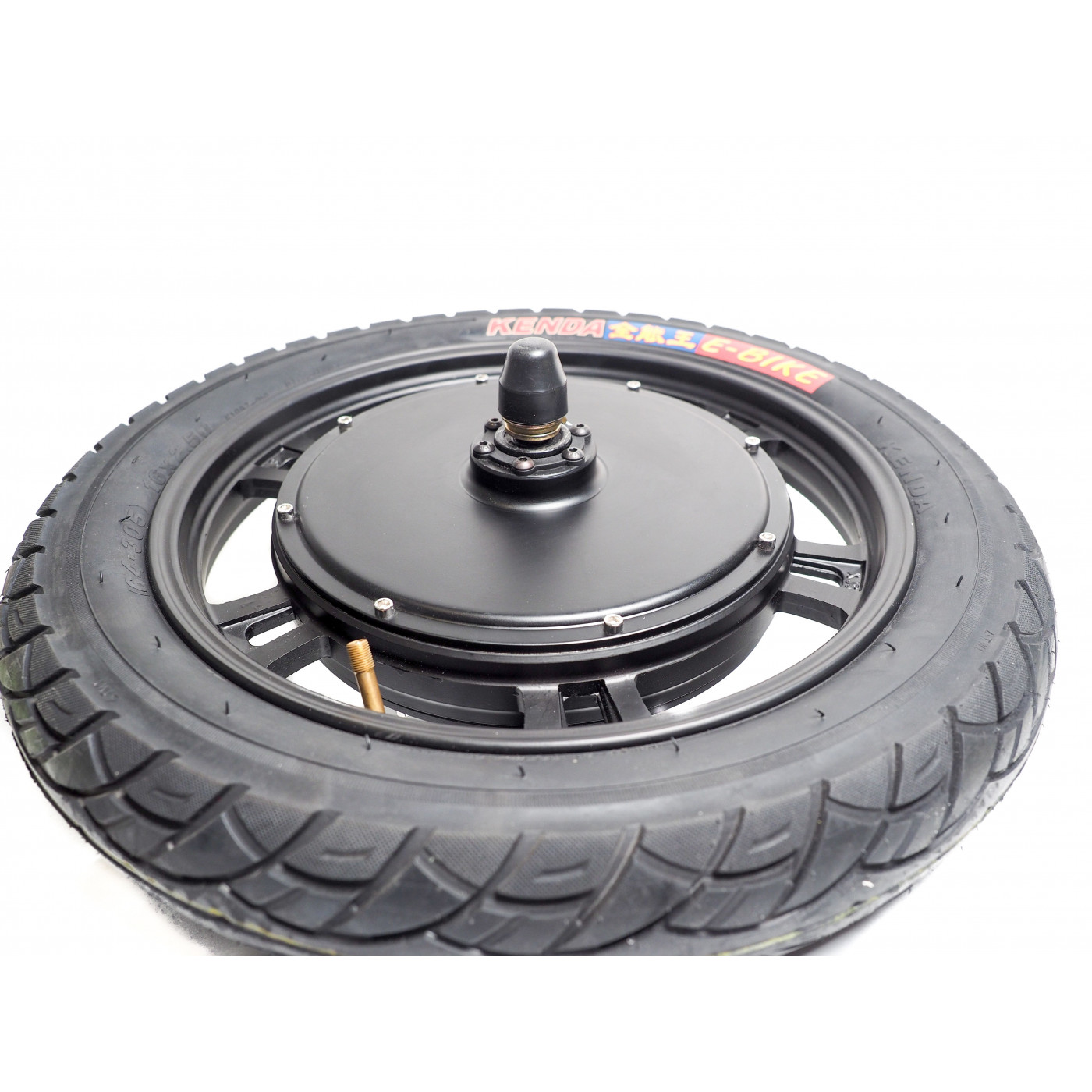

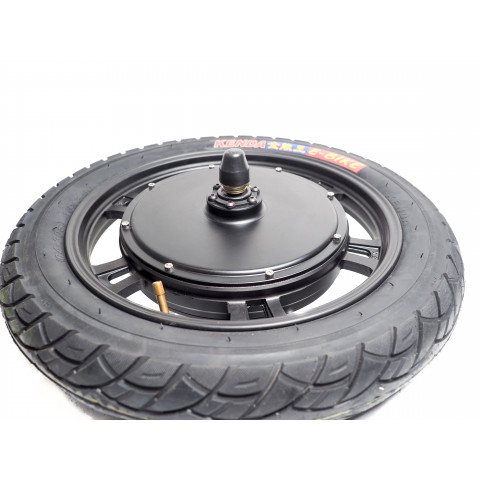

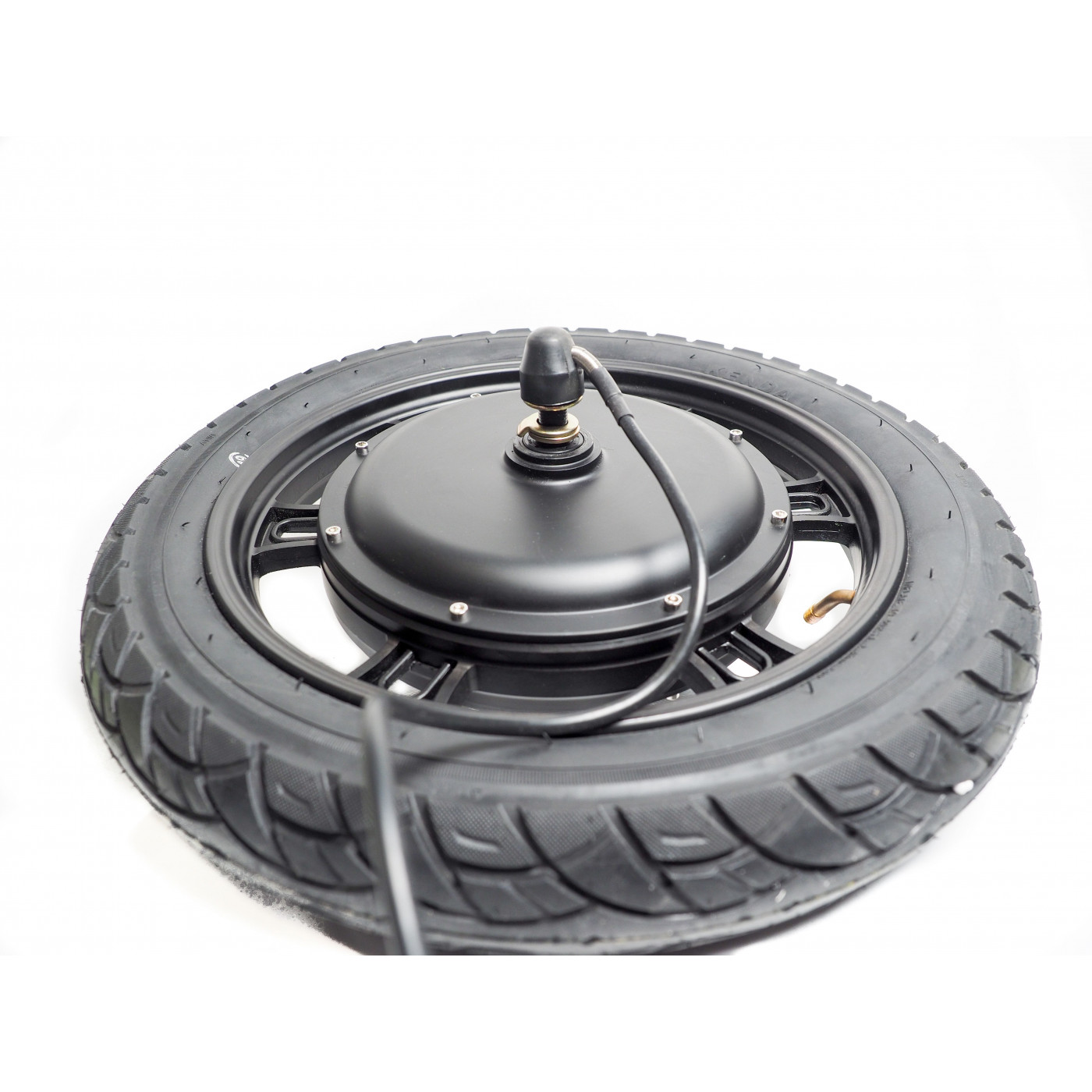

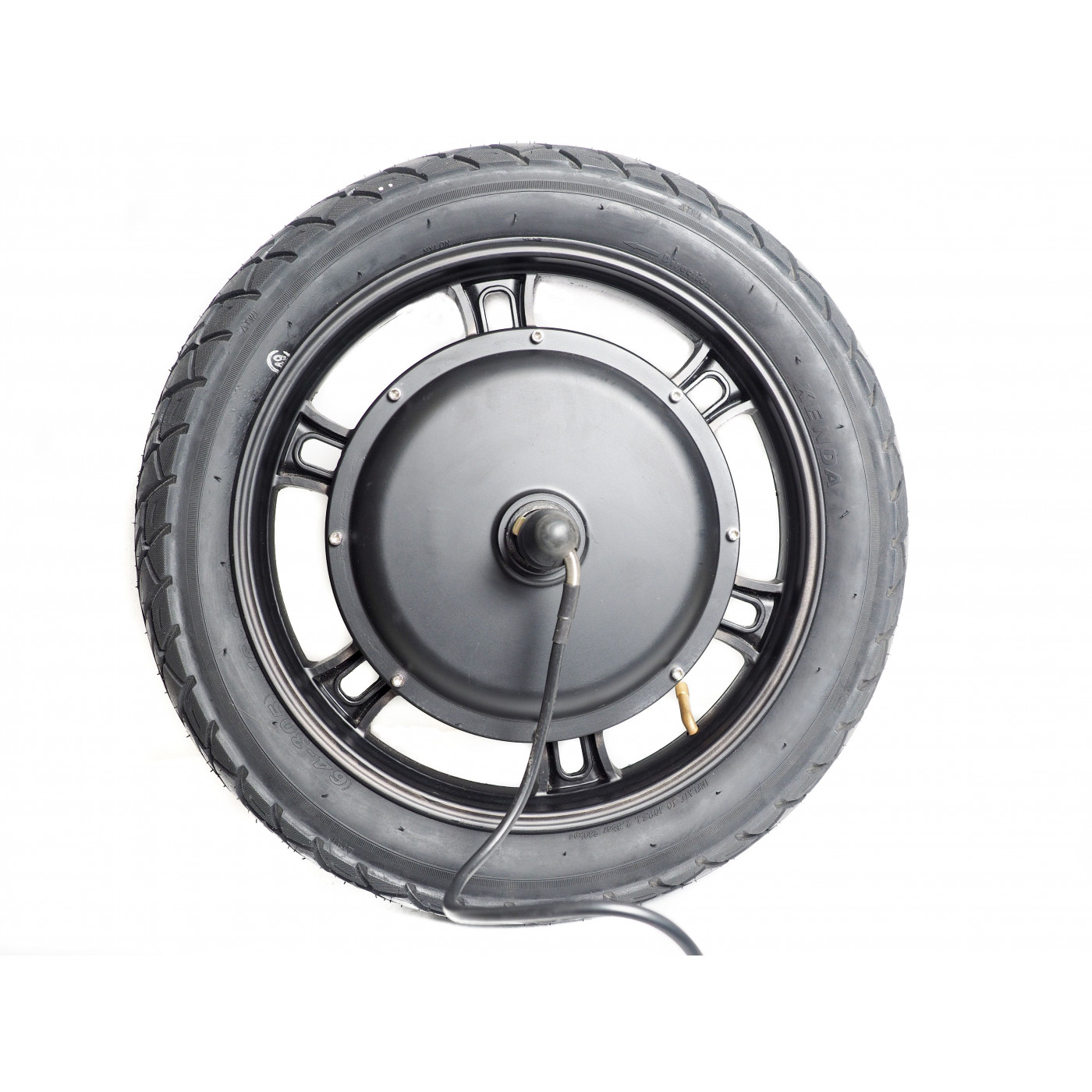

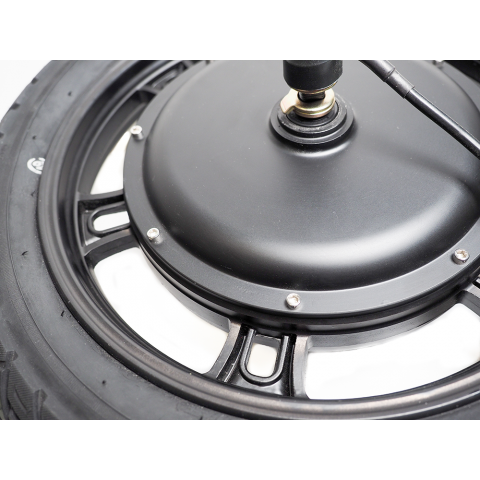

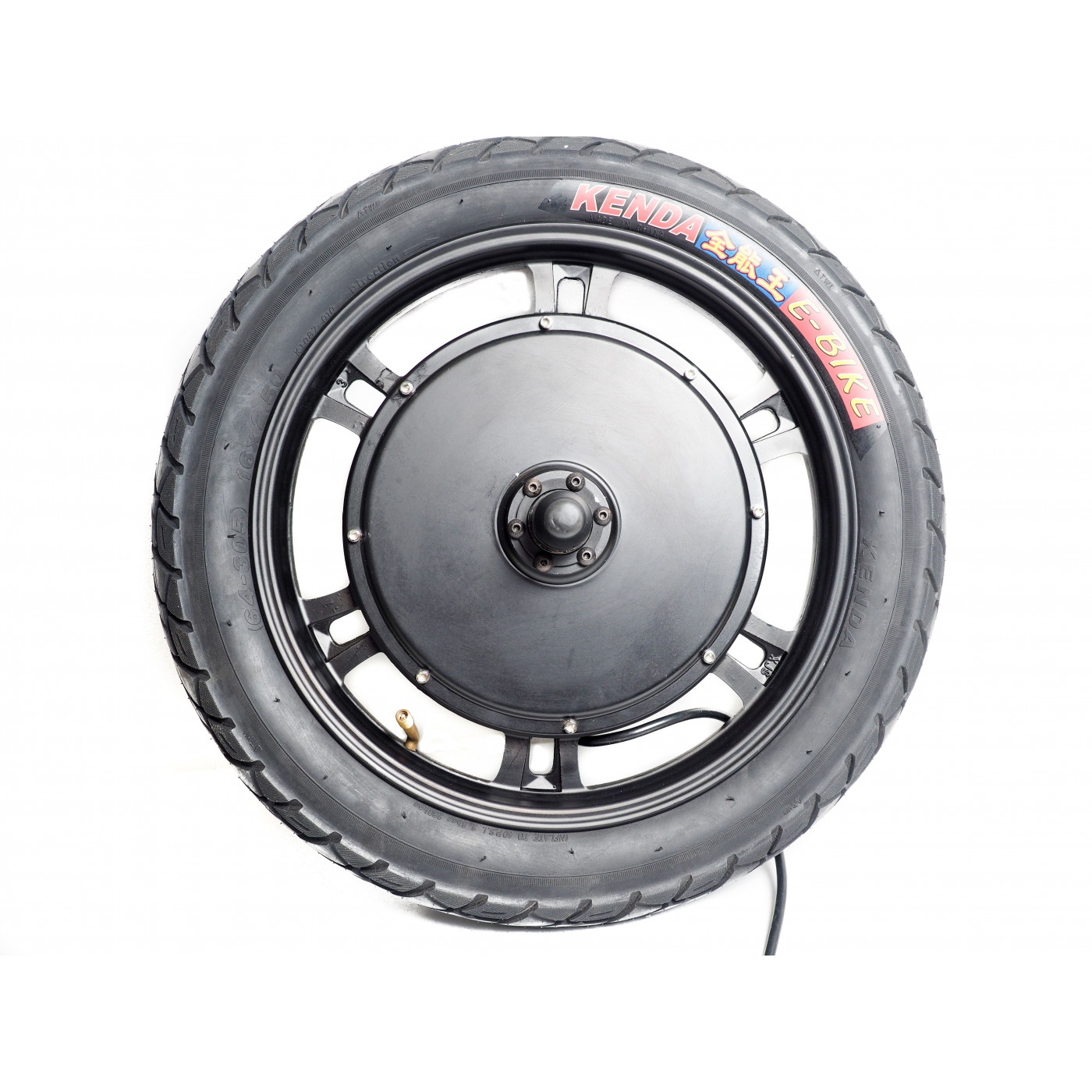

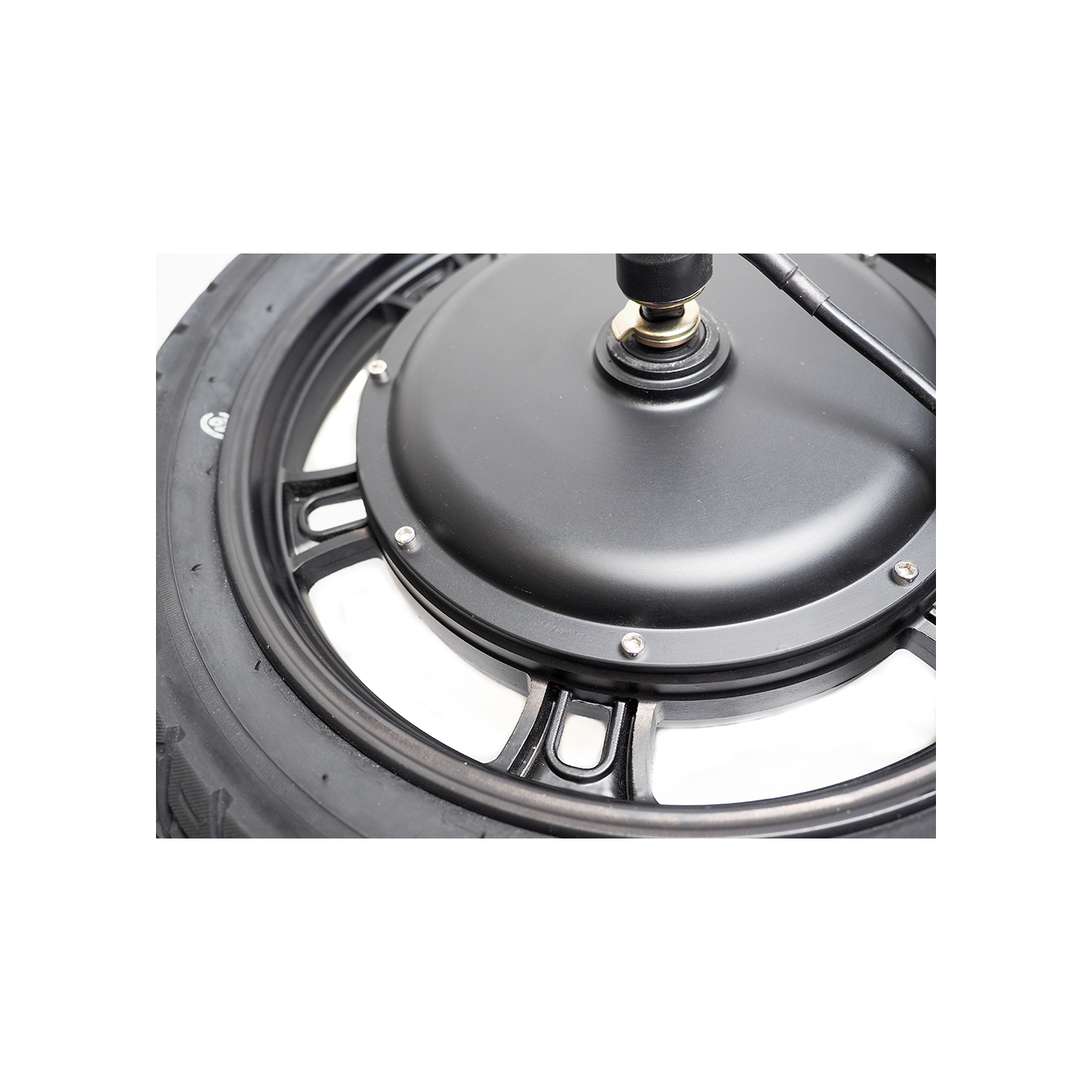

16" electric wheel 1000W

Brushless BLDC electric wheel 16''

Shipped with reinforced tire 16x2.125 (54-305). External diameter 410mm.

Dropout = 100mm / Kv : 10 RPM/Volt / Torque 70N.m / max speed 25km/h under 36V - 35km/h under 48V

Read moreShow less
€349.00 (tax incl.)
In stock 5 Items
Reference:
000295
You may also like
rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight

€249.17 (tax incl.)
Powerful, robust and ready for adventure, this 750W OZO wheel engine is designed especially for Fat Bikes. Suitable for demanding terrains, it combines high torque, reliability and freewheel compatibility. This engine...
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Moteur BOBBER thru-axle Moteur BOBBER thru-axle Moteur BOBBER thru-axle

€249.17 (tax incl.)
Bobber is rear hub electric motor 36V 250W Light and efficient it's the right choice for city bike, folding bike or road bicycle. Bobber is available in 200RPM to reach 25Km/h. It's a geared motor with 1:4,43 ratio....
Moteur roue avant BOBBER Moteur roue avant BOBBER Moteur roue avant BOBBER

€304.10 (tax incl.)
The ROLLER front-wheel motor is a 250W electric hub motor of the reduced type, delivering 40N.m of torque. This motor is designed for the ROLLER BRAKE brakes generally found on Dutch bikes (Gazelle, Batavus,...
Description



Read moreShow less
Product Details
000295

Data sheet

Guarantee
2 ans
Intensité max
40A
Paires de pôles magnétiques
23
Mass
7,5 Kg avec le pneu
Couple max en 48V
80 N.m
Rendement
85%
Technologie moteur
Direct drive
Puissance max
1800W
Compatibilité frein à disque
OUI
Tension Min
24V
Tension Max
80V
Entraxe fourche min/max
100 / 130mm
Motor Kv (RPM / V)
10 RPM / Volt
Motor power range
250W - 1800W
Magnets height
30mm
Hall sensors
Oui 120°
Nombre de paires de pôles
30
