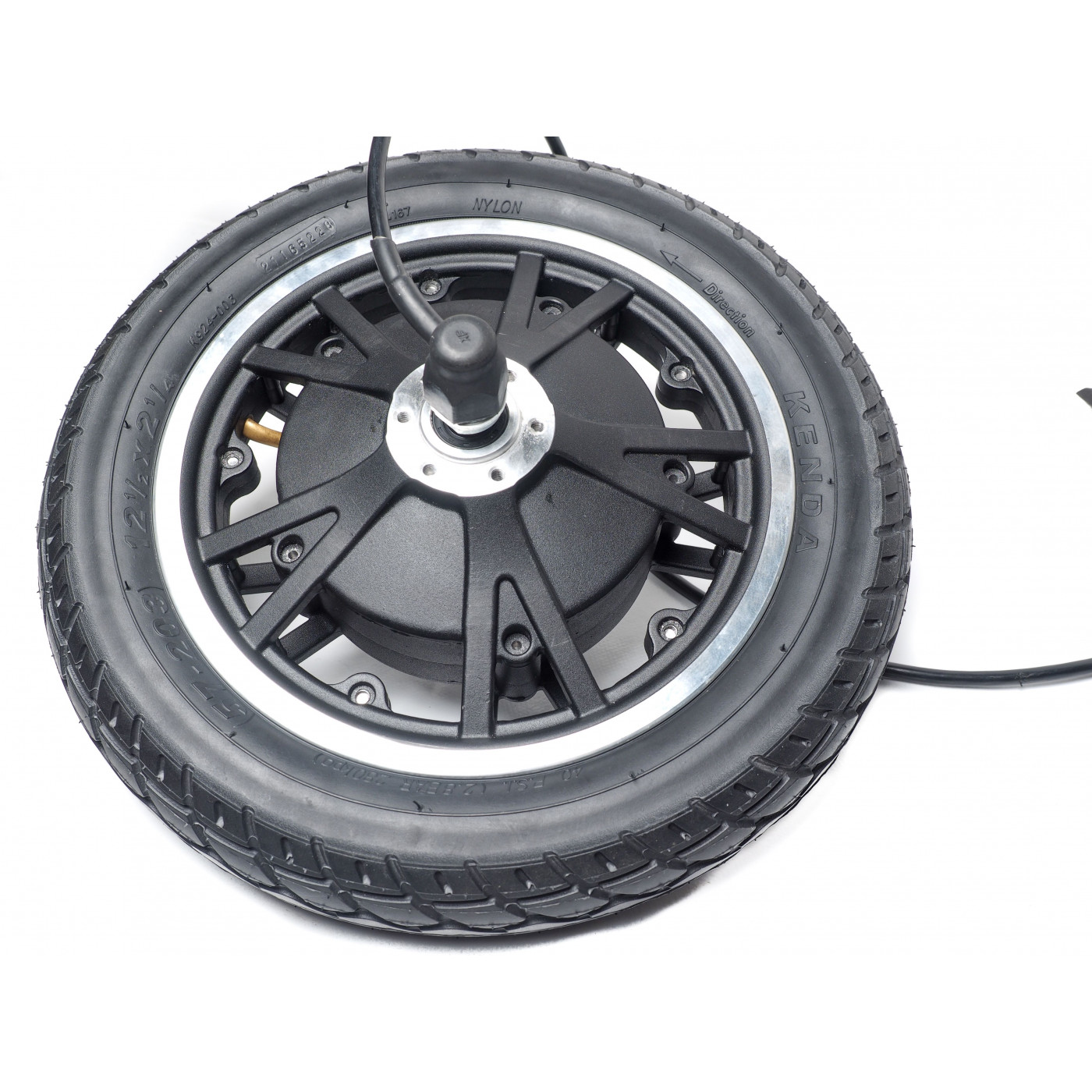

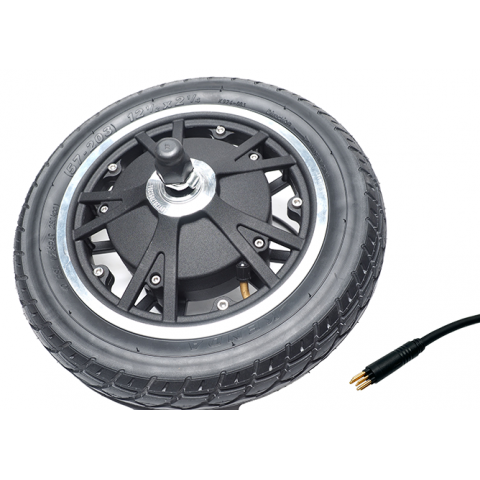

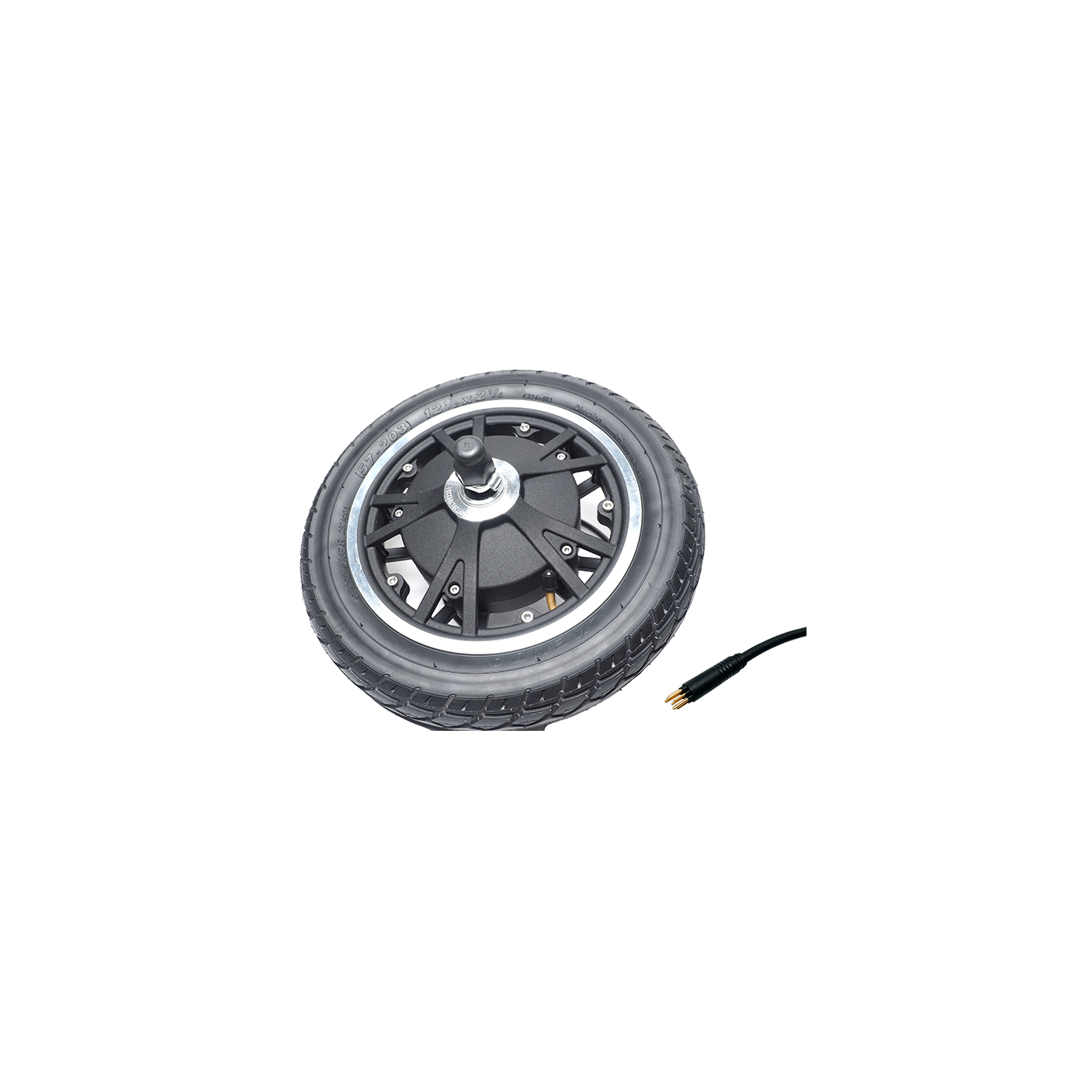

Electric motor wheel 12" 105mm center distance 500W 600W 750W for mini scooter 24V 36 48V

Mini scooter motor 12" 36V 48V 500W-750W

Motor for mini scooter 12"

Sold with 12" tire and inner tube (12,5 x 2,25)

Vmax 40Km/h

Total weight with tire =  3,7 kg

Read moreShow less
€199.00 (tax incl.)
IN STOCK 14 Items
Reference:
000303
You may also like
rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight rear hub Fat Bike 250W 500W Freewheel light weight

€249.17 (tax incl.)
Powerful, robust and ready for adventure, this 750W OZO wheel engine is designed especially for Fat Bikes. Suitable for demanding terrains, it combines high torque, reliability and freewheel compatibility. This engine...
Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V Brushless electric hub motor 3000W 130Nm 45km/h 48V to 72V

€549.00 (tax incl.)
3000W brushless electric hub motor for electrifying light vehicles, quadricycles, quads, robots, machines, etc. Ideal for building a license-free electric vehicle or a heavy-duty transport vehicle. 200Nm torque. Kv...
Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC Agriculture machine electric motor 3000W BLDC

€399.00 (tax incl.)
3000W electric wheel motor brushless BLDC for wheelbarrow and agricultural machines, ideal for decreasing Human effort at work. Allows to carry up to 400kg under 48V DC, max torque 120Nm Including agriculture tire...
Moteur BOBBER thru-axle Moteur BOBBER thru-axle Moteur BOBBER thru-axle

€249.17 (tax incl.)
Bobber is rear hub electric motor 36V 250W Light and efficient it's the right choice for city bike, folding bike or road bicycle. Bobber is available in 200RPM to reach 25Km/h. It's a geared motor with 1:4,43 ratio....
Moteur roue avant BOBBER Moteur roue avant BOBBER Moteur roue avant BOBBER

€304.10 (tax incl.)
The ROLLER front-wheel motor is a 250W electric hub motor of the reduced type, delivering 40N.m of torque. This motor is designed for the ROLLER BRAKE brakes generally found on Dutch bikes (Gazelle, Batavus,...
Product Details
000303

Data sheet

Guarantee
2 ans
Intensité max
25A
Paires de pôles magnétiques
15
Masse de la roue motorisée
3,7
puissance nominale et puissance max sous 36V
500W / 750W
Vitesse max en 48V
40Km/h
Vitesse max en 36V
30Km/h
Technologie
Brushless
Rendement
85%
Régime de rotation
700 RPM
entraxe cadre Min / Max
100 / 120mm
Permissible voltages
24V, 36V et 48V
Tension Max
48V
Motor Kv (RPM / V)
14,6 Tr/min/Volt
Motor power range
250W - 1000W
Hall sensors
OUI
Waterproof grade
IP54
Nombre d'aimants
30
Motor axle
14x10mm
Diamètre exterieur Pneu
31cm
Rs
0,21 Ohm
Ls
333 uHenries
