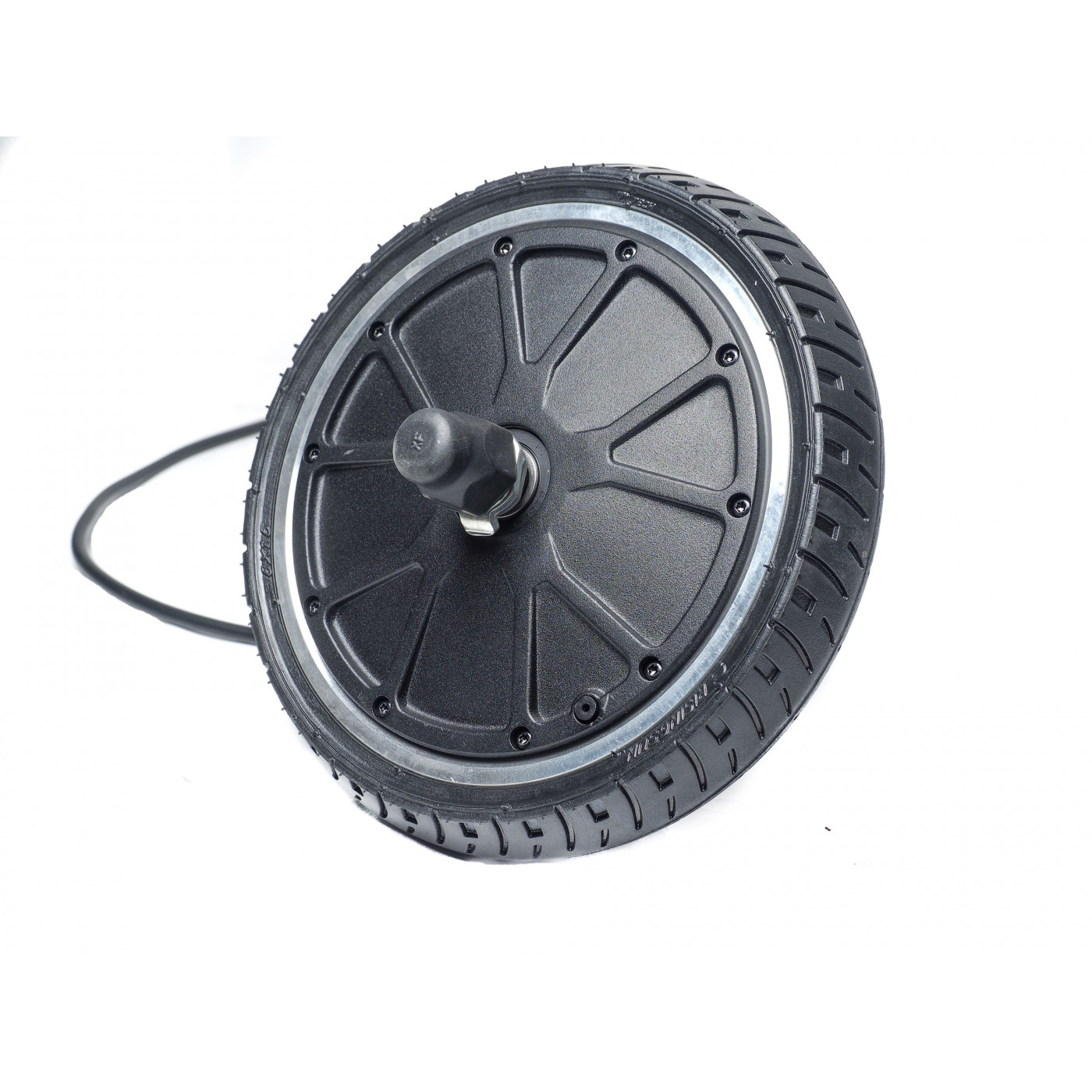

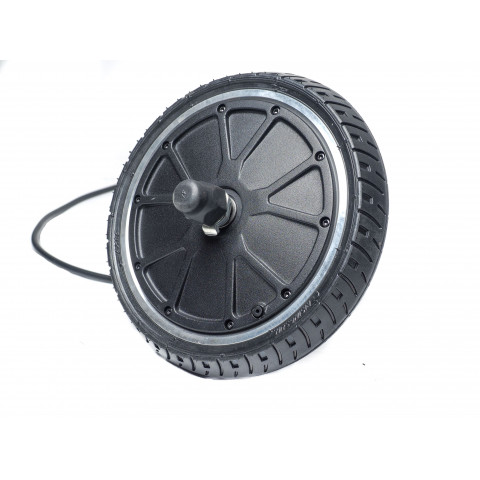

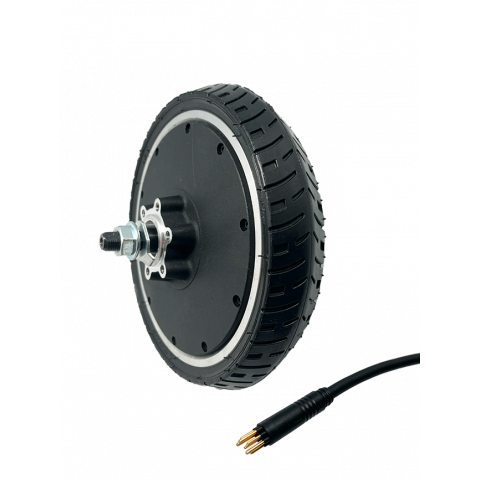

Electric motor 200mm scooter 8'' 250W 350W

€119.00 (tax incl.)
Reference:
000302
You may also like
Roue trottinette 12" 1/2 Roue trottinette 12" 1/2 Roue trottinette 12" 1/2

€299.00 (tax incl.)
Mini scooter geared motor 12" 36V 48V 500W-750W Motor for mini scooter 12" Sold with 12" tire and inner tube (12,5 x 2,25) Vmax = 25km/h under 36V / 35Km/h under 48V Total weight with tire =  3,6 kg Cable length...
Roue trottinette 8 Roue trottinette 8 Roue trottinette 8

€119.00 (tax incl.)
This 200mm diameter motor (8'') is ideal for electrifying your classic scooter or any other cart or stroller equipped with 200mm wheels. Center distance = 45mm Power supply possible in 24V 36V and 48V. Comes with a...
Electric motor wheel 14" for mini scooter 24V 36V 48V Electric motor wheel 14" for mini scooter 24V 36V 48V Electric motor wheel 14" for mini scooter 24V 36V 48V

€299.00 (tax incl.)
Electric brushless motor wheel 14" 1000W. Vmax 32Km/h under 48V - 25km/h under 36V (can be customized for B2B projects) Weight =  6,5 kg / Kv = 10 RPM/Volt / Poles number = 30
Electric Industrial motor wheel for trolley 5" Electric Industrial motor wheel for trolley 5" Electric Industrial motor wheel for trolley 5"

€139.00 (tax incl.)
Brushless motor wheel to convert into electric any industrial trolley :  Leisure and service (golf cart, refrigerated cart, stroller, prototyping) Industrial (rolling base, industrial serving trolleys pusher...
Product Details
000302

Data sheet

Guarantee
2 ans
Intensité max
20A
Maximum speed
25Km/h
Masse de la roue motorisée
2,2
Type de frein
E-abs ou disque
Technologie
Brushless direct drive
Rendement
85%
Régénération au freinage
OUI
Compatibilité frein à disque
OUI en entraxe 85mm
Permissible voltages
12V, 24V et 36V
Entraxe fourche min/max
85mm
Motor Kv (RPM / V)
27 Tr/min/Volt
Motor power range
250W / 350W
Hall sensors
OUI
Waterproof grade
IP54
Nombre d'aimants
30
Nombre de paires de pôles
15
Codeur
NON
Capteurs Hall
OUI
