Direct drive motor 1000W 1500W RH212

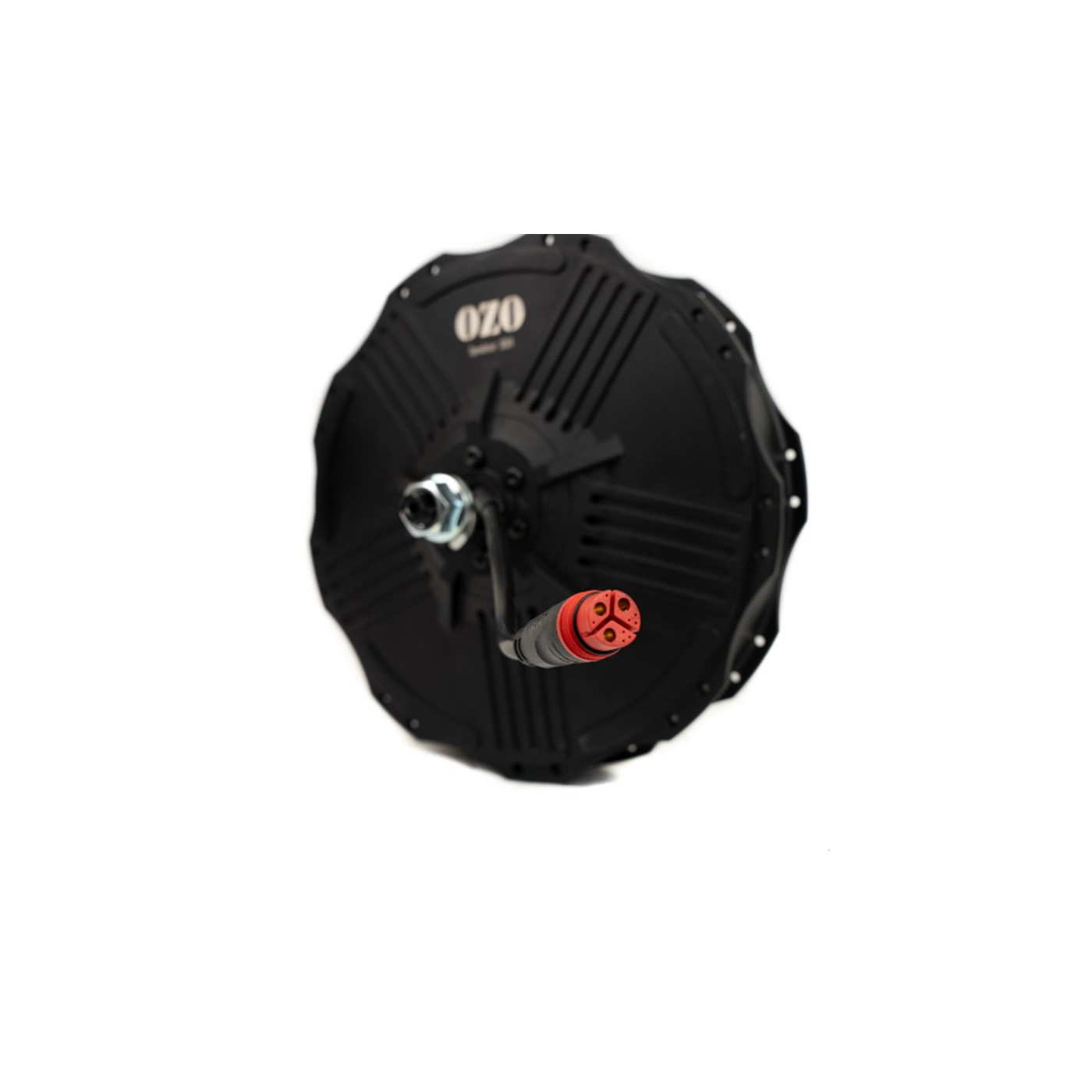

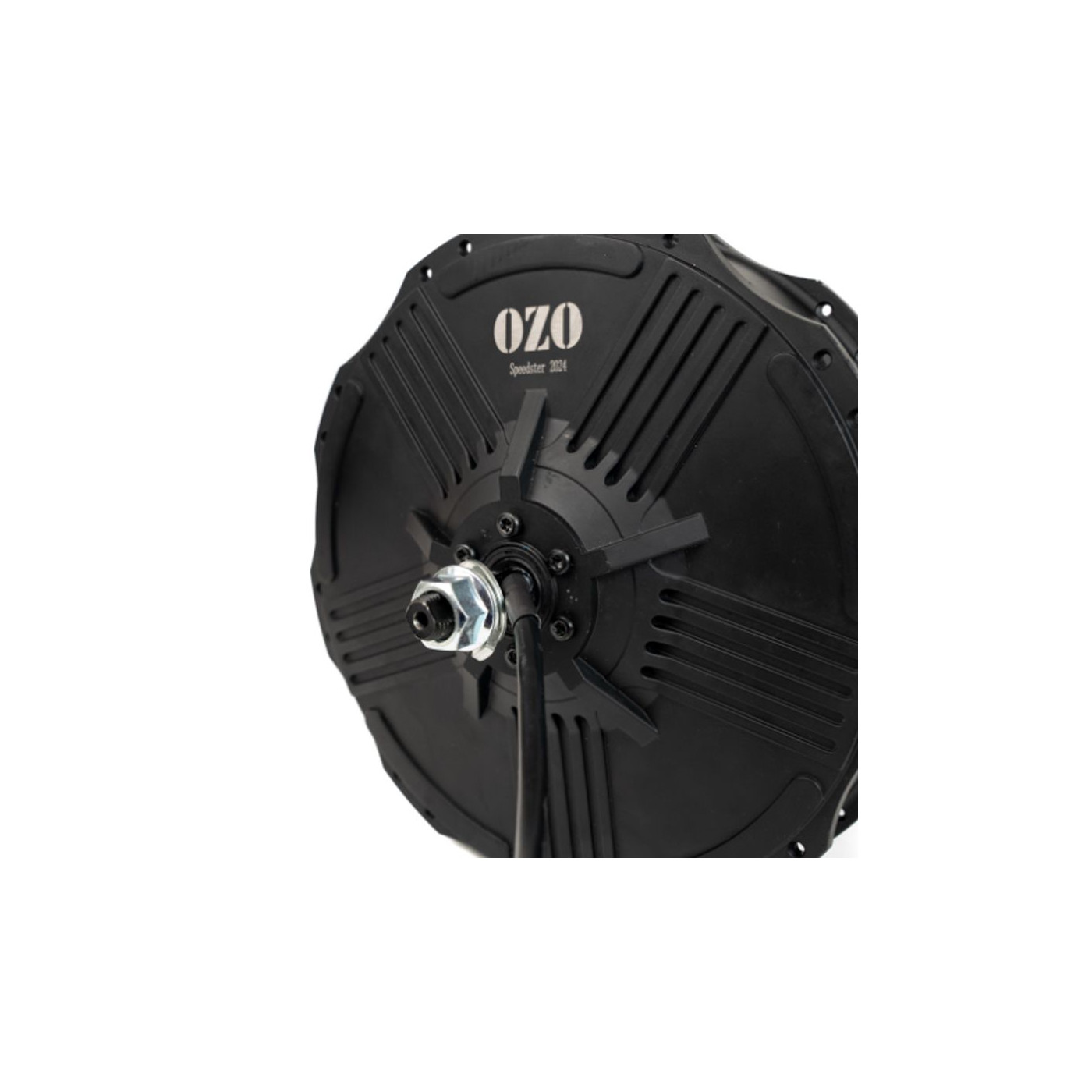

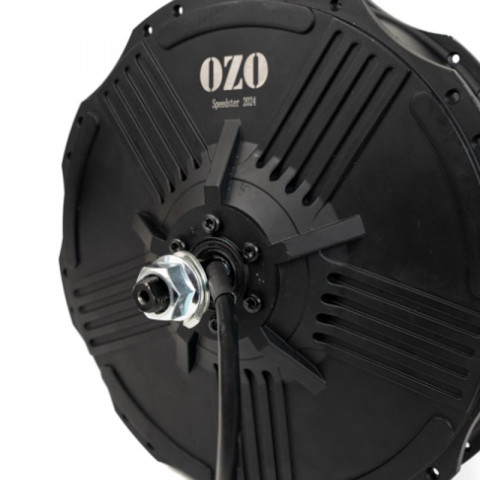

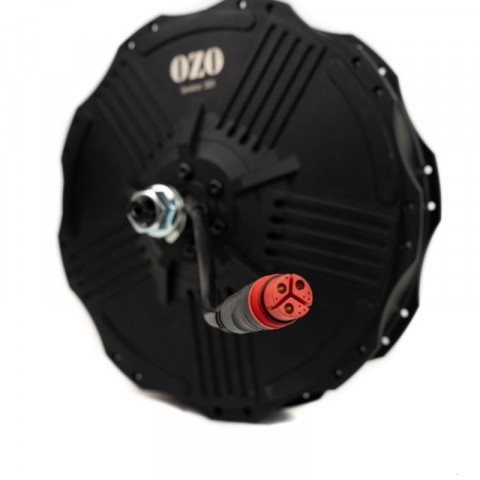

The rear wheel motor RH212 speedster is the best brushless direct drive electric wheel motor for bicycles.

Its modern design and integrated cassette body make it perfectly compatible with modern transmissions up to 10 speeds and large hydraulic brakes.

This direct drive motor is very comfortable thanks to its smooth operation and absolute silence.

This motor works well with both a sensored controller and a sensorless controller, but for maximum efficiency and reliability, we recommend powering it with an OZO 25A or 35A FOC vector control controller.

However, it can accept a higher voltage up to 84V. In this case, you can also choose the OZO 40A controller.

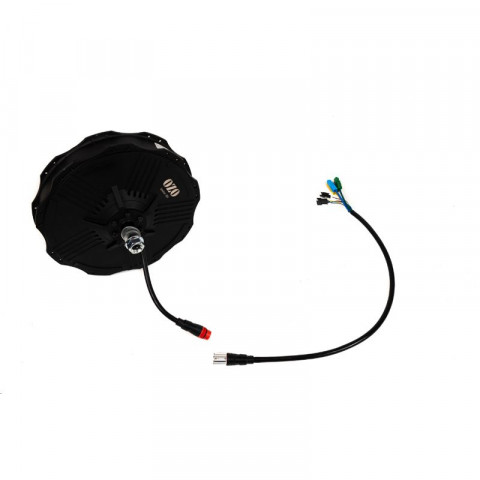

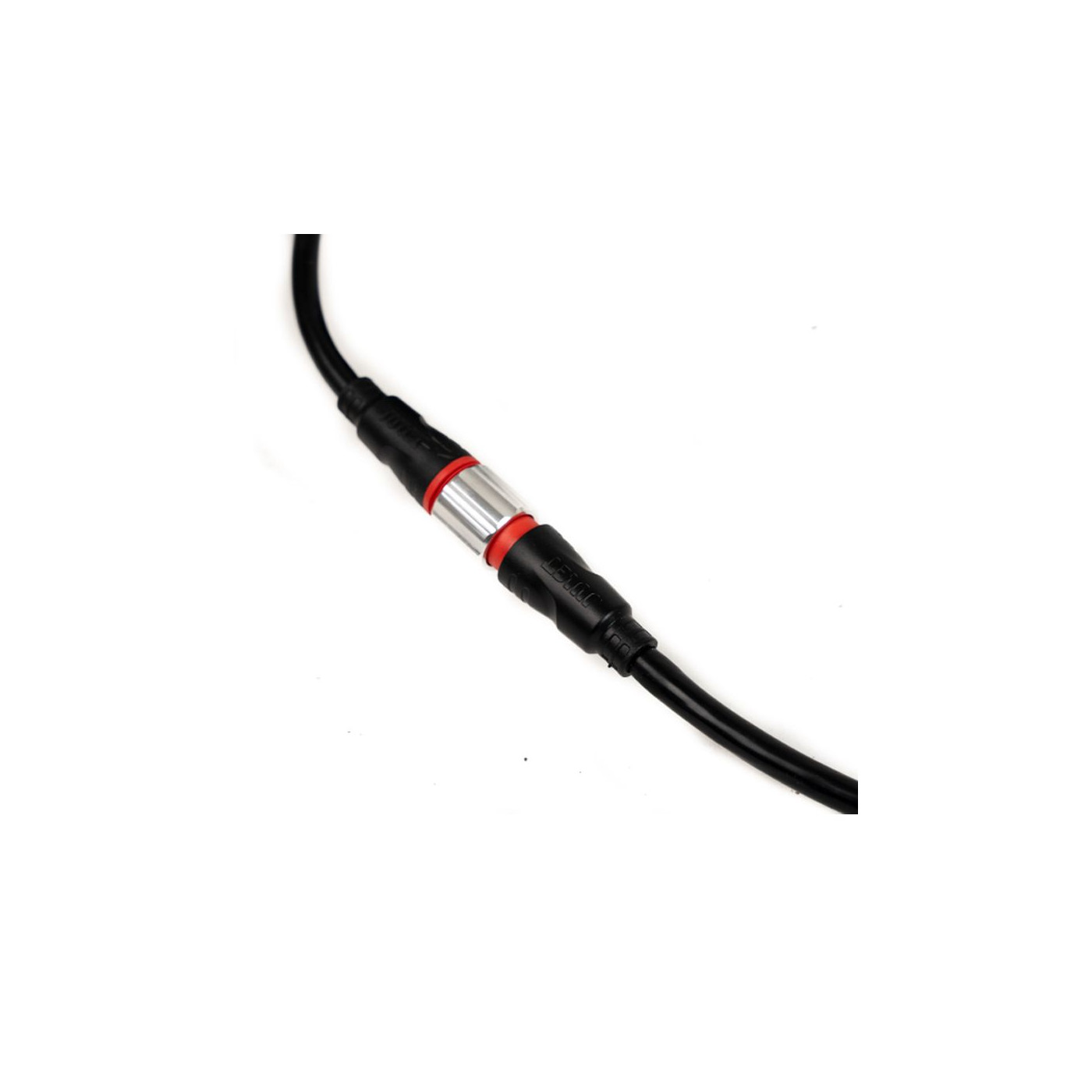

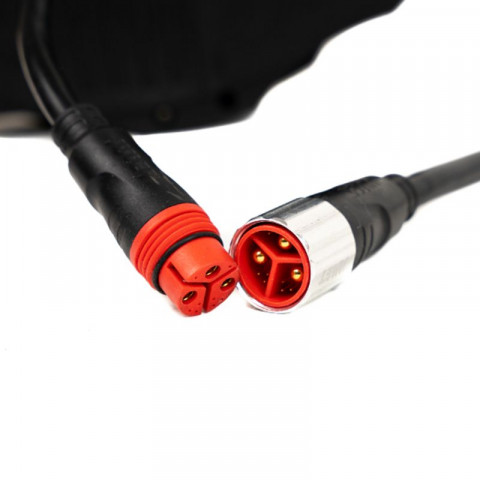

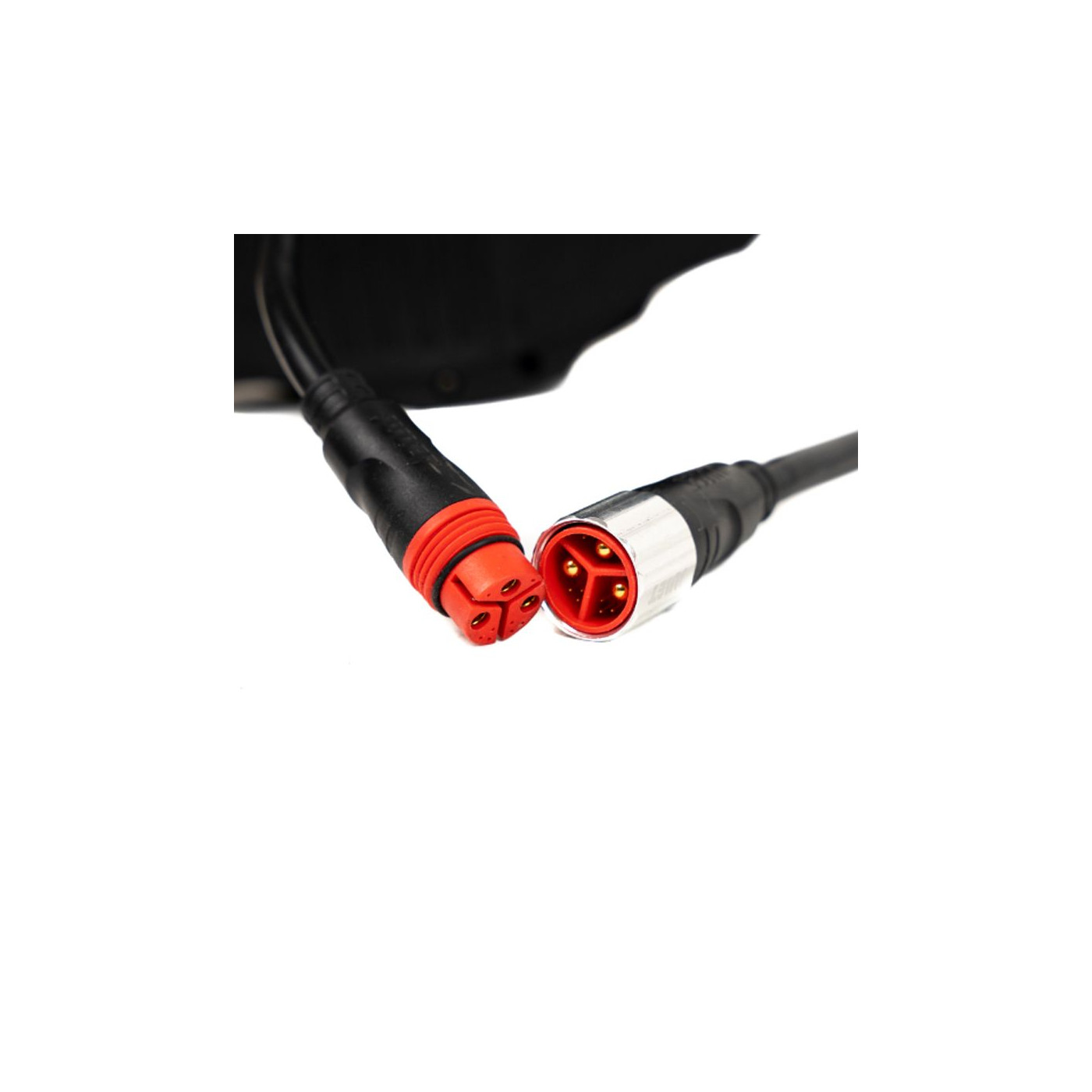

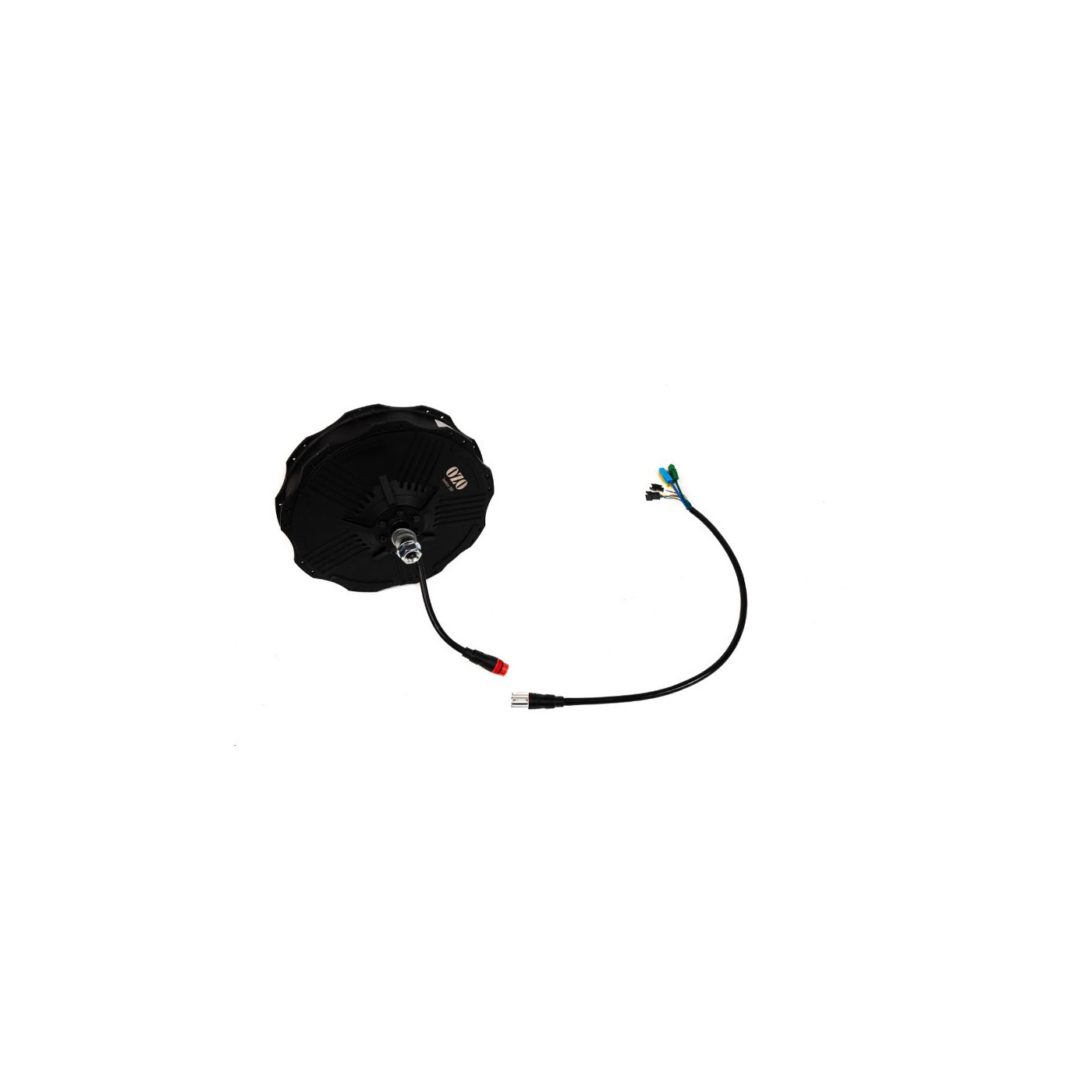

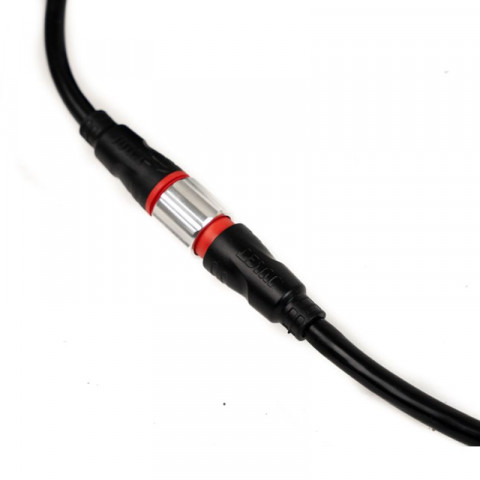

The motor is delivered with waterproof connectors (Julet 1121 female), but we can provide an adapter cable with Anderson and JST connectors to fit all controllers.

temperature sensor (NTC 10KOhm).

Kv of 10 RPM/Volt

Nominal power = 1000W

Max power = 1700W

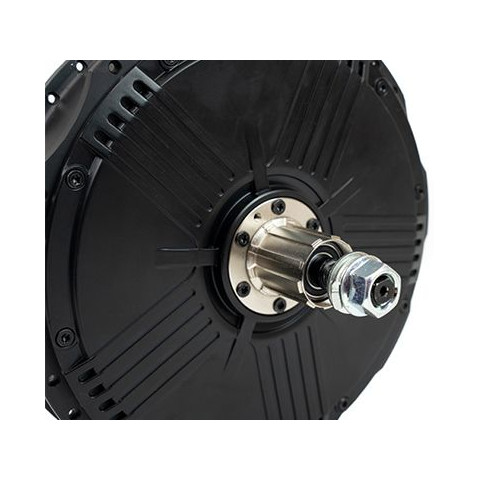

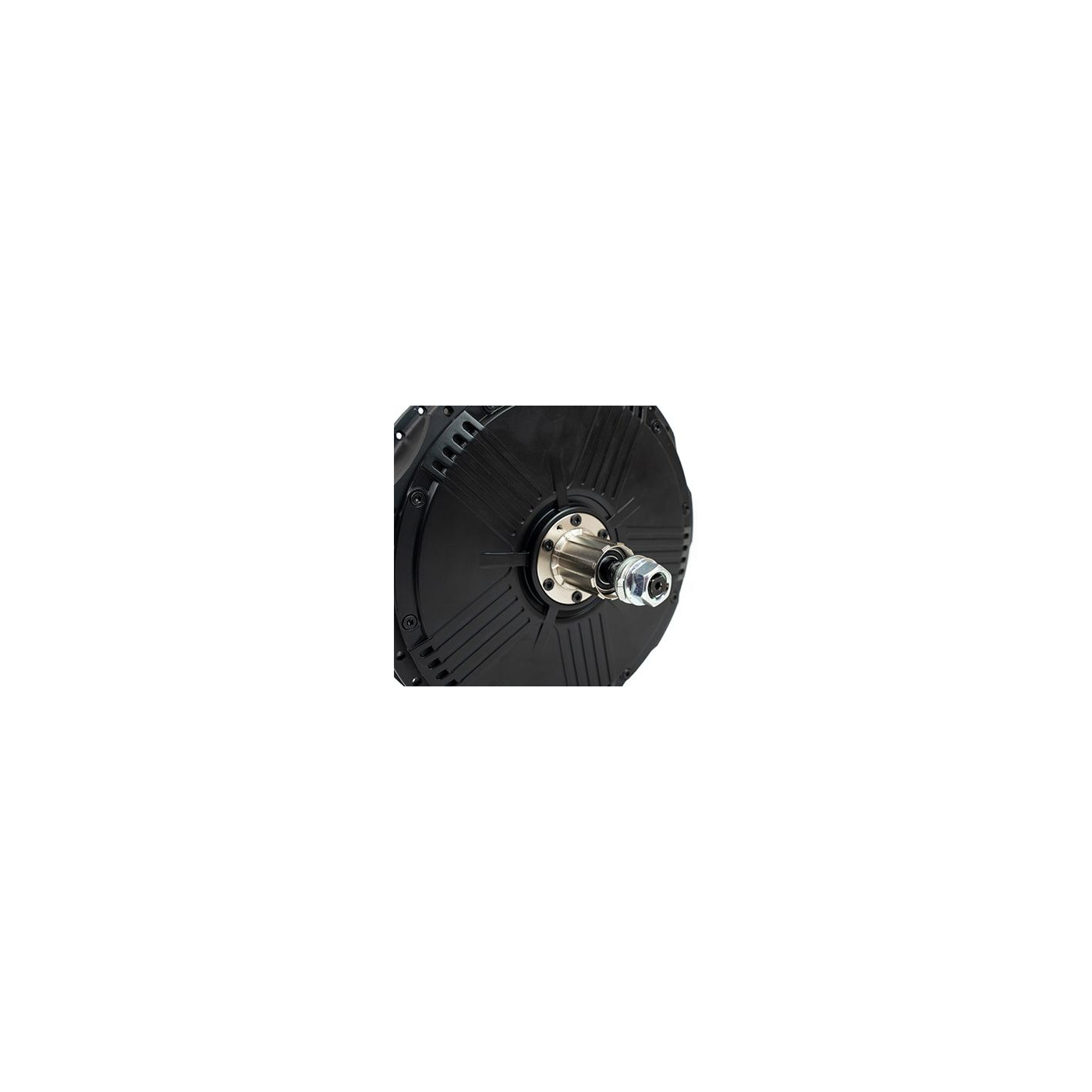

The cassette body is compatible with Shimano and Sram cassettes up to 10 speeds. If your bike is equipped with a 7 or 8-speed cassette, you will need to add cassette spacers. The RH212 speedster motor comes with alignment washers and anti-rotation washers to help center your wheel in the frame.

You can screw your 6-bolt standard brake disc onto the RH212 motor. For bikes equipped with rim brakes, remember to order a rim with surfaced edges like the Mach1 260.

Please note that we do not offer entry-level rims with this RH212 motor due to its high mass. We only offer robust rims. The wheel building will be done by hand in our workshop.

Here are some examples of builds equipped with this motor.
